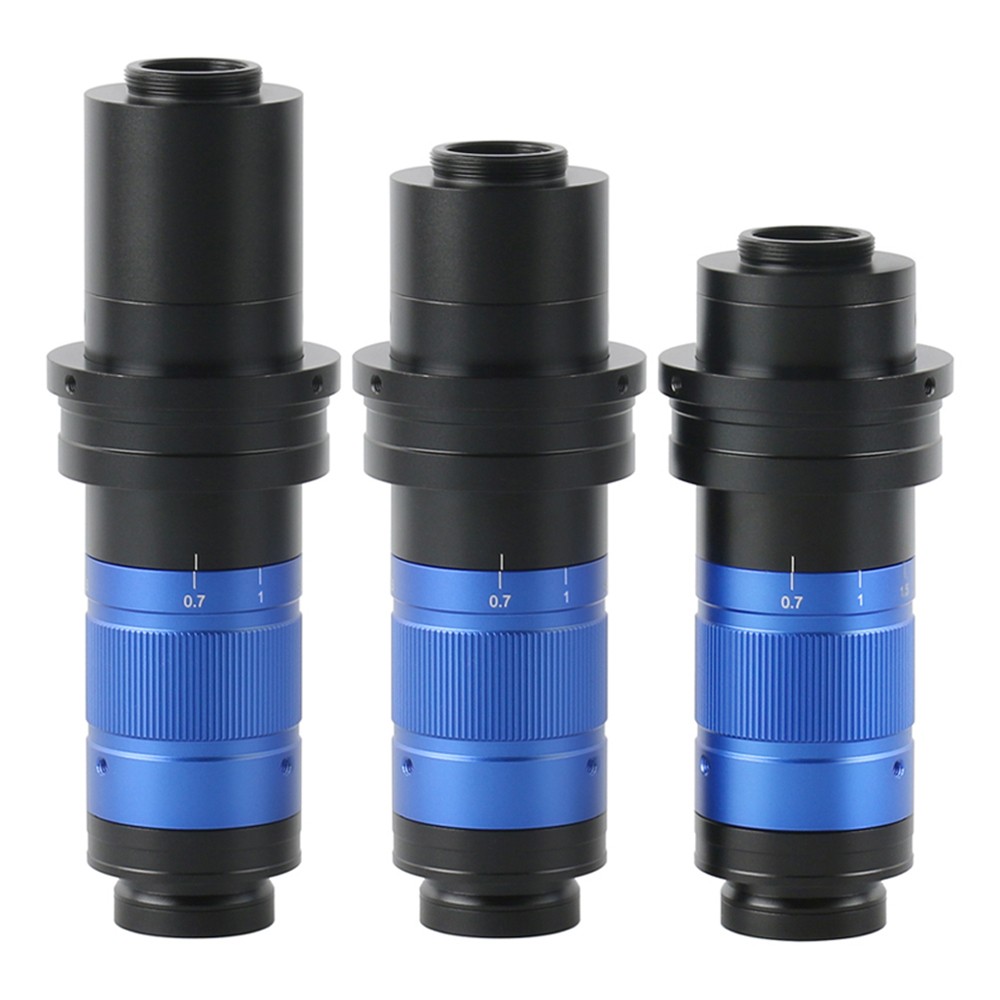

0.7X-5.6X Adjustable Continuous Magnification 300X 450X 600X Zoom C-mount Monocular Lens for HDMI VGA USB Microscope Camera

0.7X-5.6X Adjustable Continuous Magnification 300X 450X 600X Zoom C-mount Monocular Lens Suitable For HDMI VGA USB Microscope Camera

Product Description:

This continuous zoom digital microscope features a zoom ratio of 8X, with high resolution and large depth of field, and can work in the visible and near-infrared bands. It is flexible and convenient to use. When high magnification is required, a high-power auxiliary objective lens or an infinity microscope objective lens can be installed on the lower end of the zoom main body. Different configurations can achieve a magnification range of 0.18X-22.4X and a working distance of 160mm-37.5mm.

Features:

• **Standard Magnification:** 0.7X-5.6X (when used with a 2/3-inch camera and 21-inch display, the digital magnification is 22X-175X)
• **Large Zoom Ratio:** 8X
• **Large NA:** 0.018-0.092 (using 1X auxiliary objective lens)
• **High Resolution:** 18.6um-3.65um (using 1X auxiliary objective lens)
• **Large Image Area:** The maximum adaptable image sensor size: 2/3 inches (using 1X TV lens)
• **Large Field of View:** 0.99mm-31.74mm
• It can be used with infinity microscope objectives
• **Working Distance:**
  • 300X: 80mm-165mm
  • 450X: 75mm-110mm
  • 600X: 80mm-100mm
• **Connector:** CS C mount
• **Zoom:** Continuously variable zoom
• **Magnification:**
  • 0.35X - 2.8X (about 35-300X on the display)
  • 0.525X - 4.2X (about 55-460X on the display)
  • 0.7X - 5.6X (about 75-610X on the display)
• **Fixed Position:** 50mm

Package Includes:

• 1 x FHD Zoom C-mount Lens
