Trinocular Stereo Zoom Microscope 2.1X-180X with WF10X / 20 WF20X / 10 Eyepieces, 0.5X / 2.0X Barlow Lens and Camera

2.1X-180X Trinocular Stereo Zoom Microscope with WF10X/20 WF20X/10 Wide-field Eyepieces 0.5X 2.0X Barlow Lens and Camera

Overview:

This trinocular stereo zoom microscope is designed for a wide range of applications, including biology, chemistry, and material science. It features a 2.1X-180X zoom objective, WF10X/20 and WF20X/10 wide-field eyepieces, and a 0.5X 2.0X Barlow lens. The microscope also comes with a 40 mp camera, LED ring light, and a dual-arm bracket.

Features:

• Optical Enlargement:** **2.1X-180X**
• Eyepiece:** **High eyespots wide-field eyepiece WF10X/20,WF20X/10**
• Zoom Objective:** **0.7X-4.5X**
• Viewing Head:** **Trinocular stereomicroscope view head inclined at 45°**
• Pupil Distance Adjusting Range:** **54mm-76mm**
• Working Distance:** **30mm-287mm**
• Auxiliary Lens:** **0.3X/287mm,0.5X/165mm,2X/30mm**
• Focusing Bracket:** **Focusing handwheel tightness is adjustable, lifting range 50 mm**
• Dual Arm Bracket:** **Lifting range:275mm, base column 210*260*51mm, lens diameter 32mm, lens aperture 76mm, vertical height 380mm, horizontal movement 235mm**
• LED Light Source:** **LED Qty 144, Internal diameter size 64mm, Diameter size 94mm, Input voltage AC90—240V, Maximum output power 4.5W, Voltage 12V0.5A**
• Camera Eyepiece Interface:** **Dedicated interface 1XCTV /0.5X CTV**
• Camera Sensor:** **40 million pixels CMOS Sensor**
• Optical Format:** **1/2.33 inch**
• Pixel Size:** **1.335µm×1.335µm**
• Interface:** **HDMI(Type A)、USB(Type B)、TF Card**
• Image Resolution:** **8432*4744 (for TF Card), 1920x1080(for TF Card)**
• Video Record Resolution:** **2K@30FPS,1080p@60FPS**
• HDMI Resolution:** **1920*1080p 60FPS**
• HDMI Proportion:** **Support 4:3, 16:9, 16:10 screen**
• USB2.0(Drive free):** **1920*1080@30 1280*720@30 640*480@30**
• TF Card:** **MAX 64GB**
• Exposure:** **Automatic/manual exposure can be set to set the exposure value**
• Sharpness:** **1-24 manual adjustment**
• Saturation:** **1-24 manual adjustment**
• Contrast:** **1-24 manual adjustment**
• Playback:** **Support picture playback**
• Cross Line:** **8 lines. Can set color and width and position**
• Zoom Mark Line:** **2 lines**
• Dotted Line:** **2 lines. Can set color and width and position**
• Black and White:** **Support**
• Negative Film:** **Support**
• Flicker:** **50HZ,60HZ**
• Horizontal Mirroring:** **manual adjustment**
• Vertical Mirroring:** **manual adjustment**
• Language:** **English/Simplified Chinese**
• Digital Zoom:** **Support 7X**
• Playback:** **Pictures and videos**
• Voltage:** **DC 12V (5-19V)**
• Power Consumption:** **MAX 0.15W (12V,0.12A)**
• Lens Interface:** **C/CS**

**Summary:**

This microscope offers a high magnification range, high-quality images, and a range of features for advanced microscopy applications.

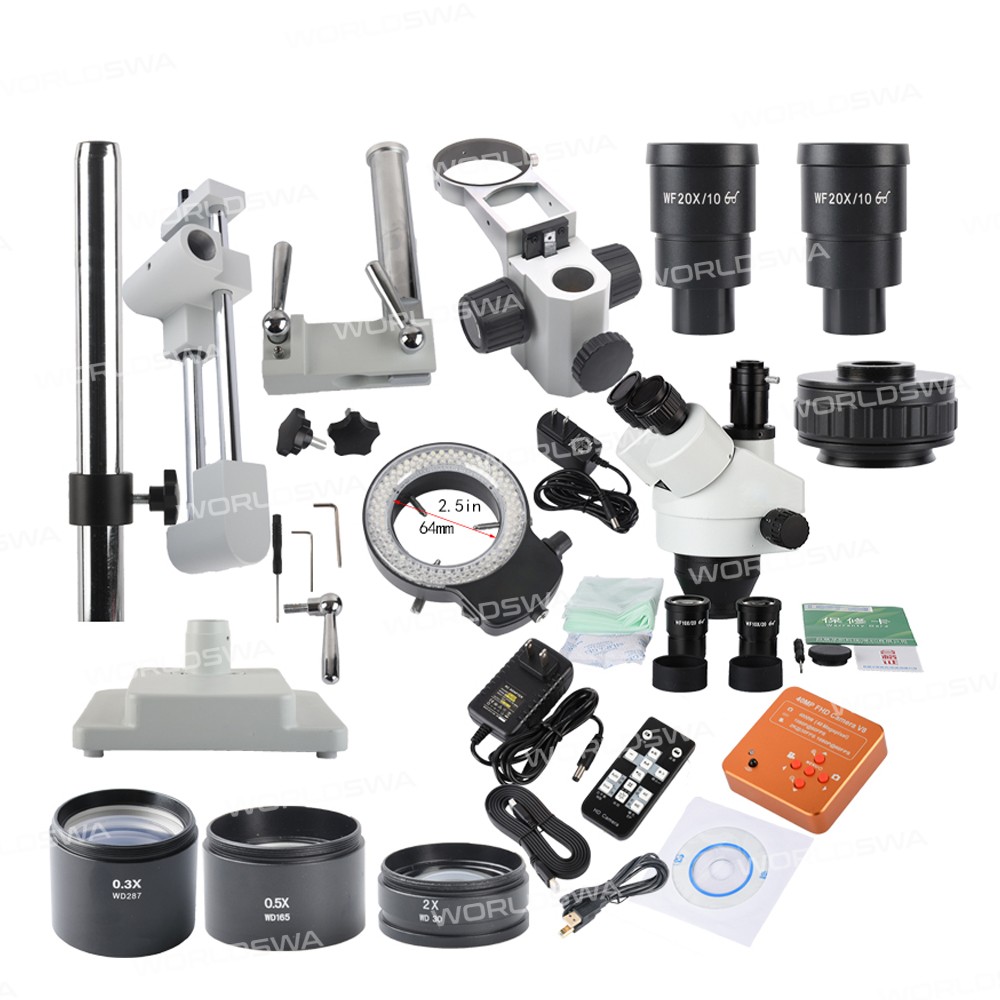

Package Includes:

• 1 x Eyepiece WF10X/20
• 1 x Eyepiece WF20X/10
• 1 x Focus rack
• 1 x Eye guards
• 1 x 0.7X-4.5X Trinocular zoom objective
• 1 x LED ring light
• 1 x Pillar stand and Base Plate
• 1 x Dust cover
• 1 x 0.3X Auxiliary lens
• 1 x 0.5X Auxiliary lens
• 1 x 2X Auxiliary lens
• 1 x Dual-arm bracket
• 1 x 40 mp microscope camera
• 1 x HDMI high definition line
• 1 x USB data line
• 1 x The camera power adapter
• 1 x Remote control
• 1 x Dedicated interface 0.5X CTV
