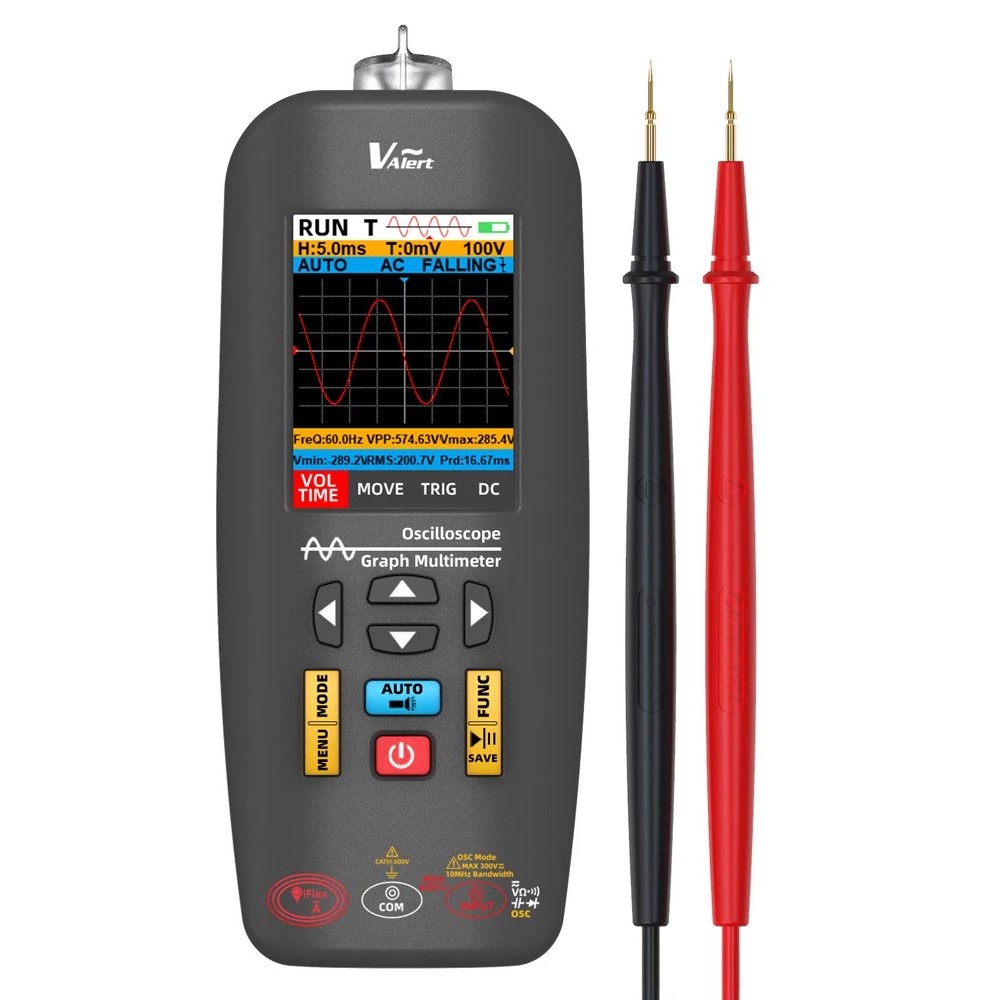

"Uni-T 3-in-1 10Mhz 600V Handheld High-Precision Oscilloscope & Graphical Multimeter"

3-in-1 10Mhz 600V Handheld High-Precision Oscilloscope Graphical Multimeter

Product Overview

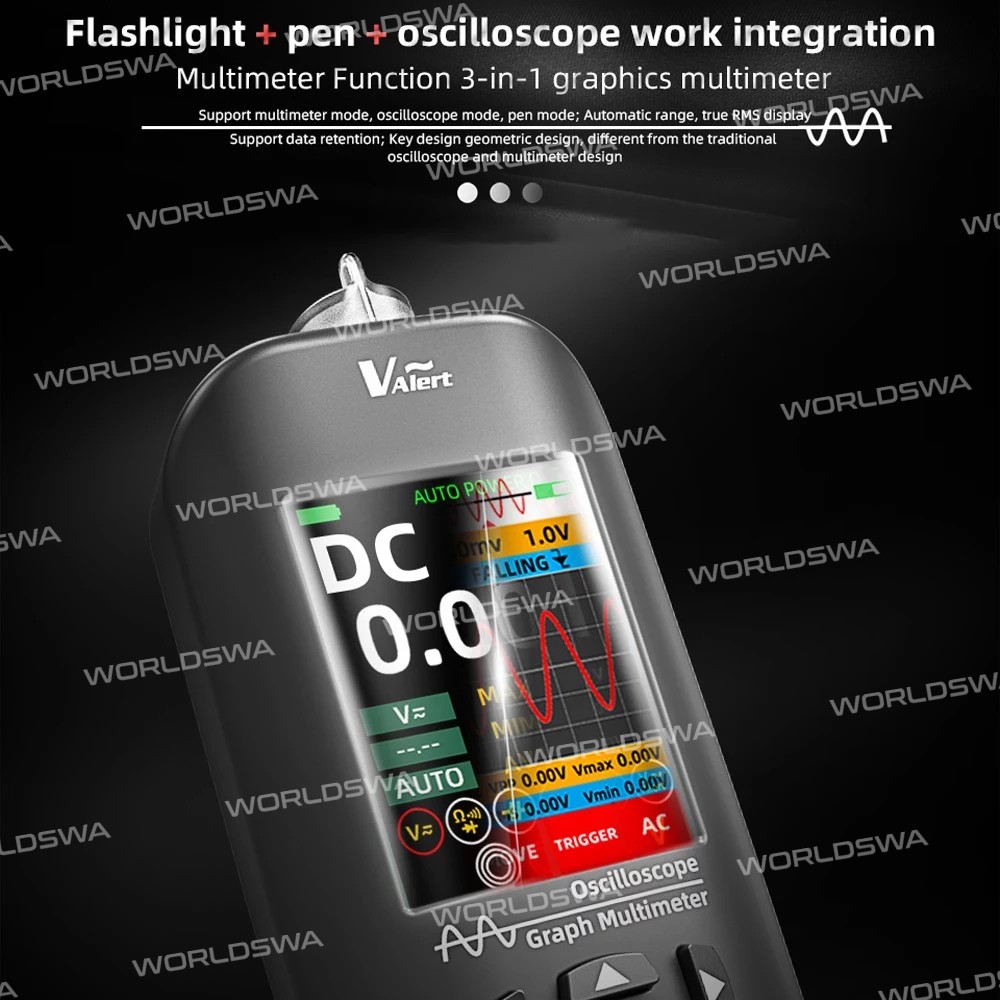

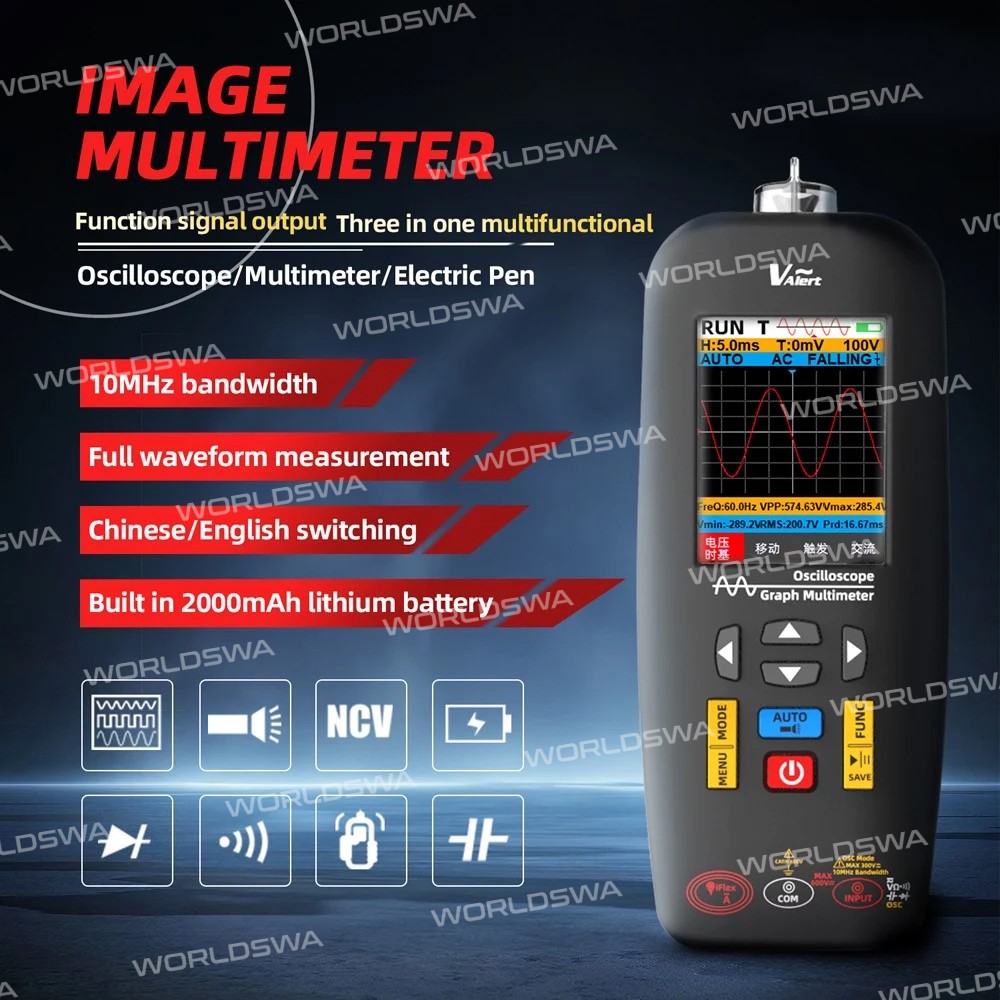

This 3-in-1 handheld oscilloscope graphical multimeter is a multifunctional device that combines the functions of an oscilloscope, electrical test pen, and auto-range multimeter. It can detect whether a circuit is energized, measure various electrical parameters, and capture waveforms, making it an essential tool for electrical testing and debugging.

Key Features:

• Auto-ranging, 6000 count true RMS measurement, data hold, and automatic shutdown functions

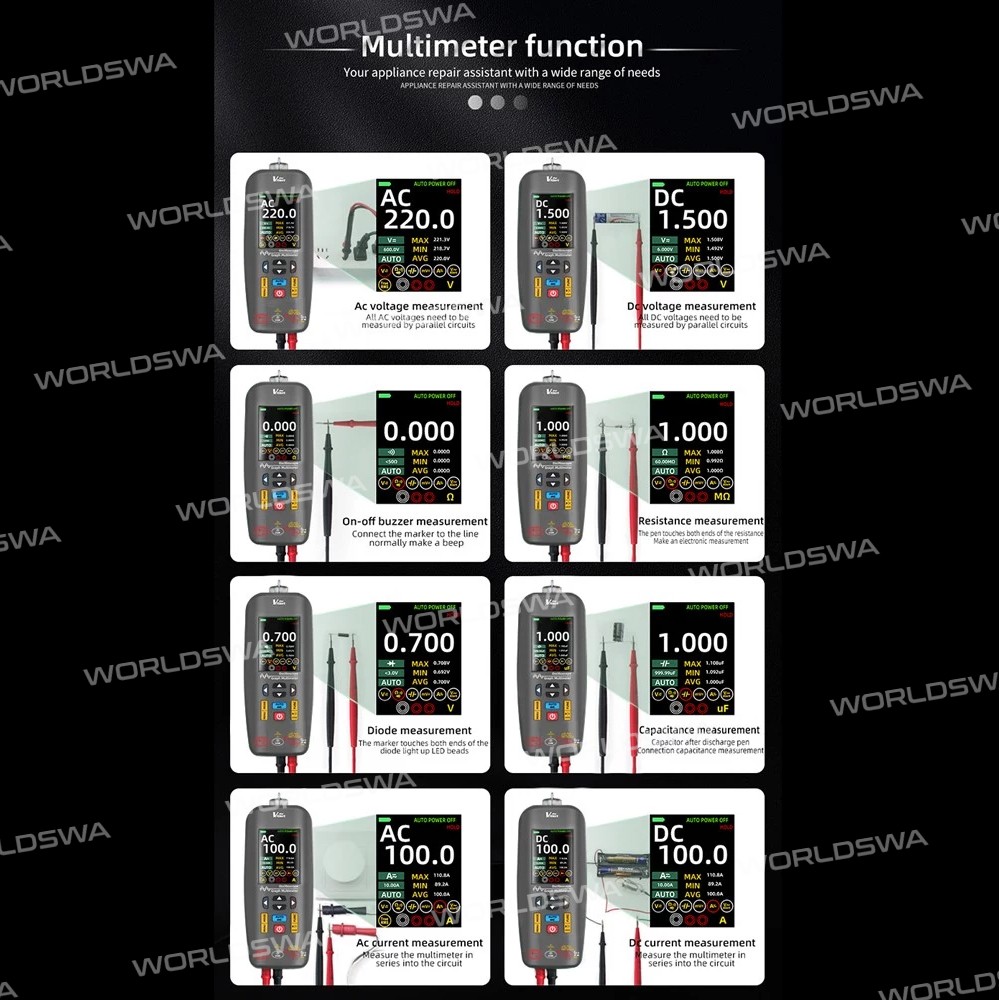

• Supports voltage, resistance, capacitance, diode, current, and frequency tests

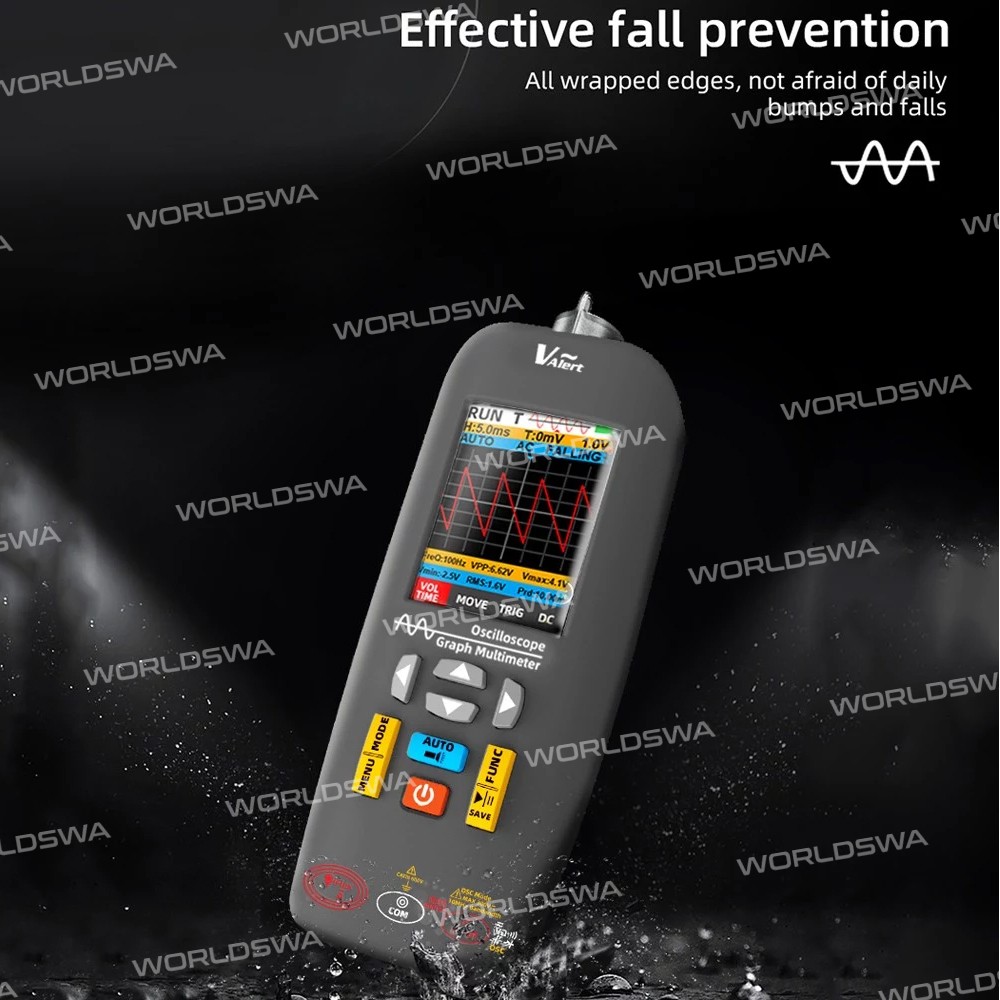

• Compact and portable body design with a simple and elegant appearance

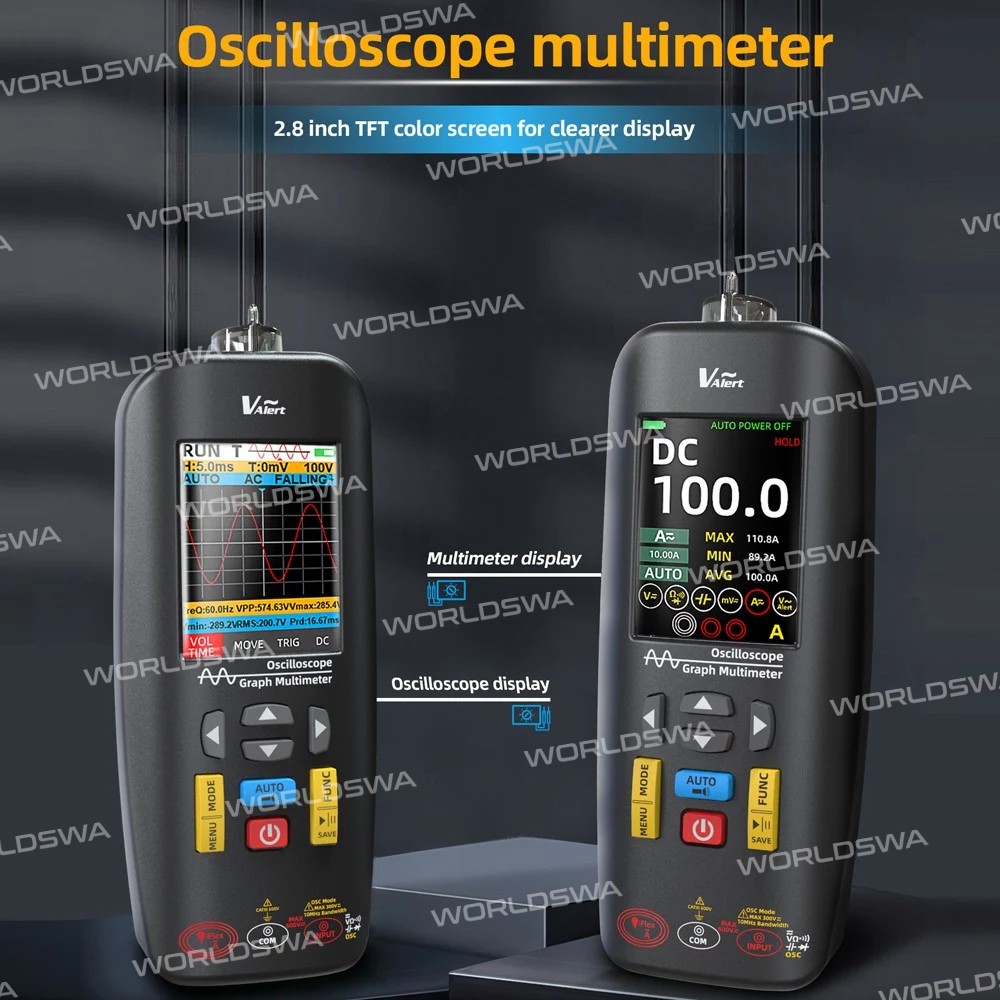

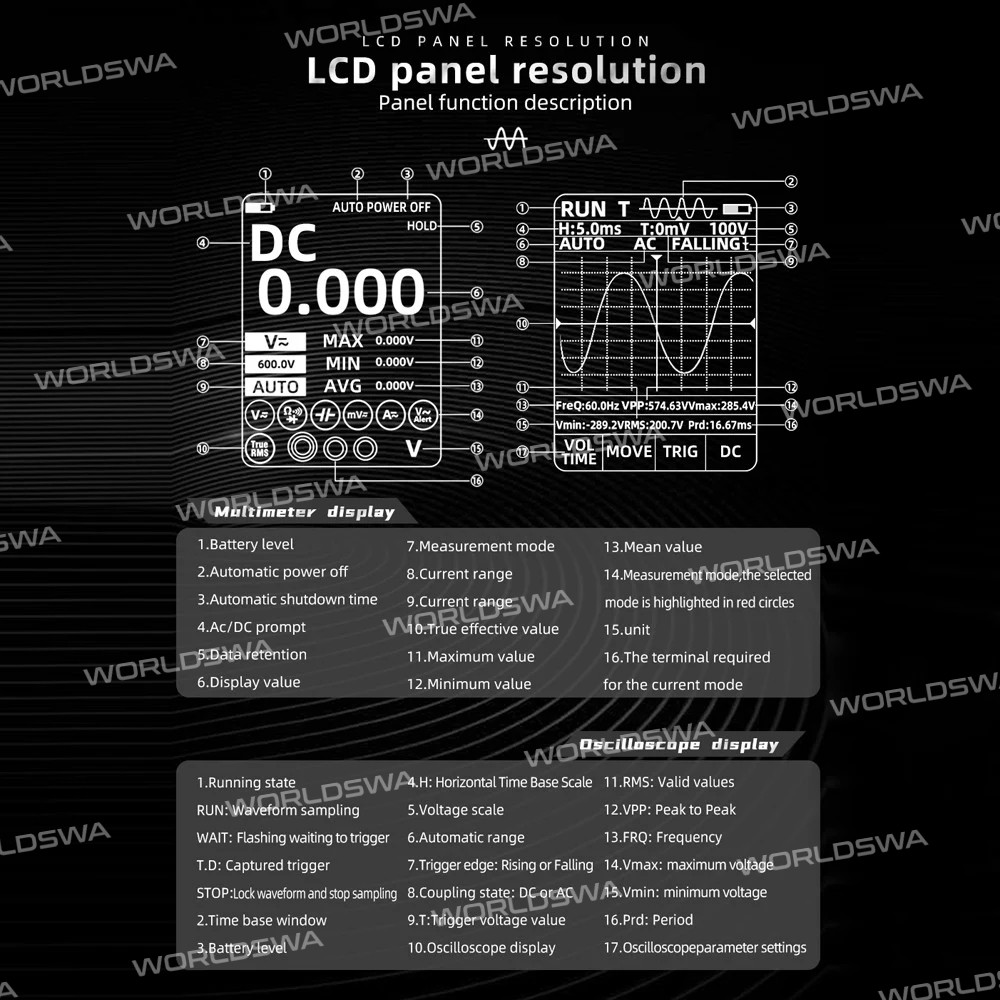

• High accuracy 2.8-inch TFT color display with large font design
• 10MHz bandwidth, 48NSa/S real-time sampling rate, and auto-tuning measurement waveform display

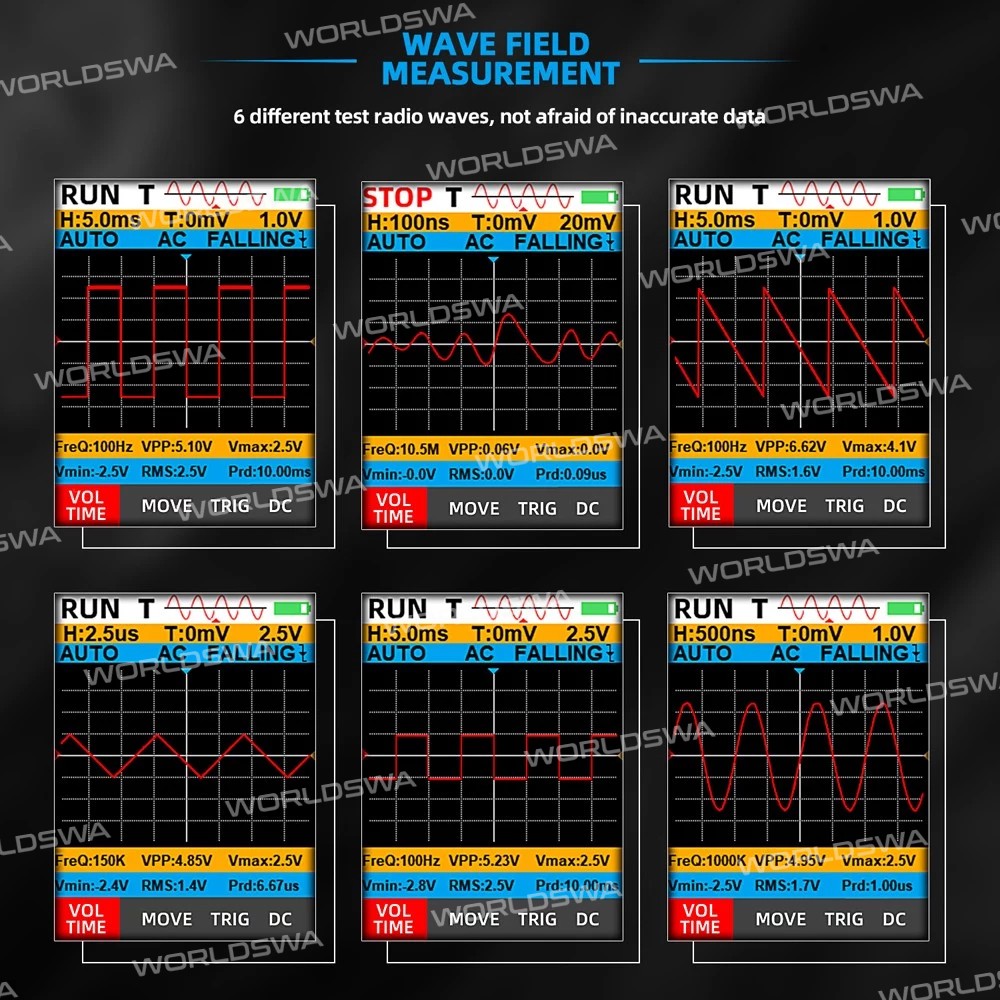

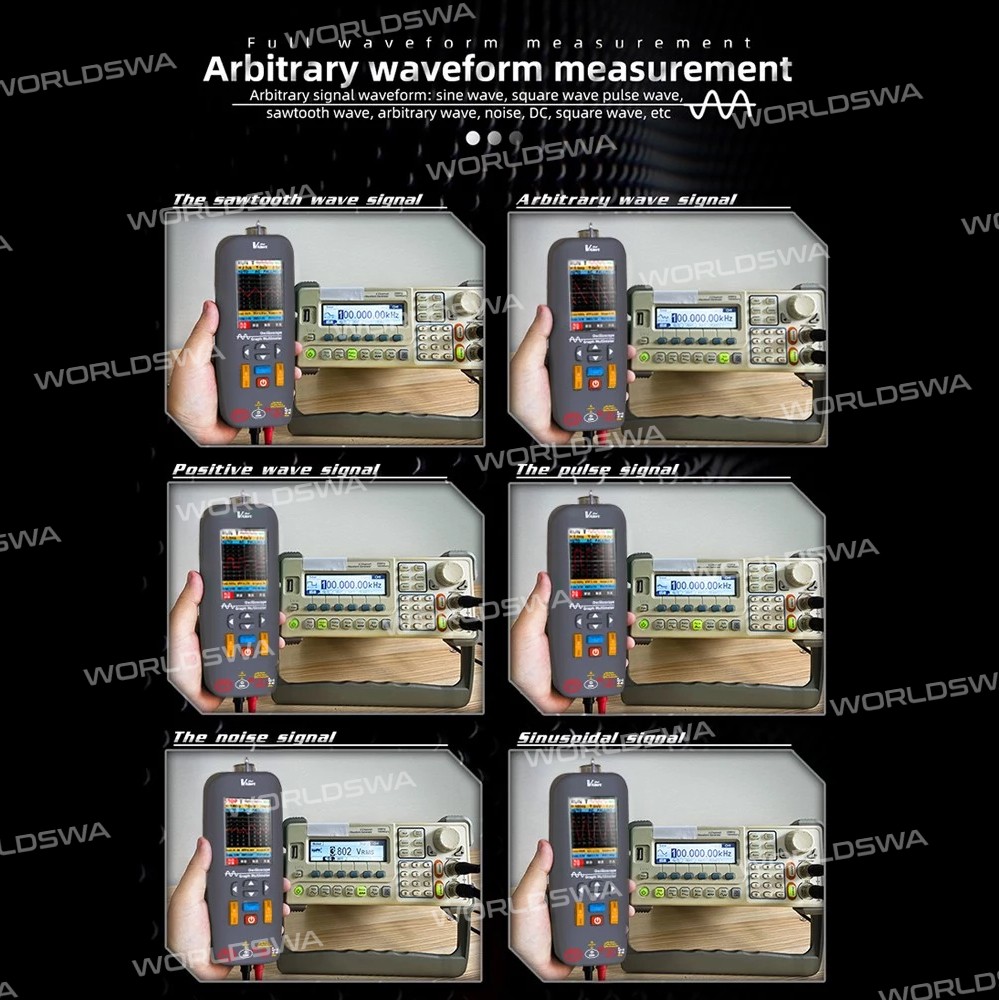

• Automatic waveform capture function with three trigger modes and two trigger edges

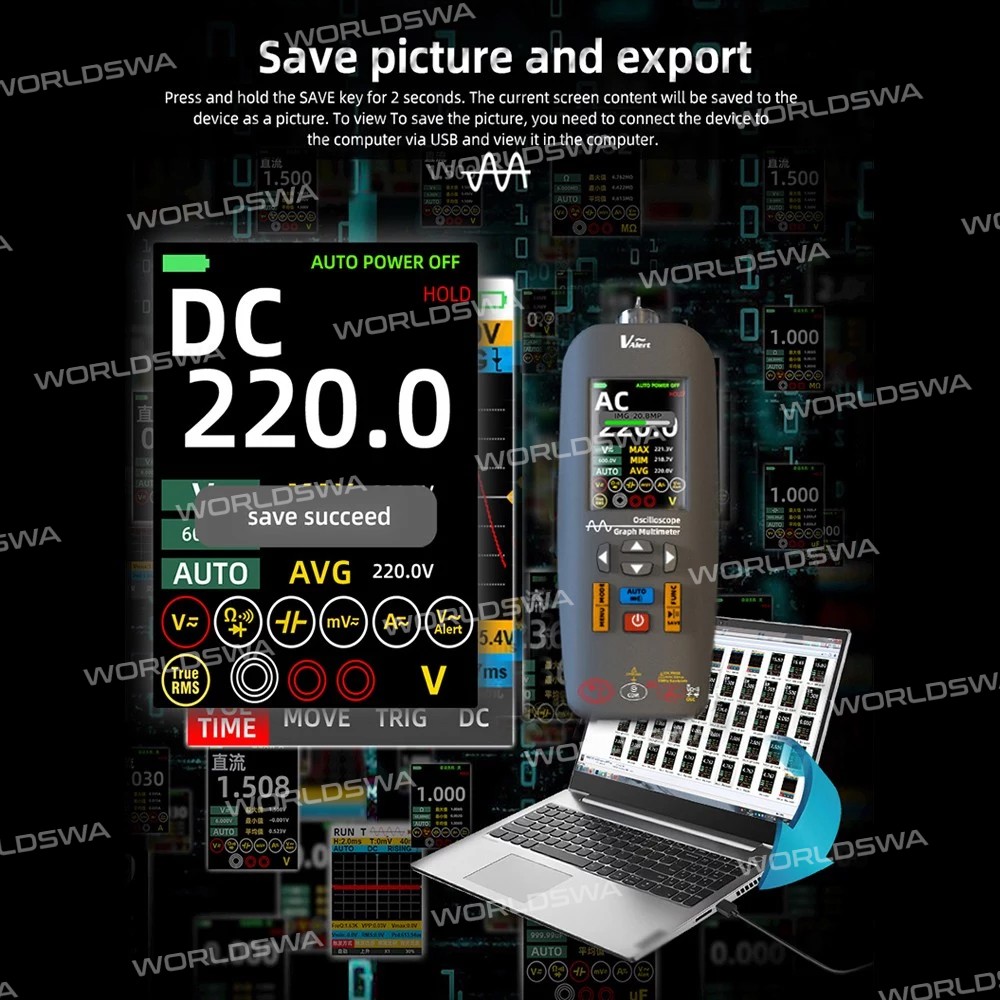

• Supports Chinese and English interface switching and screenshot function

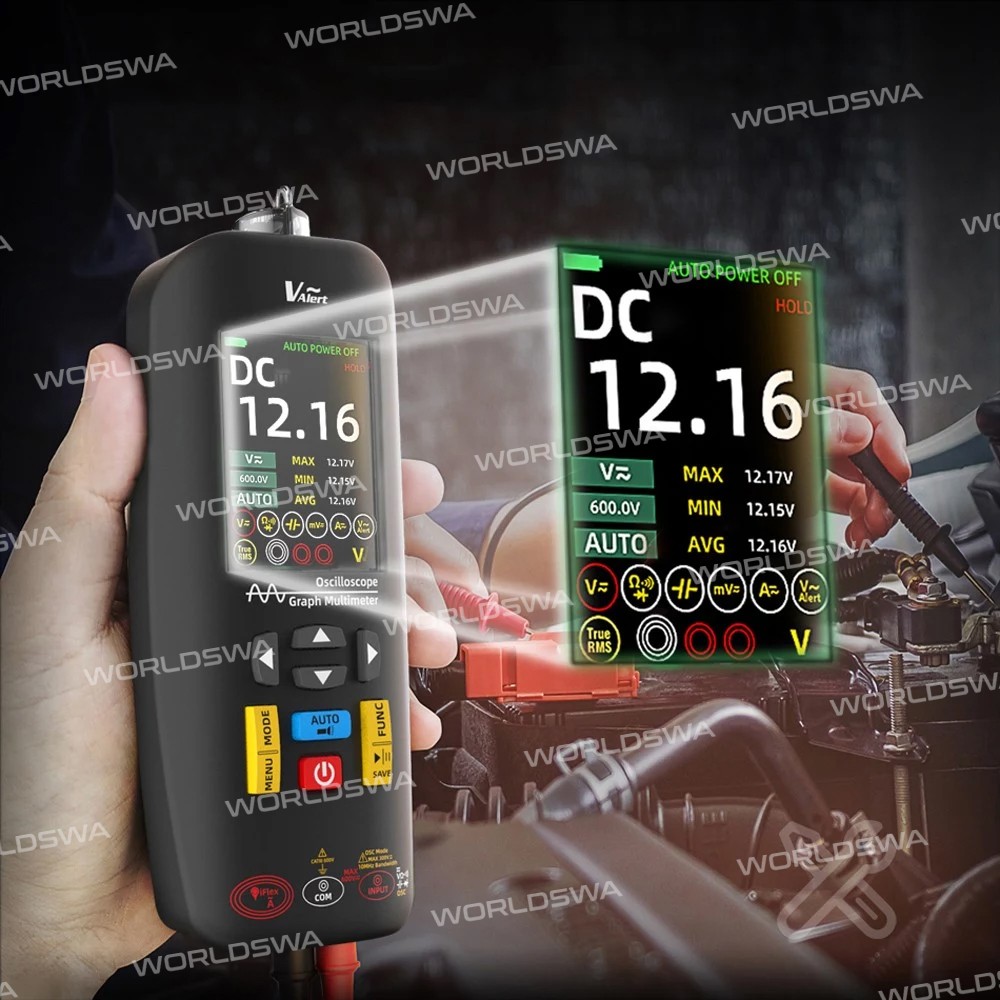

• **Summary:** This 3-in-1 multimeter is a versatile tool for electrical testing, debugging, and repair, suitable for use in various fields including electronics, communications, and automotive industries.

Specifications:

• Name: 3-in-1 Multimeter

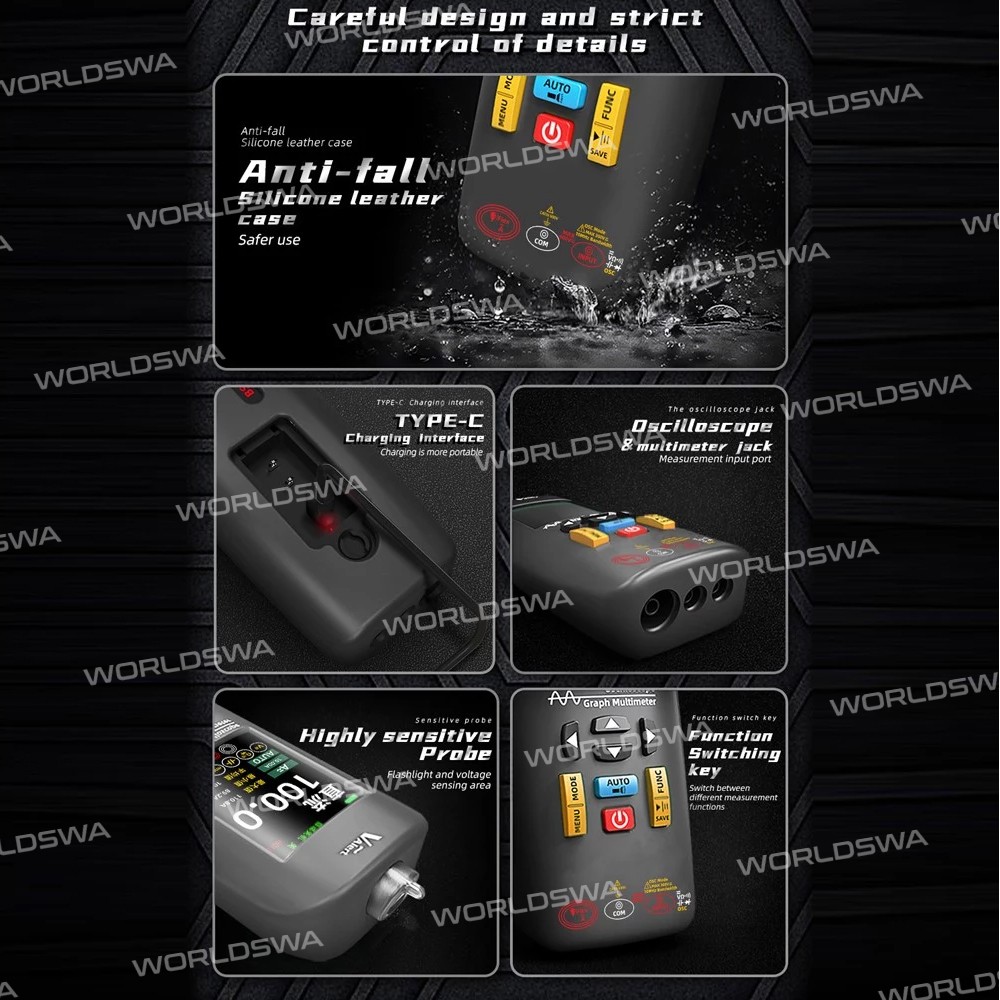

• Material: Plastics + Silicone

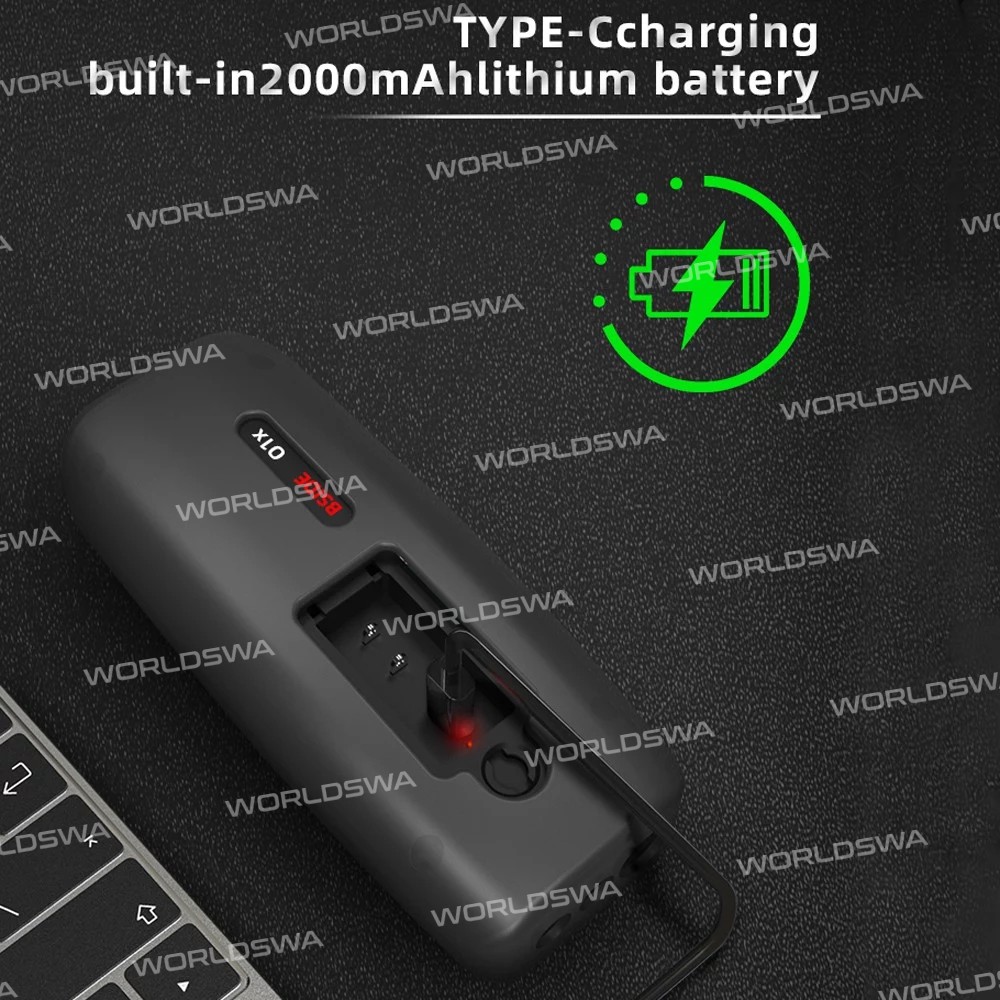

• Battery: Built-in 2500mAh battery

Oscilloscope Parameters:

• Bandwidth: 10ΜΗz
• Sampling frequency: 48MSa/s
• Impedance: 1ΜΩ
• Ratio: ×1, ×10
• Max voltage: ±300V
• Horizontal: Sampling rate: 1.5Sa/s~48MSa/s, Sweep: 100ns/div~20s/div
• Time base accuracy: 20ppm
• Sampling depth: 64KB
• Vertical: Sensitivity: 200mV/div-100V/div, Low-frequency response: > 10Hz
• Sampling depth: <10ns, Gain accuracy: ±3%
• Measure: Automatic measurement: Frequency, period, maximum, minimum, RMS value, etc.
• Trigger mode: automatic, normal, single shot
• Trigger edges: rising edge, falling edge

Multimeter Parameters:

• DC Voltage: 0.1mV~600V, 0.01mV, ±(1.0%+5)
• AC Voltage: 0.1mV~600V, 0.01mV, ±(1.2%+5)
• DC Current: 0.001A~10A, 0.001A, ±(1.2%+3)
• AC Current:0.001A~10A, 0.001A, ±(1.2%+3)
• Resistance: 0.1Ω~60ΜΩ, 0.1Ω, ±(1.2%+5)
• Capacitance: 0.01nF~99.99mF, 0.01nF, ±(5.0%+10)
• Flexible electricity current clamp current: 600.0A (60mV signal) 6000A(600mV signal), 0.1A, ±(1.0%+5)
• Diode: 0.000V~3.000V
• Continuity: If the resistance ＜50Ω, the buzzer sounds
• Max display: 6000
• Auto power off: 10/30/60min or not to shut down
• Saving imaging's: Yes
• Hold: Yes
• V-Alert: Yes

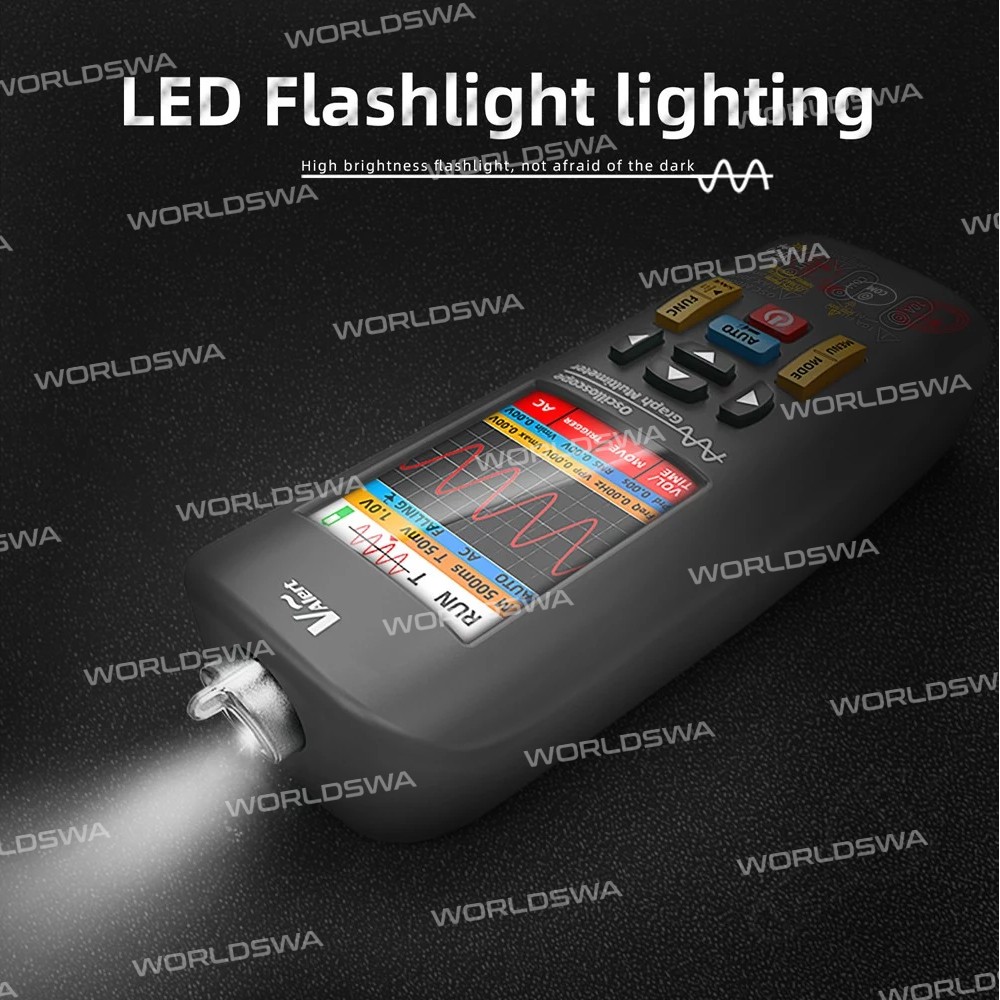

• Flashlight: Yes

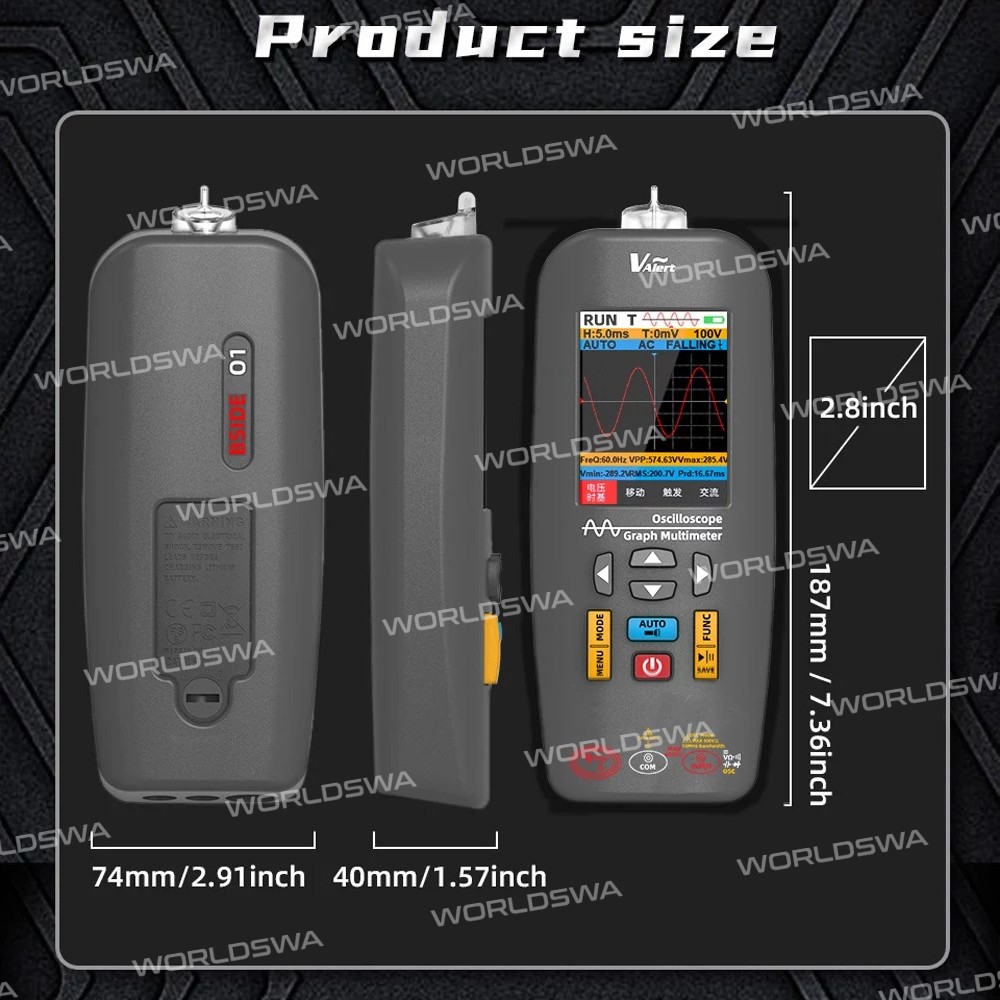

• Item size: 187*74*40.5mm
• Item weight: 209g
• Package size: 232*130*52mm

Package includes:

• 1 x Meter
• 1 x Pair of Test Pen
