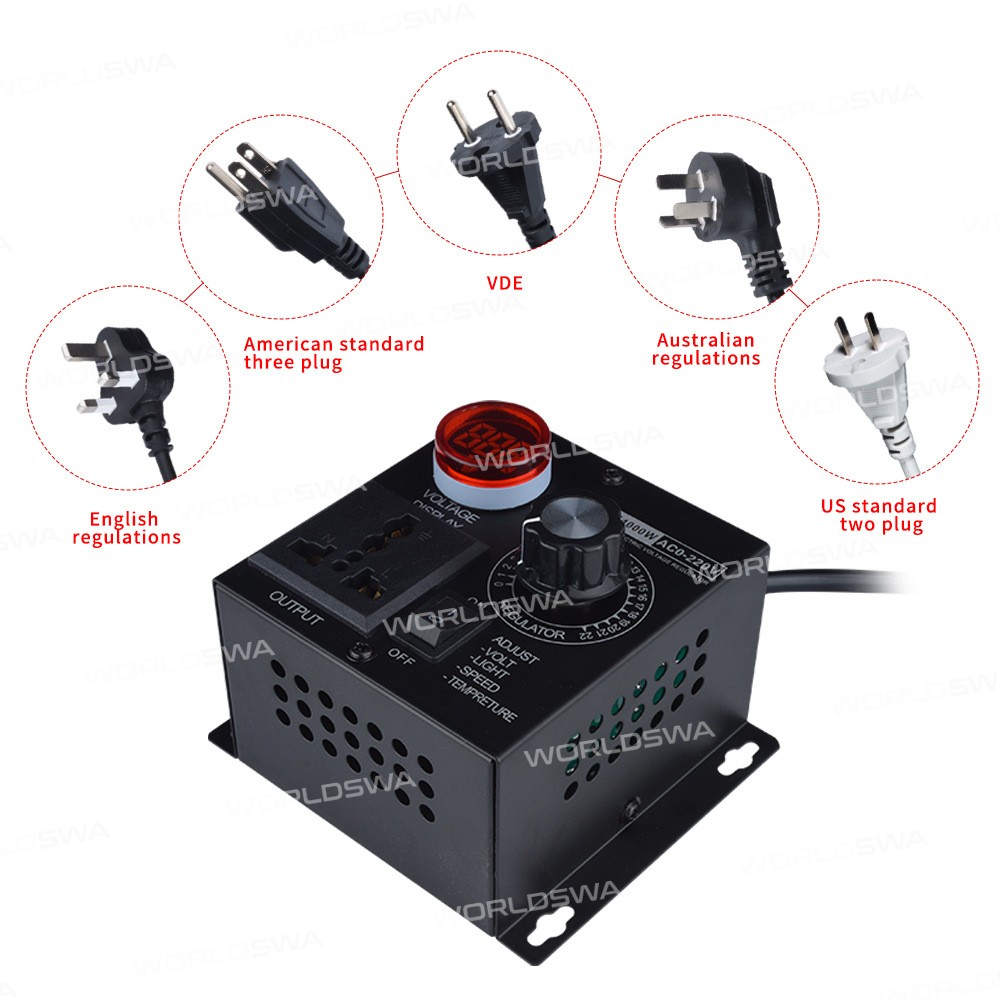

4000W Silicon Controlled Electronic Voltage Regulator with Digital Display

4000W Silicon Controlled Electronic Voltage Regulator with Digital Display

Product Overview

This fine quality high power SCR voltage regulator features stepless regulation, allowing you to adjust speed, temperature, voltage, and light with ease. Its mini size, portability, and lightweight design make it strong and easy to use.

Key Features:

• High-Power SCR Voltage Regulator with stepless regulation for adjusting speed, temperature, voltage, and light.
• Adopt high-temperature resistant FR-4 circuit board, origin imported chip SCR, full aluminum thermal fin, precision resistance with high voltage condenser.
• Separate switch control for freely controlling input power and cut-off power.
• No postponement and no delay with a crest voltage absorb circuit to protect the high-power SCR effectively.
• Multi-Protection including anti-surge, anti-spike, RC absorb, and multiple protection.
• Flame retardant insulation nutshell, high-temperature resistant, rustproof, anti-high pressure, and with fine durability.
• Adopt multi-functional industrial sockets, thicken copper part design, with fine contact and safety.
• Humanized installation hole design, allowing you to keep it flat or hang it as you prefer.
• Silent and Energy-Saving with stable anti-noise and a wide range of use.
• Suitable for electrical components, such as electric stoves, water heaters, heat transfer lamp dimming, small motors, electric soldering temperature, etc.

Specification:

• Name: SCR Voltage Regulator
• Model: NHT-4000W
• Material: Aluminum
• Color: Black
• Input voltage: AC 220 V
• Output voltage: 0~220 V
• Max power: 4000W
• Voltage adjusting range: 0-220V
• Main machine size: 115*100*83mm

Package Includes:

• 1 x SCR Voltage Regulator

Notes:

• When measuring the output voltage when it is empty, it is a virtual voltage. It must be connected to a load of 20W or more to measure the correct output voltage.
• Input AC power, the output is also AC, not DC.
• The above-mentioned 4000W refers to the ultimate power when working under a resistive load.
• The inductive load is 13 of the resistive load. The resistive load means that the inductive load such as a tungsten filament lamp or a heating wire is a series-excited motor, etc., and the circuit board electronic products are used with caution.
• This product is a metal case and must be grounded safely.
