4A Mini DC-DC Buck Converter, 4.5V-16V Input to 3.3V / 5V Output
0 out of 5 stars
No review yet| Qty | Price | Discount |
|---|---|---|
| 1 | NaN | |
| 3 | NaN | -2.4% |
| 5 | NaN | -4.8% |
| 10 | NaN | -7.1% |
Product details
Description

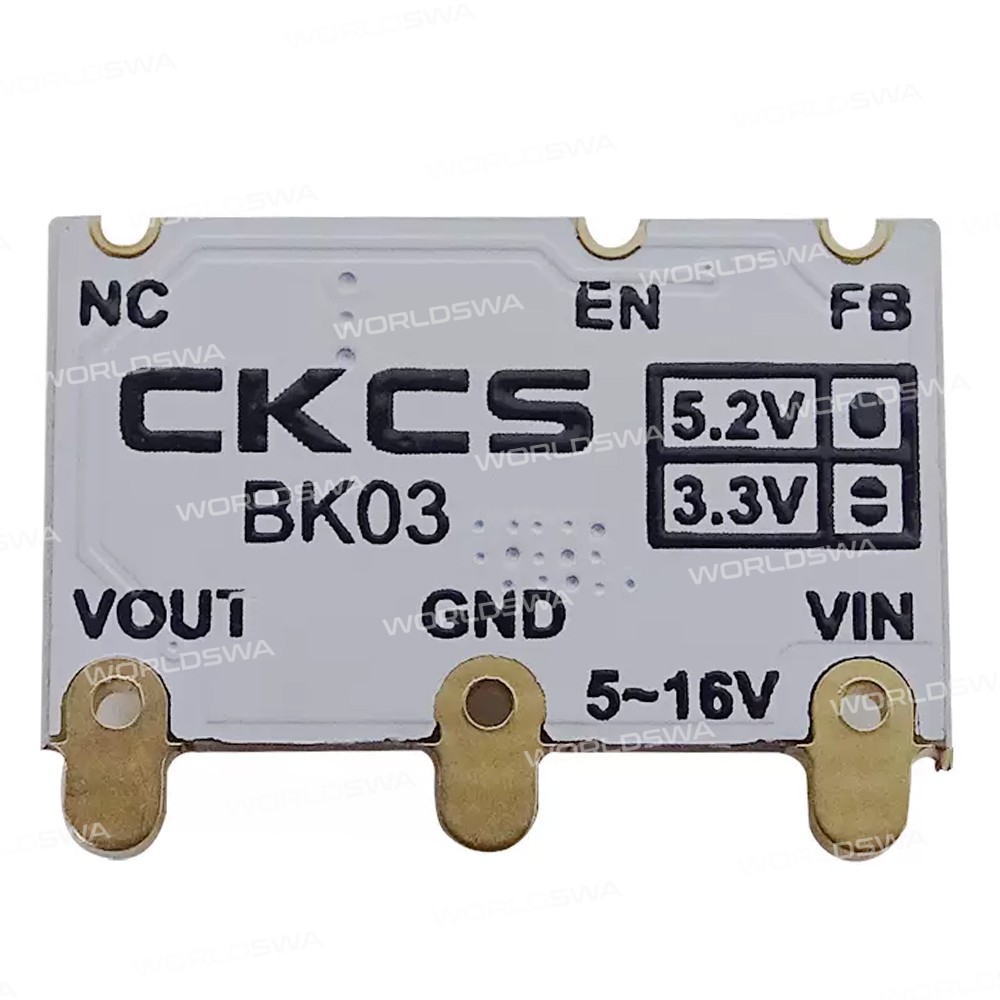

4A Mini DC-DC Buck Converter 4.5V-16V to 3.3V/5V
Features:
- Ultra-high conversion efficiency, luxury materials, 2 ounces of copper + immersion gold process
- Preset two kinds of voltage, the default output is 5.2V (to the mobile phone and other electronic products can make up the line loss when charging to achieve greater charge current), the use of an electric iron disconnect the connection can be adjusted to 3.3V output voltage
- This leads to the EN control pin, the default high-level output, and no output when the low-level
- This leads to FB feet, with professional knowledge of the user can be an external resistor to change the output voltage
**Summary: High-efficiency buck converter with adjustable output voltage**
Specification:
- Input voltage: 4.5V-16V
- Output voltage: 3.3V / 5.2V
- Buck efficiency: up to 98%
- Output current: 0~4A
- Voltage accuracy: <1%
- Load regulation: <0.5%
- Output ripple noise: <20mV
- Static power consumption: <500uA
- Size: 13 * 18.6 * 5mm
Package includes:
- 1 x Converter
