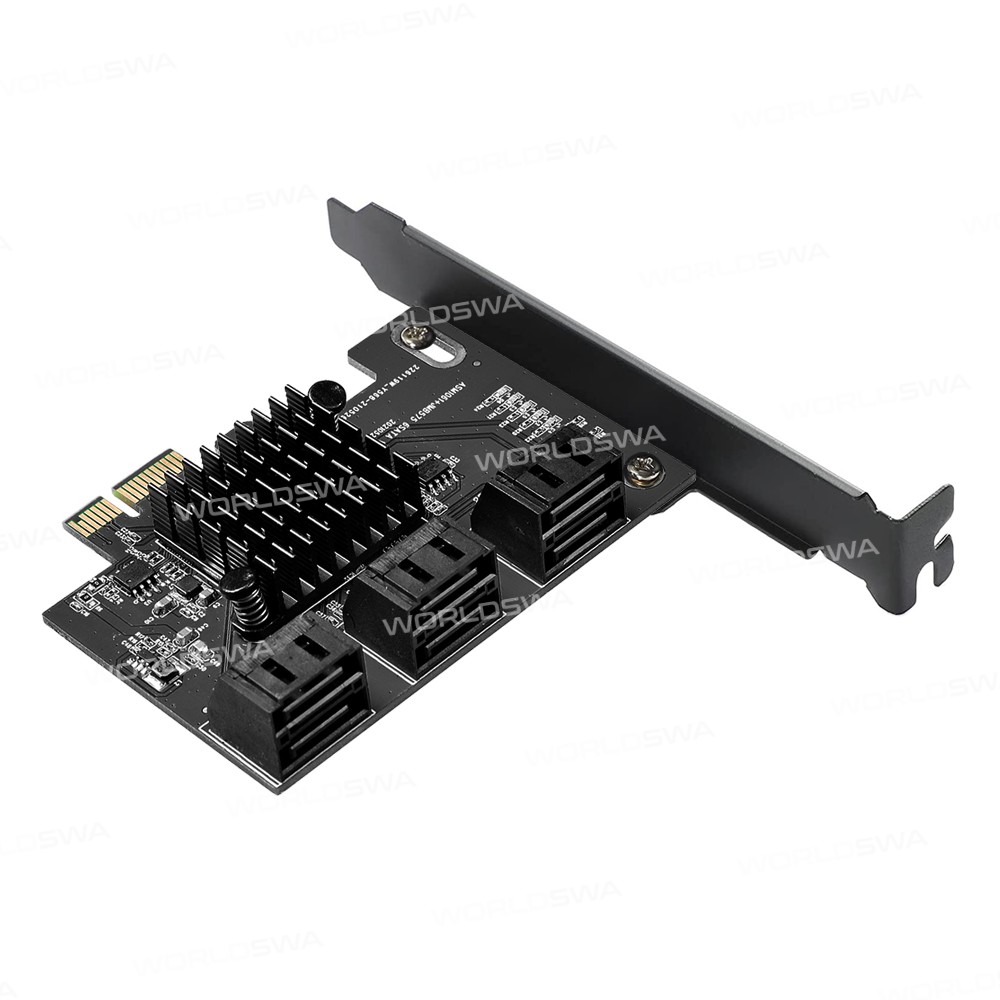

PCIe to SATA Controller Expansion Card - 6Port PCI-E3.0 SATA 3.0 X1 Interface with Bracket

6Port PCIe to SATA Controller Expansion Card PCI-E3.0 SATA 3.0 X1 Interface with Bracket

Product Overview

This PCIe SATA card allows you to add 6 SATA 3.0 6Gbps devices to your computer, making it an ideal solution for expanding your system's storage capabilities.

Features:

• 6 Ports Adapter Card --- This PCIe SATA card allows you to add 6 SATA 3.0 6Gbps devices to your computer. You could make the system boot from this SATA card but non-RAID, (The RAID in INTEL is only for native SATA and can be grouped. It is an expansion card that cannot support third-party chips).
• **Summary:** Expand your system's storage capabilities with 6 SATA 3.0 ports.
• Product chip using the Marvell 88SE9215 + 1093 chip enhances heat dissipation, long-lasting high-temperature resistance, and more stable operation.
• **Summary:** Reliable and stable performance with Marvell 88SE9215 + 1093 chip.
• Support system : WINXP/ WIN7/ WIN8 /WIN10/ LINUX。
• Support interface： There is an available PCI Express X1 slot while supporting PCI-E X2 /X4/ X8/ X16 (This SATA 3.0 expansion card is only suitable for motherboard slots via PCI-E . Do not apply to PCI slots).
• Conforms to Serial ATA 3.0 specification, backward compatible with SATA2.0 SATA1.0
• Follow PCI-Express v2.0 specification and backward compatible with PCI-Express v1 .0.
• Supports 6.0 Gbit / s, 3.0 Gbit / s and 1.5 Gbit / s communication speeds
• Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.
• Supports the AHCI1.0 mode and IDE mode
• Native command queue support (NCQ)
• Support FIS based on port multiplier switch or command switch.
• Support hot-swap.
• Compatible with SATA6G, 3G, and 1.5G hard drives
• System requirements: A PCI Express 1x slot is available that supports 1x / 4x / 8x / 16x

Important Information on Speed Description

• The best effect can be achieved with the SATA3.0 data cable.
• The setting of the motherboard BOIS: SATA mode should be changed to AHCI.
• Although some motherboards are PCIe version 2.0, by default BOIS does not enable gen2 high-speed mode, which must be enabled manually.
• The fastest speed of PCI-E 2.0 is 380-450 m / s. When connected to PCI-E1.0, the speed is only 200-300 m / s.
• Different computer configurations and SATA SSDs have different speeds.
• Only used for expansion hard disk interfaces.

Package Includes:

1 x PCIe X1 to 6 SATA 3.0 card
1 x Bracket
