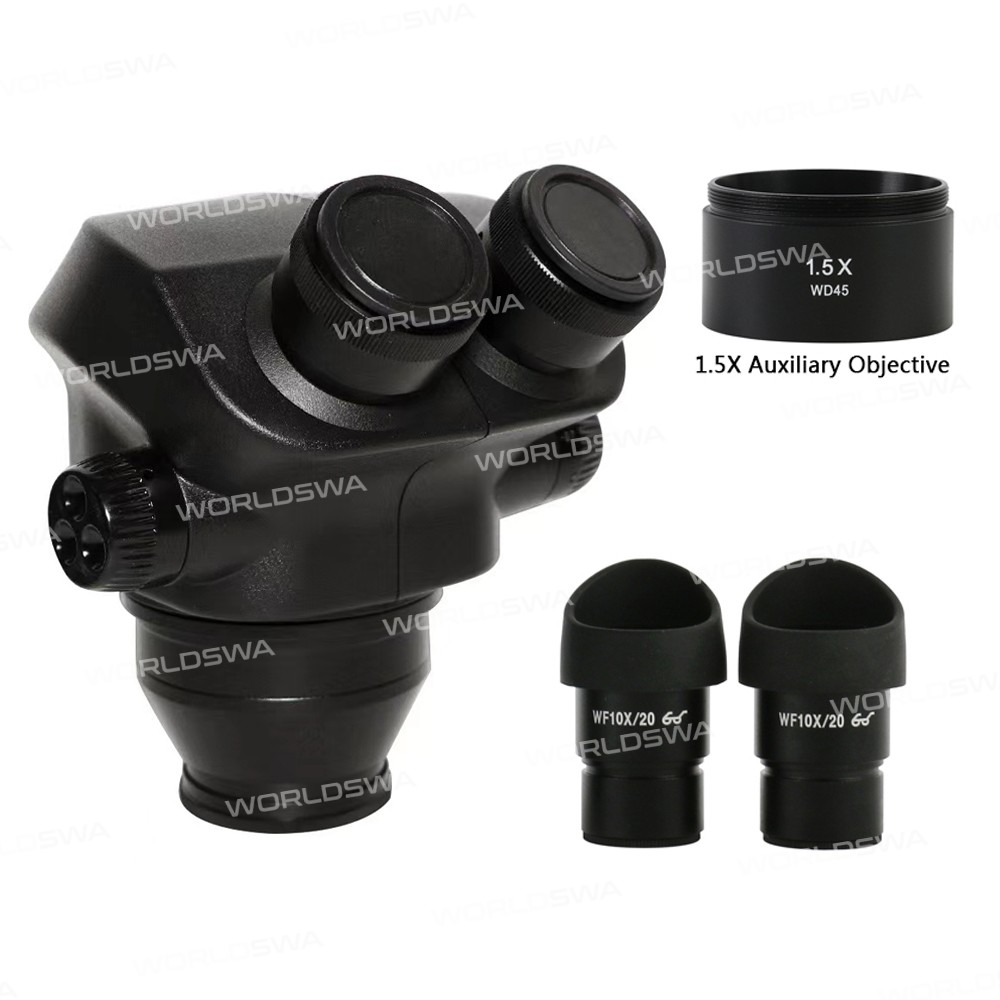

Trinocular Stereo Microscope Head 7X-45X / 7X-50X + Multi-spec Auxiliary Objectives

7X-45X/7X-50X Trinocular Stereo Microscope Head + Multi-spec Microscope Auxiliary Objectives

Product Overview

The 7X-45X/7X-50X Trinocular Stereo Microscope Head is a high-quality optical instrument designed for a wide range of applications. It features a sharp stereo erect image over a wide field of view, making it ideal for uses that require a high level of precision and clarity.

Features:

• Sharp Stereo Image: Sharp stereo erect image over a wide field of view, with a standard working distance of 110mm.
• Adjustable Binocular Head: 45inclined and 360rotatable binocular head, with an interpupillary distance of 54-75mm, and diopter adjustment in two tubes for easy operation and reduced fatigue.
• Wide Field Eyepiece: **WF10X/22MM**, 10X large field of view eyepiece, with a wide field of view of 22mm, and a plan and high eye-point design for comfortable observation.
• Ergonomic Design: Ergonomics design, with shift hand wheel level (axial) bilateral settings, for high repeatability precision and comfortable operation.
• Adjustable Eyepiece: Adjustable eyepiece, with a high angle wide-angle eyepiece, providing convenience for observers wearing glasses.
• Specifications:
  • Zoom Rate position: 0.7-5X
  • Magnification: 7X-50X
  • Working Distance: 110mm
  • Installation diameter: 76mm

Package Includes:

• 1 x Trinocular Stereo Zoom Head
• 1 x Pair of Super Widefield 10X22MM Eyepieces
• 1 x Pair of Eye-Guards
• 1 x Dust Cover
• (Optional)
  • 1 x 0.5X Microscope Auxiliary Objective Lens (Working Distance 160 mm)
  • 1 x 0.7X Microscope Auxiliary Objective Lens (Working Distance 120 mm)
  • 1 x 0.75X Microscope Auxiliary Objective Lens (Working Distance 117 mm)
  • 1 x 1.0X Microscope Auxiliary Objective Lens (Protection function)
  • 1 x 1.5X Microscope Auxiliary Objective Lens (Working Distance 45 mm)
  • 1 x 2.0X Microscope Auxiliary Objective Lens (Working Distance 40 mm)
