ARM FPGA Develop 8-Channel 24MHz USB Logic Analyzer

8-Channel 24MHz USB Logic Analyzer for ARM FPGA Development

Features:

• **Multi-Channel Signal Analysis**: 8 channels can gather signals simultaneously, ideal for UART signal analysis.
• **High-Speed Sampling**: Each channel sampling speed up to 24M/s, with general applications around 10M/s.
• **Large Data Collection**: Strong data collection capabilities, perfect for a variety of occasions.
• **Safety First**: Equipped with overpressure protection for safe working.
• **Intuitive Indication**: All-way logic pen indication: uses a small light to indicate the level of CH1, intuitive and clear.
• **Input Characteristics**: Capacitive reactance is 5PF, and impedance is 100K ohms, a reasonable parameter for mainstream use.
• **Input High-Level Recognition**: VIH (input can recognize high level): higher than 1.6V is recognized as a high level, compatible with 5V, 3.3V, 2.5V, 2.0V, and 1.8V level systems.
• **Real-Time Data Upload**: Data is uploaded in real-time, with compressed storage, and a maximum acquisition depth of 10T, exceeding actual demand.
• **Trigger Modes**: Perfect support for various trigger modes, including rising edge, falling edge, high-level trigger, low-level trigger, and combinations of these methods.
• **Flexible Sampling Speed**: Sampling speed can be set to 24MHz, 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, or 25KHz.
• **Wide Compatibility**: Supports WIN7 (32 and 64), 2K, XP, and LINUX operating systems.

Specification:

• **Name**: USB Logic Analyzer
• **Item Size**: 50 * 28 * 14mm
• **Item Weight**: 50g
• **Package Size**: 100 * 50 * 50mm

Package Includes:

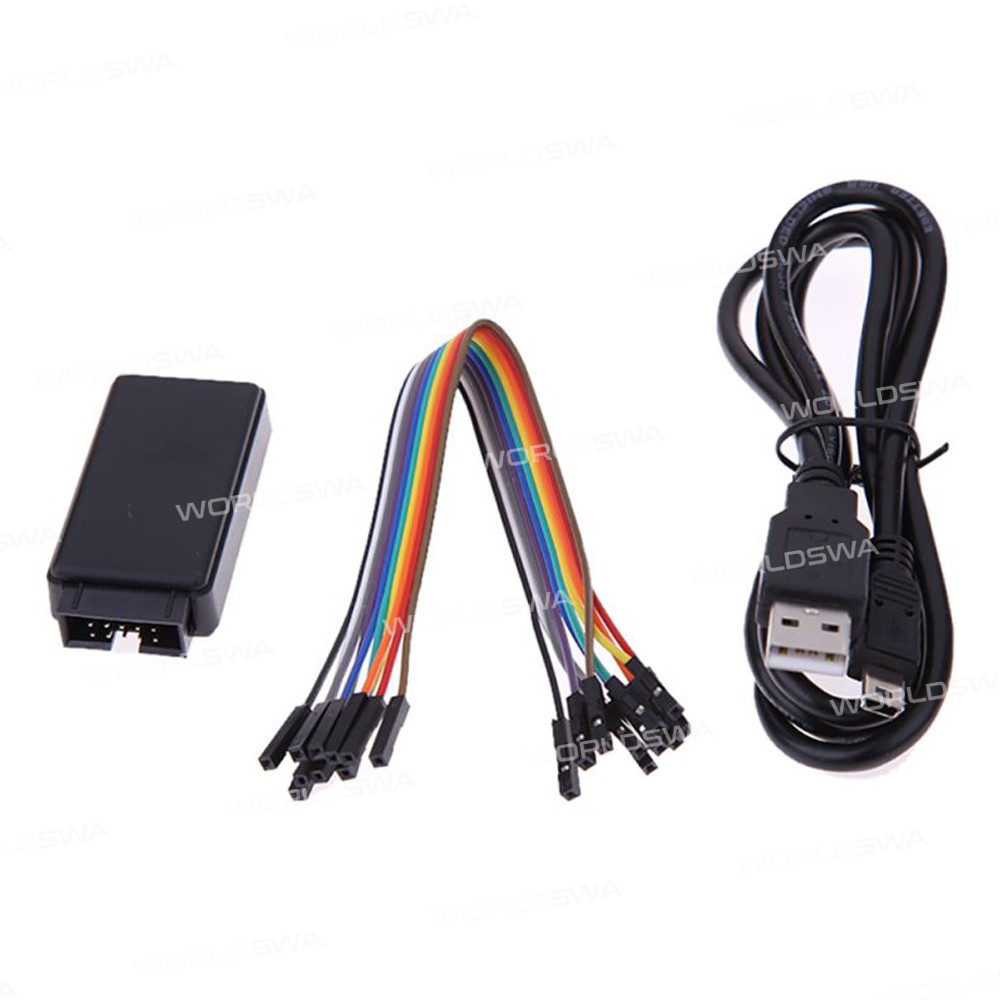

• **1 x Logic Analyzer**
• **1 x USB Cable**
• **1 x Harness**
