A-BF CS206B / CS206D True RMS Digital Clamp Multimeter with Auto Range and NCV Function

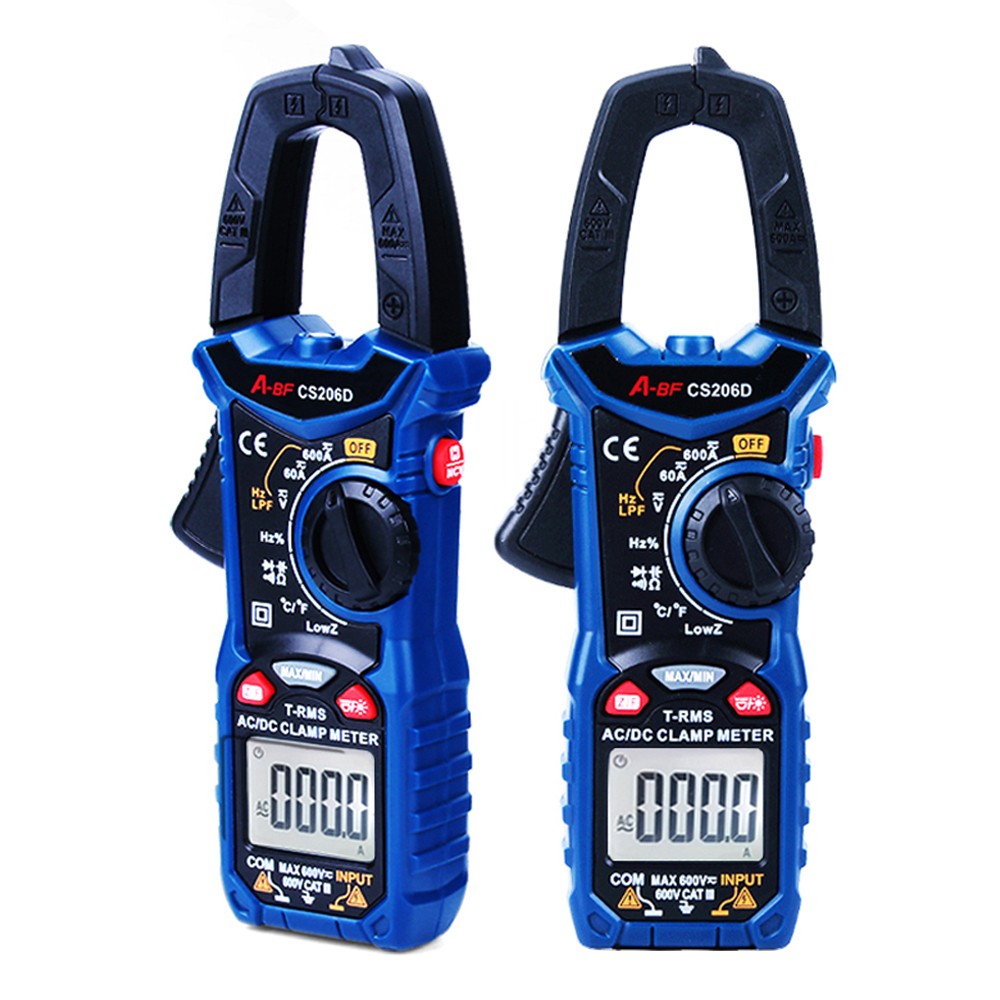

A-BF CS206B/CS206D Auto Range True RMS Digital Clamp Multimeter with NCV Function

Features:

• Digitally adjusted before leaving the factory, the self-calibration measurement is accurate every time the machine is turned on, and the linearity is good
• AC current measurement: for low-pass filtering (LPF) measurements, press and hold the function switch
• Resistance test function: can measure various resistance components, cable impedance, and integrated circuits should be measured by taking off the resistance one foot

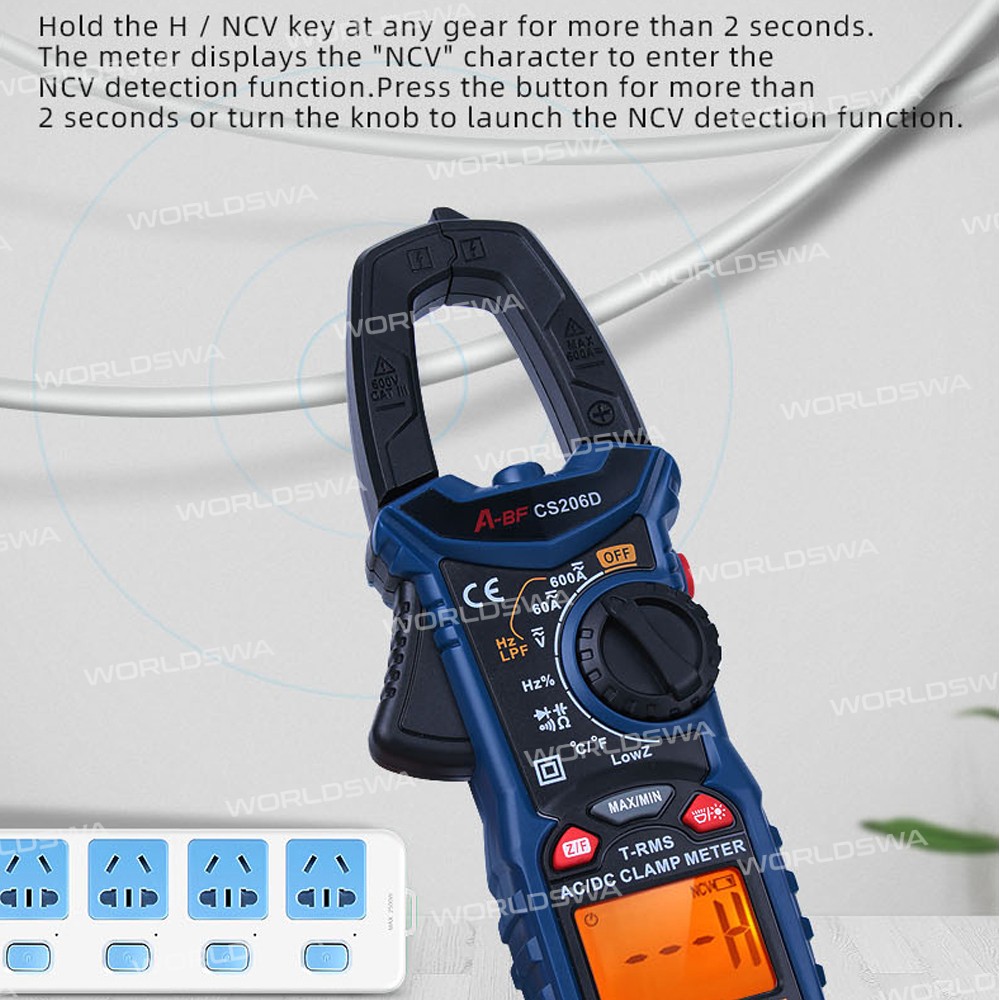

• NCV measurement function: non-contact measurement - L: weak signal; - H: strong signal, sound, and light alarm prompt

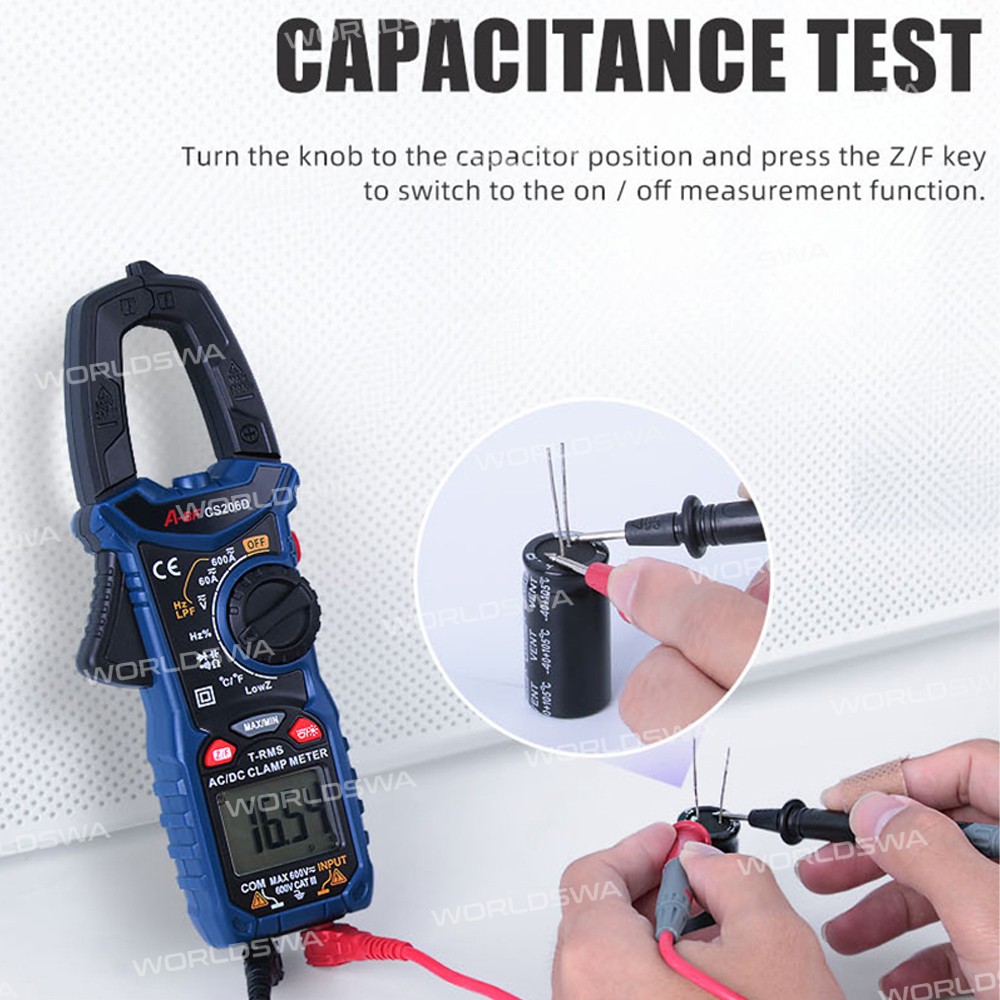

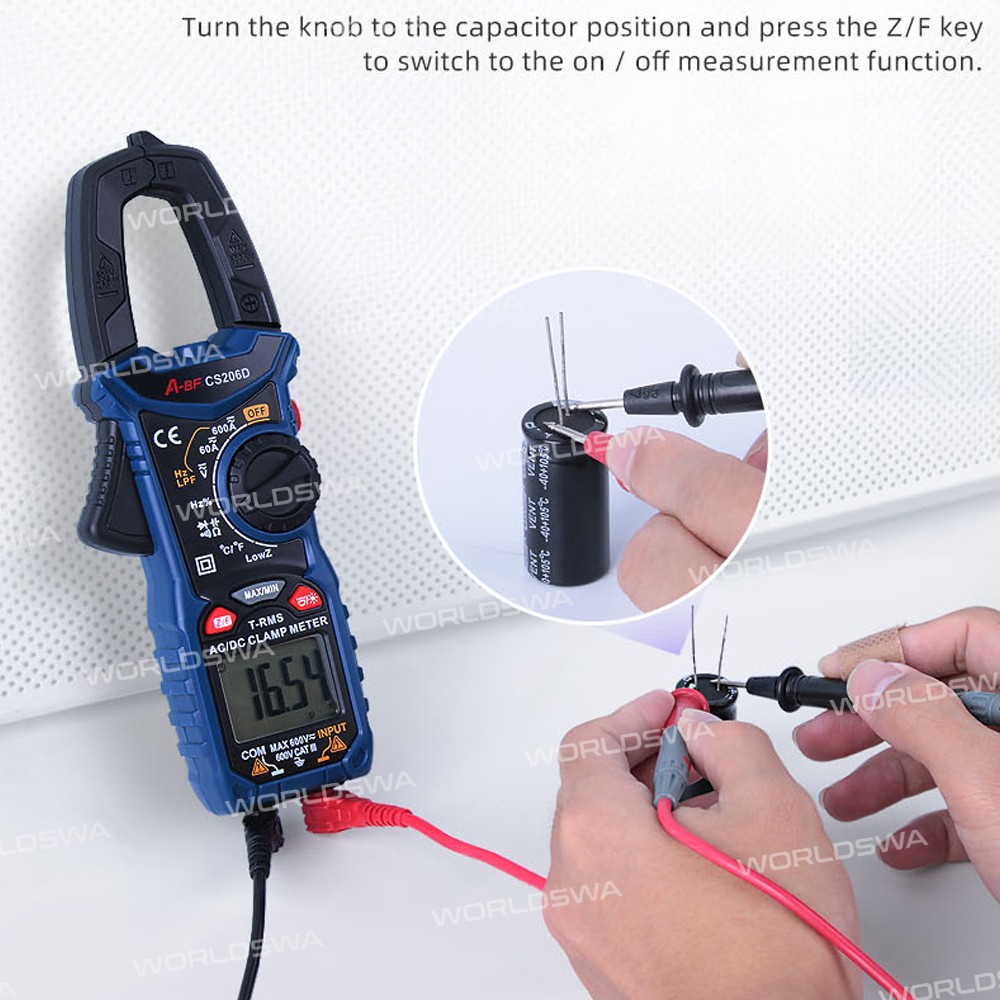

• Capacitance test: turn the knob to the capacitance block, press Z/F to switch to the on/off measurement function

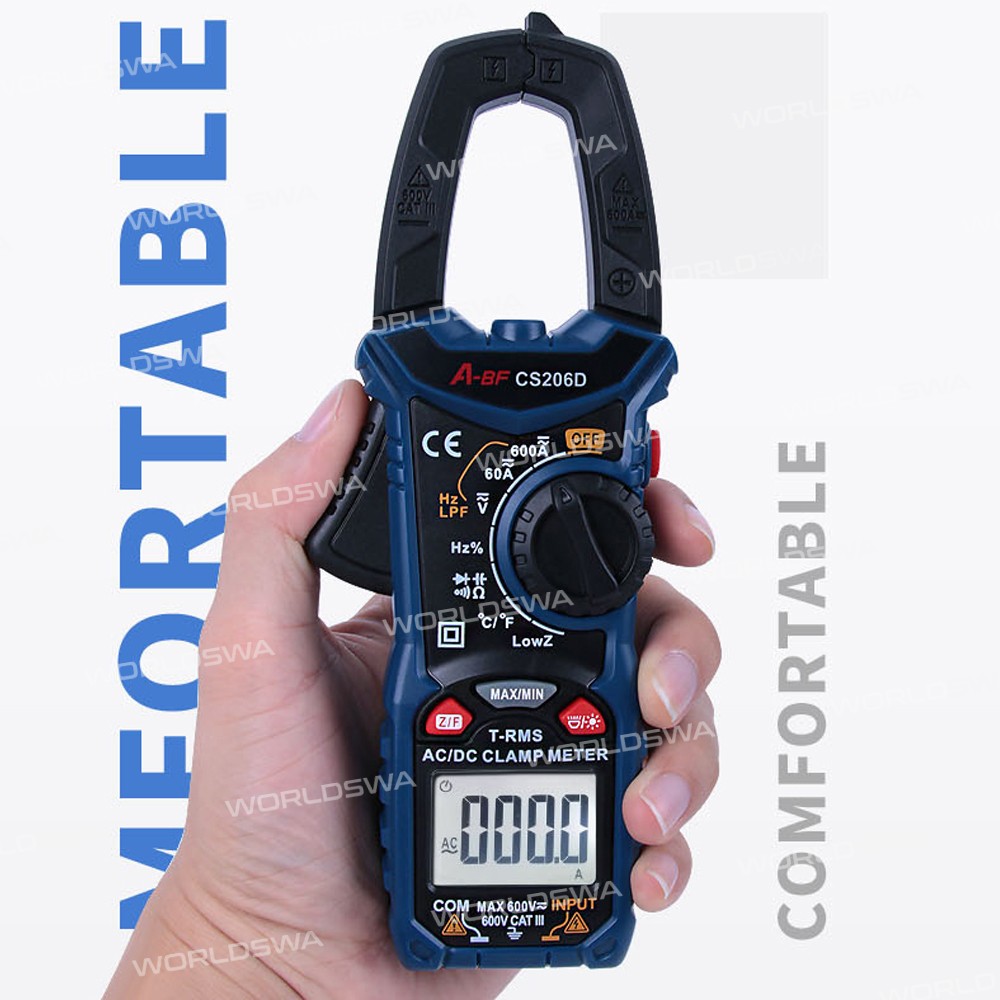

• Comfortable grip for easy measurement, good ergonomic design, comfortable grip experience

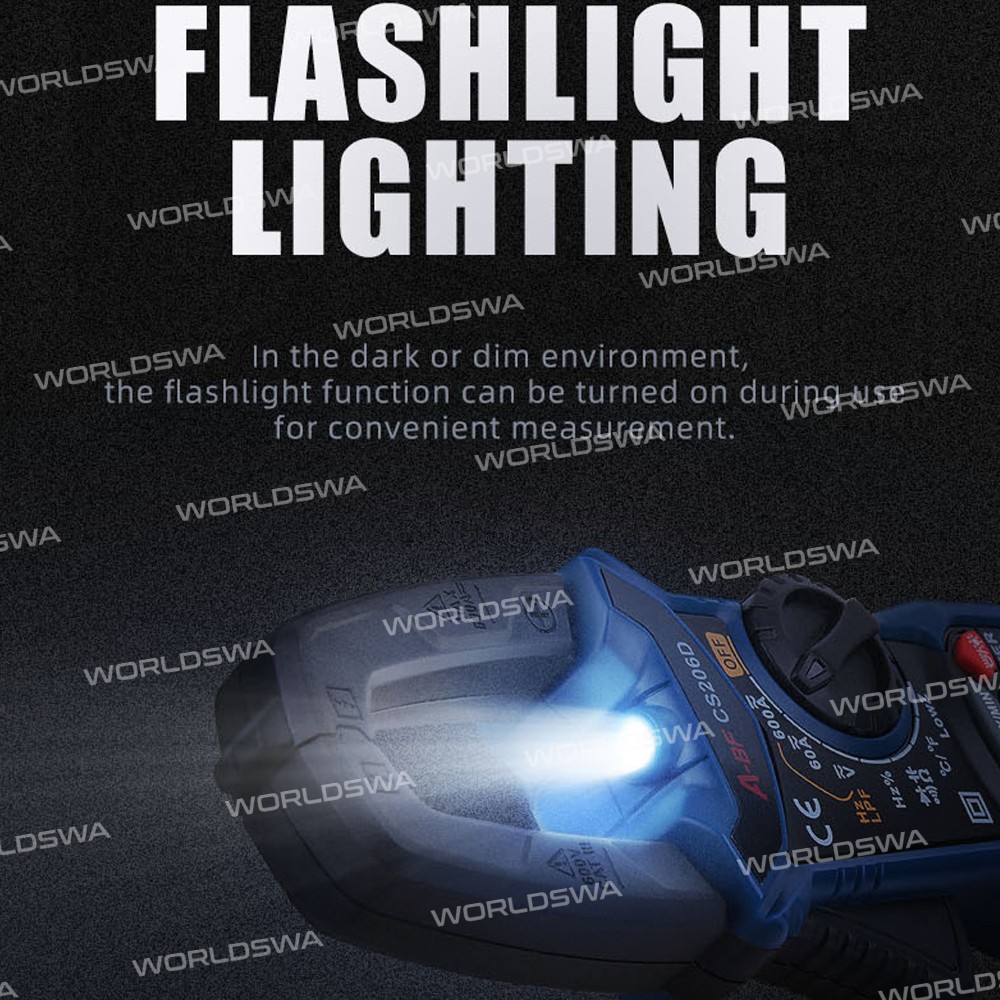

• Torch illumination can be switched on when used in dark or dim environments, convenient for measurement

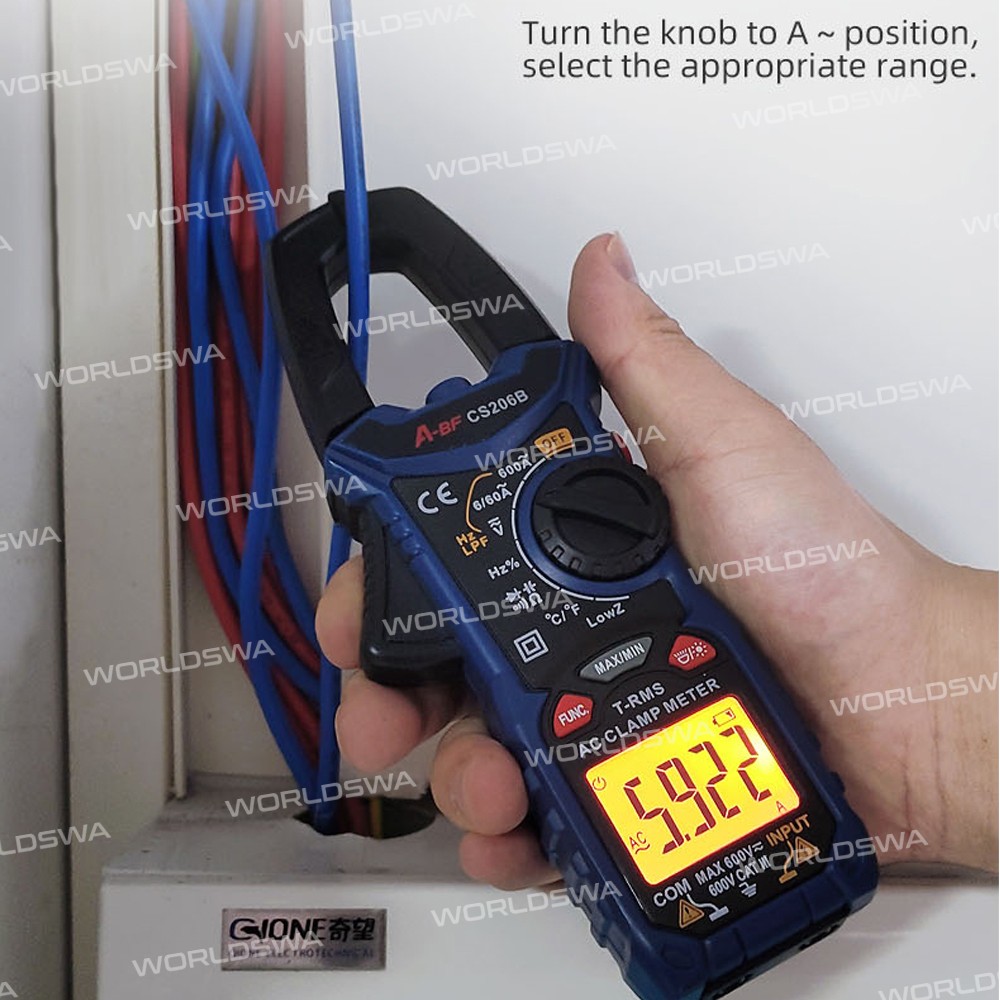

• For domestic current measurement, turn the knob to A~range to select the appropriate range, simple and convenient

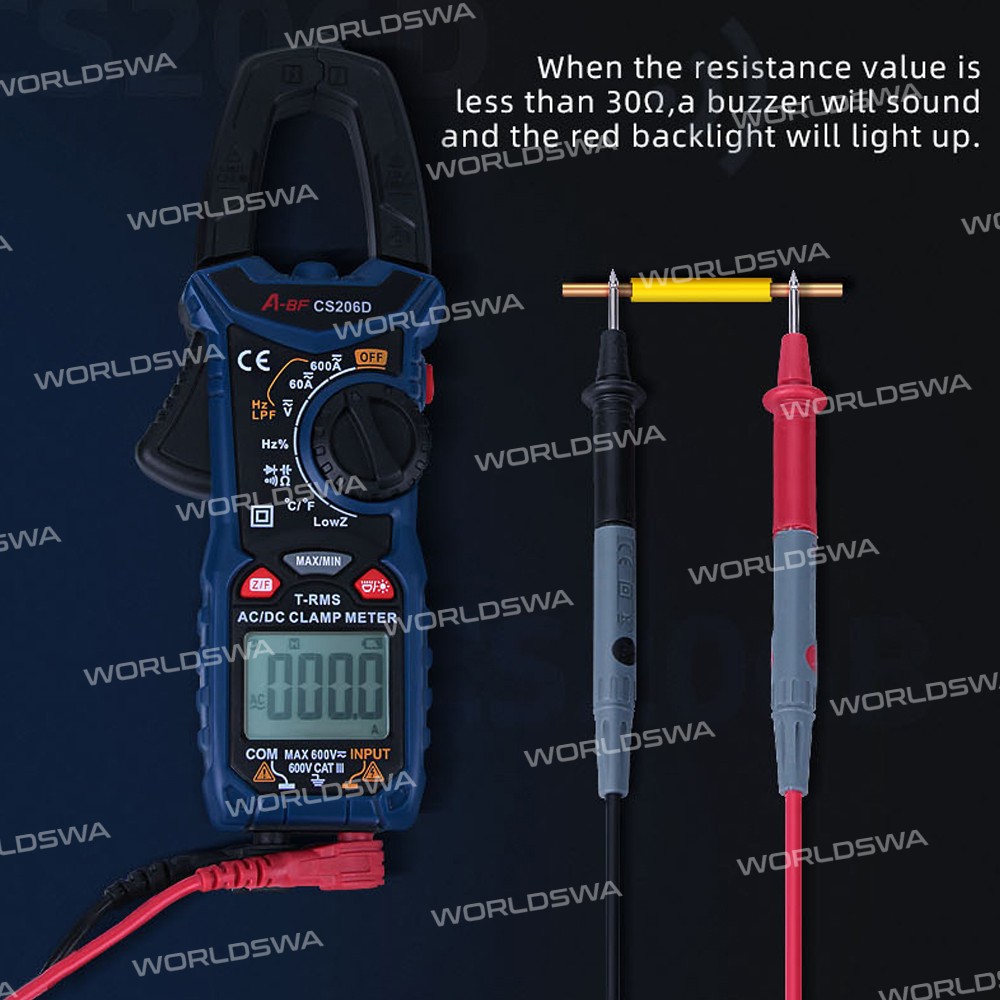

• Sound and light alarm for on/off measurement, beeping when resistance value is less than 30Ω, the red backlight illuminates

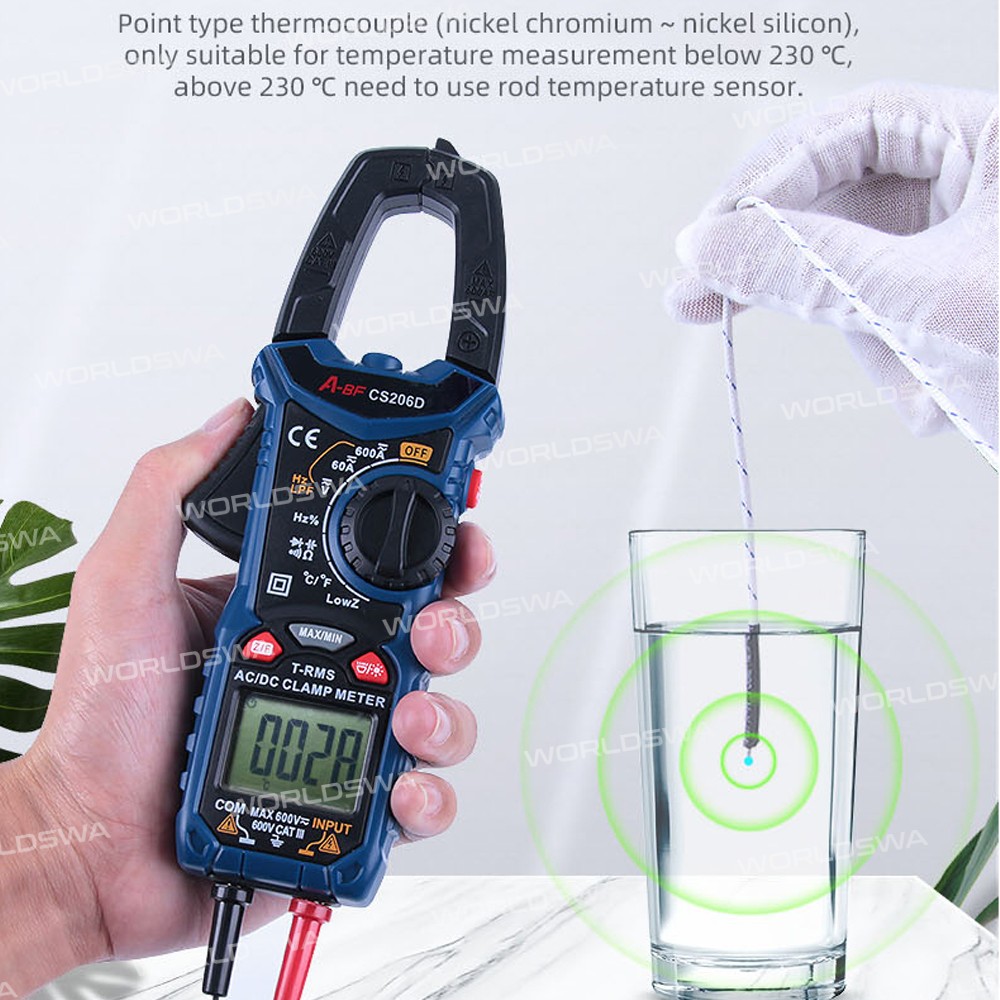

• Temperature measuring function: measuring range: -20℃~1000℃, point type thermocouple (NiCr~NiSi), only applicable to the temperature below 230℃, measuring above 230℃ need to use rod type temperature sensor
• Function knob easily meets the common test, using the automatic range, simple and convenient operation
• Wide jaw design for easy access
• Rational test bottom input, compact bottom design
• Highly visible/highly accurate display, **6000 count display**

Specification:

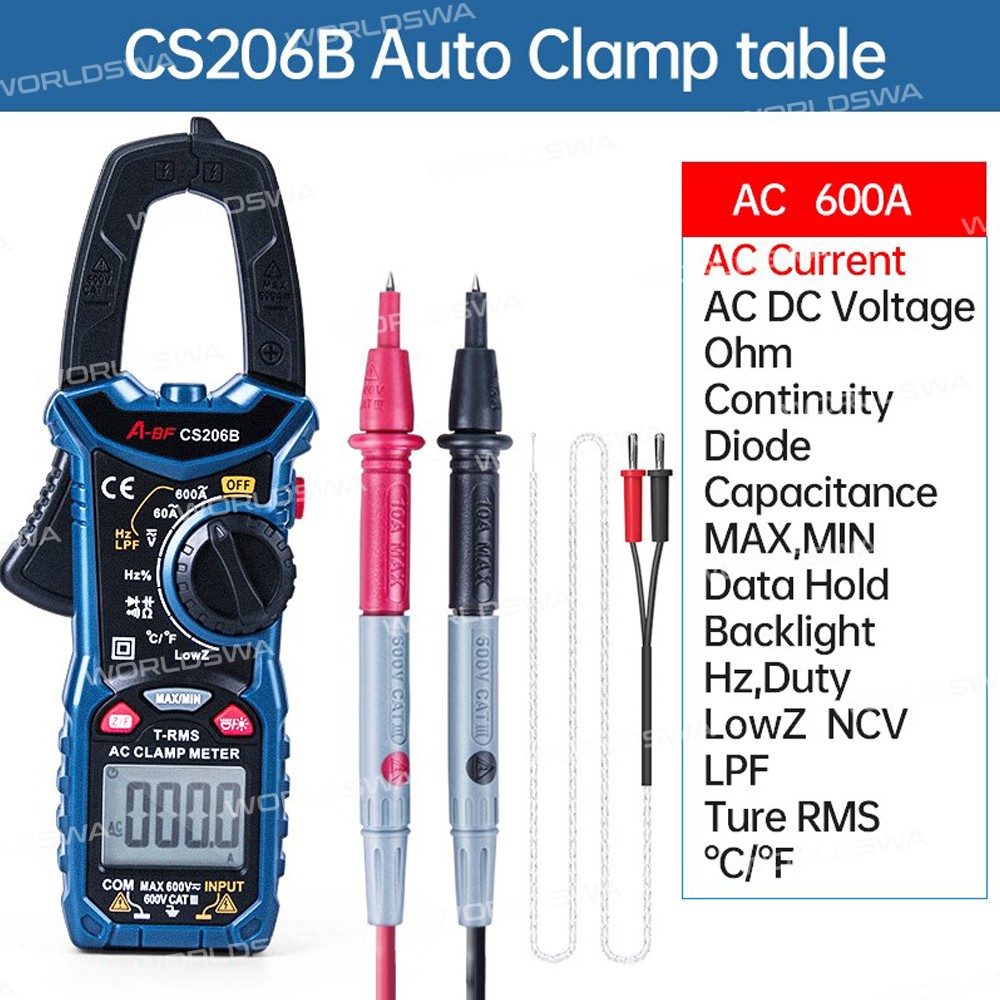

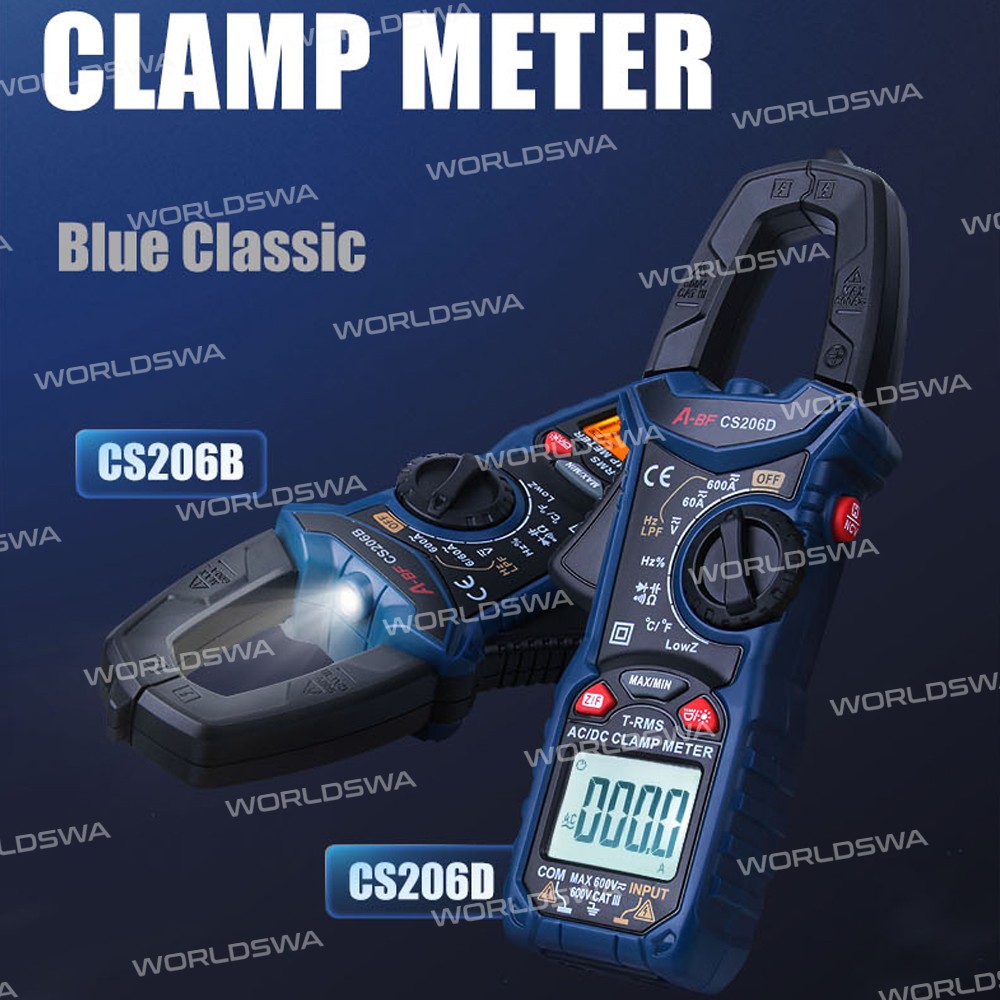

• Model: CS206B/CS206D

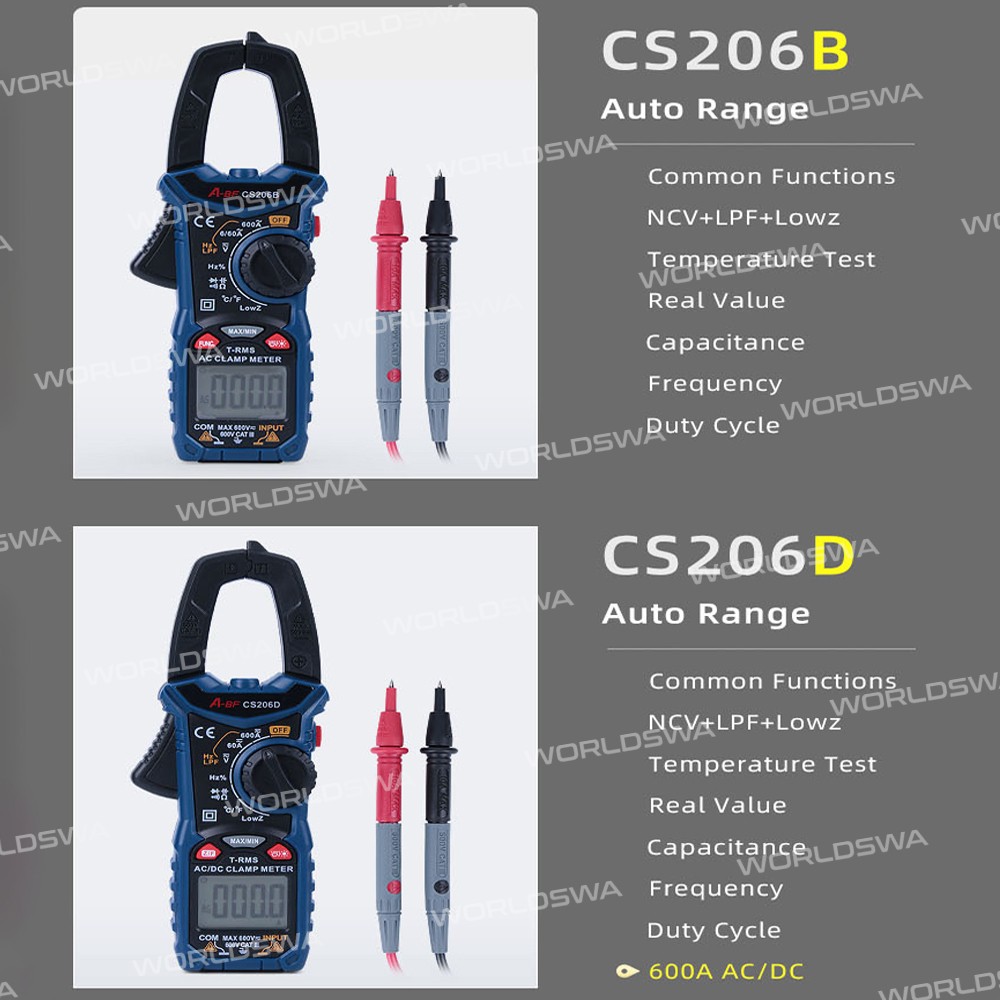

• AC: CS206B: 6~600A ±2.5%; CS206D: 60~600A ±3.0%
• DC: 60~600A ±2.5%(only CS206D)
• AC Voltage: 6V/60V/600V ±0.8%
• DC Voltage: 600mV/6V/60V/600V ±0.5%
• Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±1.0%
• Capacitance: 10nF/100nF/1000nF/10μF/100μF/1000μF/10mF/100mF ±4.0%
• Frequency: 10Hz/100Hz/1000Hz/10KHz/100KHz/1000KHz/10MHz ±1.0%
• Duty Cycle: 1~99% ±3.0%
• Temperature: -20℃~0℃~400℃~1000℃ ±1.0% or ±2℃; -4°F~32F~752℉~1832°F ±1.0% or ±4°F

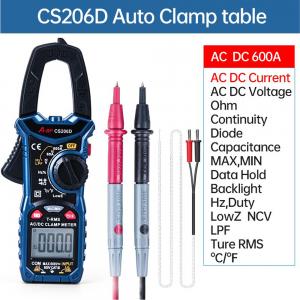

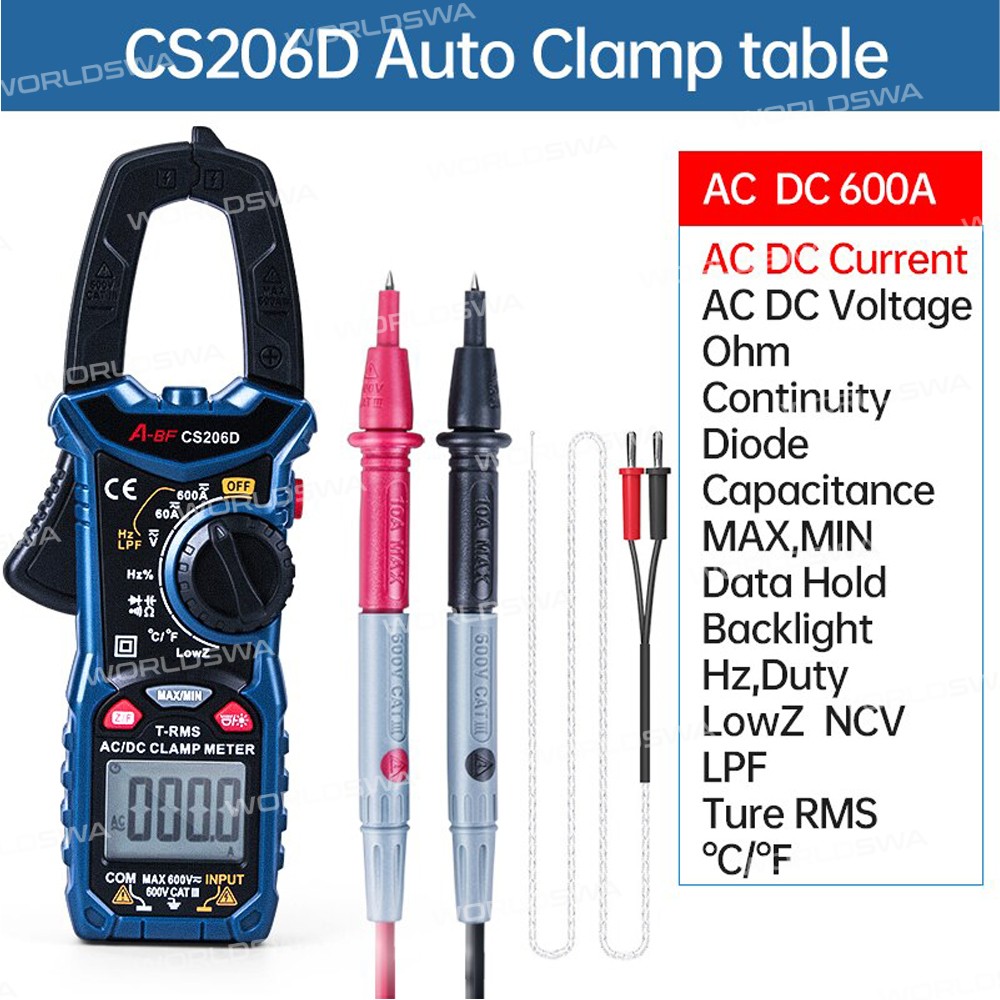

Package includes:

• 1 x Clamp Meter(without Battery)
• 1 x Test Pen
• 1 x Temperature Test Cable
