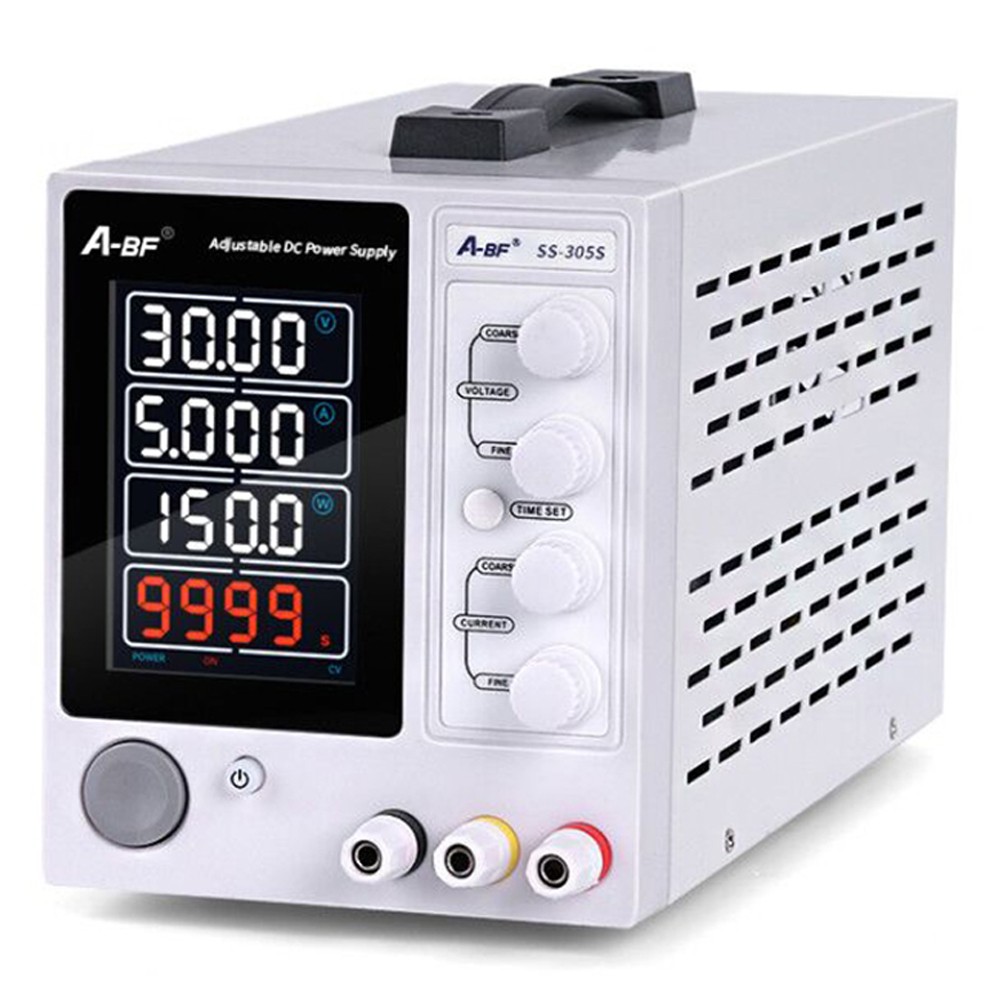

A-BF Four-digit Display High-precision Bench DC Power Supply, Adjustable Regulated

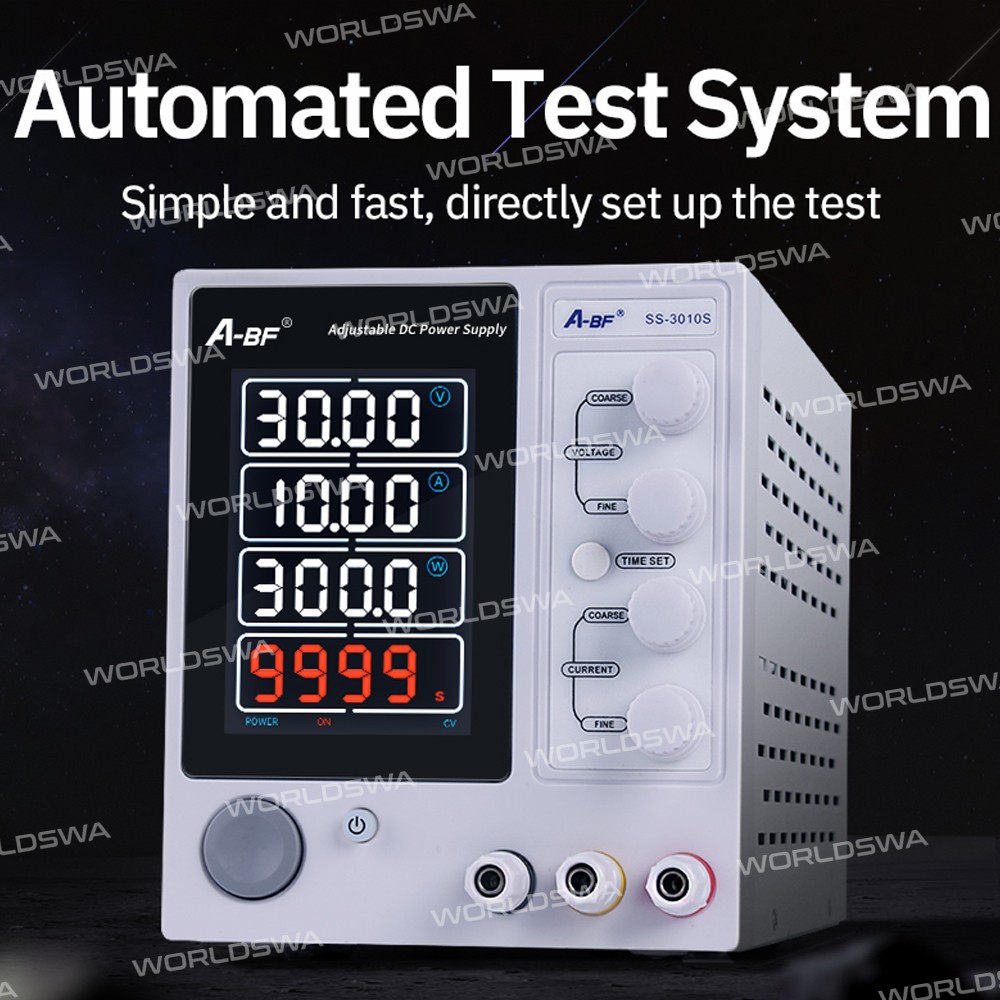

A-BF Four-digit Display High-precision Bench Adjustable DC Regulated Power Supply

Features:

• High-precision DC-regulated power supply with small size, large screen, and stable features.

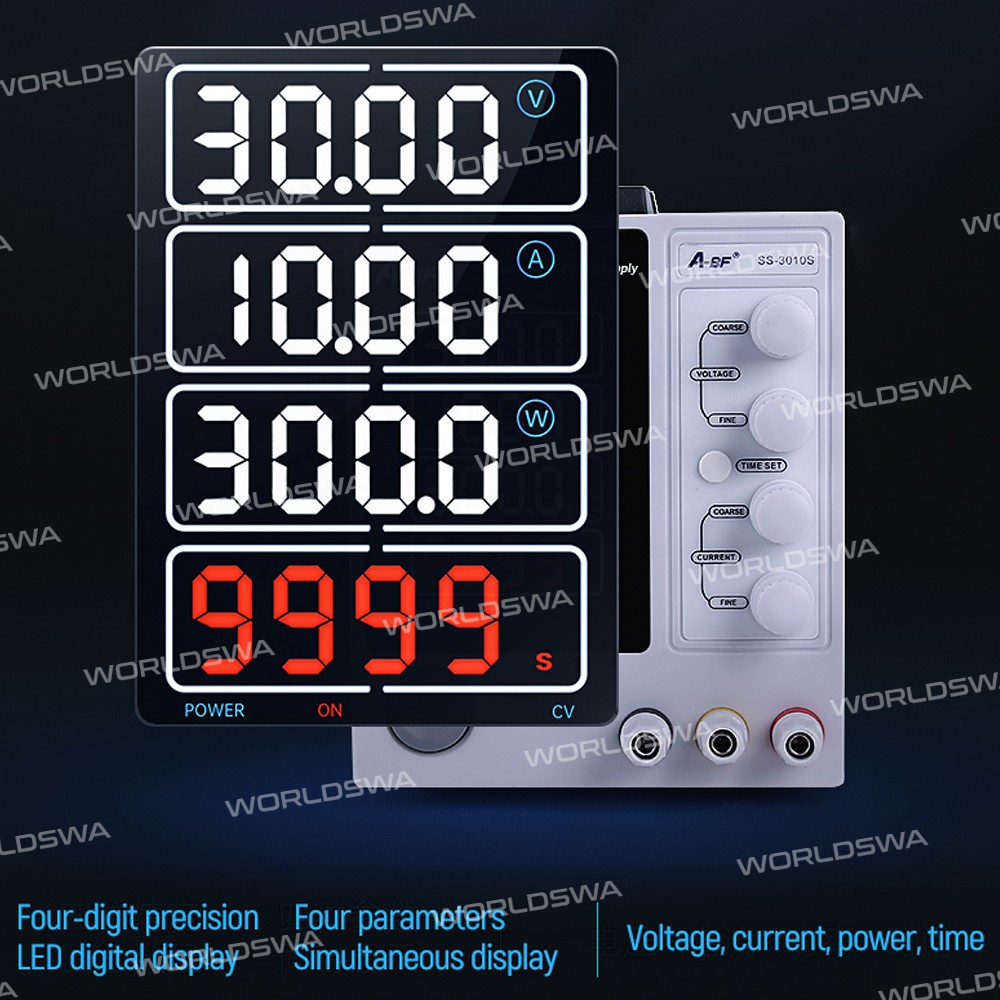

• Four-digit precision digital display, displaying four parameters simultaneously. **Accurate and simultaneous display**
• Easy and practical output control switch, supports preset voltage value and current value.

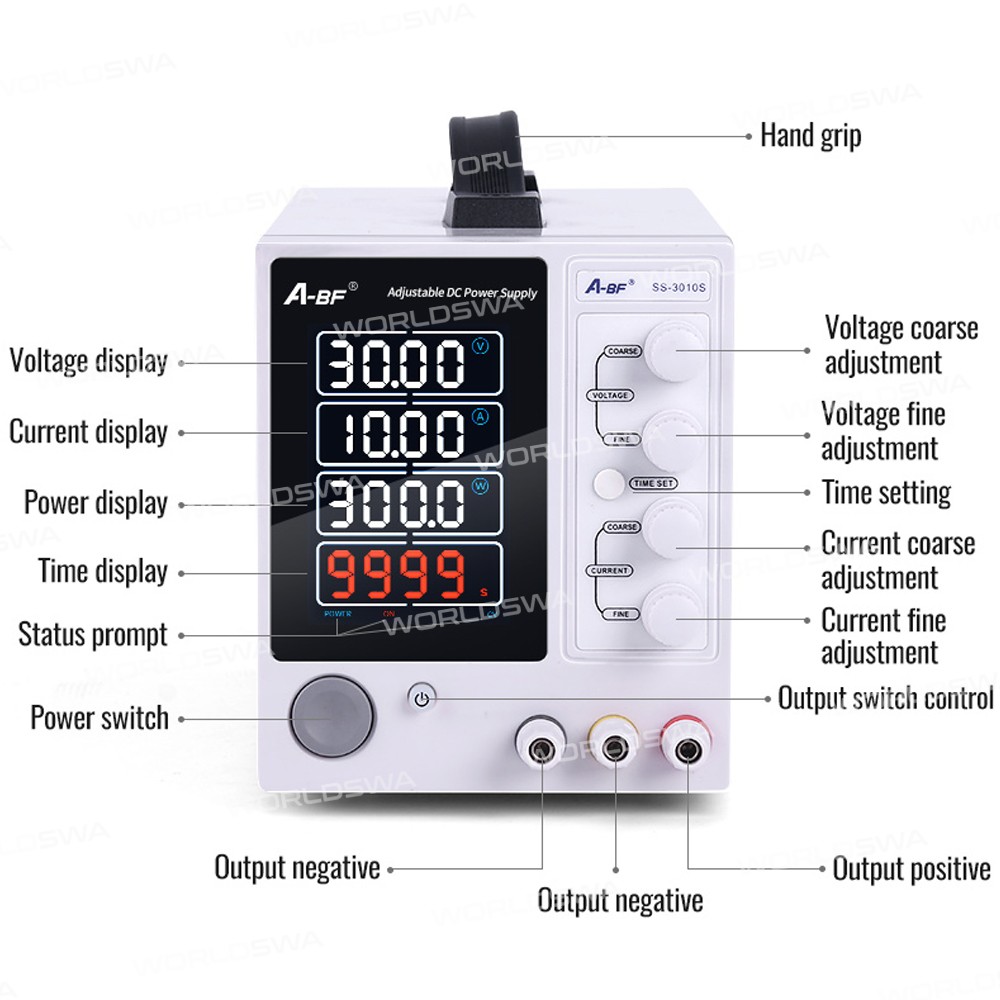

• Voltage coarse adjustment/fine adjustment, current coarse/fine adjustment, precise controllability.
• Color LED digital display, small body, and big screen, simultaneous display of four data.

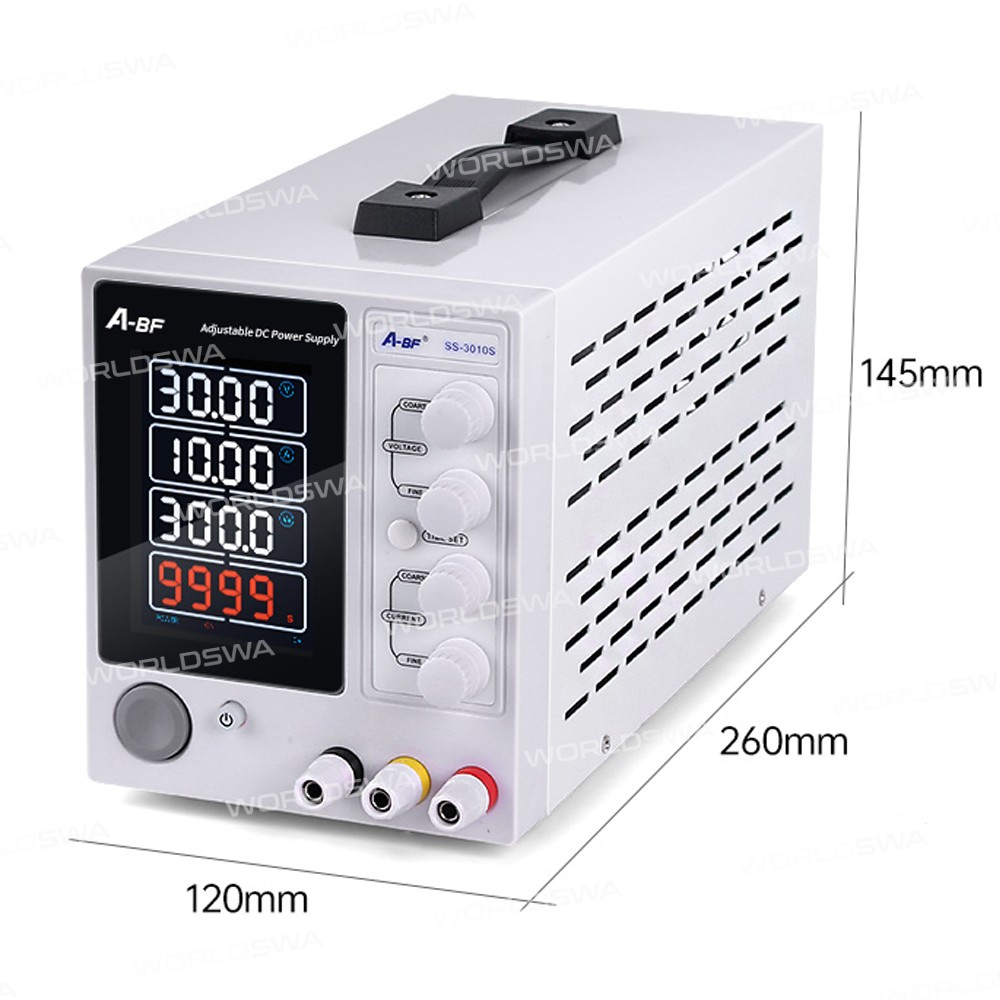

• Smaller size and lighter weight, improving space utilization, and a more convenient layout.

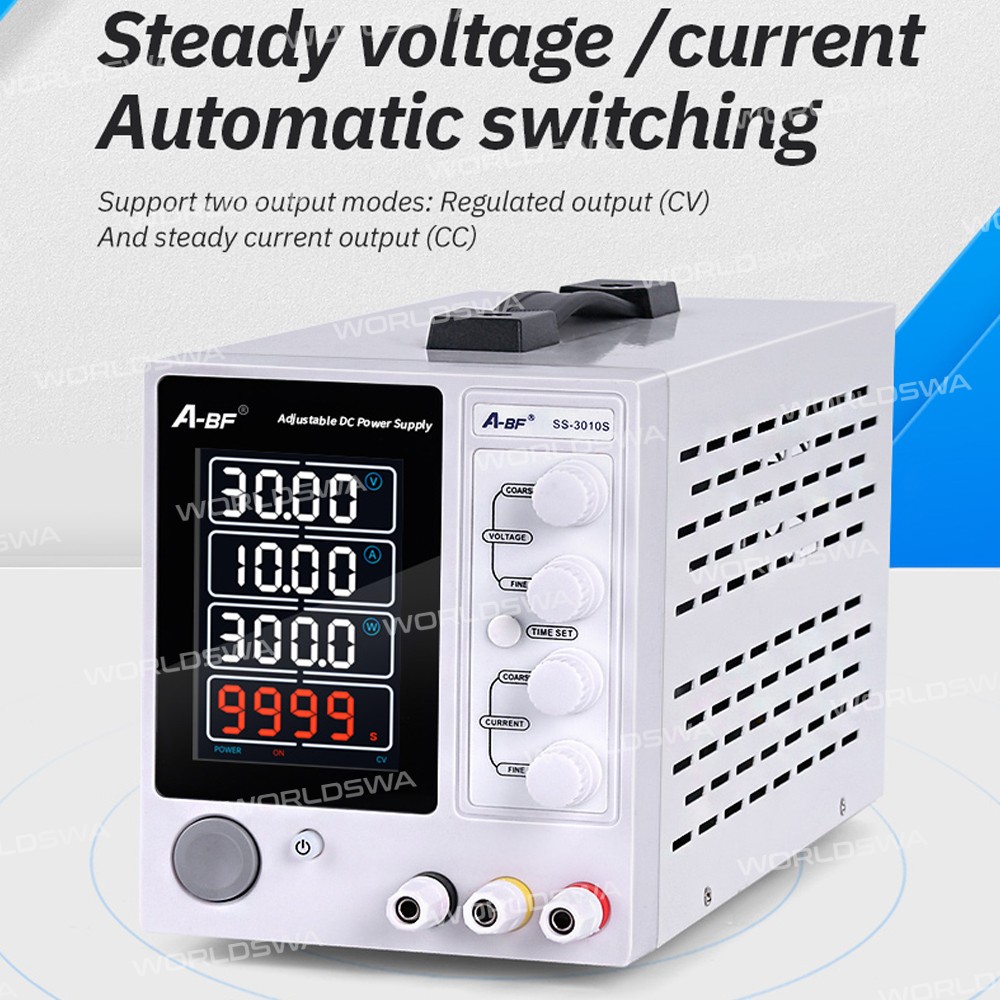

• Supports two output modes, automatic switching, between steady voltage and steady current output.
• Timing output, timing, and accumulation dual mode set timer time. **Flexible timing control**

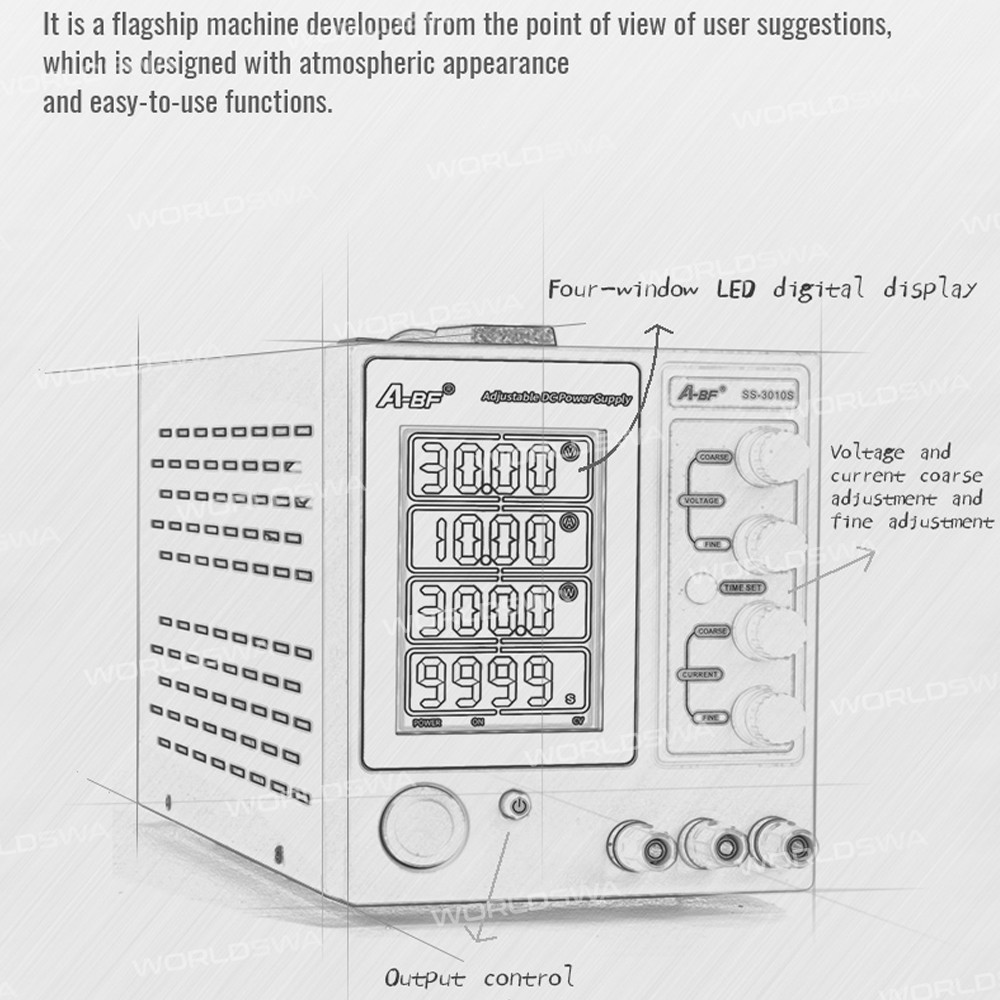

• Flagship machine developed from user suggestions, with an atmospheric appearance and easy-to-use functions.

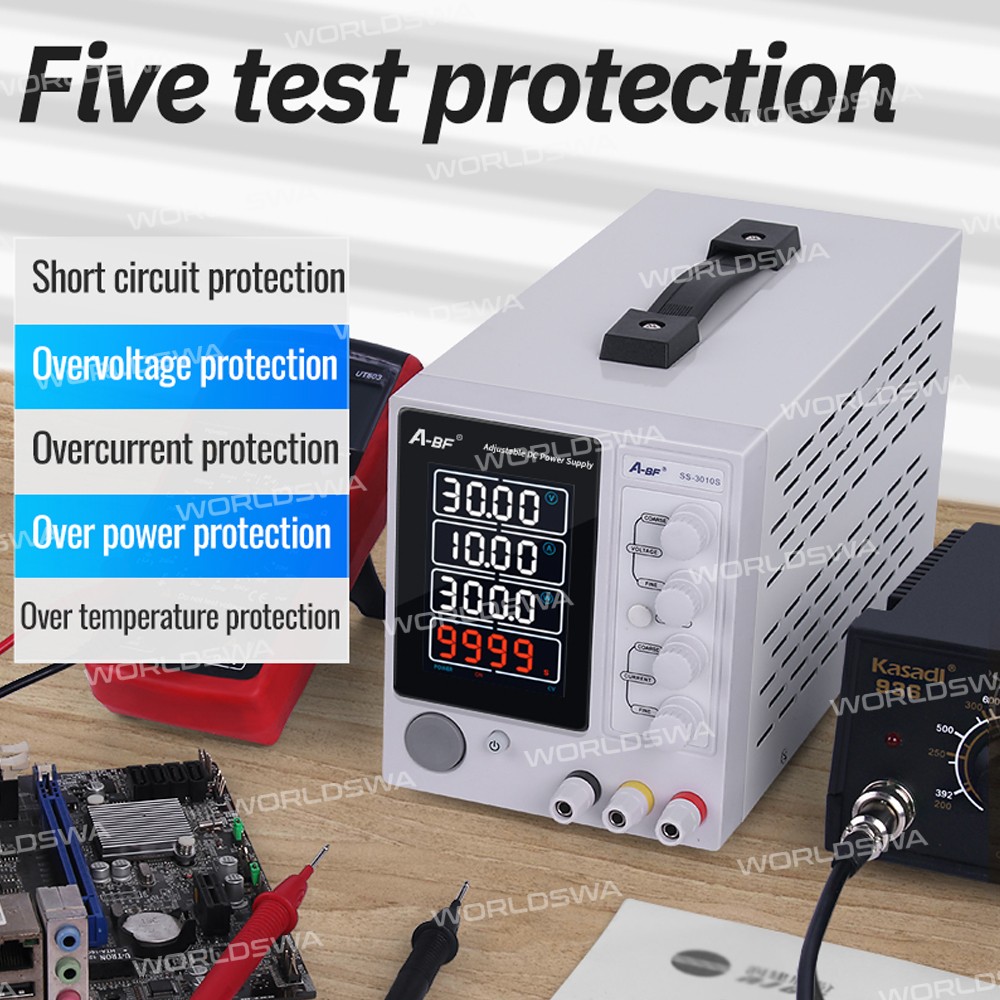

• Five test protection: Overvoltage protection, Overcurrent protection, Short circuit protection, Over power protection, Temperature protection. **Comprehensive protection**

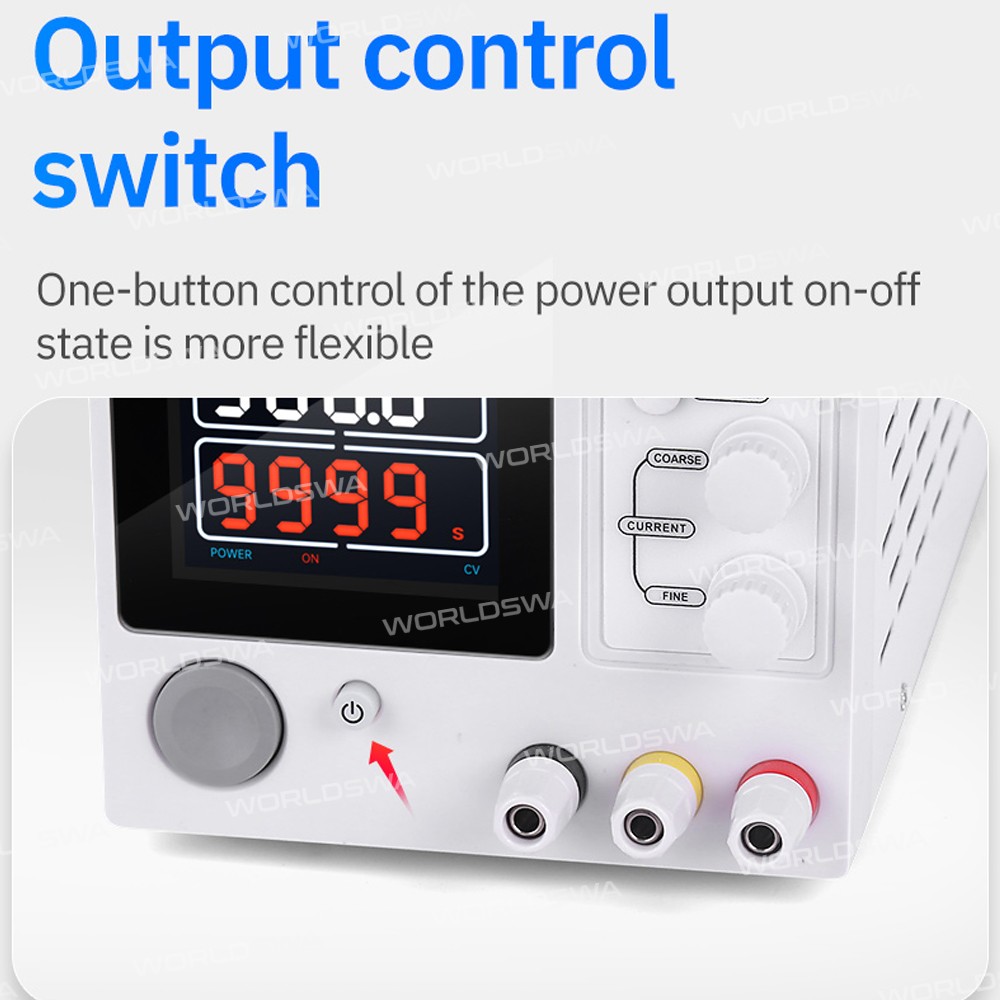

• One-button control of the power output on-off state is more flexible.
• Socket with fuse, safe and anti-burn, high safety factor, and more stable.

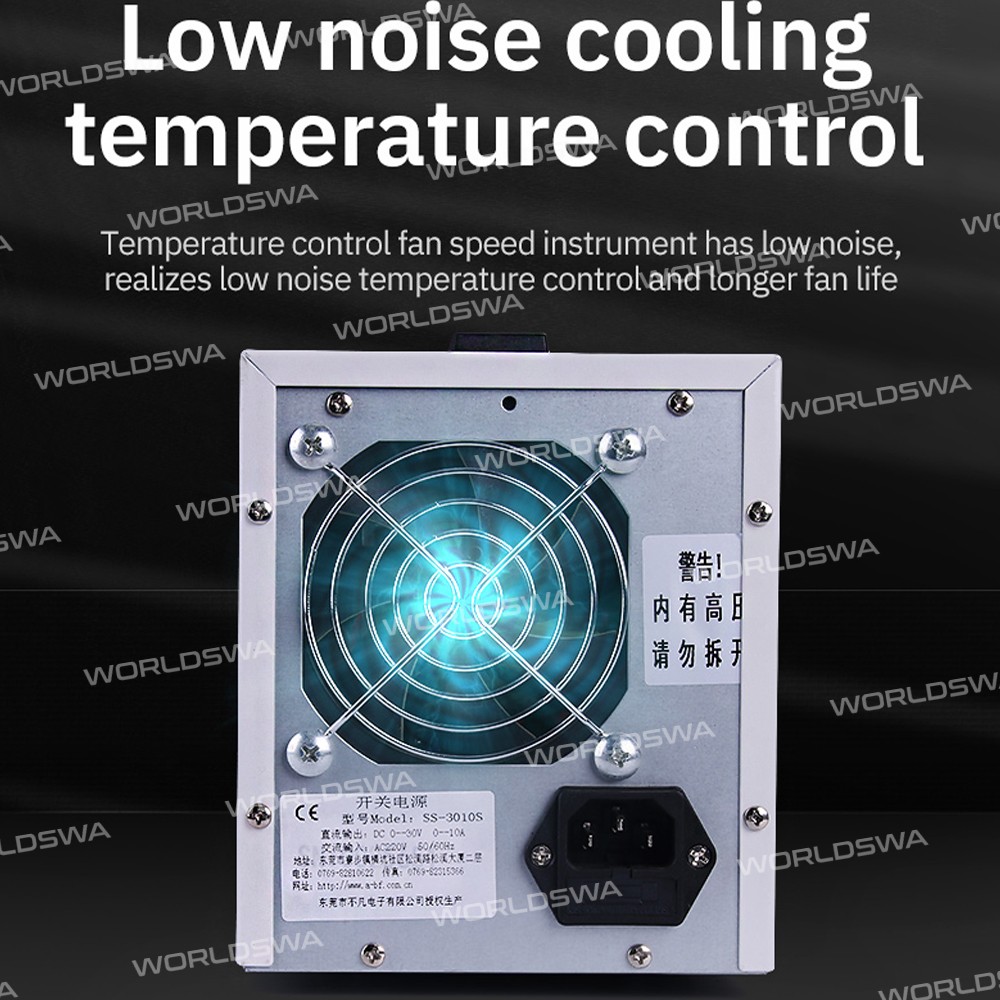

• Temperature control fan speed instrument has low noise, realizes low noise temperature control, and longer fan life.

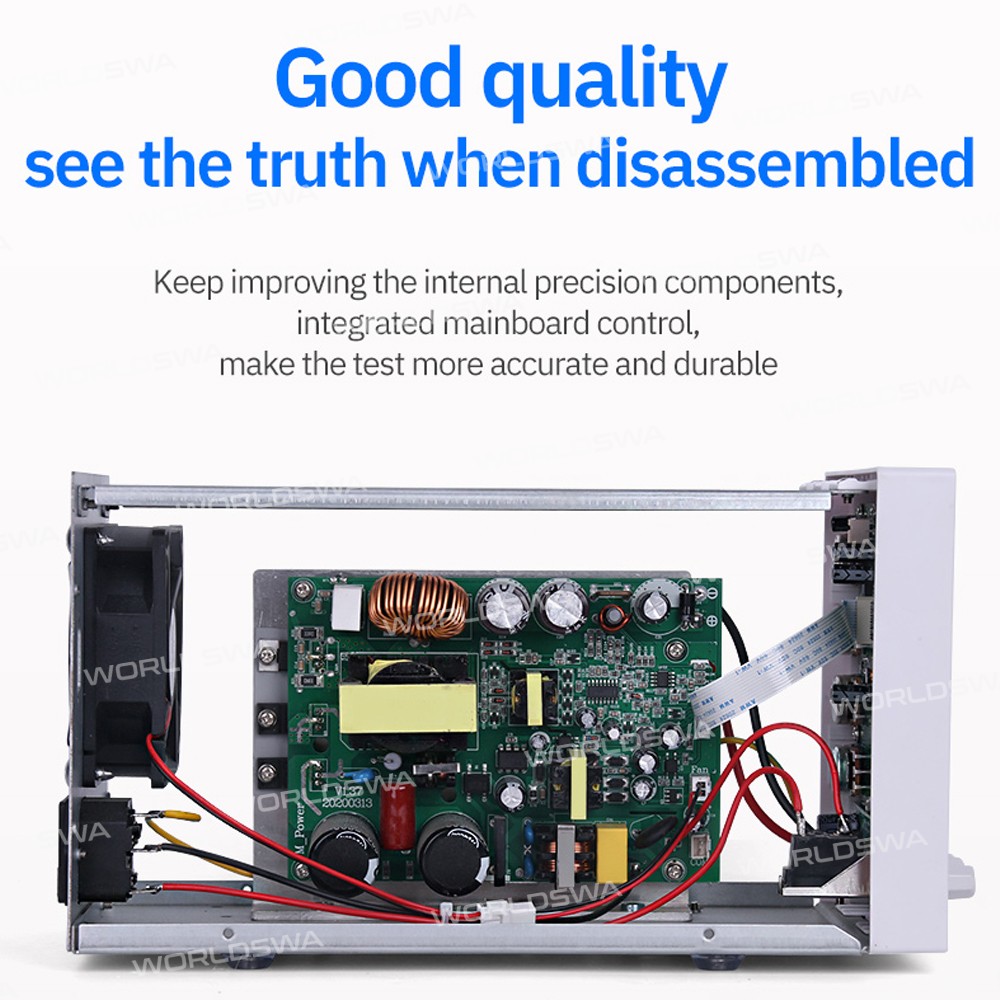

• Improving internal precision components, and integrated mainboard control, making the test more accurate and durable.
• Body reinforcement design, rational distribution of scientific rigor, enough material, quality assurance.

Specification:

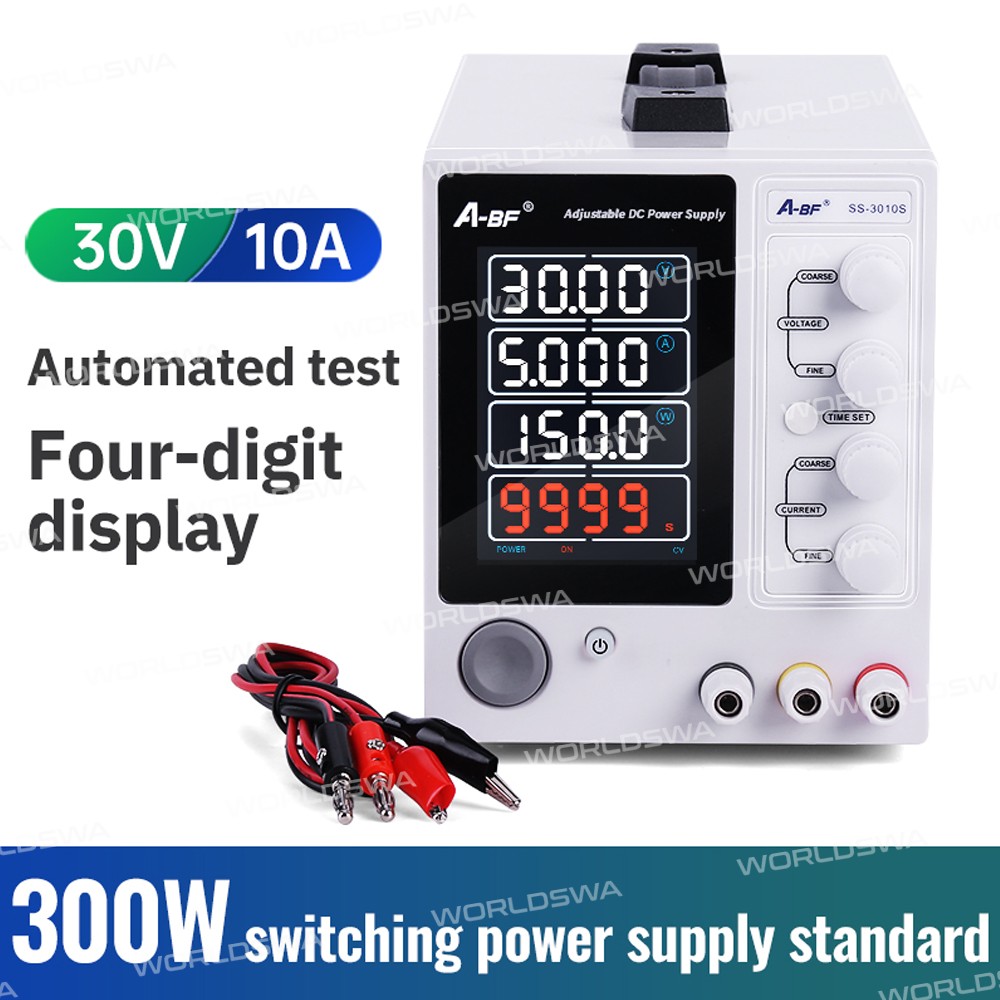

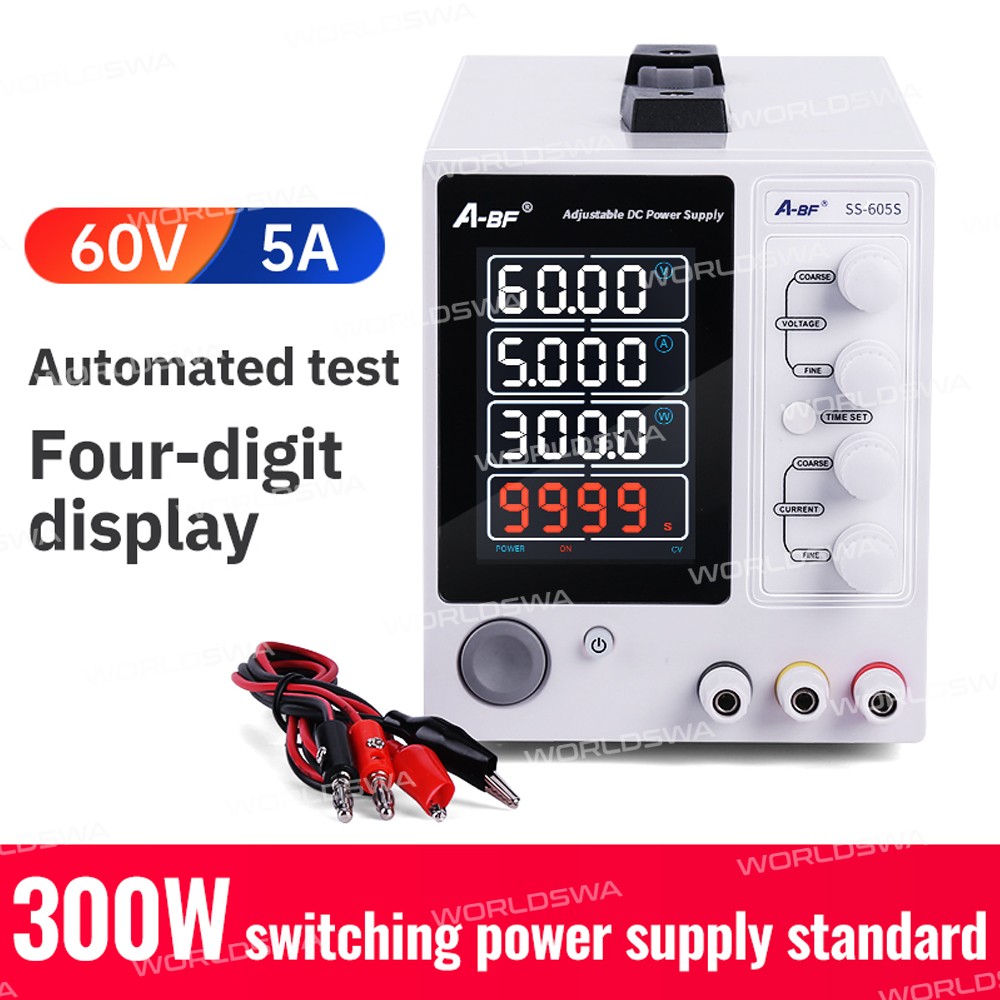

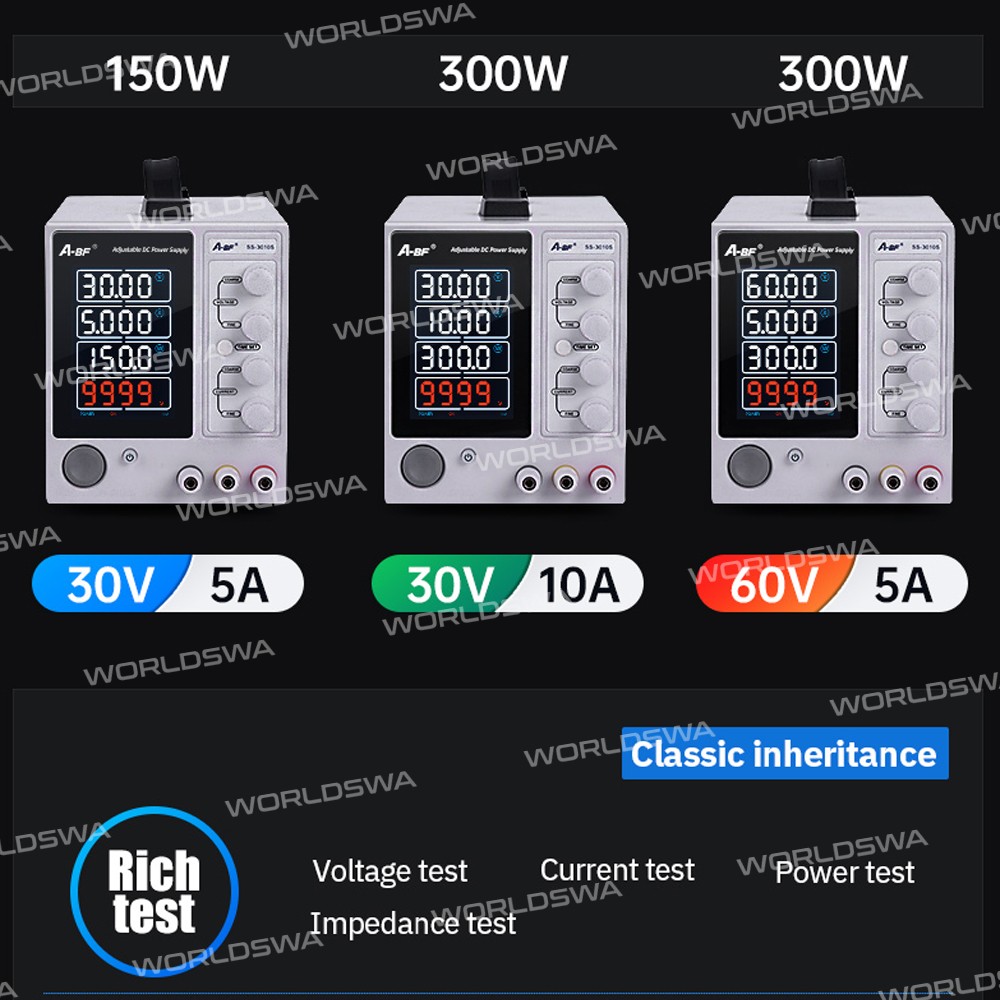

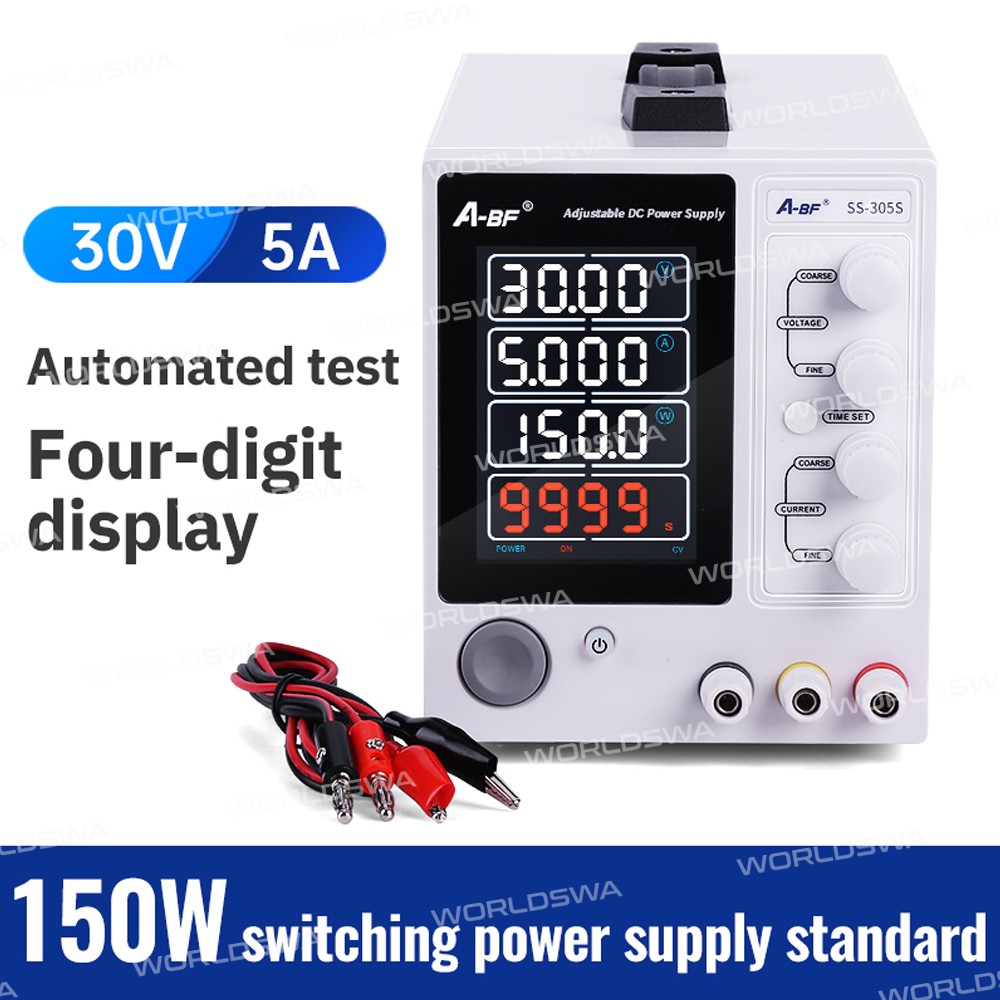

• Model: SS-305S/SS-3010S/SS-605S
• Voltage: 0~30V/0~30V/0~60V
• Current: 0~5A/0~10A/0~5A
• Power: 150W/300W/300W
• Display: 4-digit LED

Voltage Output:

• Power effect: ≤0.01%+3mV
• Load effect: ≤0.01%+2mV
• Ripple noise: ≤8 mVrms

Current Output:

• Power effect: ≤0.01%+3mV
• Load effect: ≤0.02%+10mV
• Ripple noise: ≤10 mVrms

Display Resolution:

• Voltage resolution: <100V: 10mV; ≥100V: 0.1V
• Current resolution: <10A: 1mA; ≥10A: 10mA
• Power resolution: <10W: 1mW; ≥10W: 10mW; ≥100W: 0.1W
• Time resolution: 1S
• Preset accuracy of voltage and current values: ±0.1V
• Output voltage preset accuracy: ±0.1A

Package Includes:

• 1 x Power Supply
• 1 x Power Cable
• 1 x Test Cable
