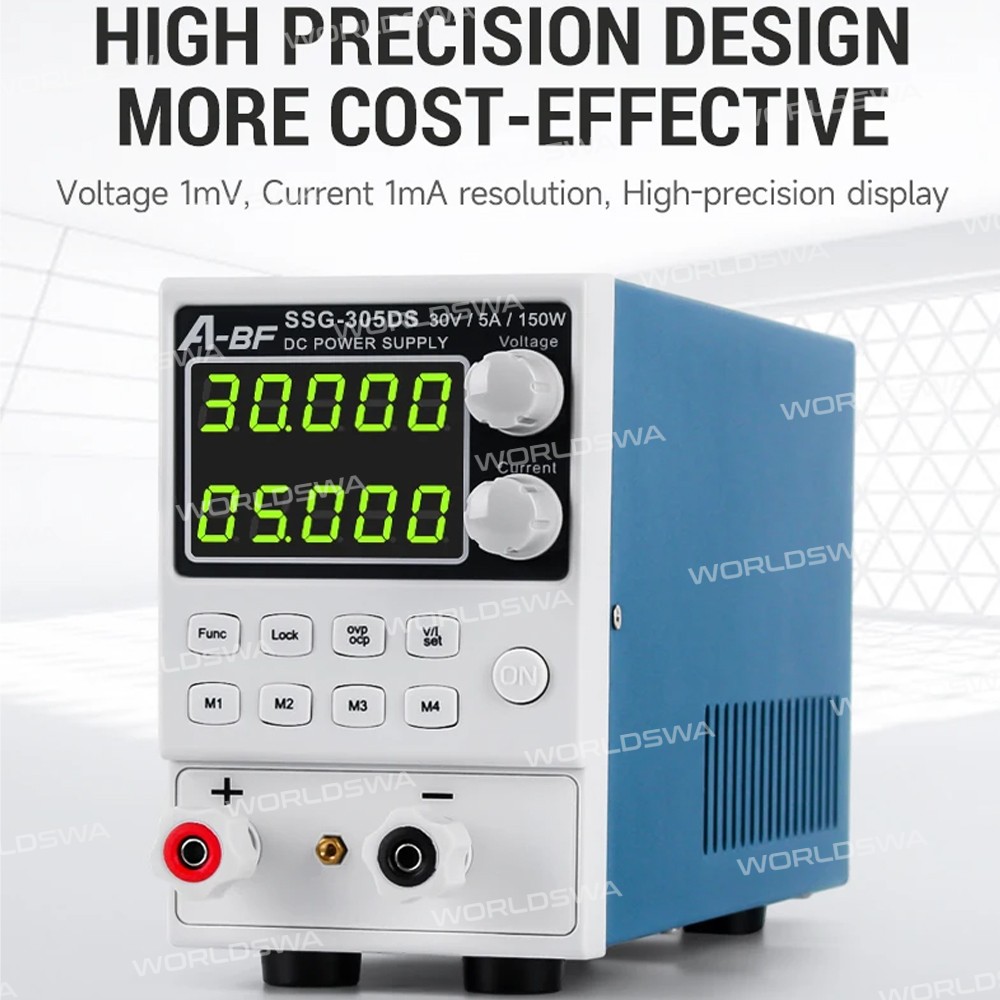

A-BF SSG-305DS 30V 5A Dual 5-Bits LED-type CNC Adjustable DC Voltage Regulated Power Supply

A-BF SSG-305DS 30V / 5A Dual 5-Bits LED-type CNC Adjustable DC Voltage Regulate Power Supply

Features:

• Double five-digit display for voltage, current, and power
• Automatic test function ‘PASS/FAIL’ result display
• Settable time output automatically shuts down
• Input wide-voltage, supports AC110/220V switching global voltage
• Intelligent temperature control fan
• High resolution and high accuracy
• OVP over-voltage protection/OCP over current protection
• Operation using rotary coding switches
• Output on/off control button
• Customizable 4 groups of store/recall settings
• Fully digital output value setting
• The key lock function prevents misoperation
• Built-in buzzer as warning prompt
• Summary:** High-performance power supply with advanced features and protections

Specification:

• Model: SSG-305DS
• AC Input: Voltage: 200-240V; Current: 2.2A
• DC Output: Voltage: 0-30V; Current: 0-5A
• Maximum output power: 150W
• Input regulation rate: Voltage: 0.02%+5mV; Current: 0.01%+5mA
• Power factor: >0.75
• Load regulation: Voltage: <0.01%+5mV; Current: <0.01%+5mA
• Measurement error: Voltage: 0.05%*FS+0.1%*RD 0.05%*Full range +0.1%*Measured value; Current: 0.05%*FS+0.1%*RD 0.05%*Full range +0.1%*Measured value

Output Ripple:

• Voltage peak: 0.2%*FS+30mV 0.1%*Full range 30mV
• Voltage Average: 0.2%*FS+10mV 0.1%*Full range 10mV
• Current average: 0.2%*FS+20mA 0.1%*Full range 20mA

• Efficiency at full load (220V AC input): ≥85%
• Programming resolution: Voltage: 1mV; Current: 1mA
• Programming accuracy: Voltage: 20mV; Current: 5mA
• Temperature Coefficient: Voltage: 50ppm/℃; Current: 100ppm/℃
• Protective function: OVP: 32V; OCP: 5.5A; OPP: 160W; OTP: 85℃
• Output response time: Rising no-load: <50ms; Rising full load: <80ms; Lowering no-load: <800ms; Lowering full load: <15ms
• Remote voltage compensation: Optional
• Maximum compensation voltage: 2V
• Communication interface: Without a communication interface
• Fan temperature control: Infinitely variable speed
• Work environment temperature: 5-40°C

Package includes:

• 1 x Power Supply
• 1 x Power Cable
