AD7606 16-bit 8-channel Synchronous ADC Module, 200KHz Sampling Frequency Data Acquisition
0 out of 5 stars
No review yet| Qty | Price | Discount |
|---|---|---|
| 1 | NaN | |
| 3 | NaN | -2.4% |
| 5 | NaN | -4.8% |
| 10 | NaN | -7.1% |
Product details
Description

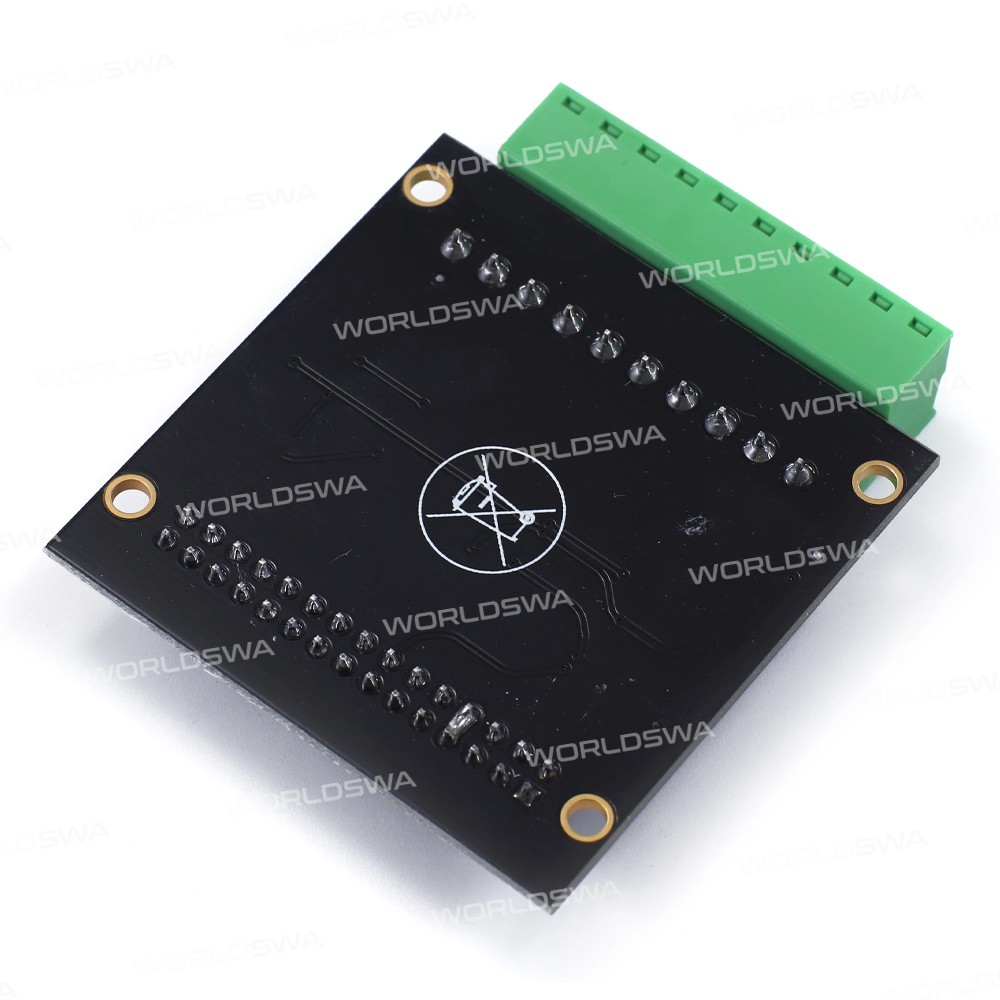

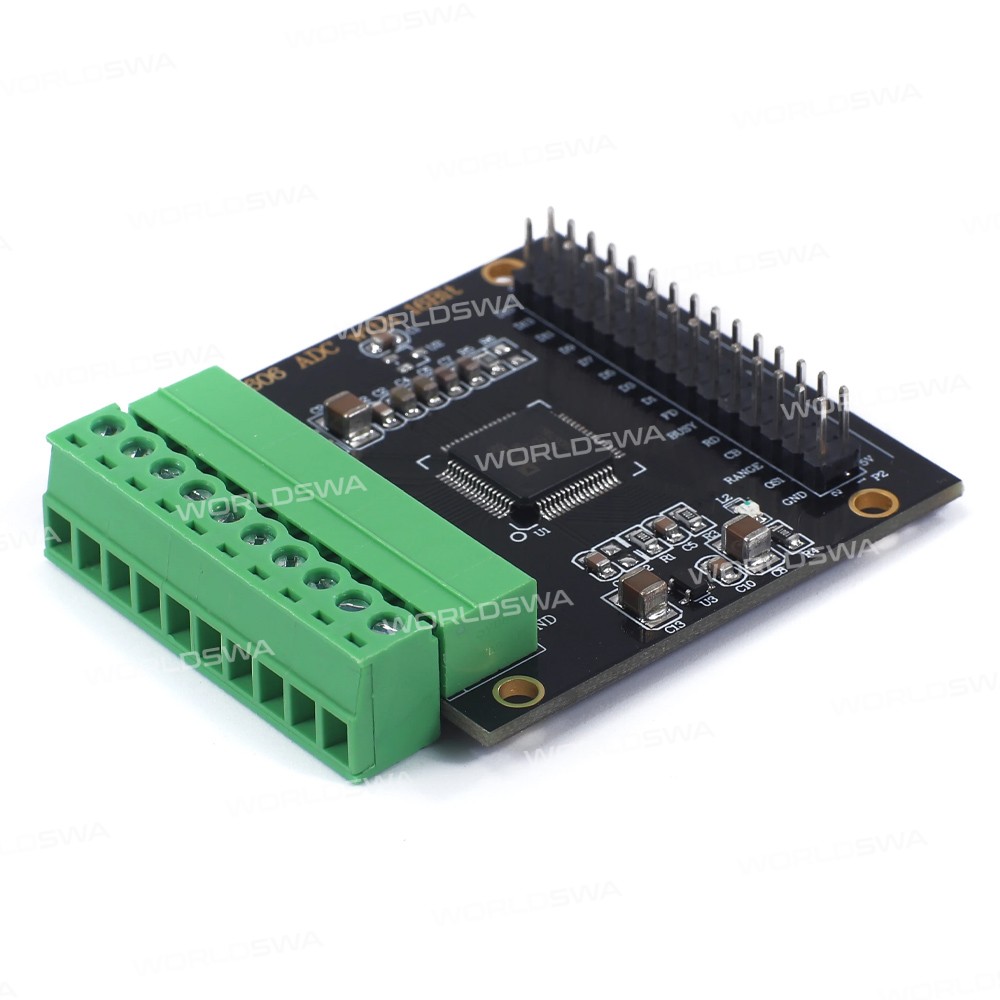

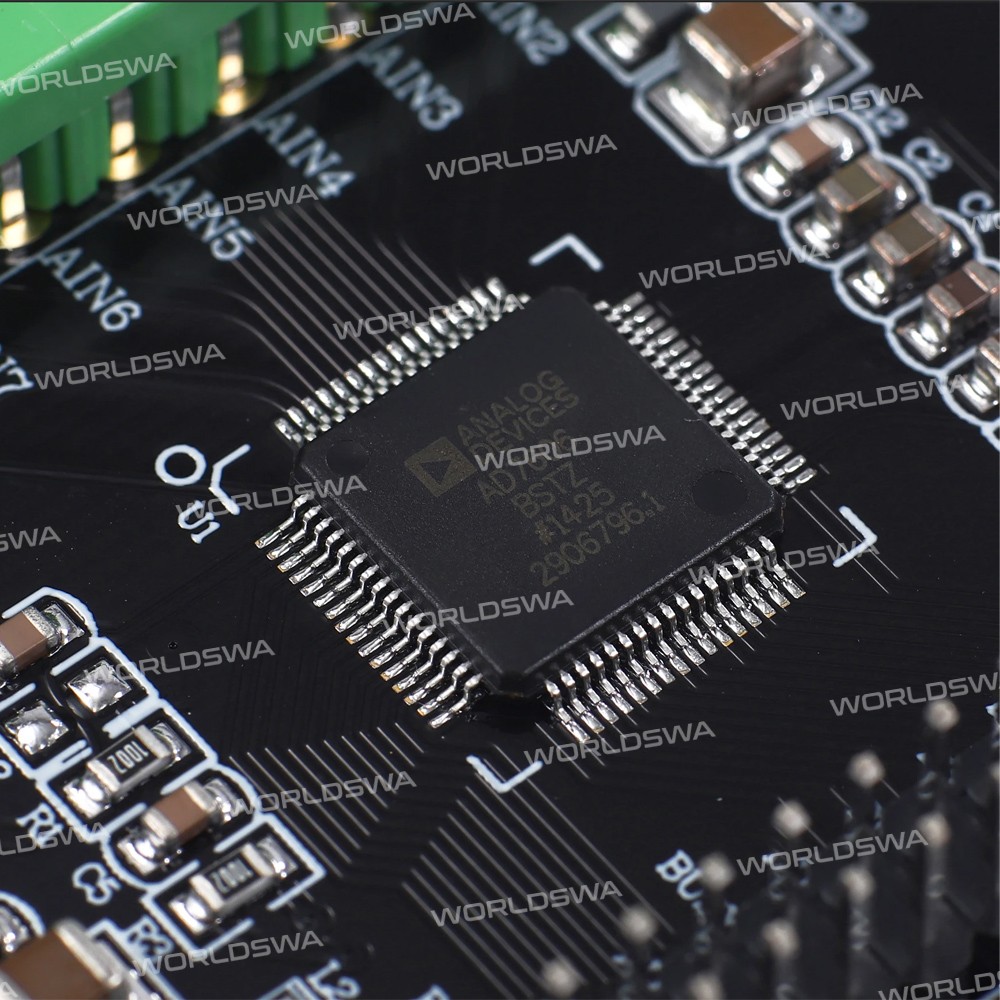

AD7606 16-bit ADC 8-channel Synchronous Sampling Frequency 200KHz Data Acquisition Module
Overview:
This AD7606 high-power multi-channel AD data acquisition module is suitable for college students, engineers, technicians, factory personnel, DIY enthusiasts, and other professionals. It's a powerful tool for various operations.
Features:
• **16-bit, 8-channel simultaneous sampling** with a sampling rate per channel of up to 200kSPS
• **Built-in analog input clamp protection**, second-order anti-aliasing filter wave generator, track-and-hold amplifier, 16-bit charge redistribution successive approximation ADC, digital word filter, 2.5V reference voltage source, reference voltage buffer, and high-speed serial and parallel line interface
• **Powered by a single 5V power supply**, with on-chip filtering and high input impedance, eliminating the need for an operational amplifier and external bipolar power supply
• **3dB anti-aliasing filter** with a cut-off frequency of 22 kHz; 40 dB impedance aliasing suppression characteristics when sampling at 200kSPS; input clamp protection circuit ensures input withstand voltage of 16.5V
• **Wide range of applications**, including power line monitoring and protection, multi-phase motor control, instrumentation and control, multiple axis positioning, data acquisition, and other systems
• **Summary:** High-performance, 16-bit, 8-channel ADC module with high-speed sampling and robust features for reliable data acquisition.
Specification:
• Model: AD7606
• Type: Analog-to-digital conversion module
• Power supply: DC 5V
• Current: 20mA(Max)
• Communication protocol: SPI serial, 8-channel data parallel
• Mode center provides routines: STM32F103RBT6
• Routine platform: STM32F103X-M3
• Control signal level: 3.3V
• Input voltage range: ±5V or ±10V
• Input resistance: 1M Euro
• ADC resolution bits: 16 bits
• Sampling Rate: 200K SPS
• Number of input channels: 8-channel independent
• Input interface: 3.81--8PIN terminal

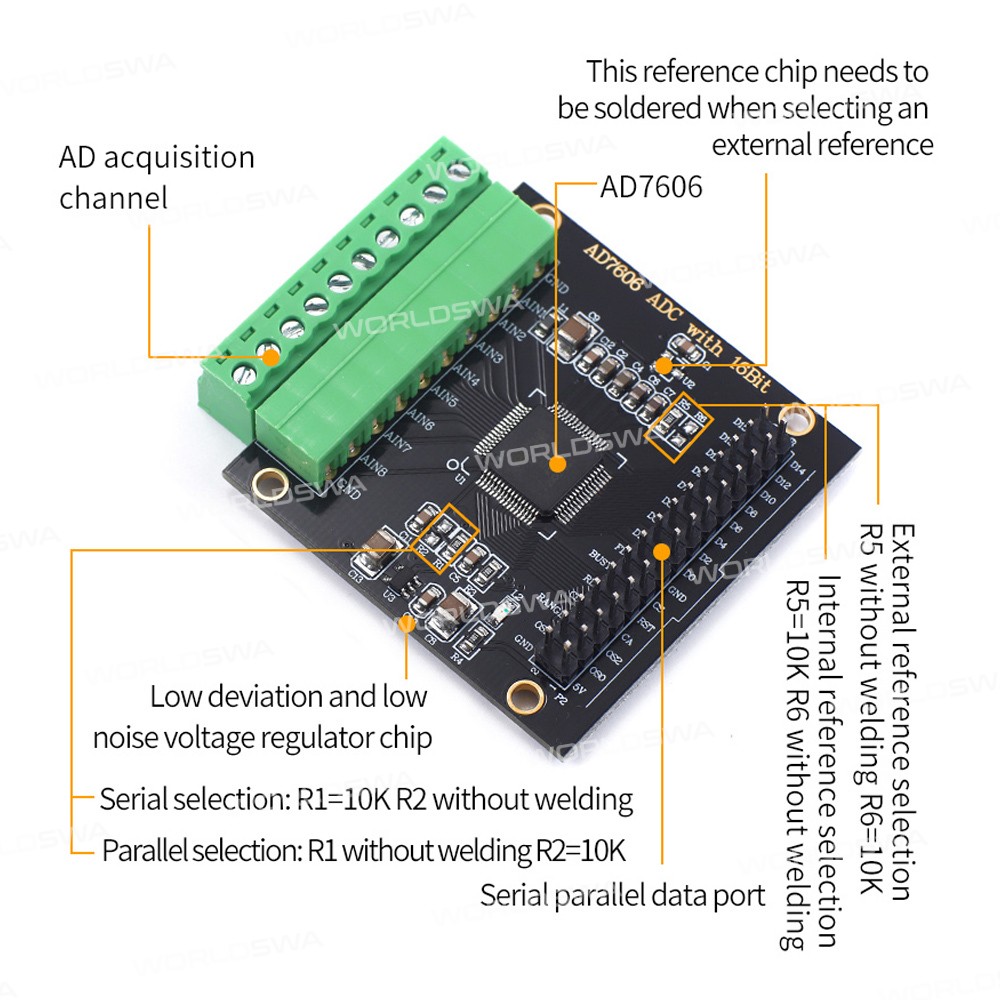

• The reference voltage: Internal 2.5V
• Oversampling mode: 6pieces
• Output mode: 8-channel data serial or parallel
• Features: Many kinds
• Application: Many kinds
• Weight: 23g
• Size: 50*50*12mm
• Interface type: 3.81-10PIN socket, XH2.54 double row of needles, according to the interface

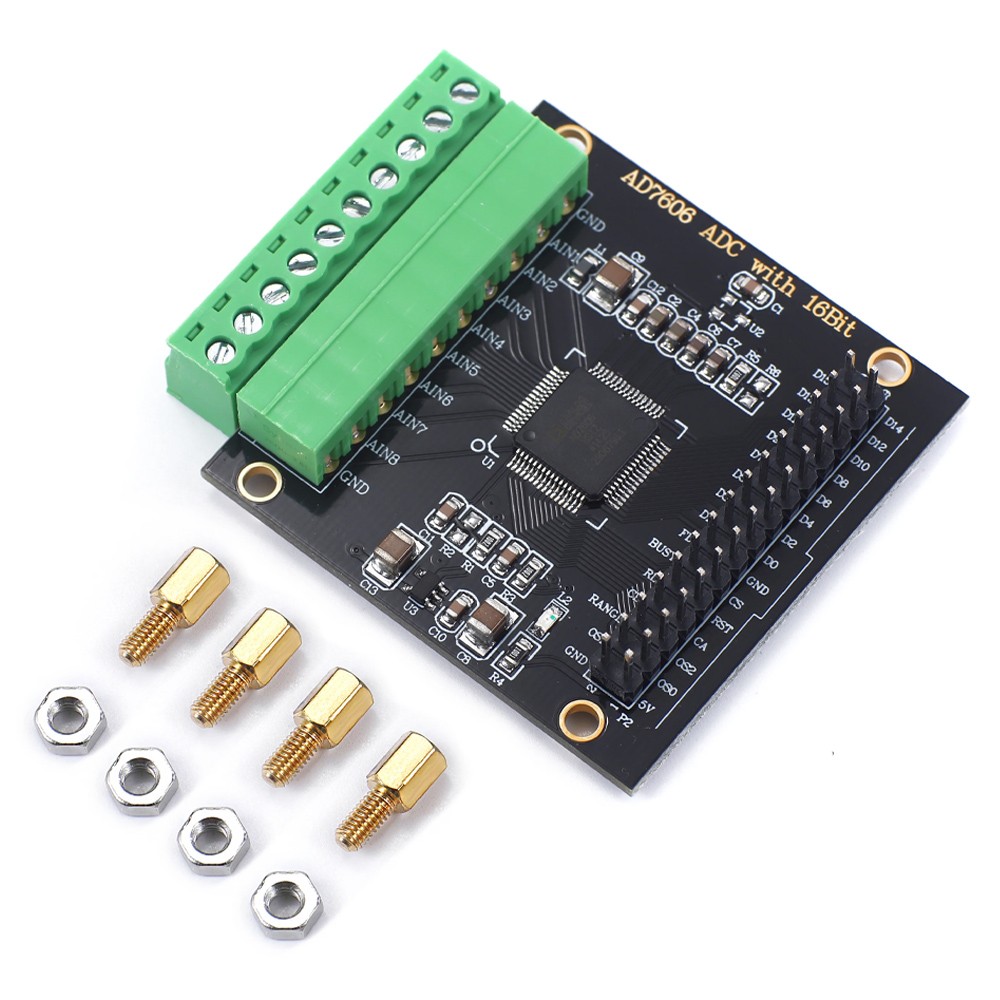

Package includes:
• 1 x Module
