Aixun T420 Single Channel Smart Soldering Station with LED Display for Mobile Phone BGA Repair

Aixun T420 LED Display Single Channel Smart Soldering Station for Mobile Phone BGA Repair

The product welding table host model T420, the official according to the handle will be equipped with different models to distinguish, such as: Equipped with a T115 handle, the model that is T405; Equipped with a T210 handle, the model that is T410; Equipped with a T245 handle, the model that is T435

Features:

• **Intelligent Temperature Control**: AiXun T420 smart single-channel soldering station is a new high-efficiency welding station with an intelligent temperature control system which is beneficial for prolonging the service of welding iron tips

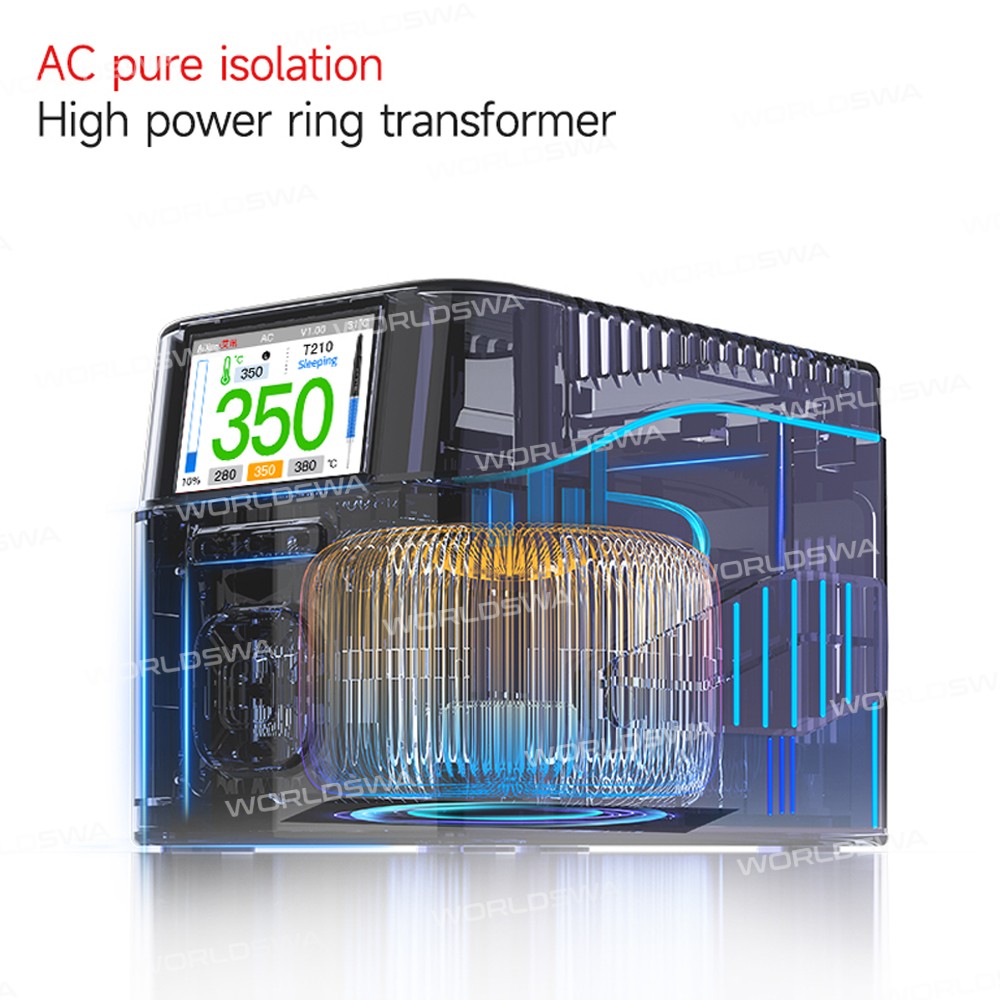

• High Power: It is equipped with a 240W super high power ring transformer, with which the temperature can heat up to 380℃ only in 2 seconds
• **Multi-Functional**: It supports T245, T210, and T115 three handles which can help meet different soldering needs, including soldering large items as well as little tiny precise components such as PCB, BGA, SMT, CPU, and mainboard reballing
• Real-time monitoring of working status, prolonging the service life of soldering tips
• Both are suitable for the soldering of large items as well as precise components
• AC pure isolation, anti-interference and anti-static
• Like other AiXun products, it also supports global software upgrades, helps you enjoy the latest functions, and is never out of date

Specification:

• Name: Single Channel Smart Soldering Station
• Model: T420
• Brand: AiXun
• Support soldering handles: T245/T210/T115
• Input fuse: 3A
• Input voltage: 220V
• Temperature range: 90℃-450℃
• Rated power: 200W
• Main station size: 178.4*112*125mm
• Handle holder size: 154*65*77.4mm
• Grounding resistance of tip: ＜2ohms

Package includes:

• 1 x Soldering station
• 1 x Handle
• 1 x Handle bracket
• 1 x Soldering iron tip
• 1 x Power cord
