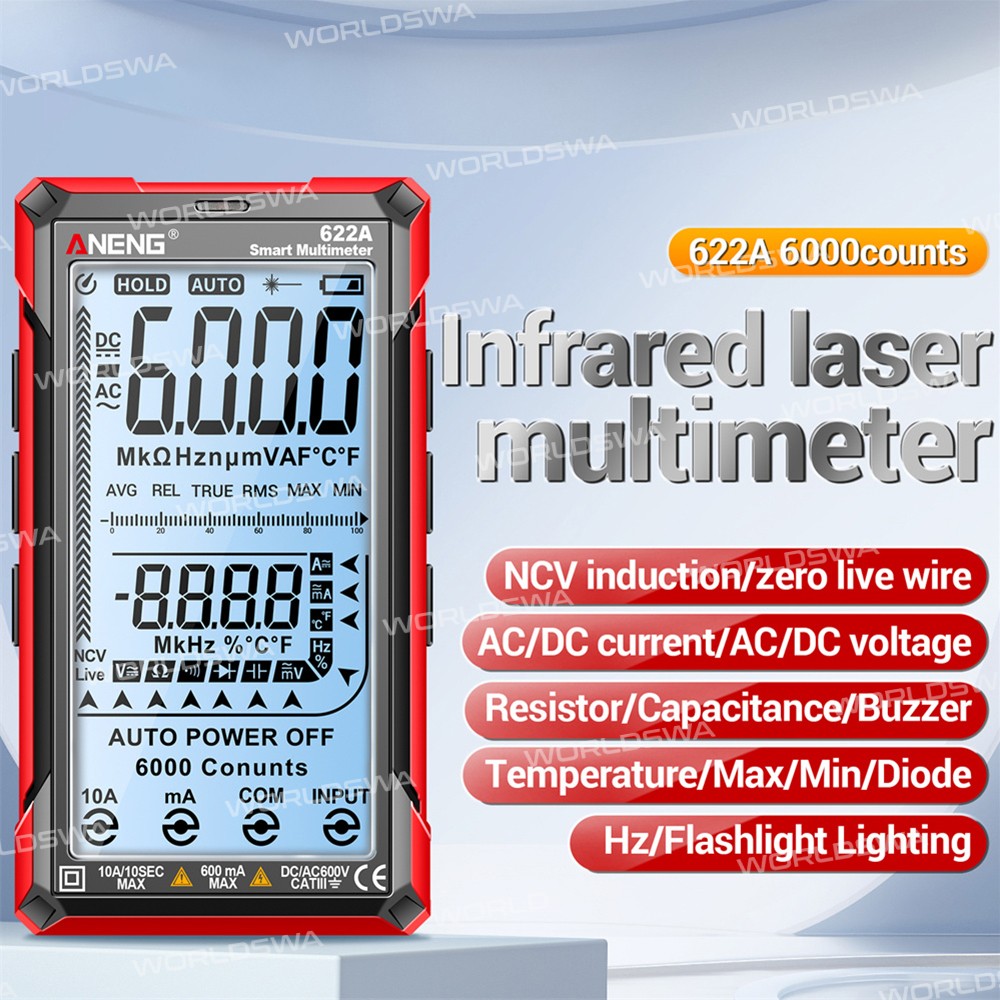

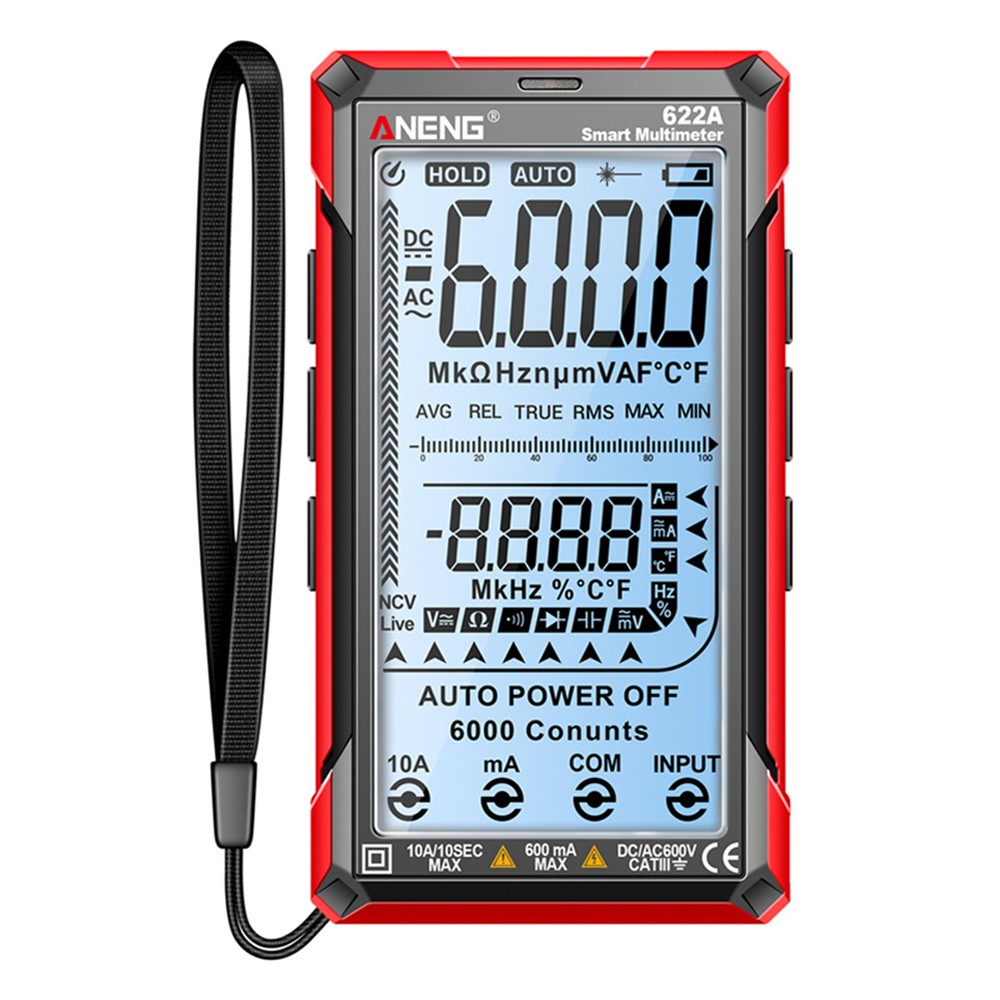

Aneng 622A Multi-function Intelligent LCD Display Multimeter with Auto Range and Laser Lamp

Aneng 622A Multi-function Auto Range Intelligent LCD Display Multimeter with Laser Lamp

Overview

This digital multimeter is designed to provide accurate and reliable measurements with its advanced features and functions. With automatic selection of measurement functions and ranges, users can easily get accurate readings without any guesswork.

Key Features:

• Automatic Range Selection: No need to worry about selecting the right range, the multimeter does it for you.
• Intelligent and Accurate: Stable performance, high accuracy, clear reading, and overload protection ensure reliable and safe operation.

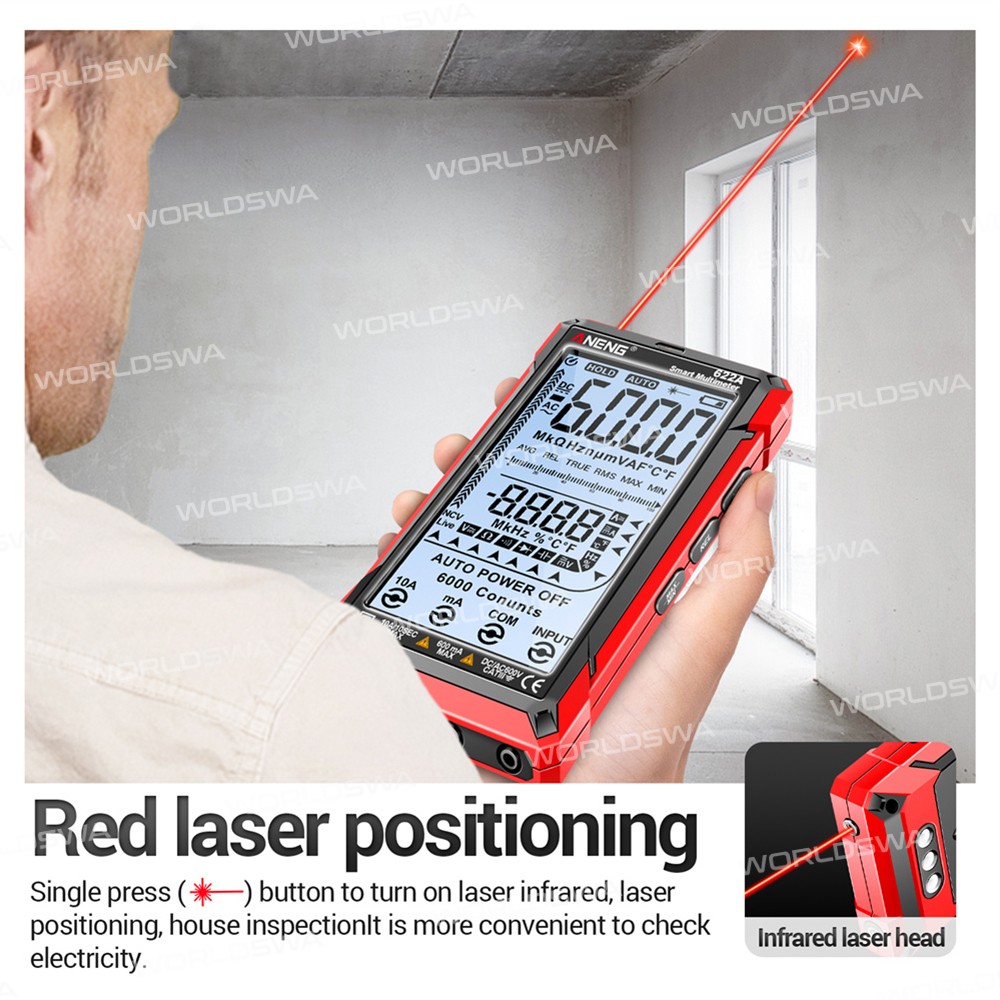

• Laser Targeting: The built-in laser light helps users target the measurement point more accurately, ensuring more precise readings.
• Wide Measurement Range: Capable of handling a wide range of electrical measurements with a maximum voltage of 1000V DC or 750V AC between measuring terminal and ground.

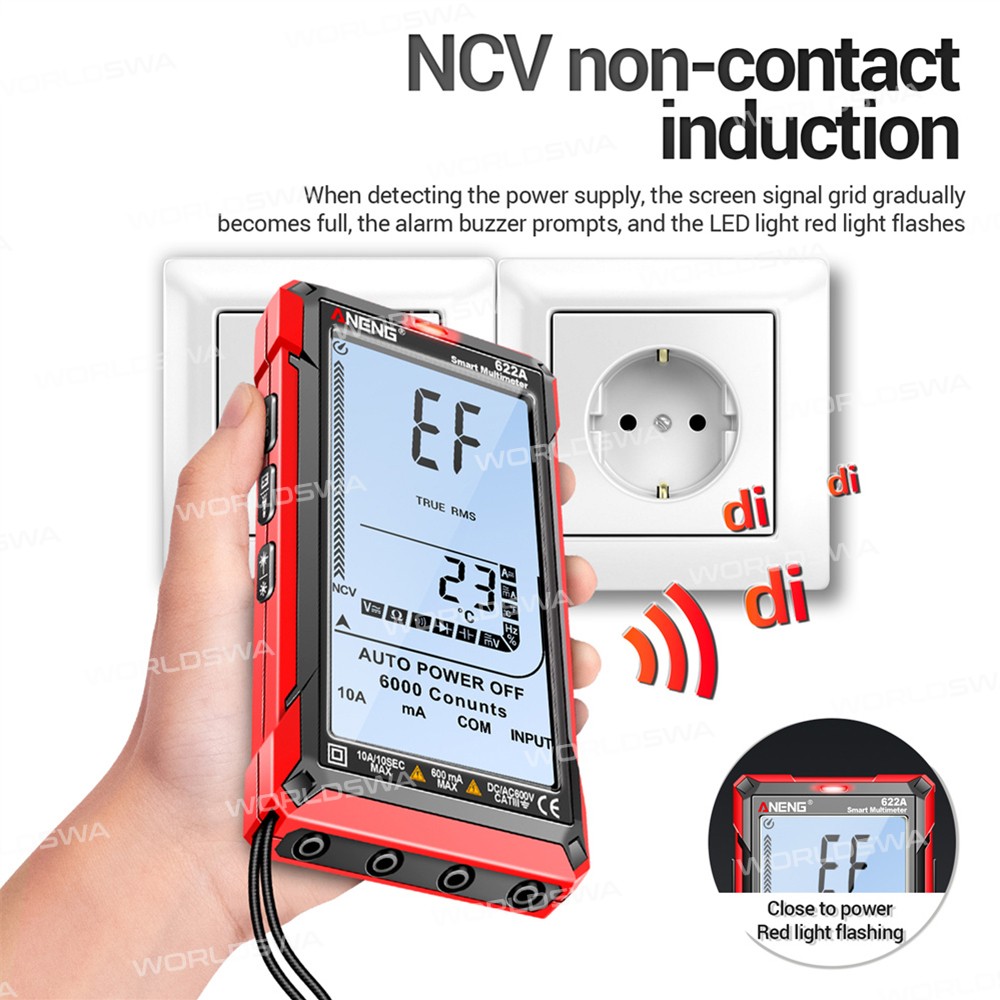

• Power Supply Detection: The screen signal grid gradually becomes full, the alarm buzzer prompts, and the LED light red light flashes when detecting the power supply.

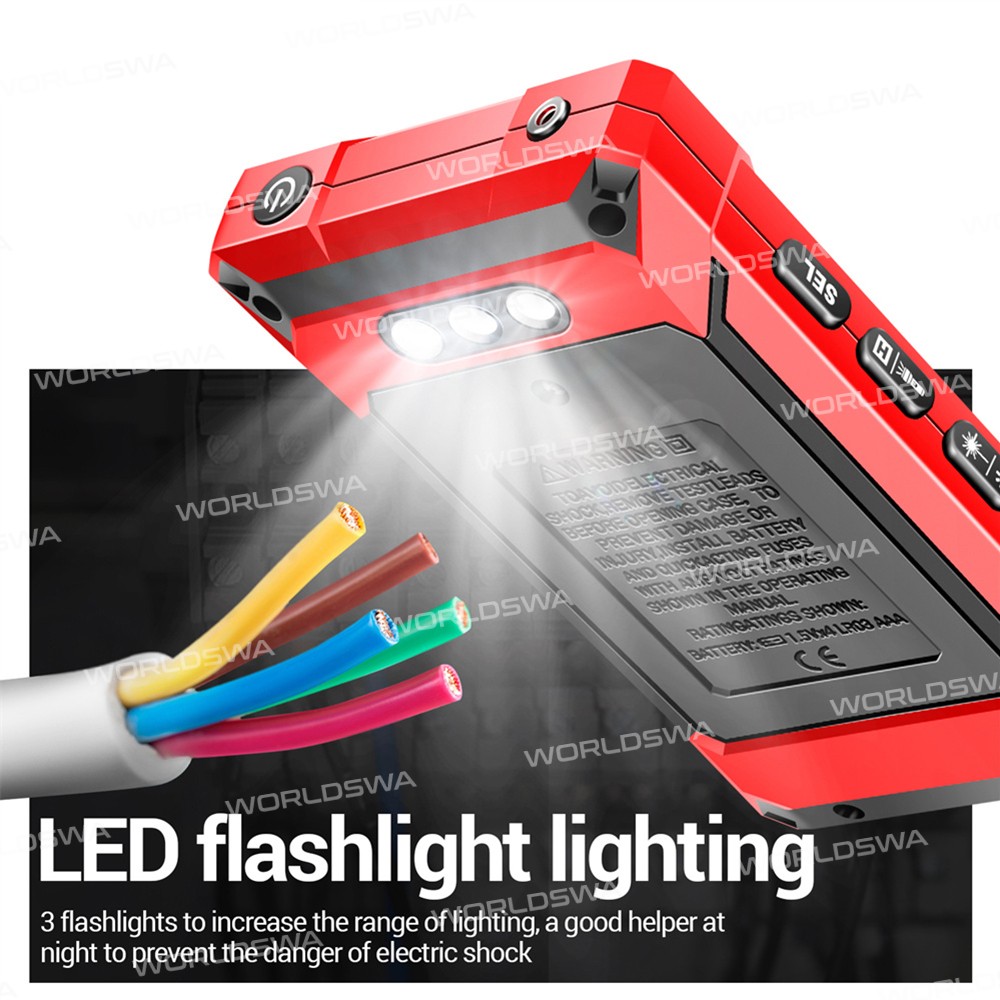

• Triple Flashlights: Increase the range of lighting, a good helper at night to prevent the danger of electric shock.

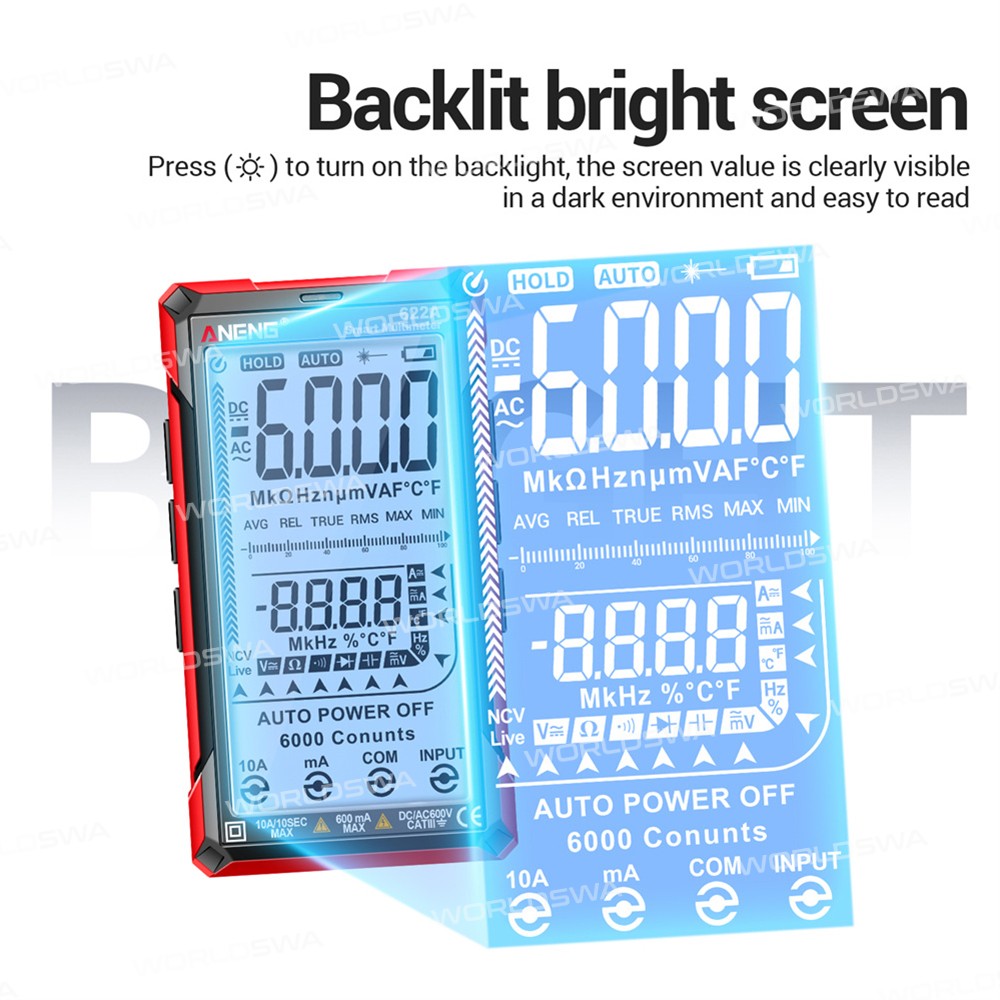

• Backlight Display: Press to turn on the backlight, the screen value is clearly visible in a dark environment and easy to read.
• High-Definition LCD: A larger high-definition LCD that makes it easy to read data even in low light conditions, ensuring you get accurate results every time.
• Precise Readings: With a maximum display value of 9999, this multimeter can provide precise readings for various electrical parameters.

Specification:

• Display Type: Digital display
• Model Number: Digital Multimeter
• Supervision display: "OL" or "-OL".
• Sampling time: About 3 times/second
• AC current: 60mA-10 A ±(1.0% reading+8 words)
• DC current: 60mA-10A ±(1.0% reading+5 words)
• AC voltage: 600mV-999.9V ±(0.8% reading+5 words)
• DC voltage: 600mV-999.9V ±(0.5%reading+3words)
• Resistance: 0-99.99MΩ ±(0.8% reading+3 words)
• Capacitor: 0-99.99mF ±(2.5% reading+20 words)
• Temperature: -40-1000°C/-40-1832°F ±(1% reading+3 words)
• Frequency: 0-10MHz ±(3% reading+5 words)
• Duty cycle: 1-99% ±(3% reading+3 words)
• Infrared laser: Yes
• Automatic range: Yes

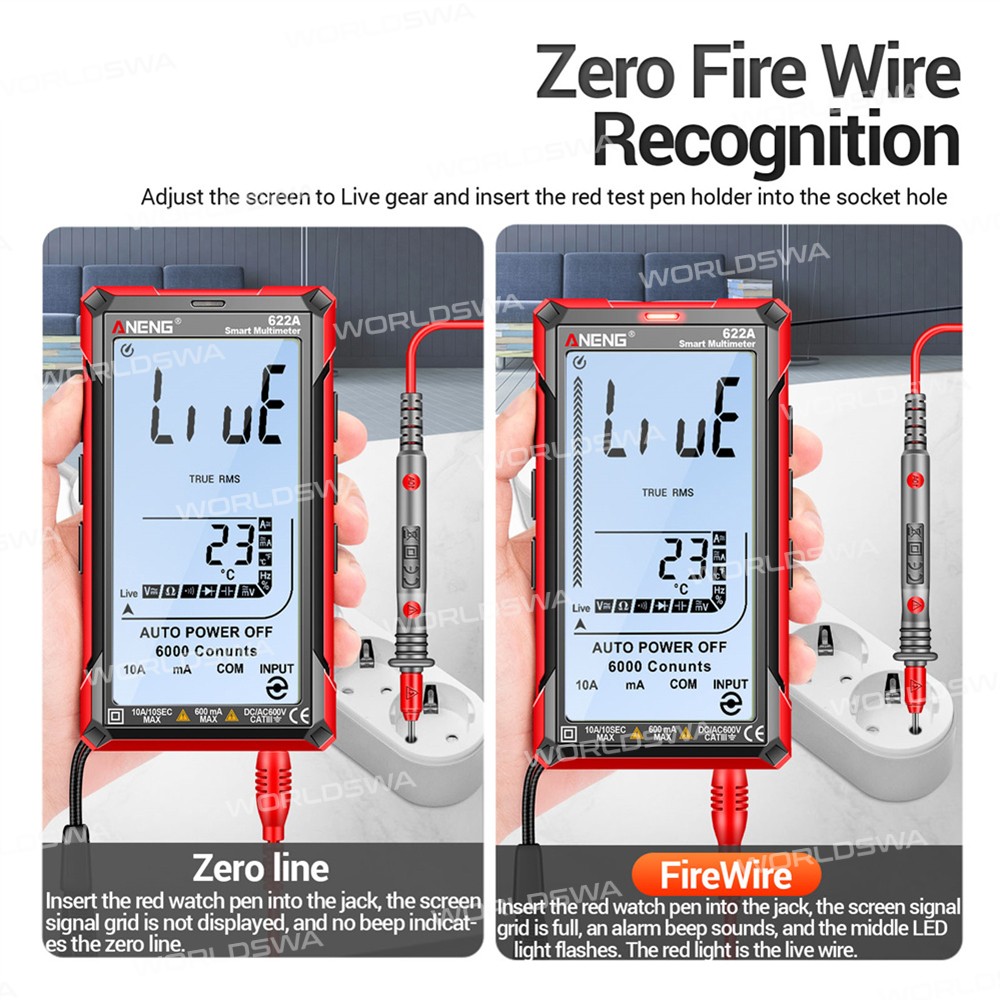

• Zero Fire Wire: Yes
• Automatic shutdown: Yes
• NCV induction: Yes
• Maximum/Minimum: Yes
• Diode: Yes
• Flashlight: Yes
• Buzzer: Yes
• Data retention: Yes
• Automatic shutdown time: 15 minutes
• Power supply: 1.5V AAA battery x 4 (not included)
• Display (LCD): 6000 counts
• Ranging: Automatic/Manual
• Shell material: ABS

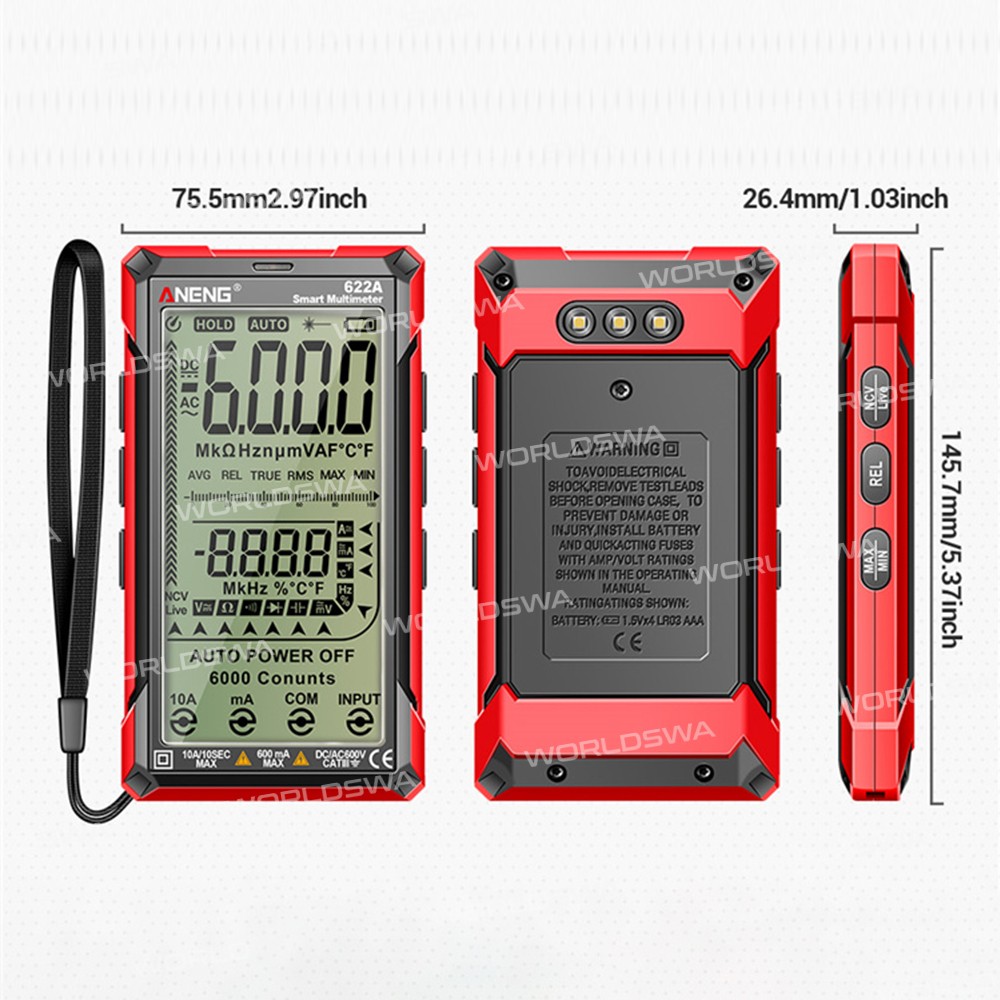

• Size: about 145.7*75.5mm

Package includes:

• 1 x Multimeter (without Battery)
• 2 x Test Lead
• 1 x Thermocouple
