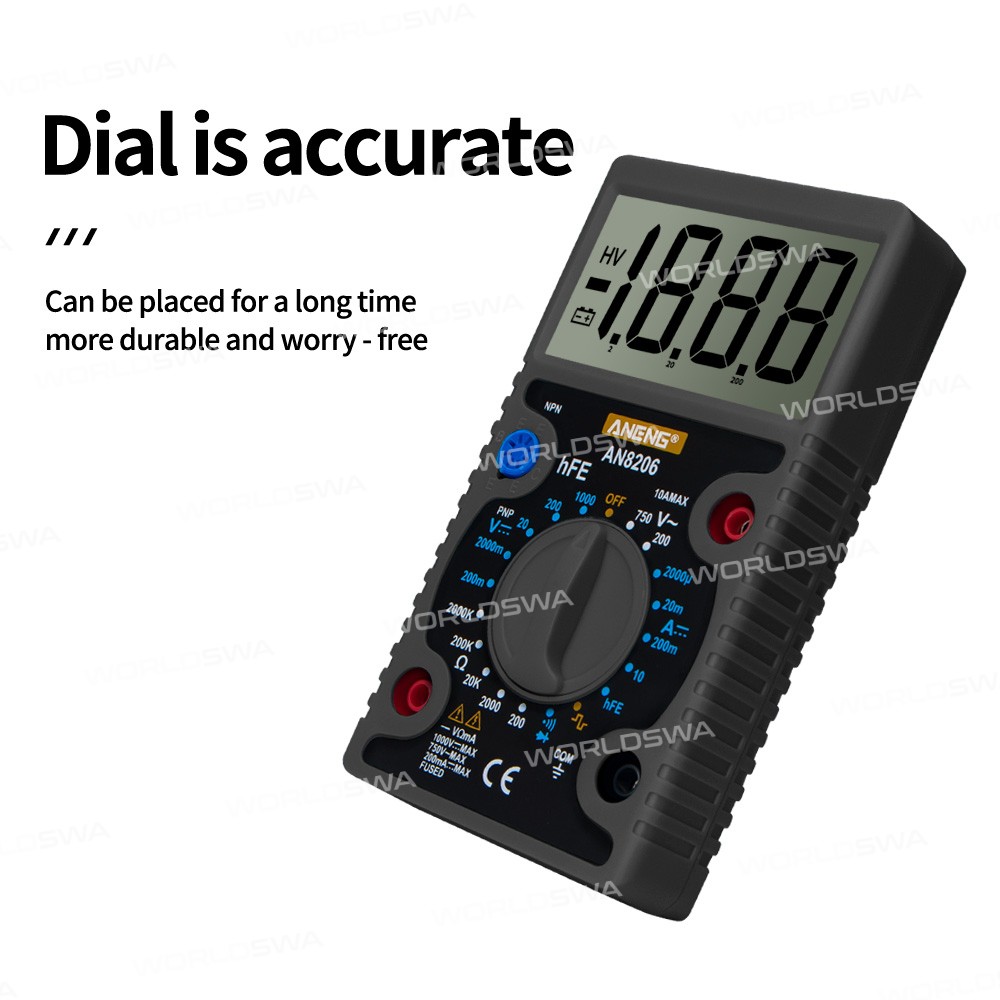

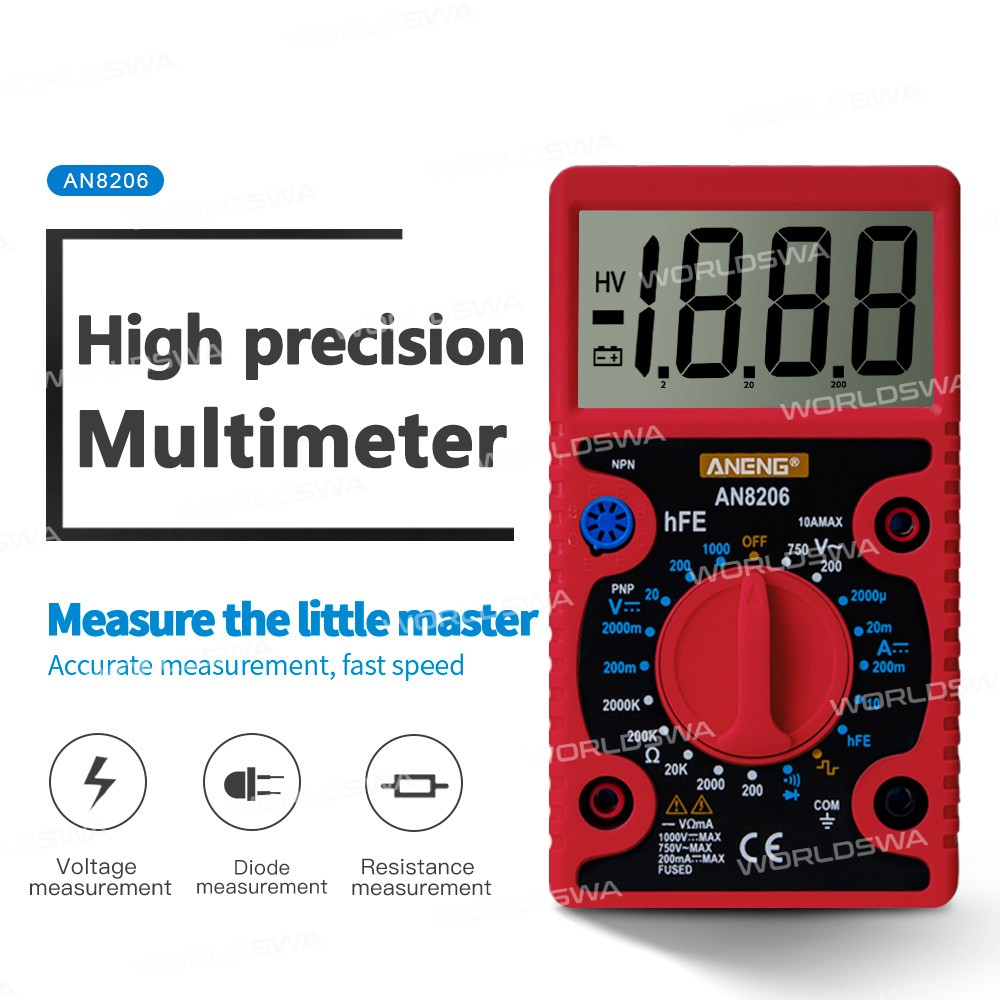

AN8206 Mini Automatic Range LCD Digital Multimeter with Large Screen Display

Aneng AN8206 Mini Automatic Range LCD Large Screen Digital Display Multimeter

Features:

• This multitester can be used for AC / DC test voltage, DC / AC current test, the strength of the electric current hFE. Automatic identification of function range.
• Insert the pen into the corresponding pen jack, it will automatically identify.

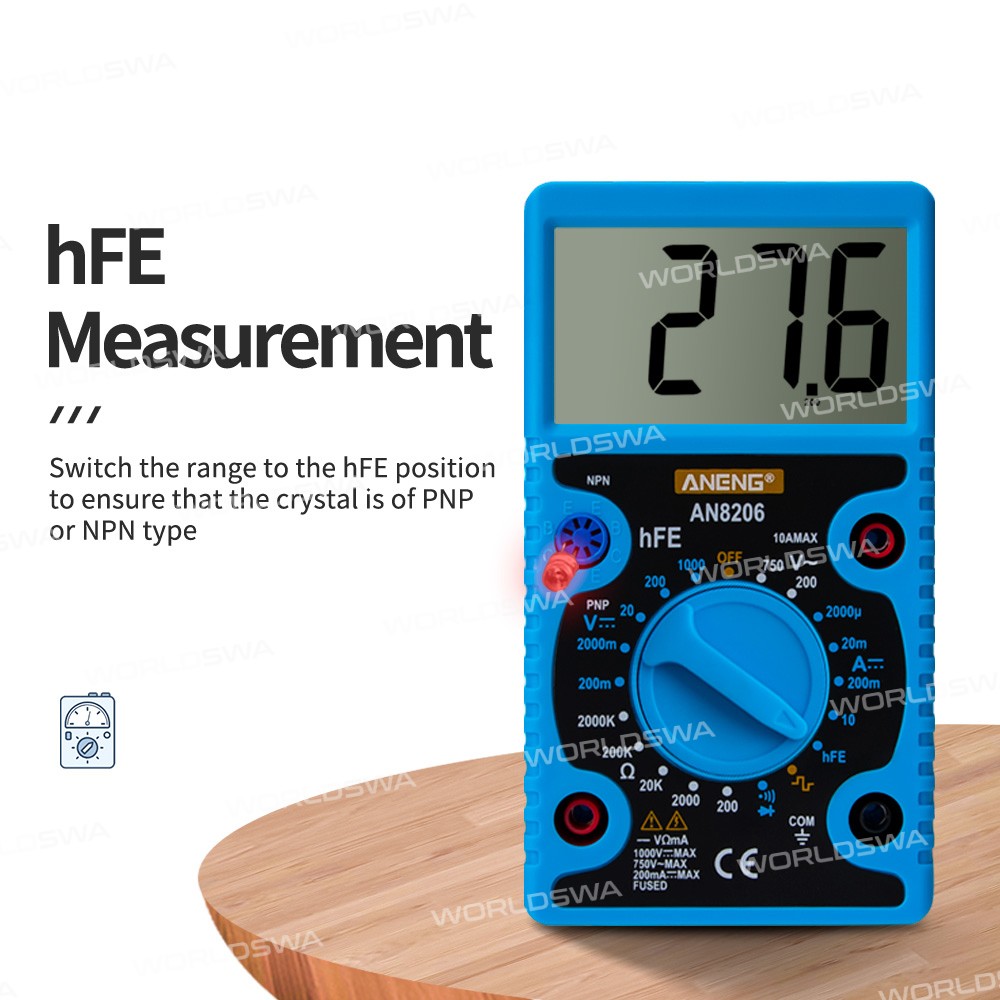

• Switch the function range to the hFE position to ensure that the transistor is PNP or NPN type.
• multimeter Digital LCD can be used to Ohm AC / DC volt test and review all types of circuit boards display Auto polarity / Diode Test / Transistor P-N test junction / test Transistor hFE auto turn off & data hold function. Comprehensive testing capabilities.
• In more places, such as factories, school labs, home hobbies, machine repairing, etc. Versatile usage.

Specification:

• DCV: 200mV-2000mV-20V-200V-1000V ±0.5%

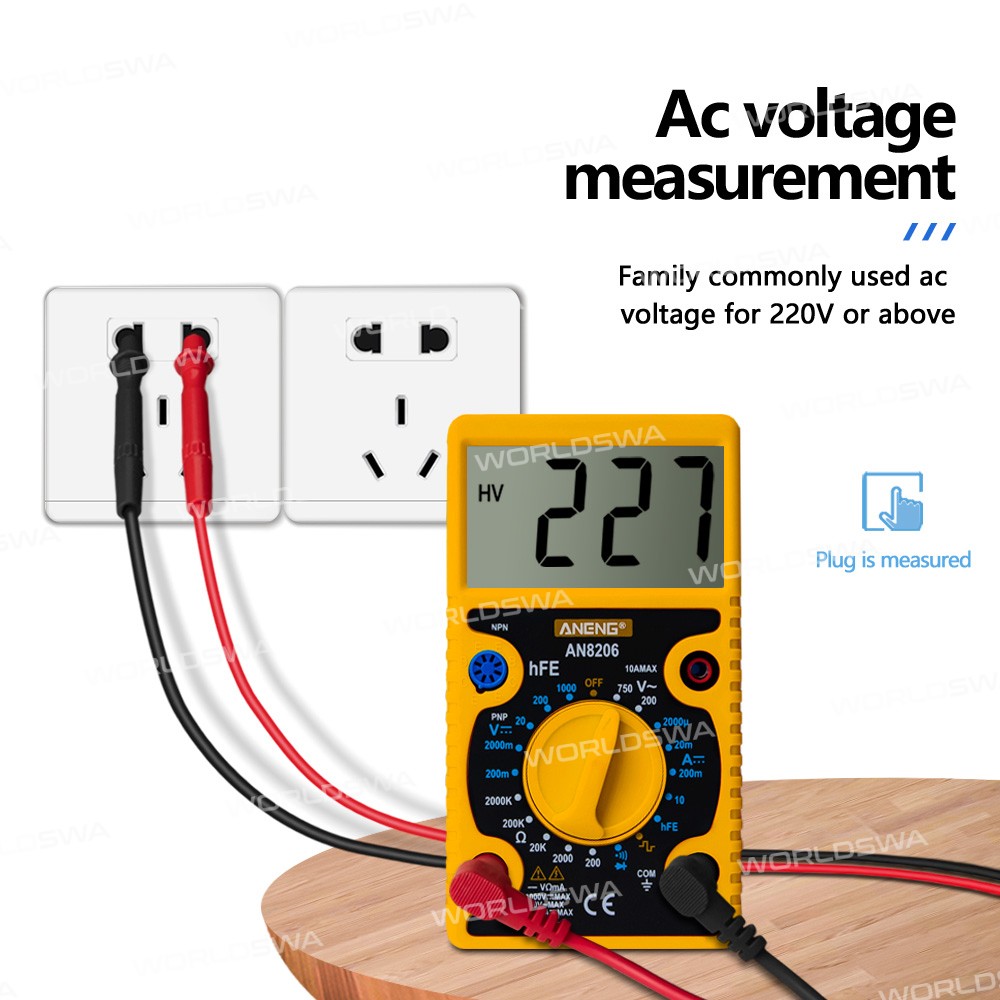

• ACV: 200-750V ±1.0%
• DCA: 2000uA-20mA-200mA-10A ±1.8%
• Resistance: 200Ω-2000Ω-20KΩ-200KΩ-2000KΩ ±1.0%
• Color: Black, Red, Yellow, Grey, Blue
• LCD size: 62*34mm
• Max display: 1999
• Low battery indication: Yes
• Diode test: Yes
• Transistor test: Yes
• Continuity buzzer test: Yes
• Square wave output: Yes
• Safety ensures: Overload protection function
• Power supply: one 9V 6F22 battery (No batteries included)
• Product size: 128mm*70mm*25mm
• Product weight: About 127g

Package includes:

• 1 x Multimeter (No batteries included)

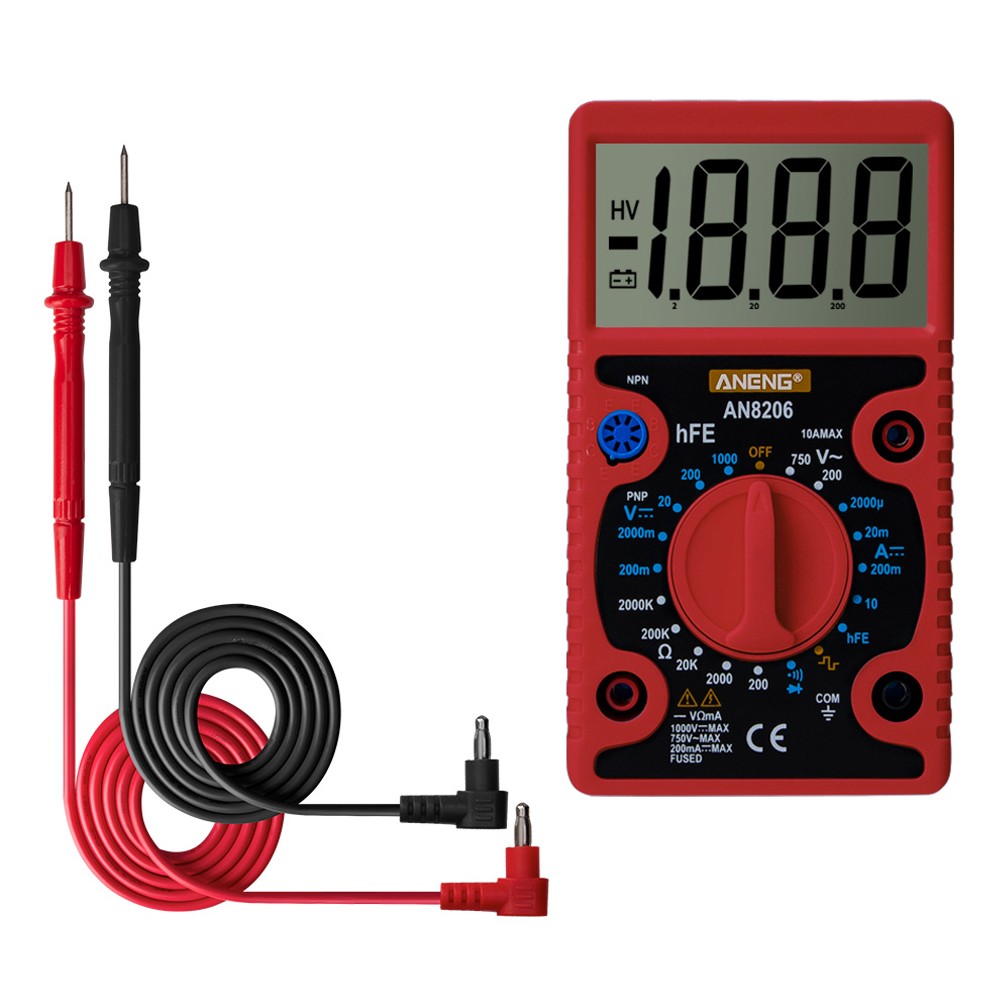

• 2 x Test Line
