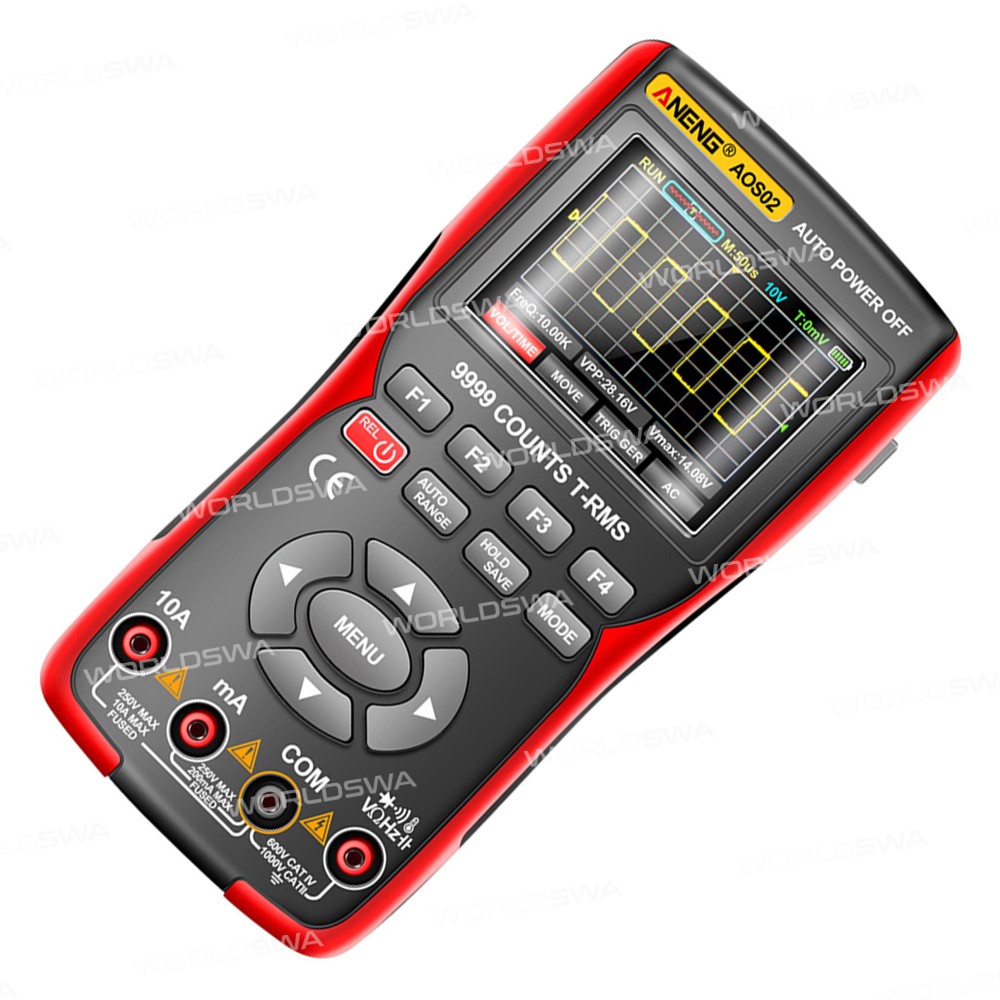

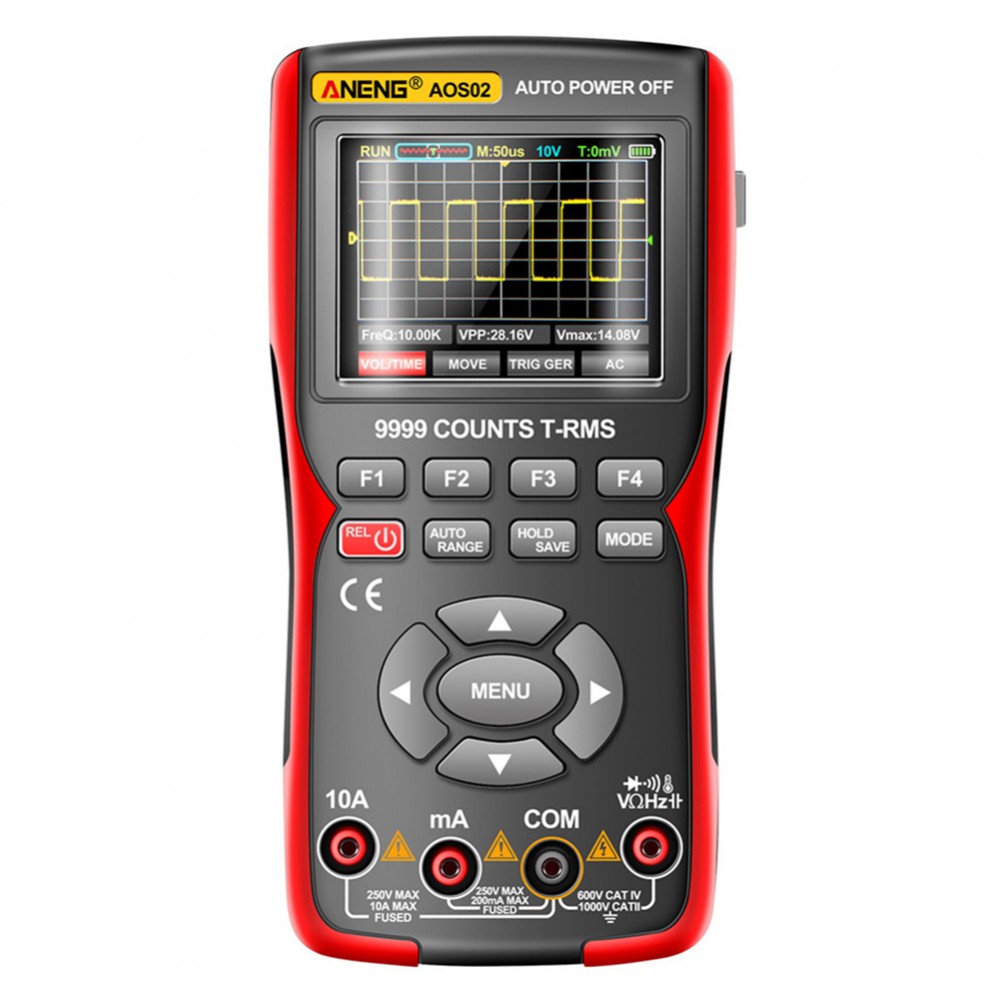

Aneng AOS02 Portable 2-in-1 Digital Multimeter & Oscilloscope with Temperature Test Function

Aneng AOS02 Portable 2-in-1 Digital Multimeter & Professional Oscilloscope with Temperature Test

Features:

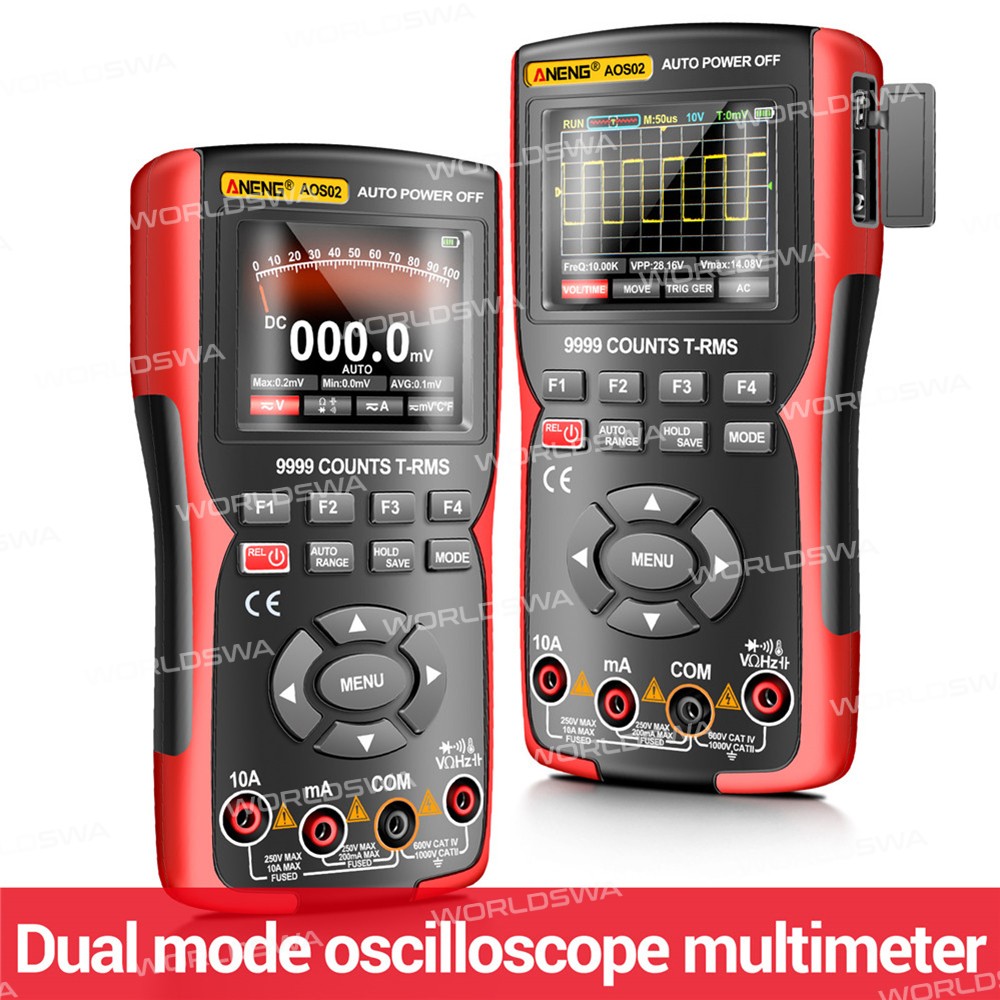

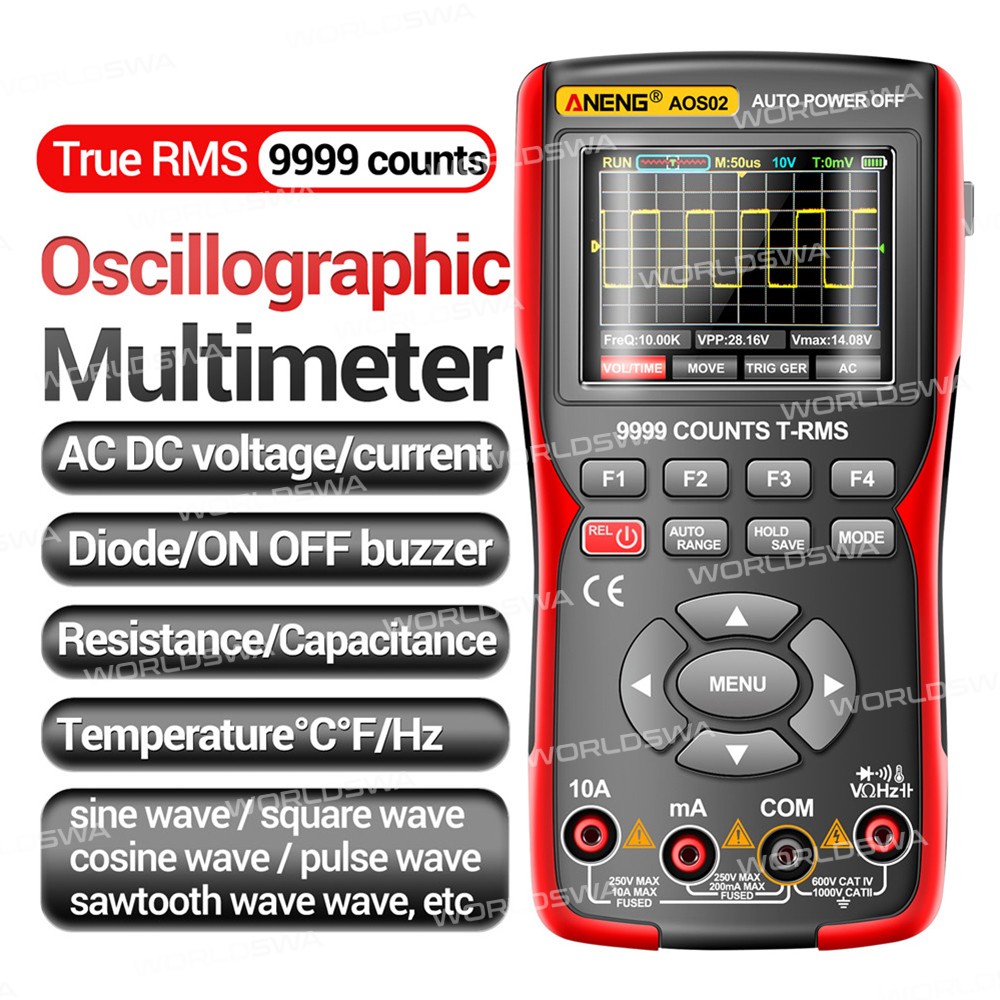

• **Versatile 2-in-1 Design**: Seamlessly switch between digital multimeter and oscilloscope modes with the MODE key, making it suitable for a wide range of applications.

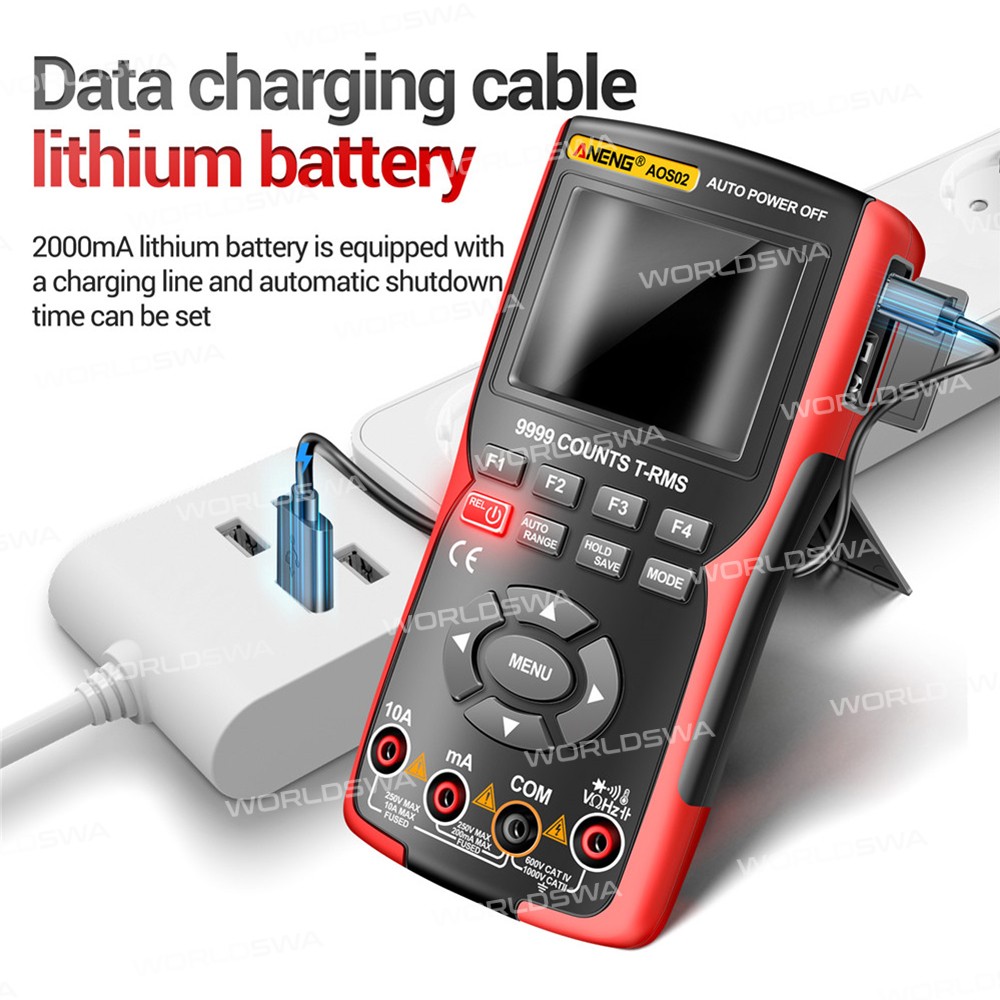

• **Long-Lasting Battery Life**: Powered by a 18650 lithium-ion battery, ensuring continuous usage without worrying about running out of juice.

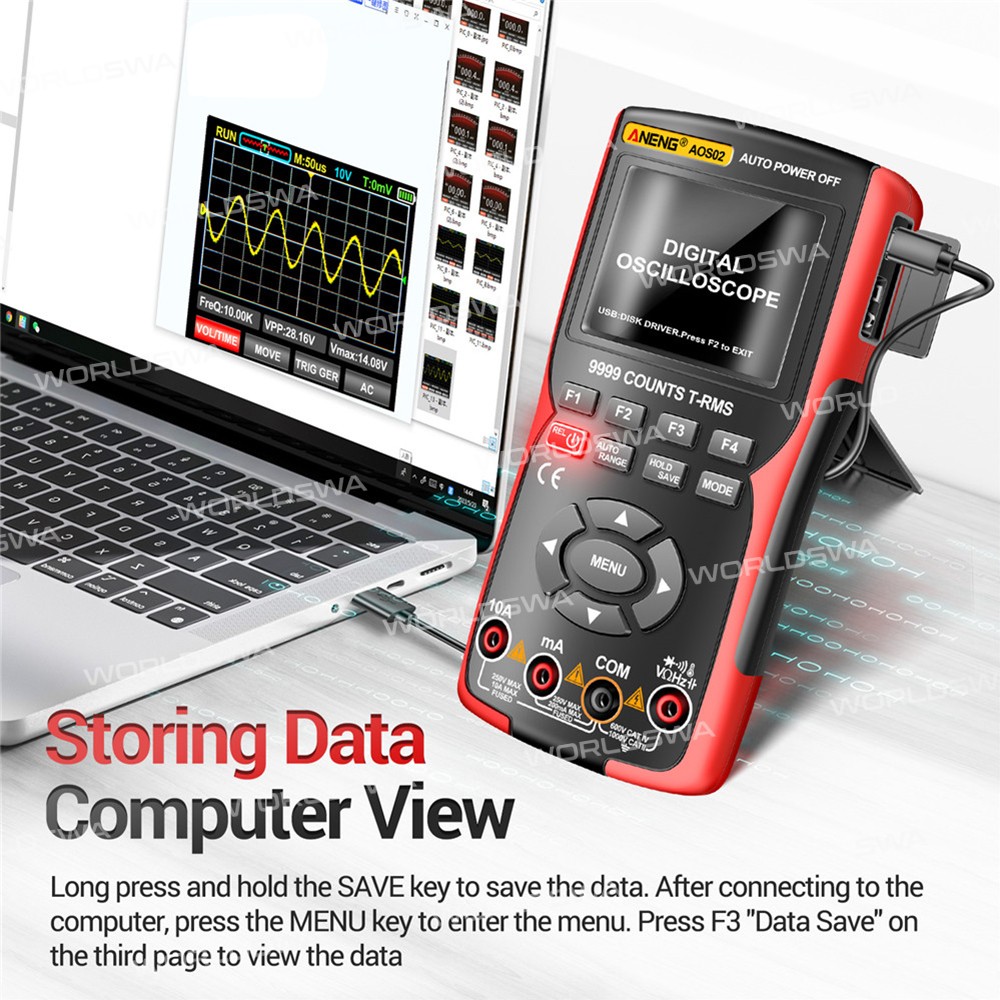

• **Convenient Data Storage**: Capture and analyze waveforms on the go, saving them in a user-friendly format for later analysis or sharing.
• **Customizable Settings**: Adjust brightness and auto-off settings to match your preferences, saving power and providing a comfortable experience during extended usage.
• **High-Quality Output**: Delivers high-quality output through image format, with an impressive sampling rate of 48M/S and a storage depth of 64Kpts, making it easy to transfer data to your computer.

Specification:

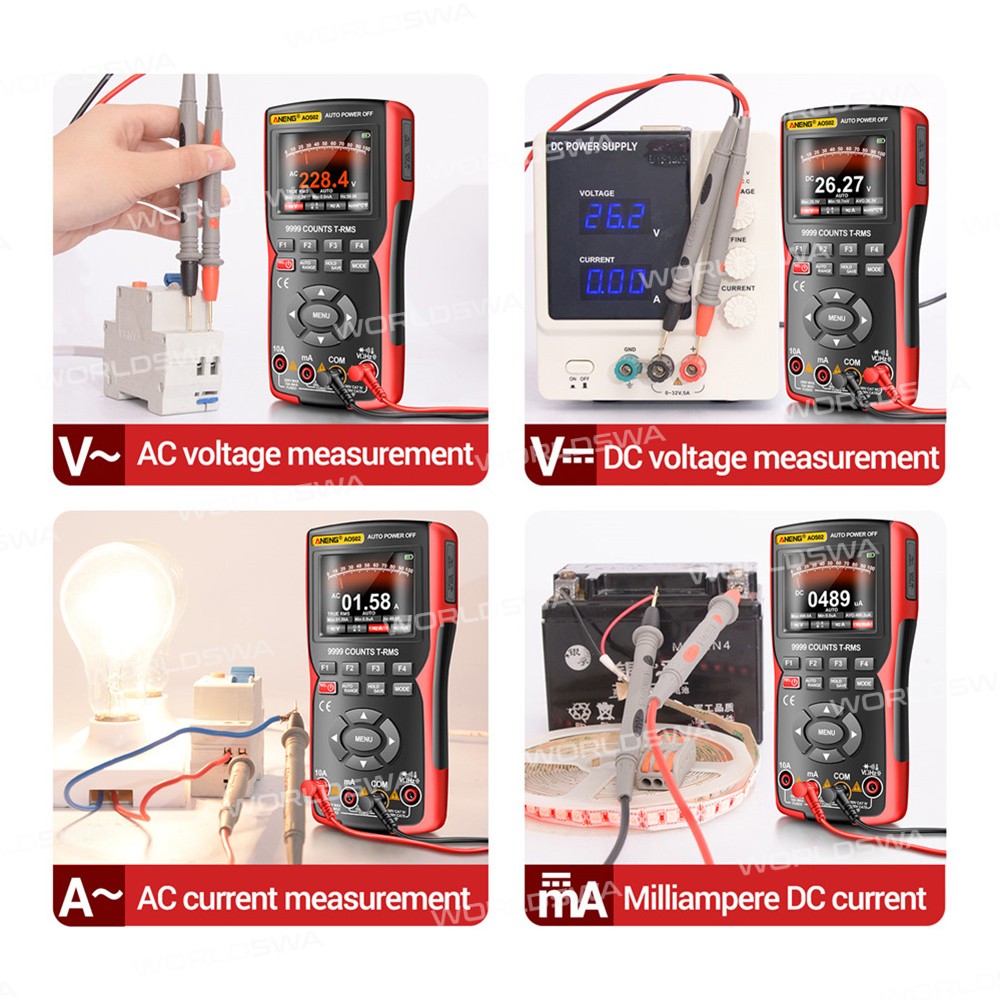

• DC voltage: 999.9mV~999.9V ±(0.5%+3)
• DC voltage: 9.999mV~99.99mV ±(0.5%+3)
• AC voltage: 999.9mV~750V ±(1.0%+3)
• AC voltage: 9.999mV~99.99mV ±(1.0%+3)
• DC current: 9.999A~999.9mA ±(1.0%+3)
• DC current: 99.99mA~9999μA ±(0.8%+3)
• AC current: 9.999A~999.9mA ±(1.2%+3)
• AC voltage: 99.99mA~9999μA ±(1.0%+3)

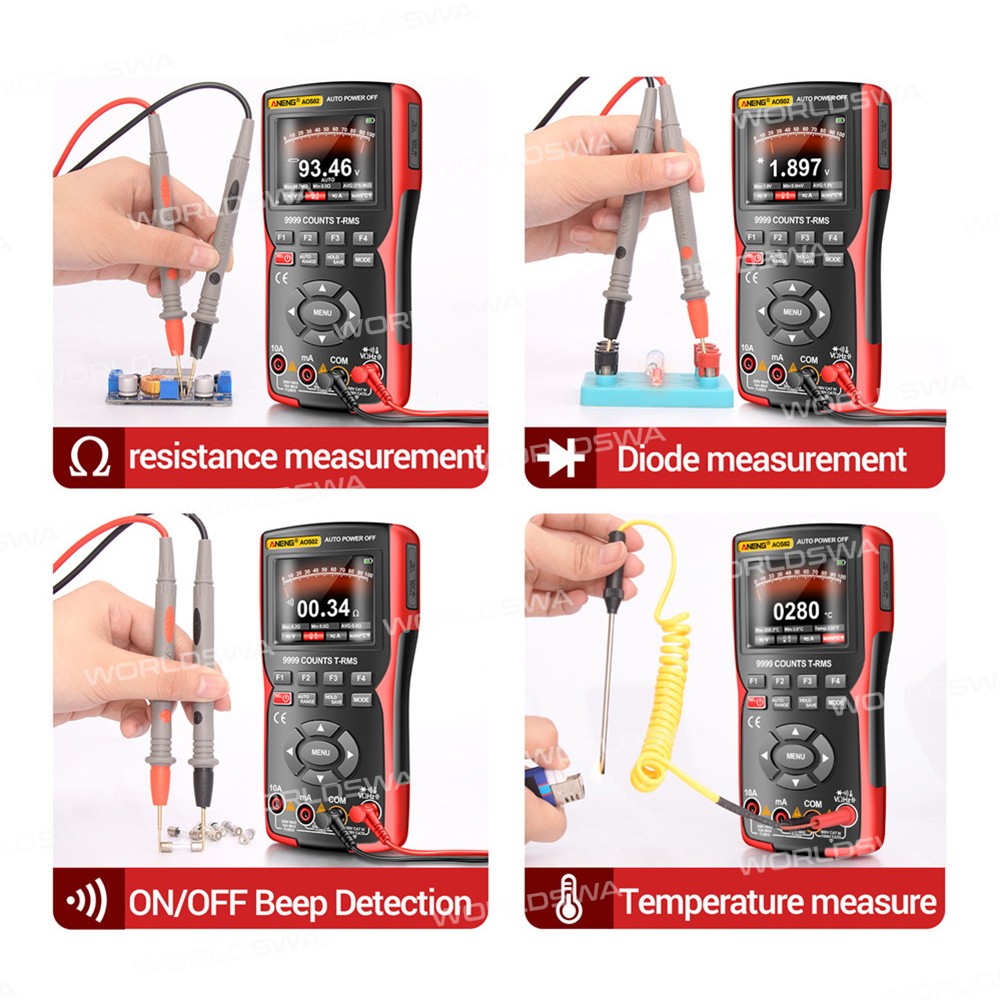

• Resistance: 0~99.99mΩ ±(3.0%+5)
• Capacitance: 9.999nF~99.99mF ±(5.0%+5)
• Frequency(ACV): 40Hz~1kHz ±(0.1%+2)
• Temperature: -20~1000℃ ±(2.5%+5)
• Temperature: -4~1832℉ ±(2.5%+5)
• Diode: Yes
• Data retention: Yes

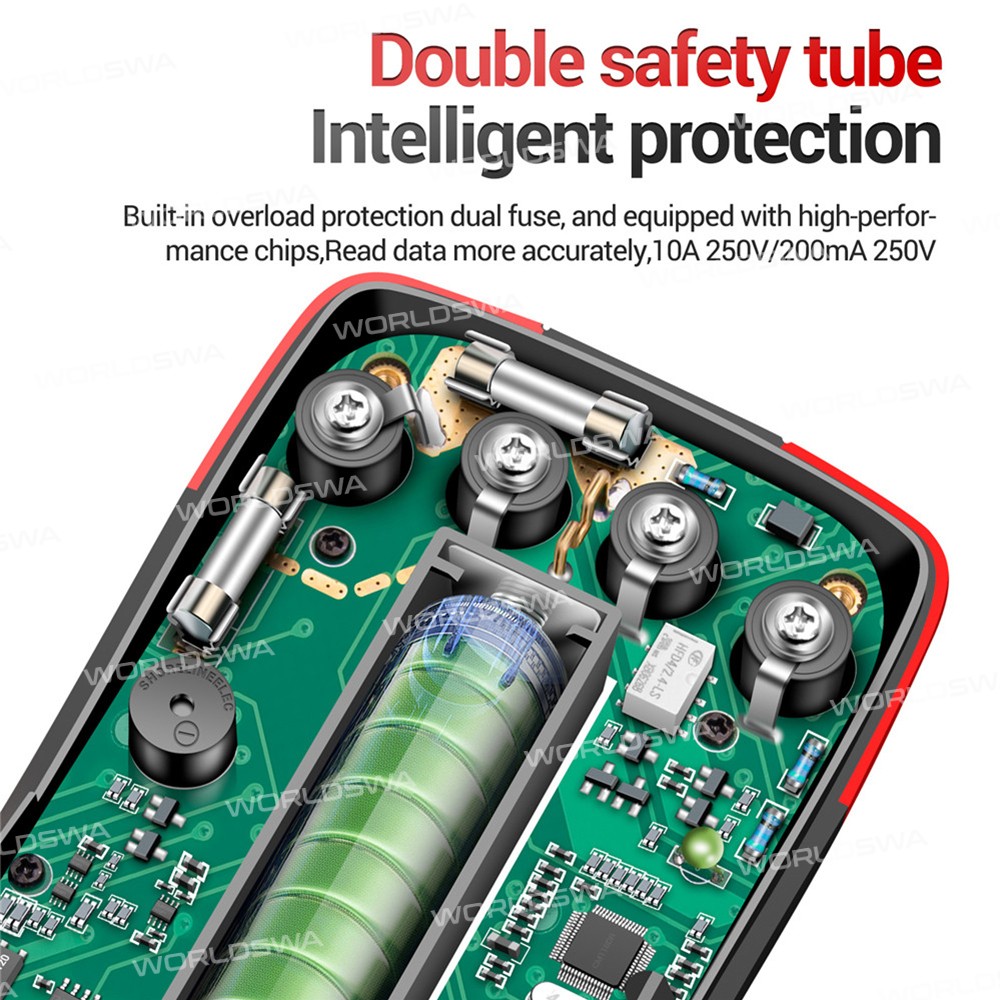

• Two safety tubes: 200mA/250V; 10A/250V
• Language selectable: Chinese/English
• BRIGHTNESS: 30%, 50%, 80%, 100%
• Data storage/viewing: USB connection to a computer
• True effective value: Yes
• ON/OFF Beep: Yes
• Max Count: 9999 Count
• Battery model: 3.7V lithium battery
• Product Material: ABS/TPE
• Pen material: Brass/PVC
• Pen line length: 107cm/42.1inch
• Product weight: 305g

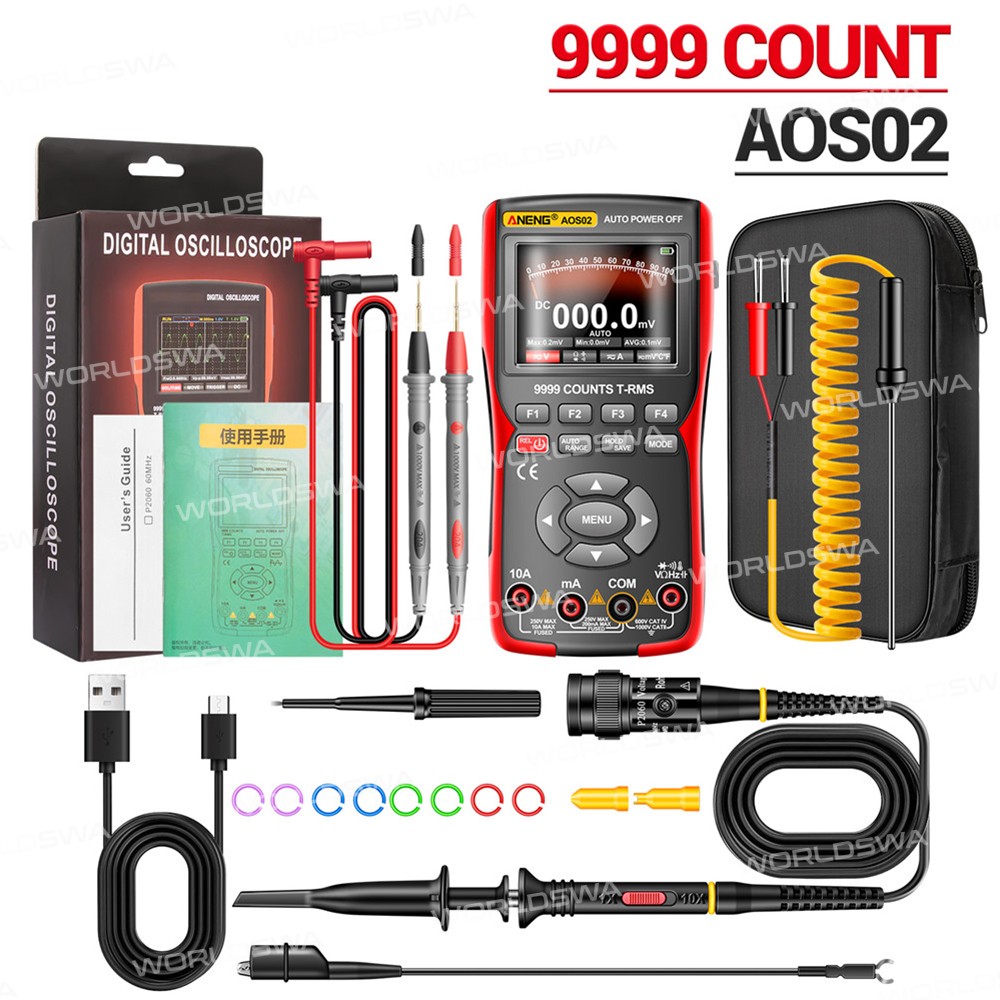

Package includes:

• 1 x Professional Digital Oscilloscope
• 2 x Test Leads
• 1 x Thermocouple
