Aneng AOS03 3-in-1 Oscilloscope: Dual Channel 50MHz Bandwidth Multimeter & Signal Generator
0 out of 5 stars
No review yet| Qty | Price | Discount |
|---|---|---|
| 1 | NaN | |
| 3 | NaN | -3.2% |
| 5 | NaN | -4.8% |
| 10 | NaN | -7.2% |
Product details
Description
Aneng AOS03 3-in-1 Dual Channel 50MHz Bandwidth Oscilloscope Multimeter Signal Generator
Features:
- This handheld oscilloscope adopts a dual injection molding process, featuring a beautiful appearance, compact size, convenient portability, and flexible operation.
- The functional buttons have a clear and intuitive menu interface. The screen utilizes a 3.5-inch IPS full-view color display, with a multimeter display of up to 25,000 counts.
- This product integrates the functions of an oscilloscope, signal generator, and multimeter into a three-in-one device. It can be used in various measurement scenarios, meeting a wide range of user measurement needs.

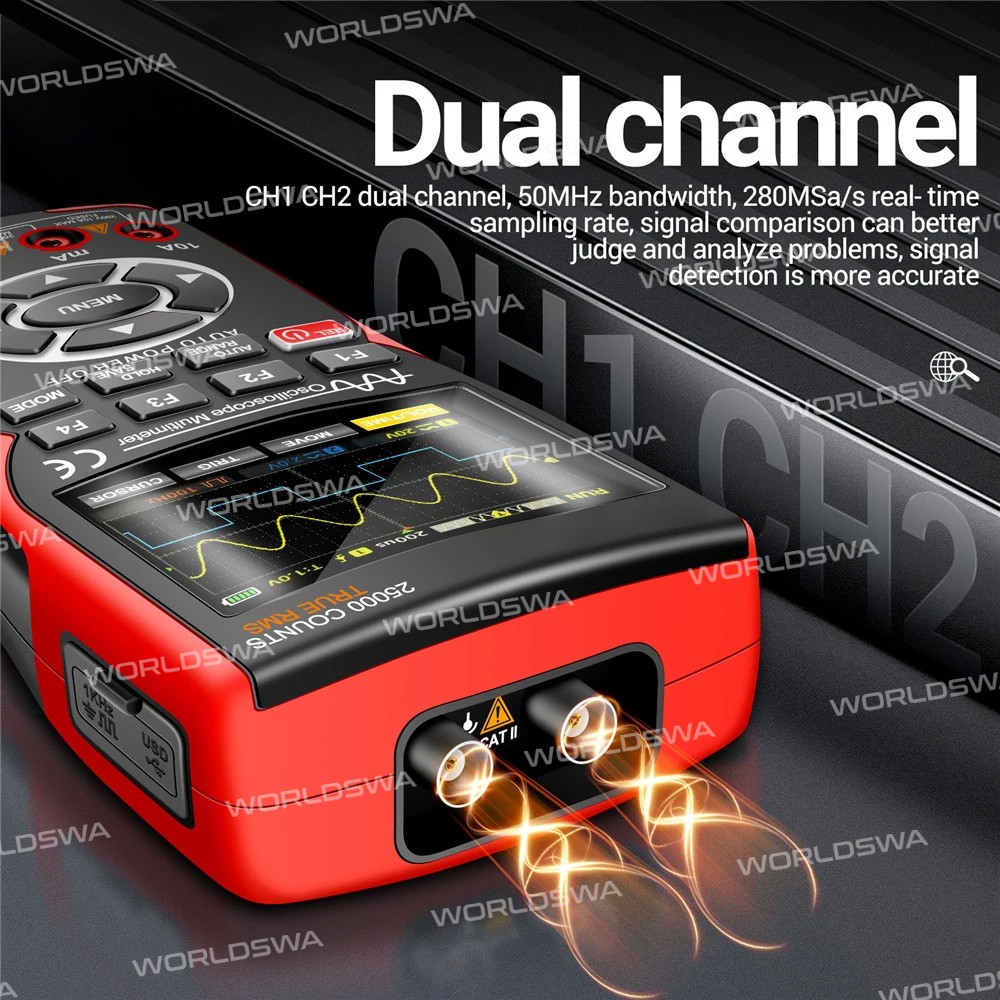

- The oscilloscope multimeter is a dual-channel handheld device with both oscilloscope and multimeter and signal generator functions, featuring a 3.5" IPS display, 50MHz bandwidth, 280MSa/s fast real-time sampling rate, 25,000 counts, 128Kb recording depth, and tri-mode switching between oscilloscope and multimeter and signal generator.
- Summary:** 3-in-1 handheld oscilloscope with 50MHz bandwidth, 280MSa/s real-time sampling rate, 128kb recording depth, automatic measurement function, auto/normal/single trigger function, and vertical sensitivity 20mv/div-10v/div.
Oscilloscope Mode:
- 2-channel handheld oscilloscope with 50MHz bandwidth, 280MSa/s real-time sampling rate, 128kb recording depth, automatic measurement function, auto/normal/single trigger function, and vertical sensitivity 20mv/div-10v/div.
- Support waveform image storage and export.
Multimeter Mode:
- 25000 counts; AC Voltage: 0V-750.00 V; DC Voltage: 0V-1000.0 V; DC/AC Current: 0A-10.000A; Resistance: 0Ω-250.00MΩ; Capacitance: 0nF-99.99mF Frequency: 0Hz-999.9 kHz; Diode measurement.
- Versatile measuring instrument ideal for professionals, factories, schools, hobbyists, and families.
Signal Generator Function:
- Can output sine wave, square wave, sawtooth wave, full wave, and half wave.
Data Storage and Viewing:
- The oscilloscope automatically stores the current measurement waveform data in the form of run number and image in the memory.
- Connect the oscilloscope to the computer by connecting the Type-C cable, click on the USB flash drive, and open the image folder to access or download the waveform to a safer location in the computer for easy backup and analysis.
- Auto Power Off: You can choose the auto power off time.
Specifications:
Oscilloscope Information:
- Material: ABS + TPE
- Bandwidth: 50MHz, Dual channel
- Sampling Method: Real-time sampling
- Sampling Rate: 200M/280MSa/s
- Channel: Dual channel
- Input Coupling: DC,AC
- Input Impedance: 1MΩ, @16pf
- Attenuation: X1, X10
- Maximum Input Voltage: X1 range＜150V, X10 range＜300V (DC+AC peak)
Level:
- Rate Range: 1.5Sa/s-280MSa/s
- Interpolation: (sinx)x
- Sweep Range: 10ns/div-20s/div
- Time Base: 20ppm
- Record Length: Up to 128Kbyte
Vertical:
- Sensitivity: 20mV/div-10V/div
- Offset Range: 4 grids (positive and negative)
- Analog Bandwidth: 50MHz
- Low-Frequency: More than 10Hz
- Rise Time: Less than 10ns
- DC Gain Accuracy: ±3%
- Measure: Auto Measurement: Period / Frequency / Peak / Maximum / Minimum / RMS / Duty Cycle / Number of Pulses
Trigger:
- Trigger Modes: Auto, normal, single
- Trigger Edges: Rising edge, falling edge
Multimeter Information:
- AC Voltage: 0V-750.0V, 0.0001V-0.1V, ±(0.5%+3)
- DC Voltage: 0V-1000.0V, 0.0001V-0.1V, ±(0.05%+3)
- AC/DC Voltage: 25.000mV-250.00mV, 0.001mV-0.01mV, ±(0.05%+3)
- AC/DC Current: 0A-10.000A, 0.0001A-0.001A, ±(0.5%+3)
- AC Current: 25.000mA-250.00mA, 0.001mA-0.01mA, ±(0.8%+3)
- DC Current: 25.000mA-250.00mA, 0.001mA-0.01mA, ±(0.5%+3)
- Resistance: 0Ω-250.0MΩ, 0.01Ω-0.1MΩ, ±(5.0%+5)
- Capacitance: 0nF-99.99mF, 0.001nF-0.01mF, ±(5.0%+20)
- Hz (only 100kHz bits can be detected in AC voltage gear): 0Hz-999.9kHz, 0.01Hz-0.1kHz, ±(0.1%+2)
- Diode/Buzzer: Yes
- Data Retention: Yes
- Low Battery Indication: Yes
- Support Frame: Yes
- USB Charge: Yes
- True RMS: Yes
Package includes:
- 1 x 3-in-1 Oscilloscope Multimeter
- 1 x Oscilloscope Pen
- 2 x Positioning Sleeve
- 8 x Tag Ring
- 1 x Alligator Clip Ground Lead
- 1 x Storage Bag
- 1 x USB Data Cable
