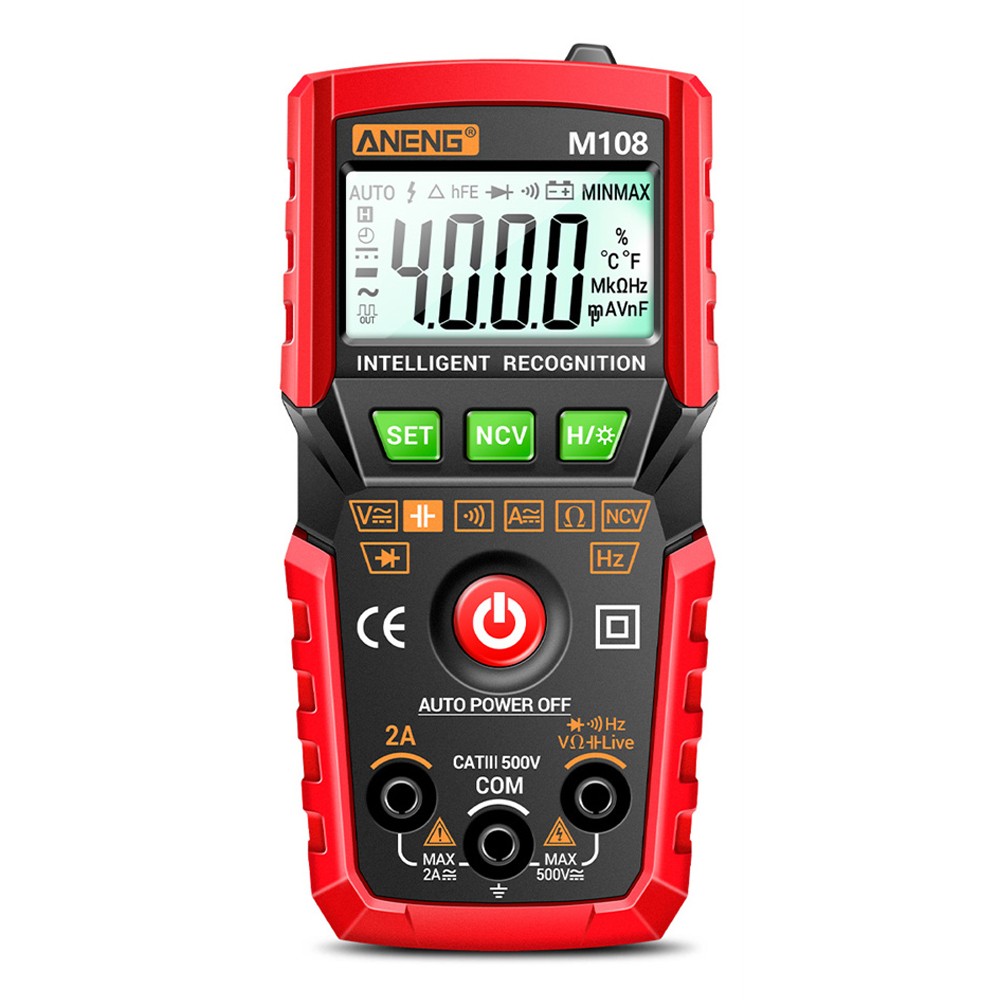

Aneng M108 High Precision Intelligent Anti-Burn-in Voltage and Capacitance Multimeter
Features:

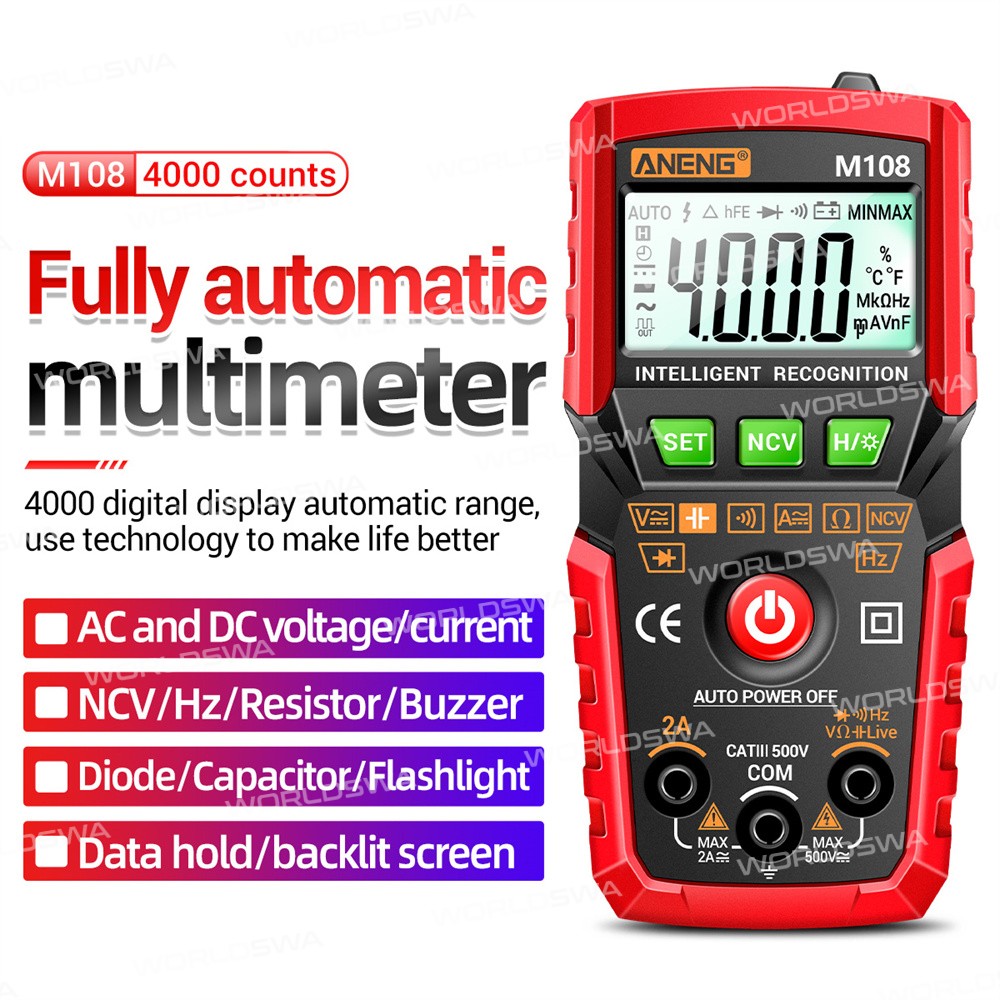

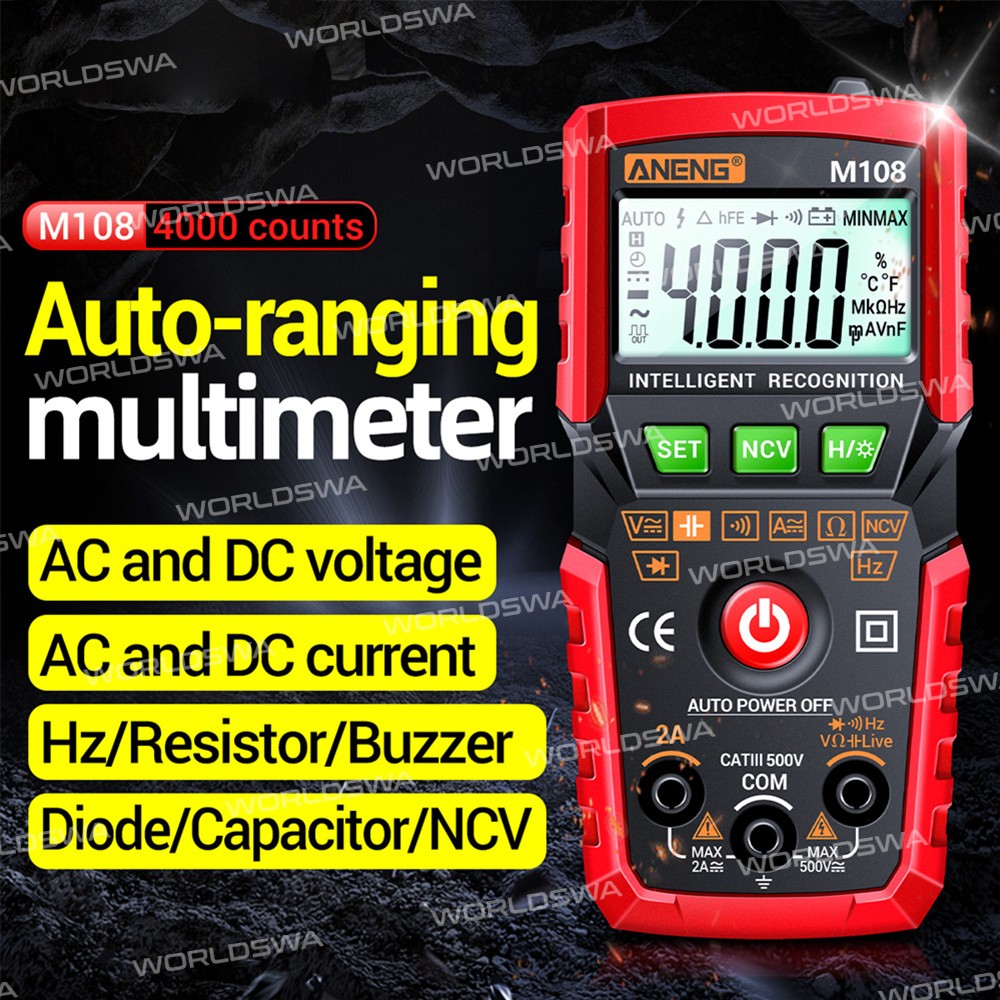

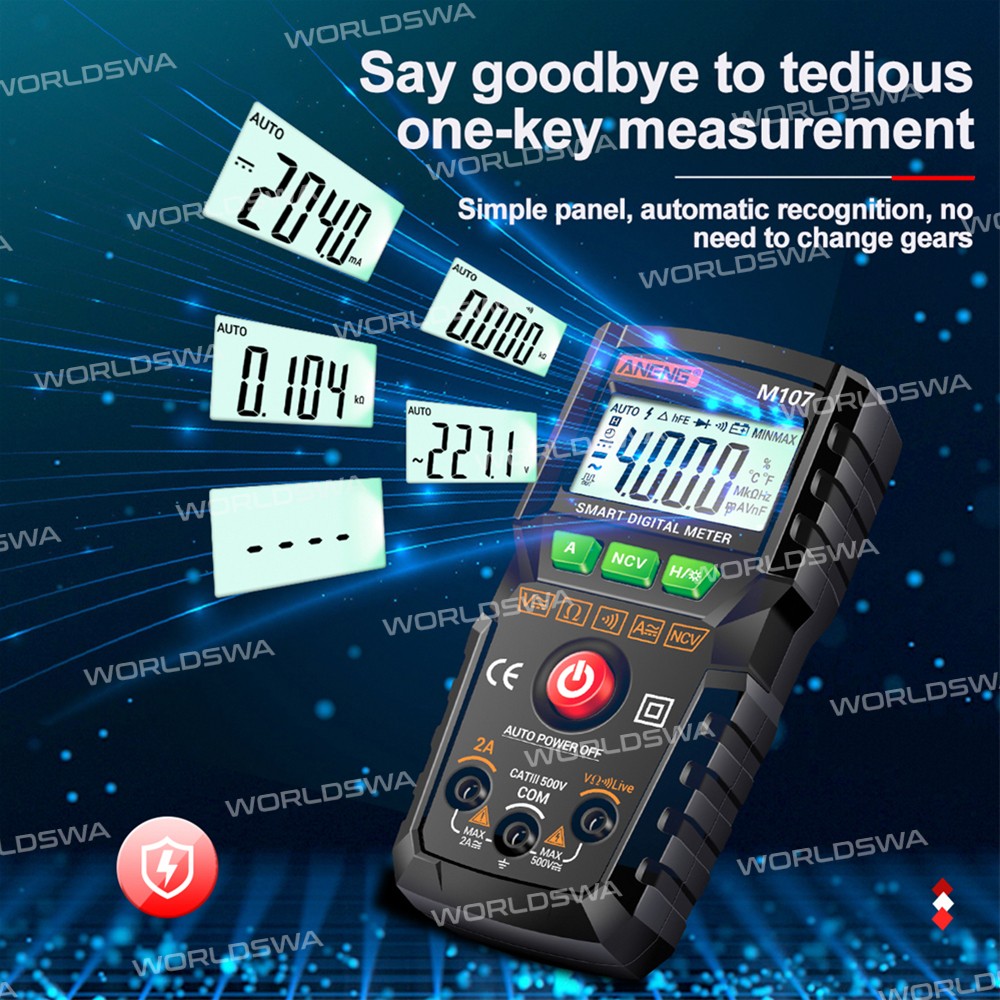

- Auto-ranging digital multimeters, 4000 digital display, automatic range, use technology to make life better

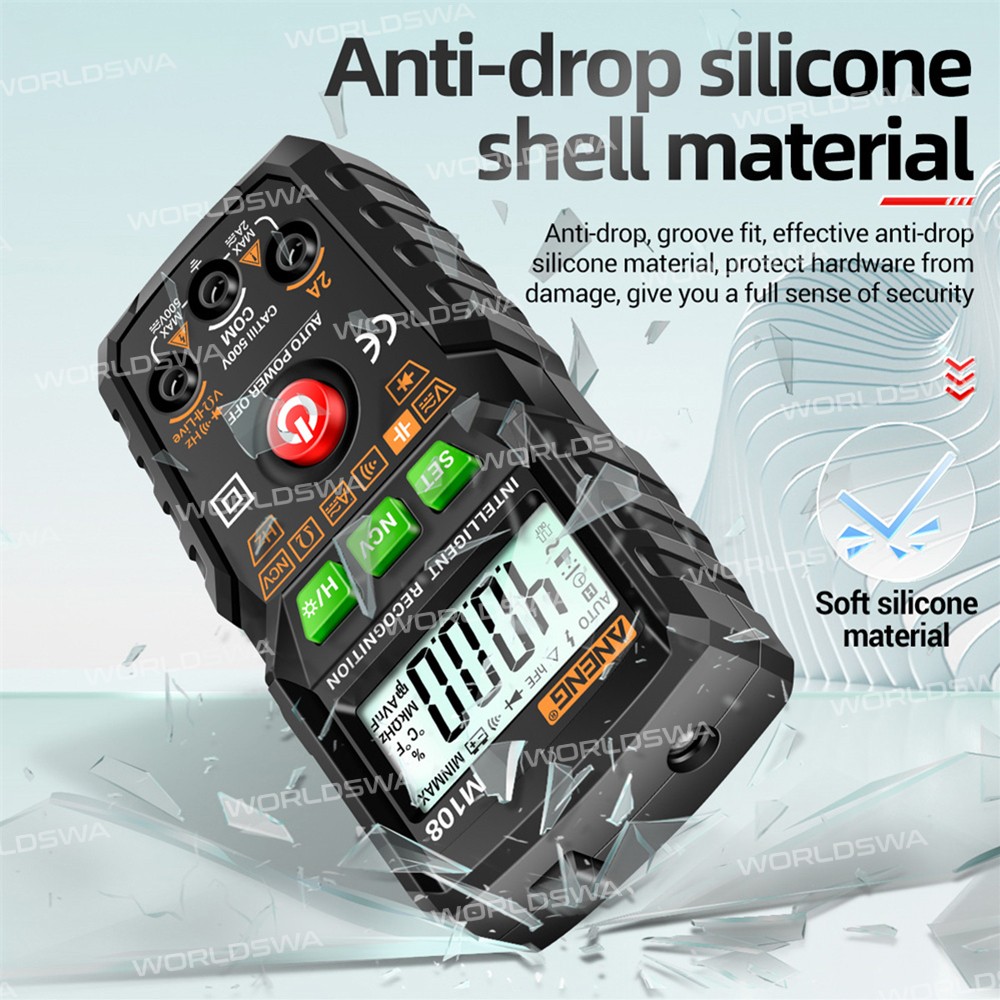

- Anti-drop, groove fit, effective anti-drop silicone material, protects hardware from damage, gives you a full sense of security

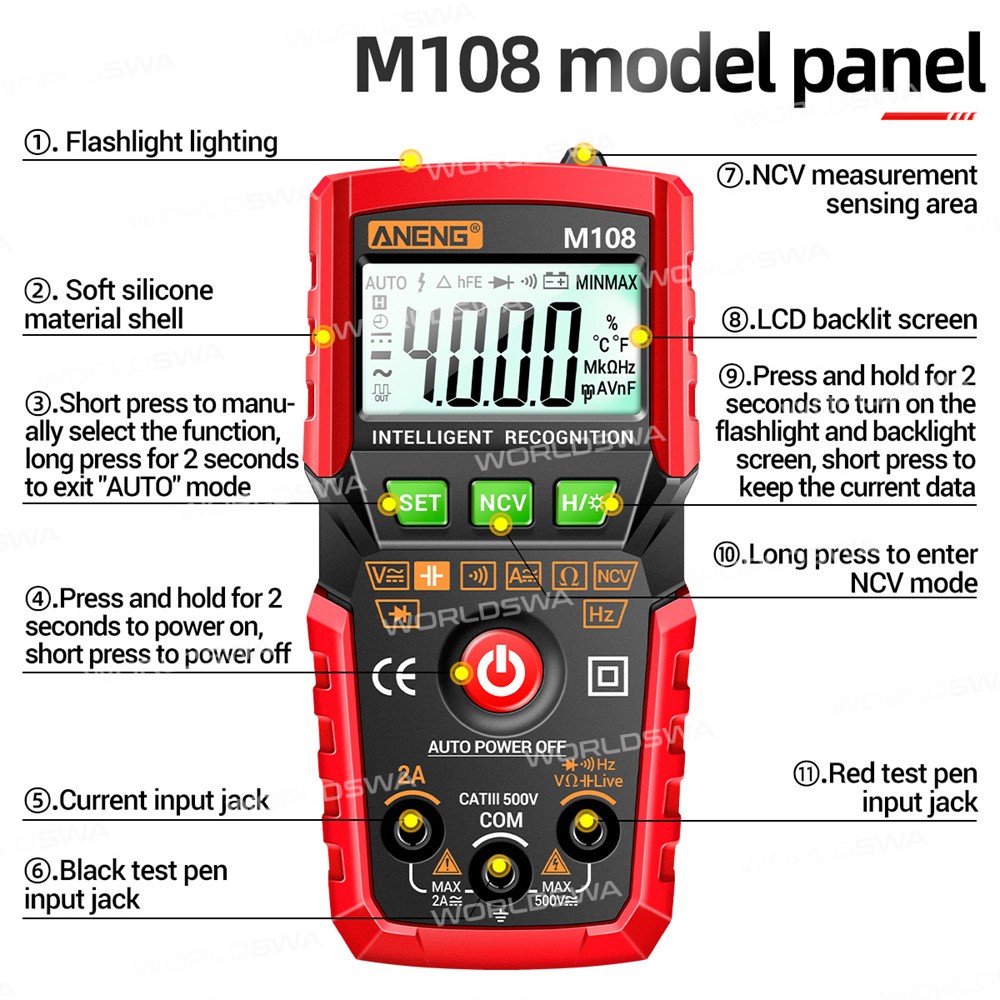

- Long press the flashlight button to turn on the flashlight and backlight, it is more convenient to work in the dark

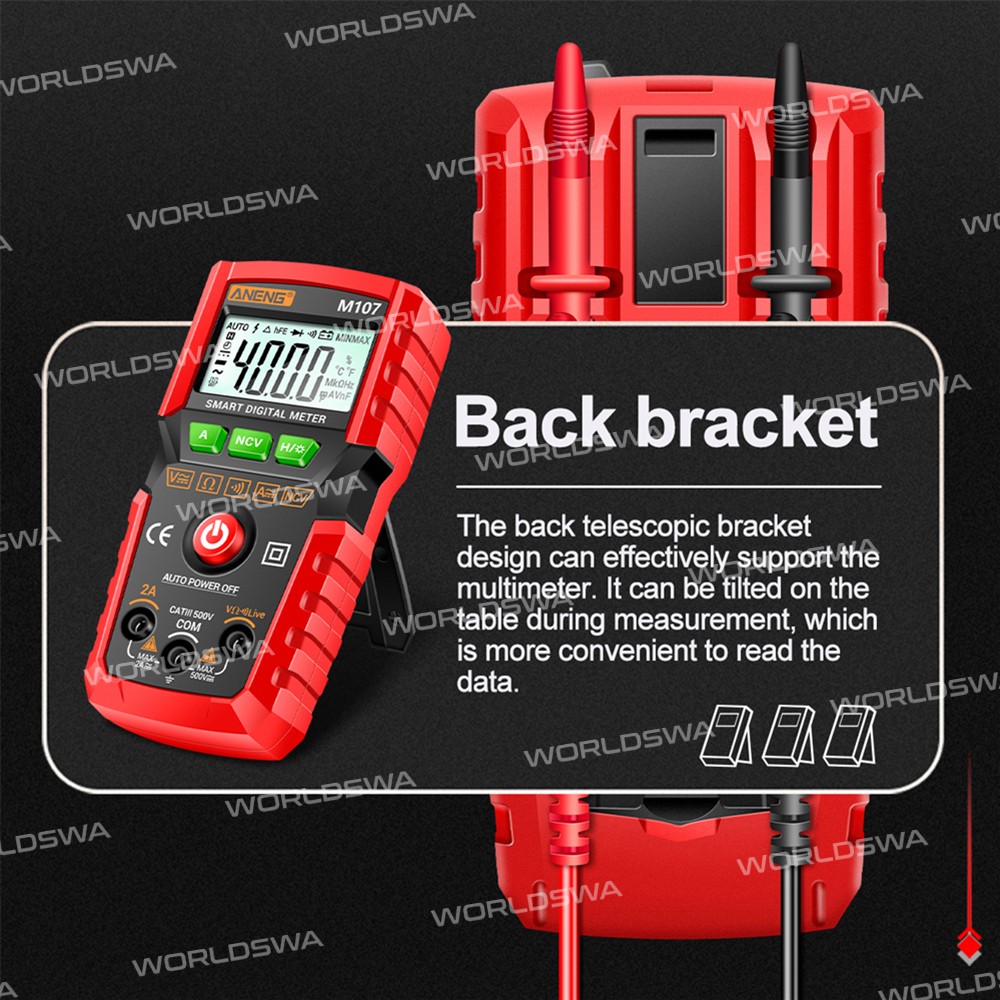

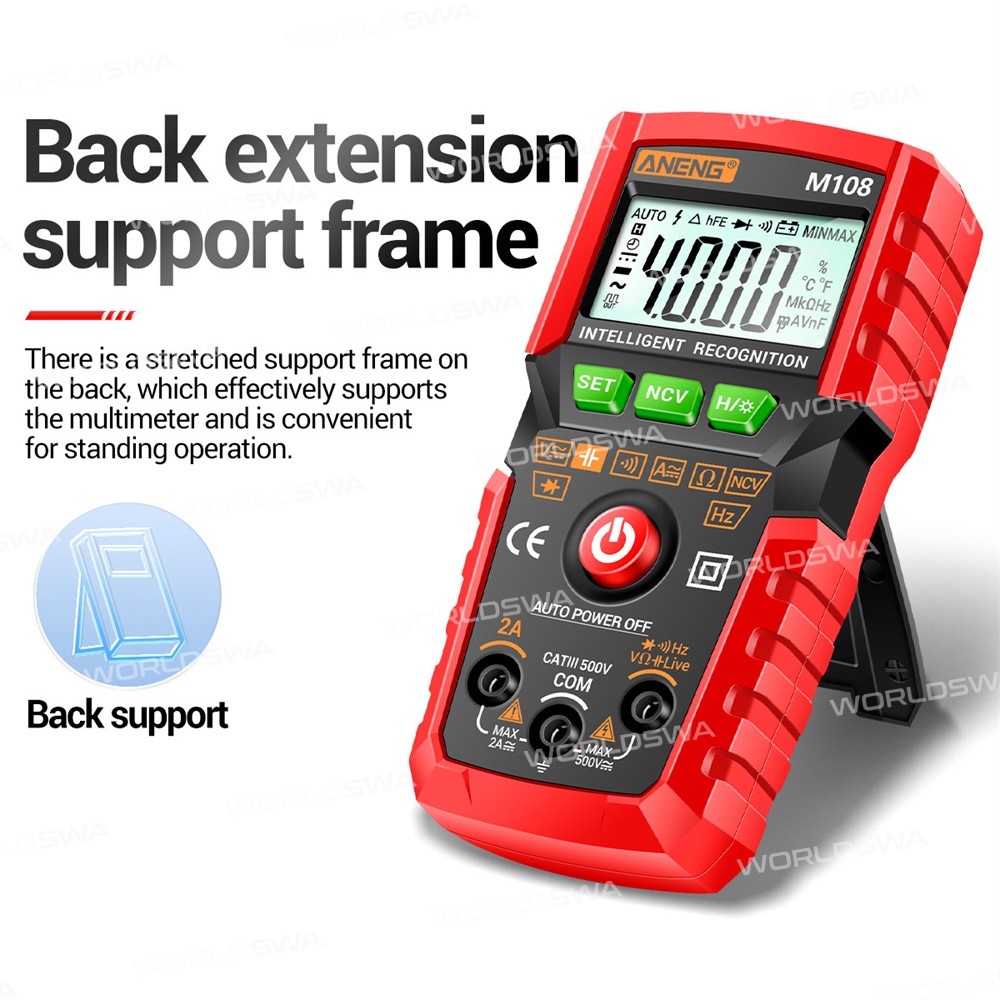

- Rear retractable bracket design, can be tilted on the table when measuring, and effectively supporting the multimeter

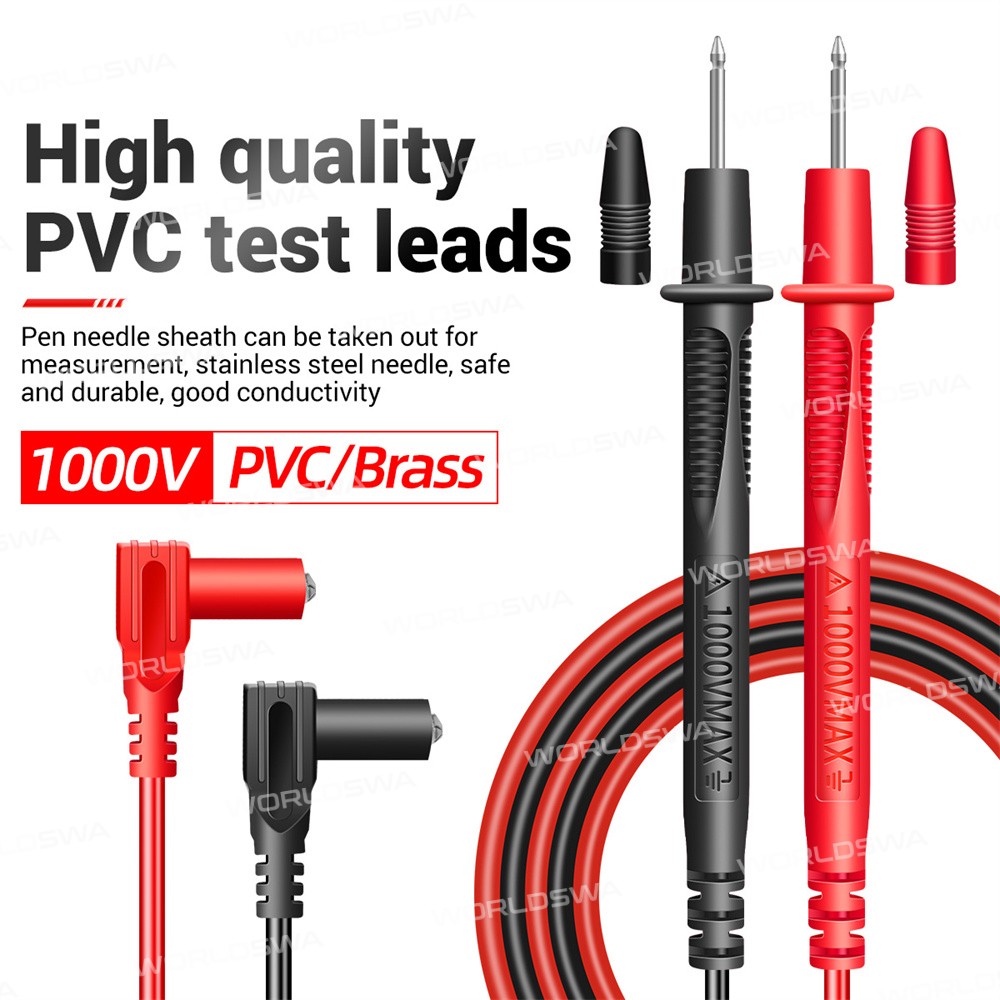

- Pen needle sheath can be taken out for measurement, stainless steel needle, safe and durable, good conductivity

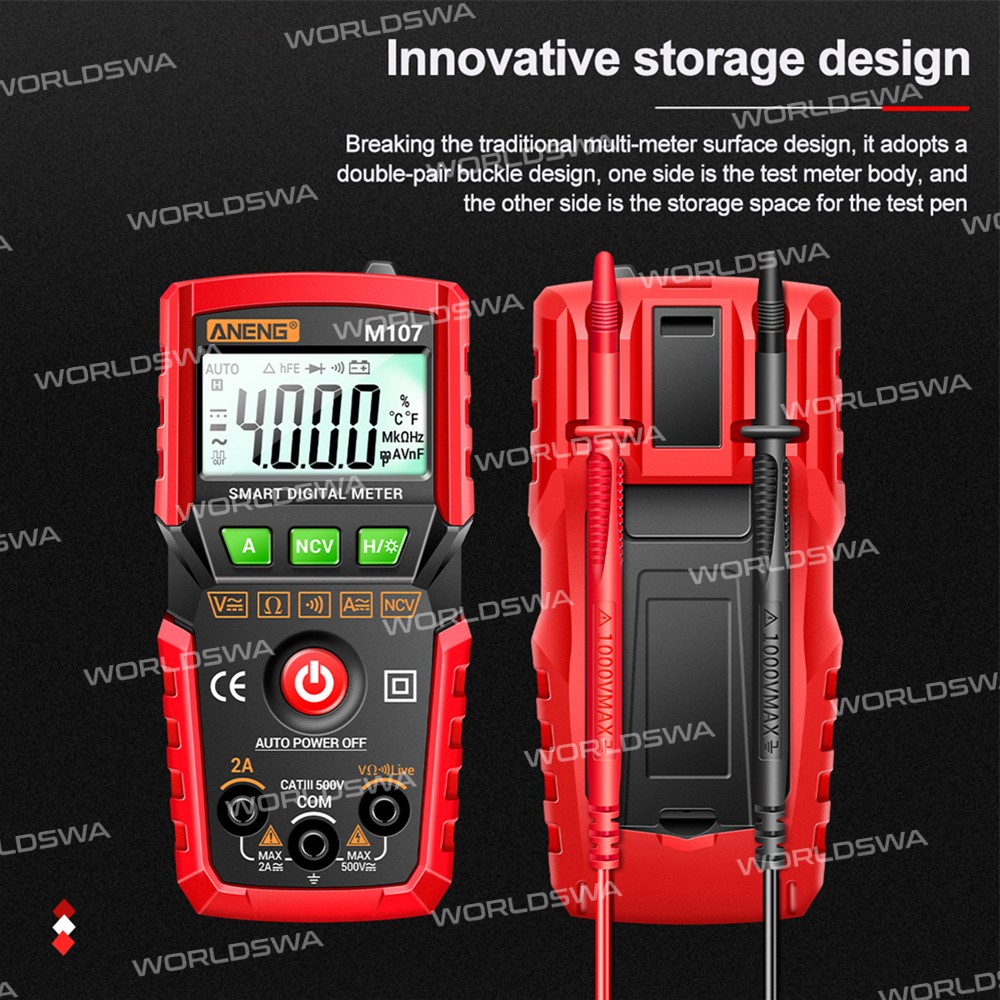

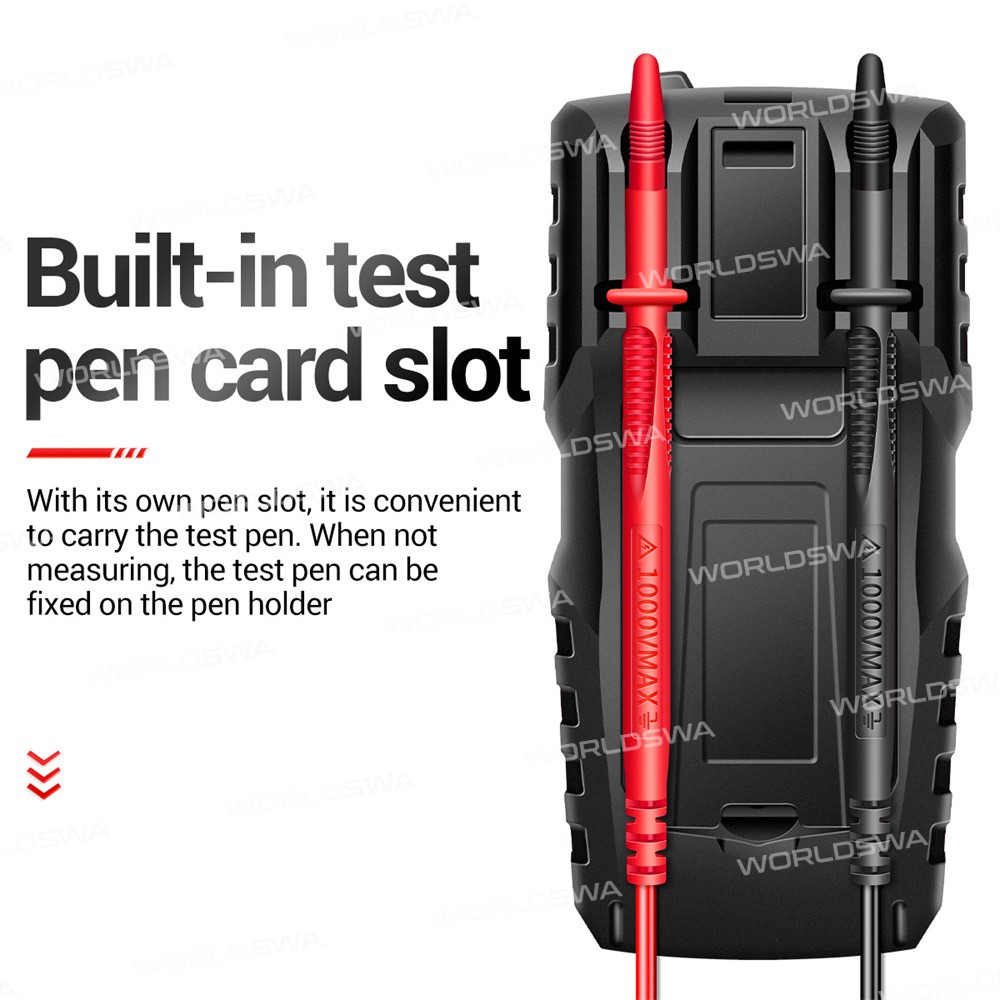

- With its pen slot, it is convenient to carry the test pen, when not measuring, the test pen can be fixed on the pen holder

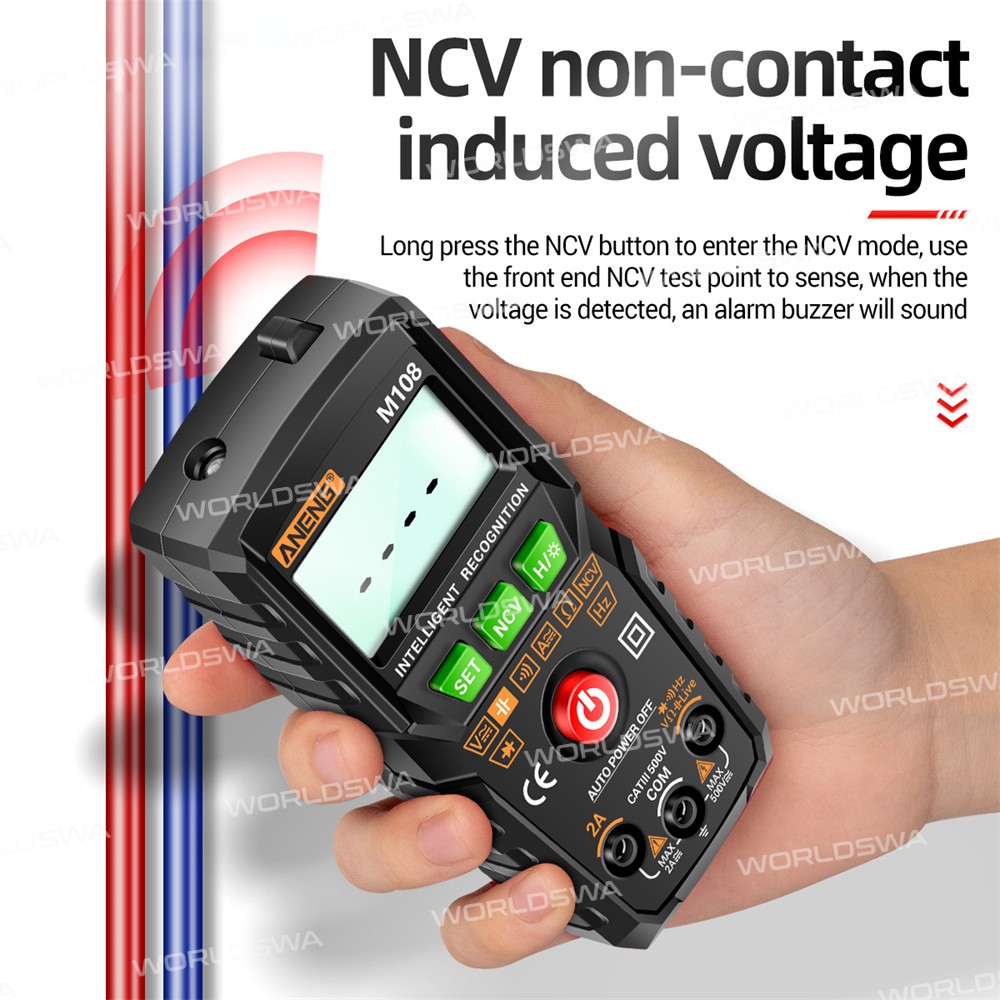

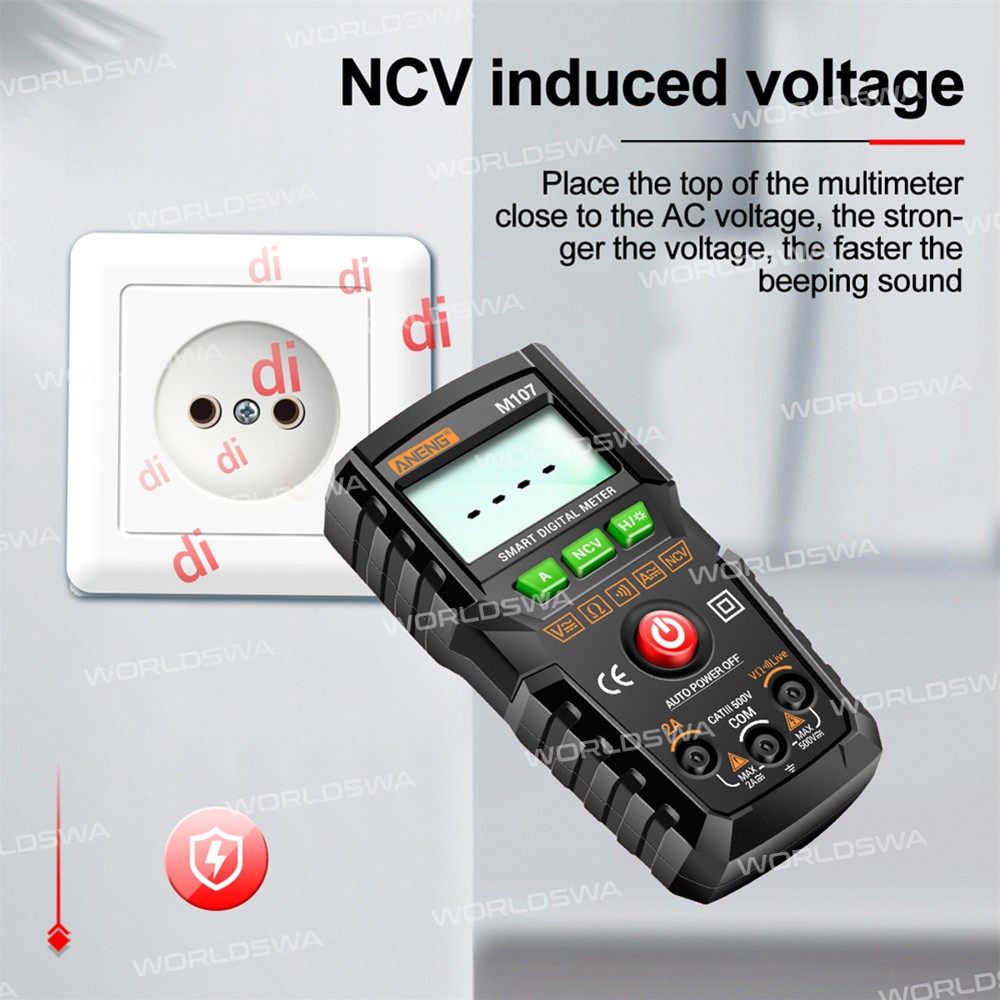

- Long press the NCV button to enter the NCV mode, and use the front-end NCV test point to sense, when the voltage is detected, an alarm buzzer will sound
- Full-featured to measure a variety of electronic components to meet your multi-functional needs
Specification:
Brand | ANENG | Modle | M108 |
Ranging | Auto | Display | 4000 counts |
Material | ABS/PVC | Ture RMS | NO |
Diode | YES | Resistiance | YES |
Capacitance | YES | Coutinuity | YES |
NCV | YES | Data Hold | YES |
Backlight | YES | Flashlight | YES |
Update Rate | YES | Power Supply | 2 * 1.5V AAA |
Low Battery Indication | YES | Auto Power Off | YES |
Range | Accuracy | |
DC Voltage | 4V/40V | ±(1.0%+5d) |
400V/500V | ±(1.2%+5d) | |
AC Voltage | 4V/40V | ±(1.2%+5d) |
400V/500V | ±(1.5%+8d) | |
DCA | 400mA/2A | ±(1.5%+5d)/±(2.5%+8d) |
ACA | 400mA/2A | ±(1.8%+6d)/±(3.0%+8d) |
Capacitance | 4nF/40nF/400nF/4uF/40uF | ±(3.0%+5d) |
400uF | ±(3.5%+5d) | |
4mF | ±(5.0%+6d) | |
40mF | ±(10.0%+8d) | |
Resistiance | 4.000kΩ | ±(1.5%+10d) |
40.00kΩ/400.0kΩ/4.000MΩ | ±(1.0%+5d) | |
20.00MΩ | ±(1.5%+10d) | |
Frequency | 400Hz/4KHz/40KHz | ±(1.5%+5d) |
400kHz | ±(3.0%+5d) | |
4MHz | ±(4.0%+10d) |
Operating Temperature | 0~40℃ |
Package includes:
- 1 x Digital Multimeter(without Battery)
- 1 x Test leads
