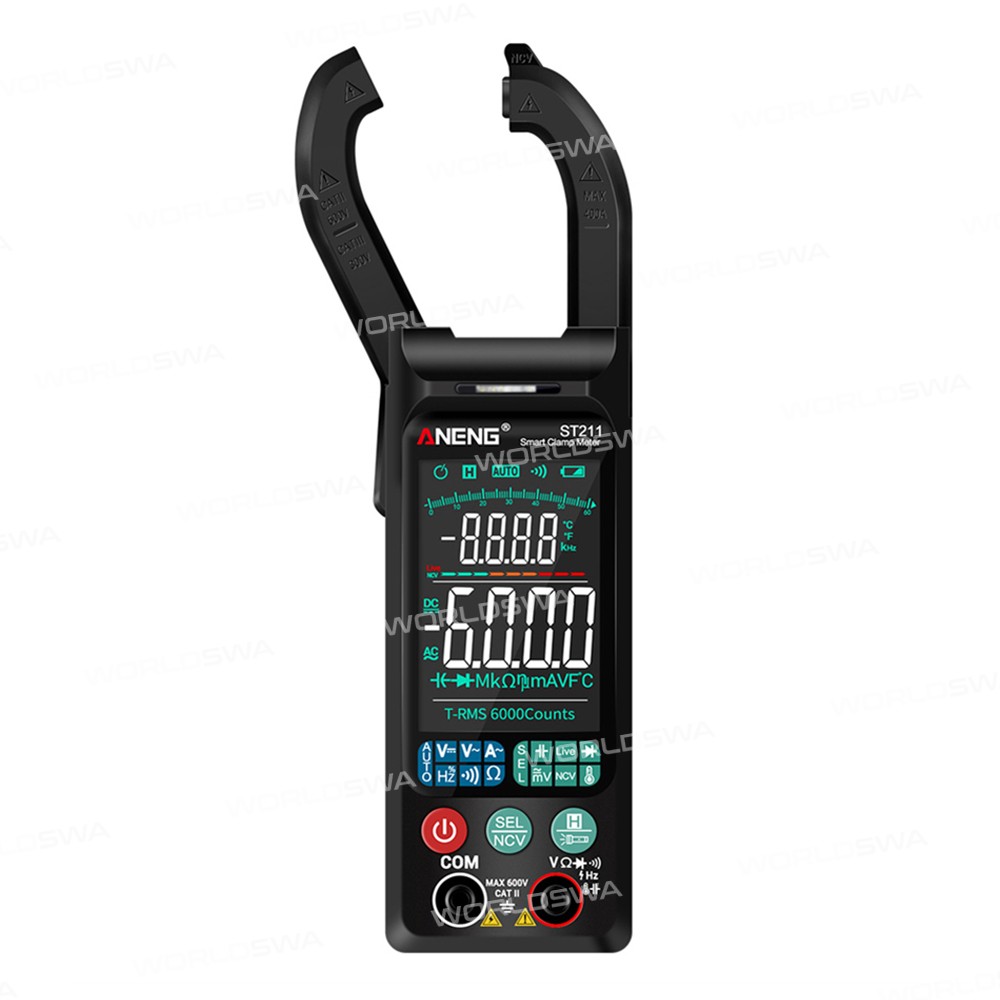

Aneng ST211 Ultra-Thin Large Screen Digital Clamp Multimeter with Intelligent Automatic Anti-Burning

Aneng ST211 Ultra-Thin Large Screen Intelligent Automatic Anti-Burning Digital Clamp Multimeter

Product Overview

This multimeter is designed to measure AC and DC voltage, AC current, resistance, and test continuity. It features automatic measurement function and range selection, overload protection, and LCD color display with backlight for easy operation and reading.

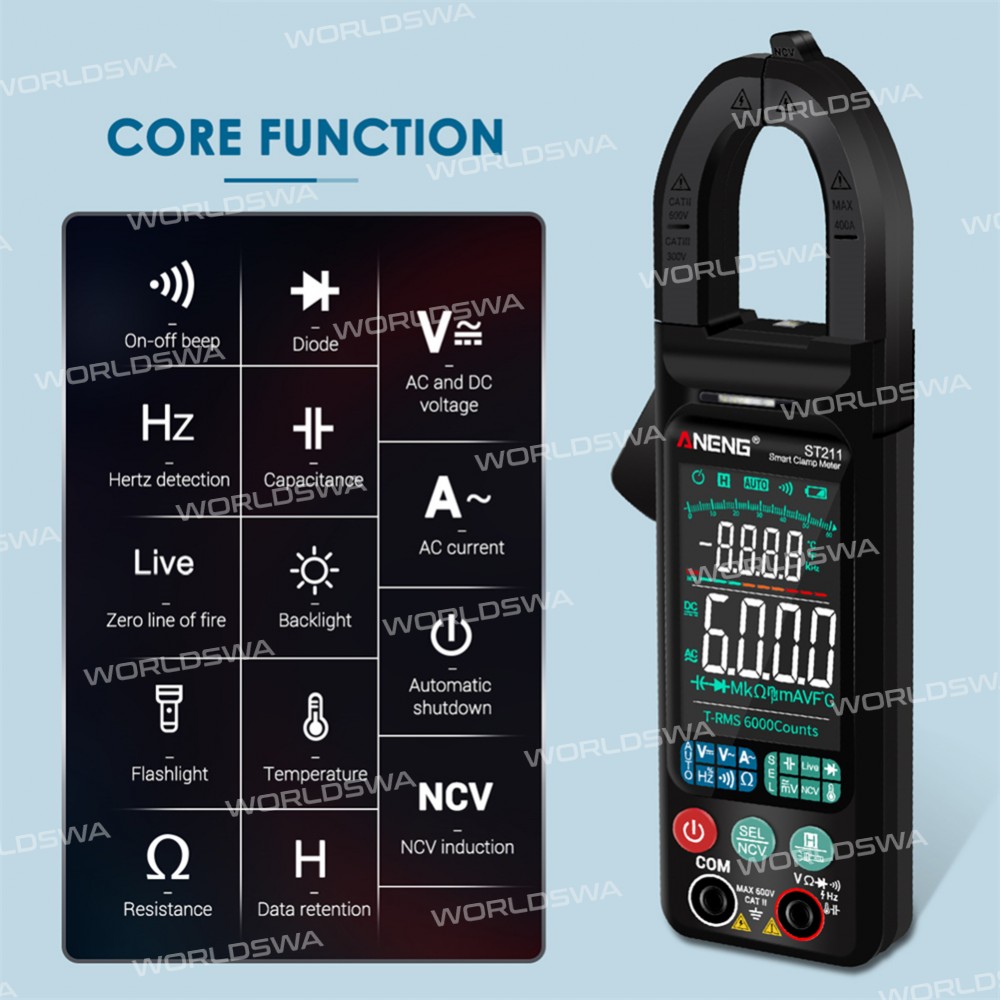

Key Features:

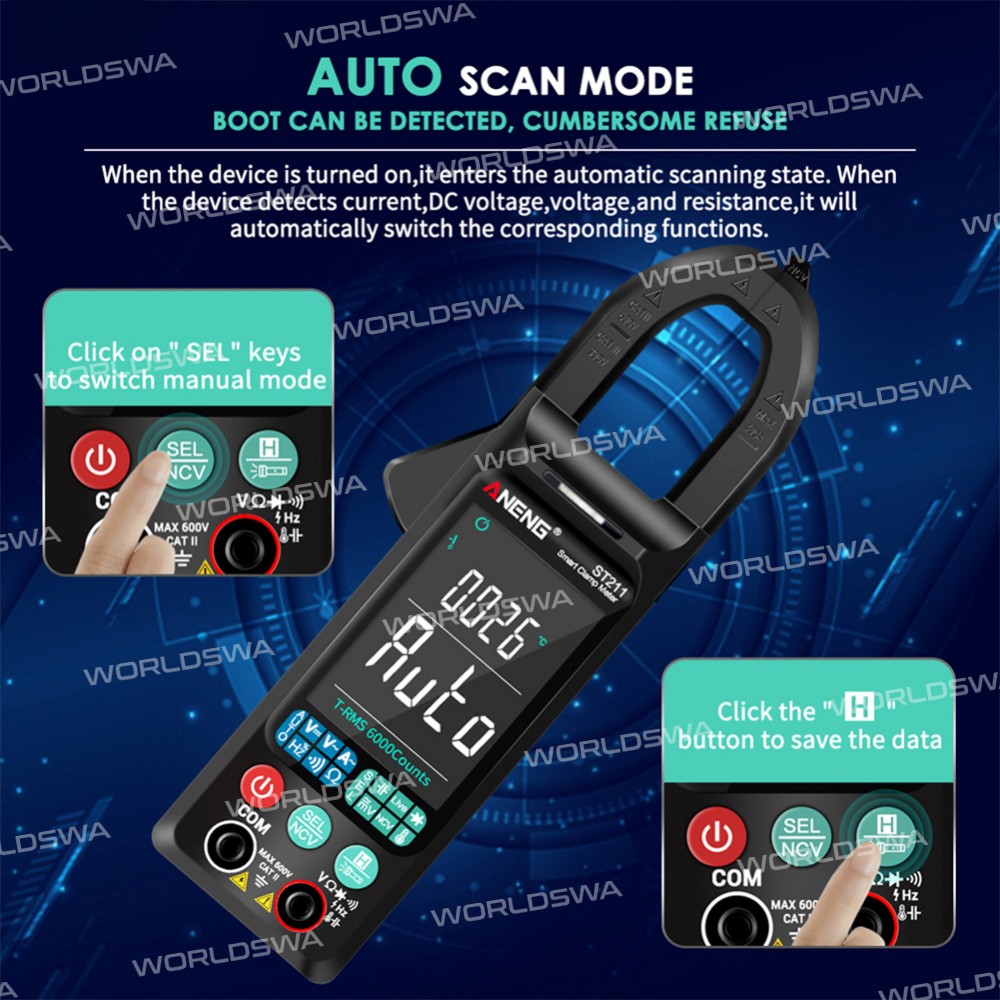

• Automatic Measurement Function and Range Selection
• Overload Protection for the Entire Measuring Range

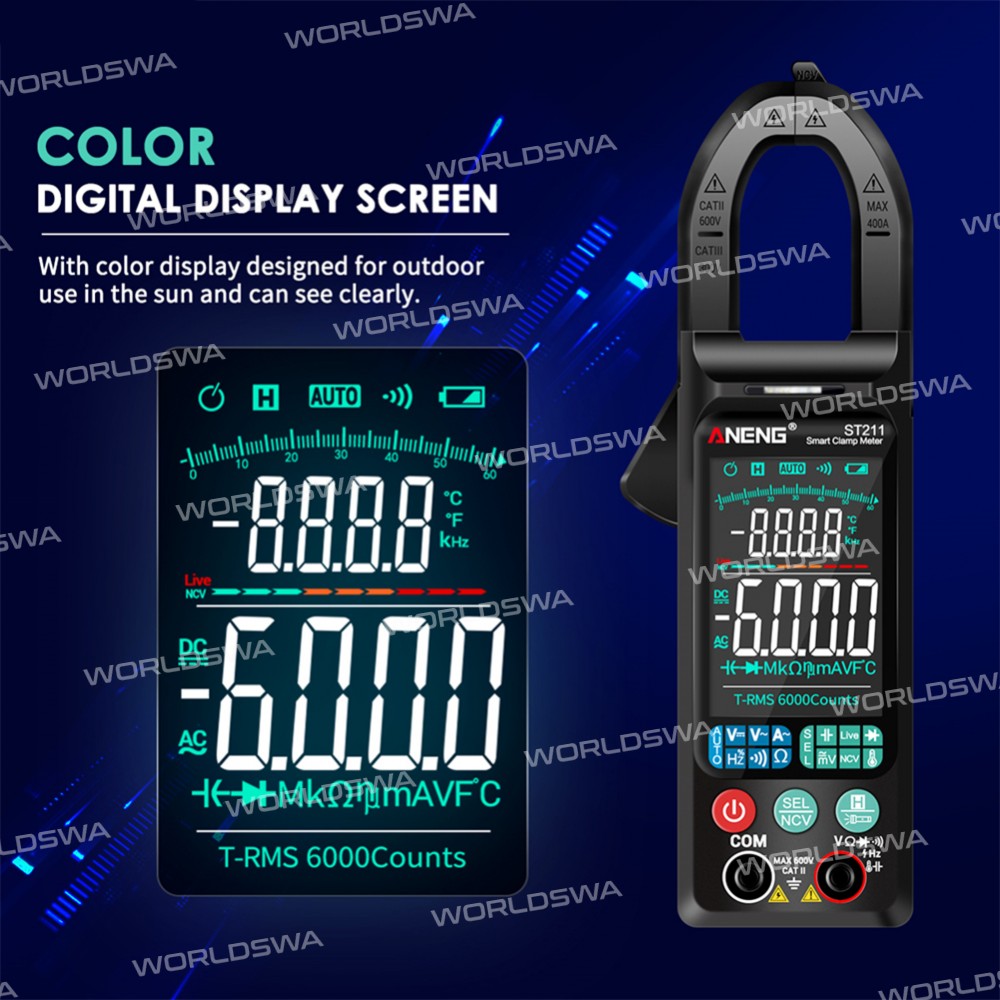

• LCD Color Display with Backlight for Easy Operation and Reading
• Data Retention Function, Low Battery Indicator, and Automatic Shutdown
• Suitable for Testing and Maintenance of Electrical Equipment
• Summary: All-in-one multimeter with advanced features for accurate measurements

Specifications:

• Material: ABS Shell
• Size: 182*49.7*23.5mm

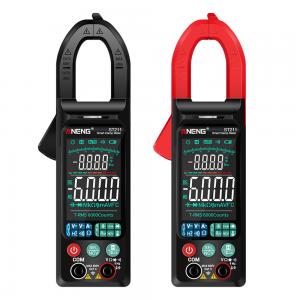

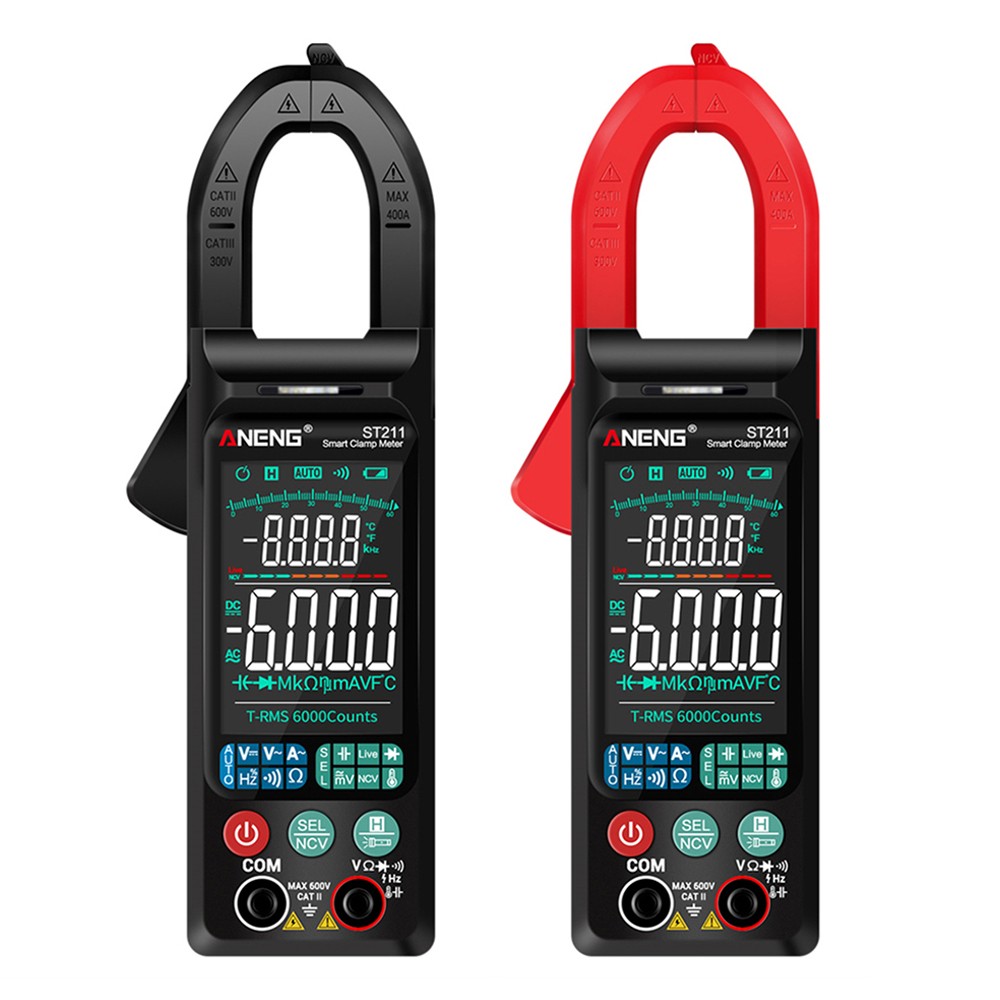

• Color: Black, Red
• Maximum Voltage Allowed Between Measuring End and Earth: 600V DC or 600V AC
• Working Height: Max. 2000M
• Display: LCD
• Maximum Display Value: 6000 Digits
• Polarity Indication: Automatic Indication, '' Indicates Negative Polarity
• Over-Range Display: '0L' or '-0L'
• Sampling Time: About 3 Times/Second
• Unit Display: With Function, Power Unit Display
• Auto Shutdown Time: 15 Minutes
• Reading Hold: Yes

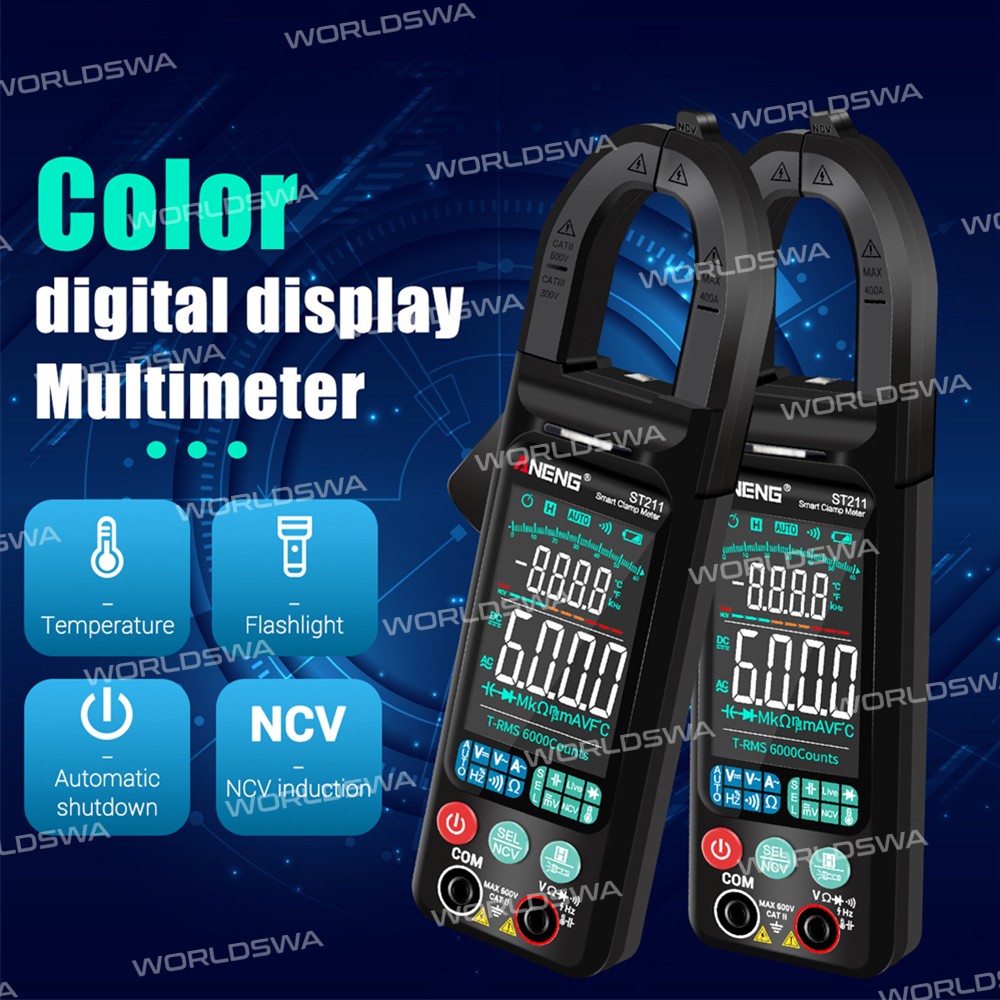

• Flashlight: Yes

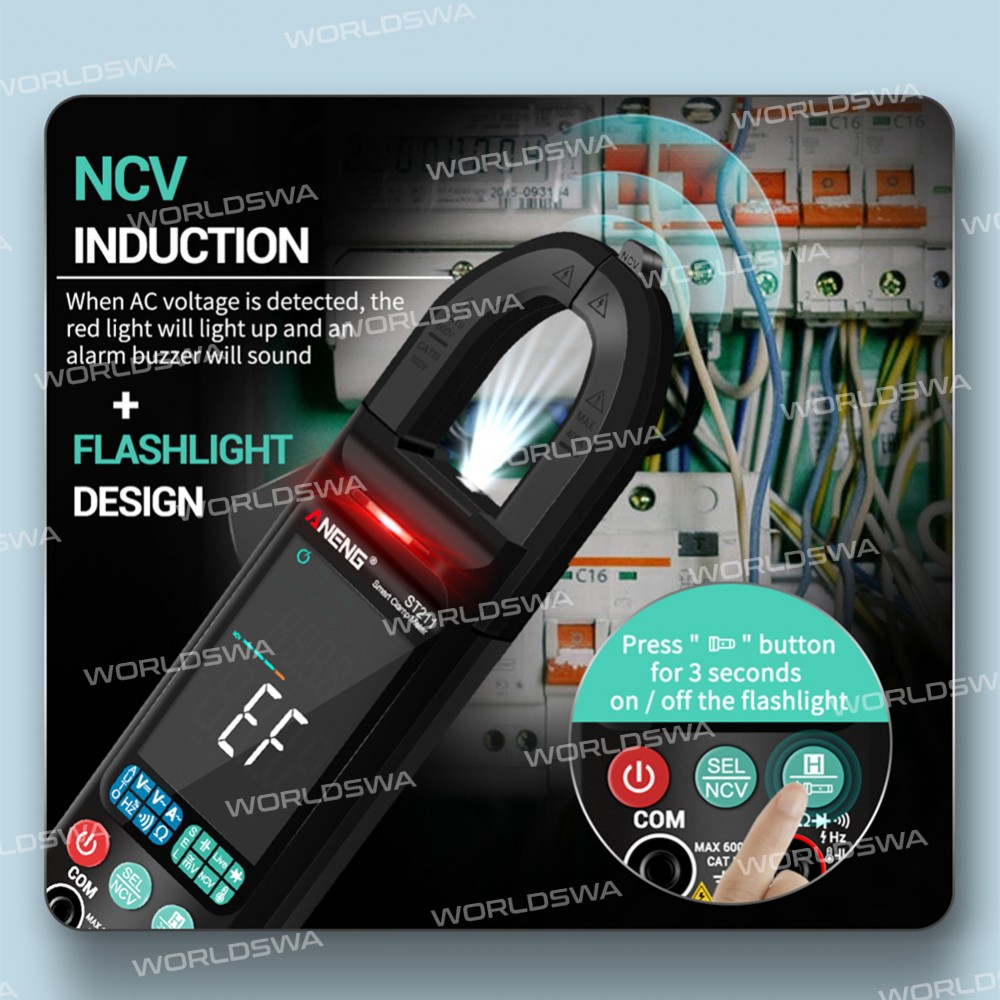

• Non-Contact Voltage Detection (NCV): Yes
• Power Supply: 2 * 1.5V AAA Batteries (not included)
• Temperature Coefficient: Less than 1°C
• Operating Temperature: 18℃~28℃
• Storage Temperature: -10℃~50℃
• AC Voltage: 600mV/600V ± (0.5%+3)
• DC Voltage: 600mV/600V ± (0.5%+3)

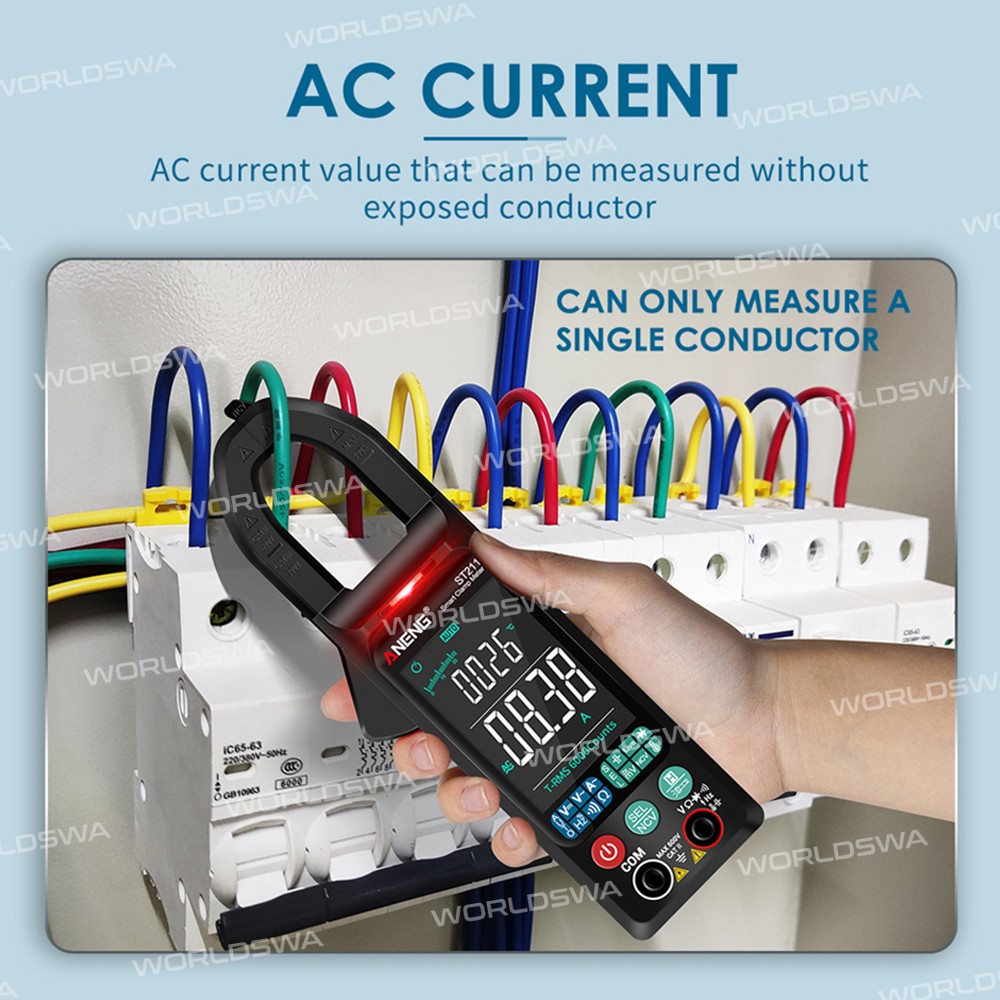

• AC Current: 60A/400A ±(2.5%+8)
• Resistance: 600Ω /6kΩ /60kΩ /600kΩ /6MΩ /60MΩ ±(0.8%+3)
• Capacitance: 6nF ±(1.0%+5); 600nF/6uF/60uF/600uF/6mF/60mF ±(10%+40)

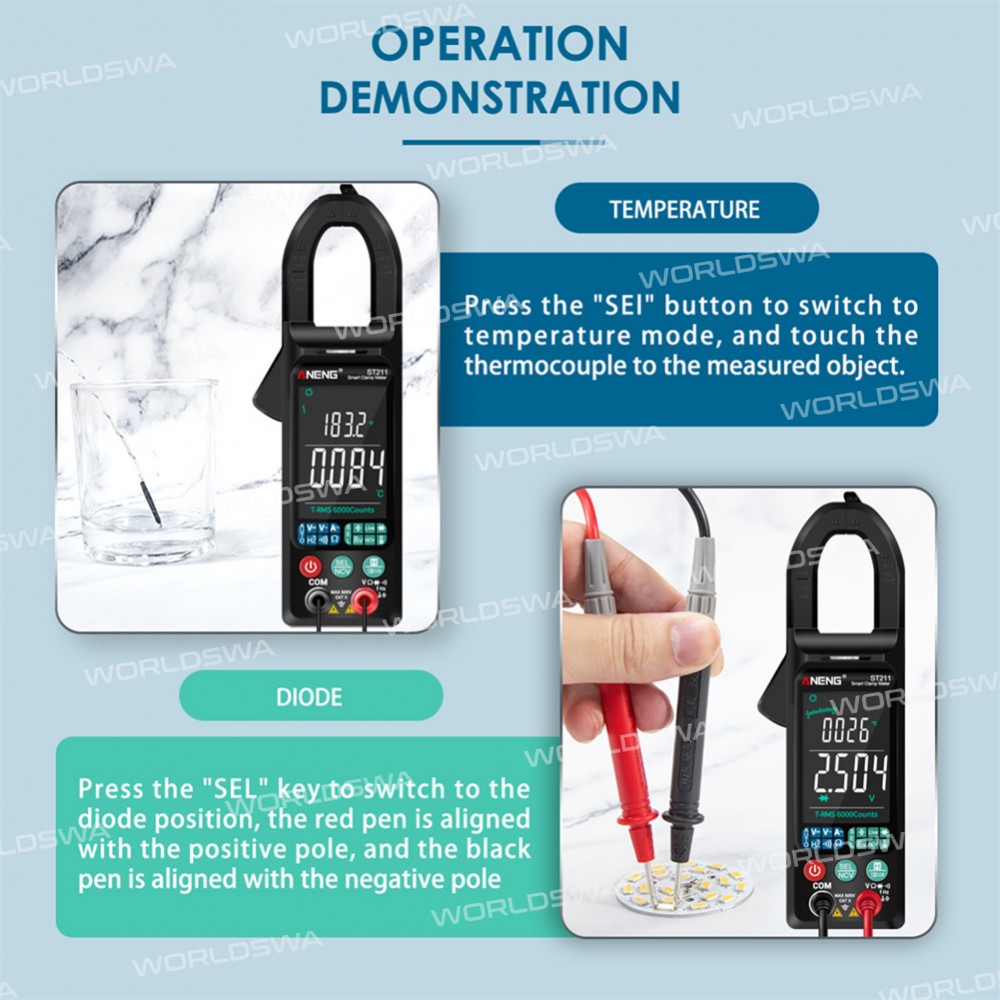

• Temperature: -40-1000°C ±(1.0%+3)
• Frequency: 60Hz~1000Hz ±(1.0%+5)

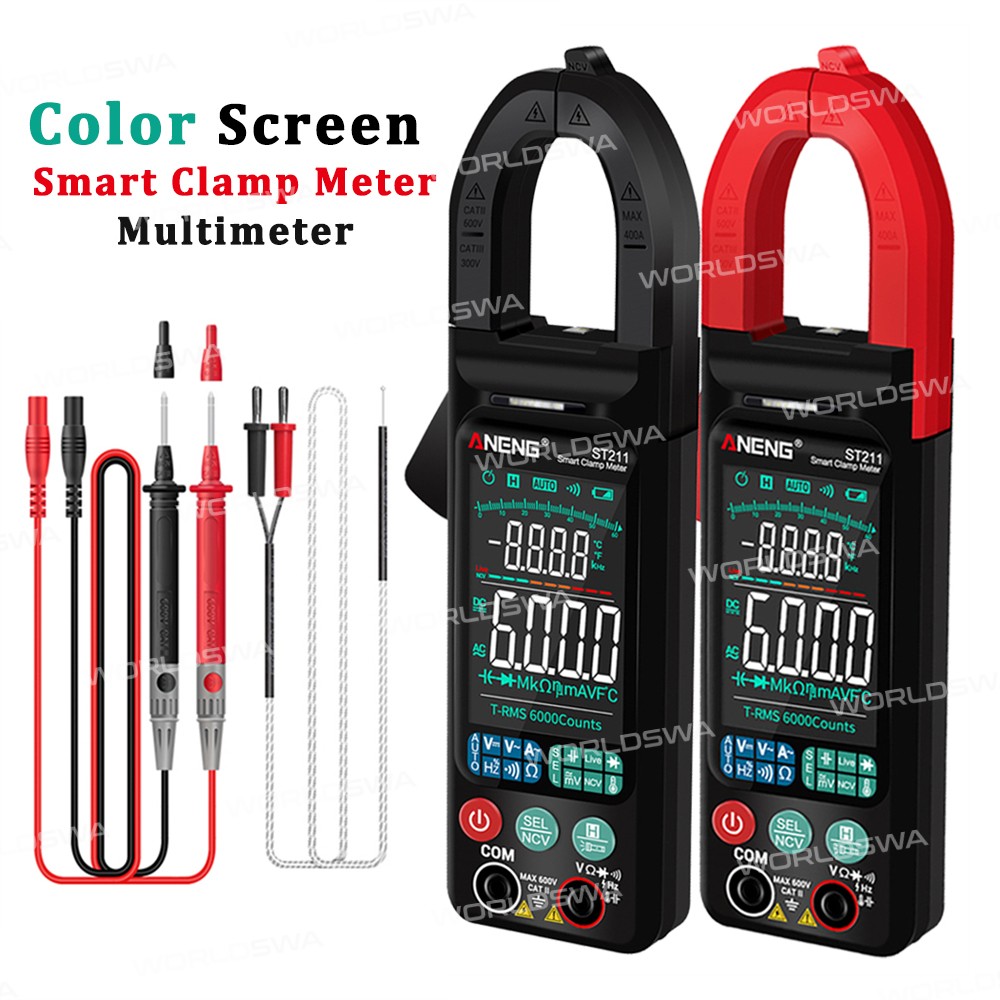

Package Includes:

• 1 x Multimeter (without Battery)

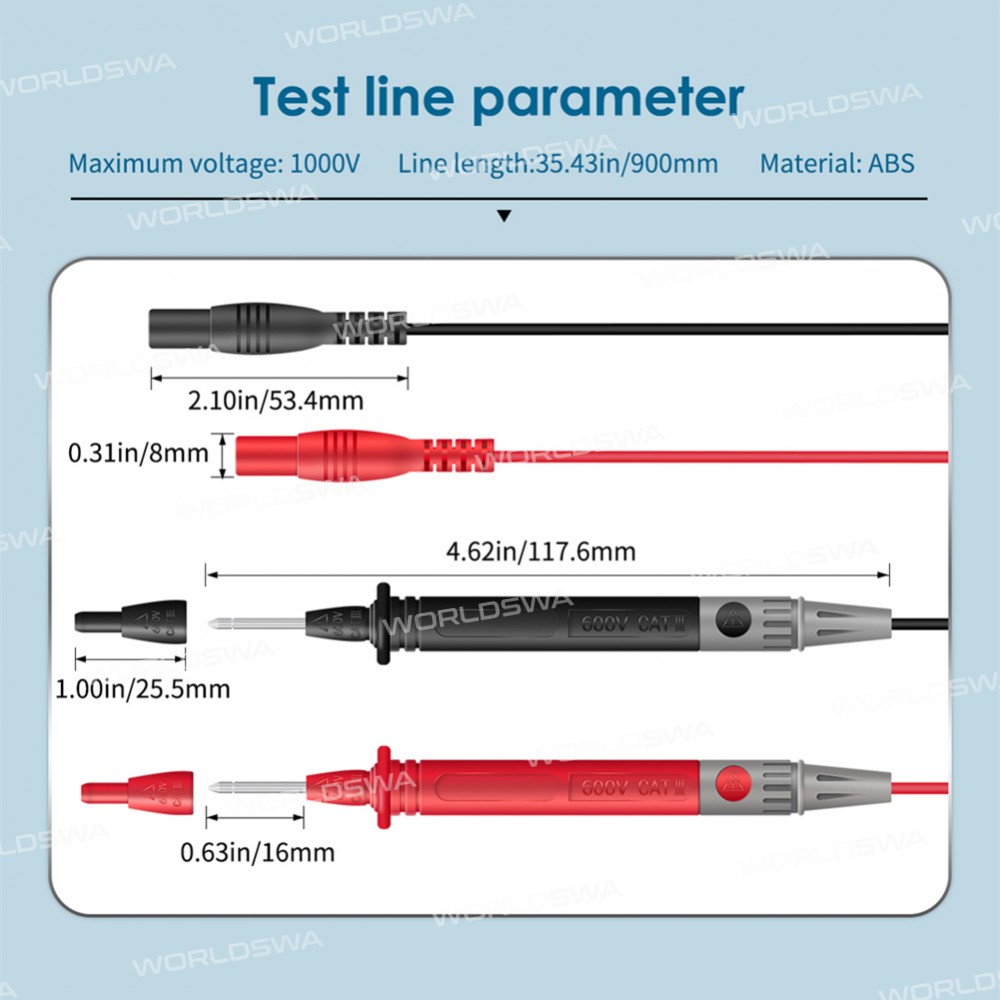

• 2 x Test Cables

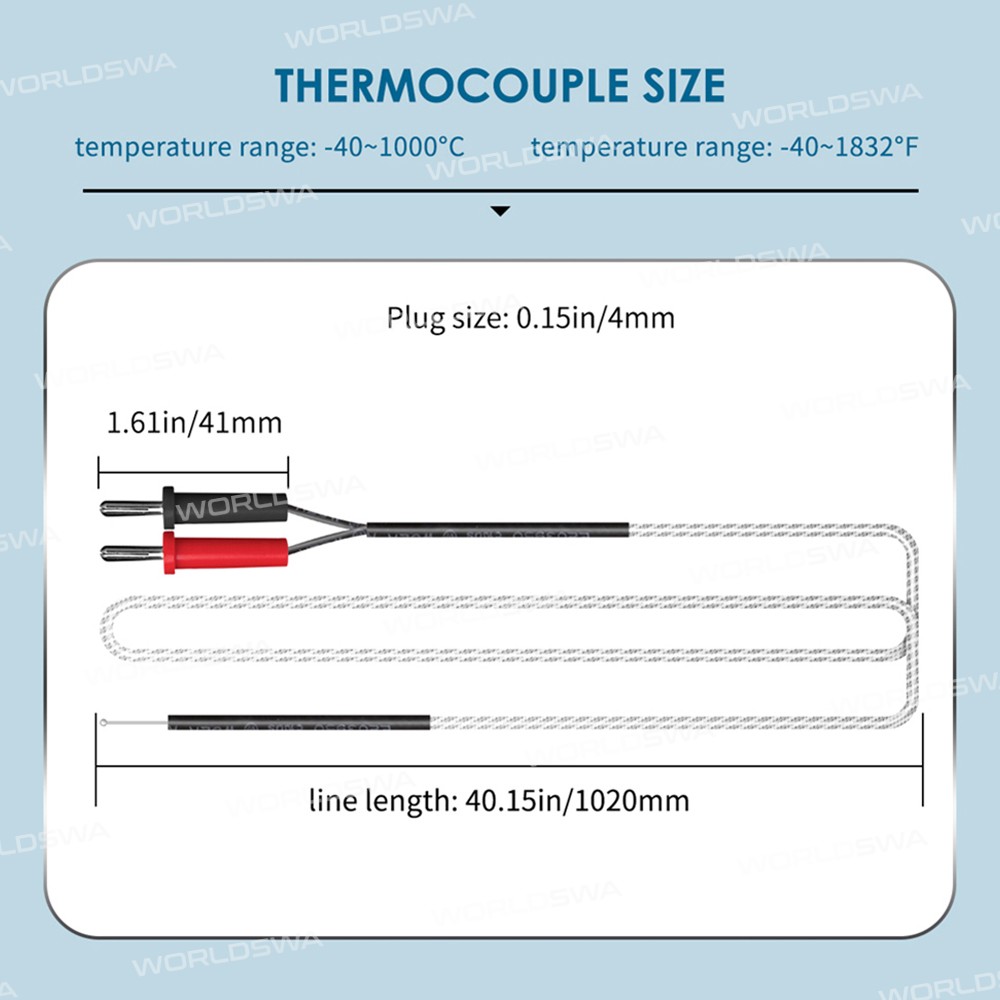

• 1 x Thermocouple
