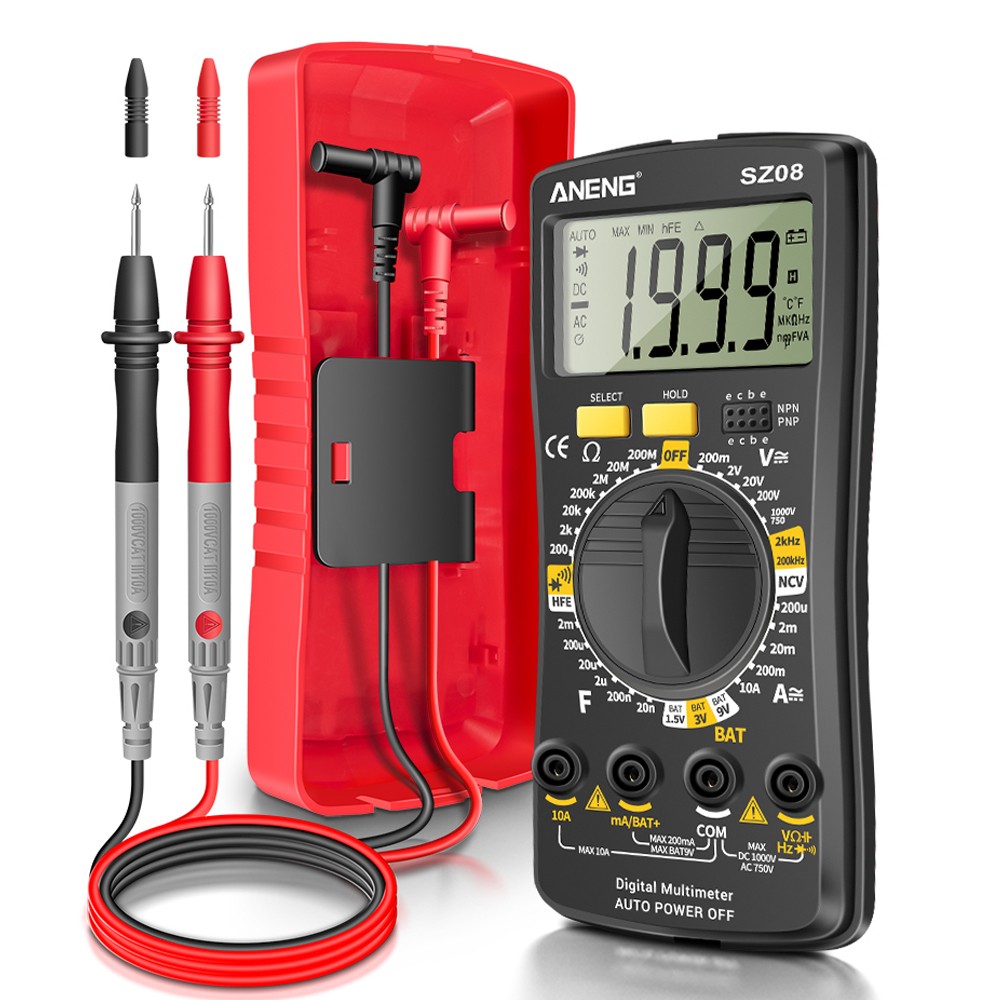

Aneng SZ08 Ultra-thin Handhold Auto Rang Digital Multimeter with NCV Intelligent Function

Aneng SZ08 Ultra-thin Handhold Auto Rang Intelligent Digital Multimeter with NCV

Product Description:

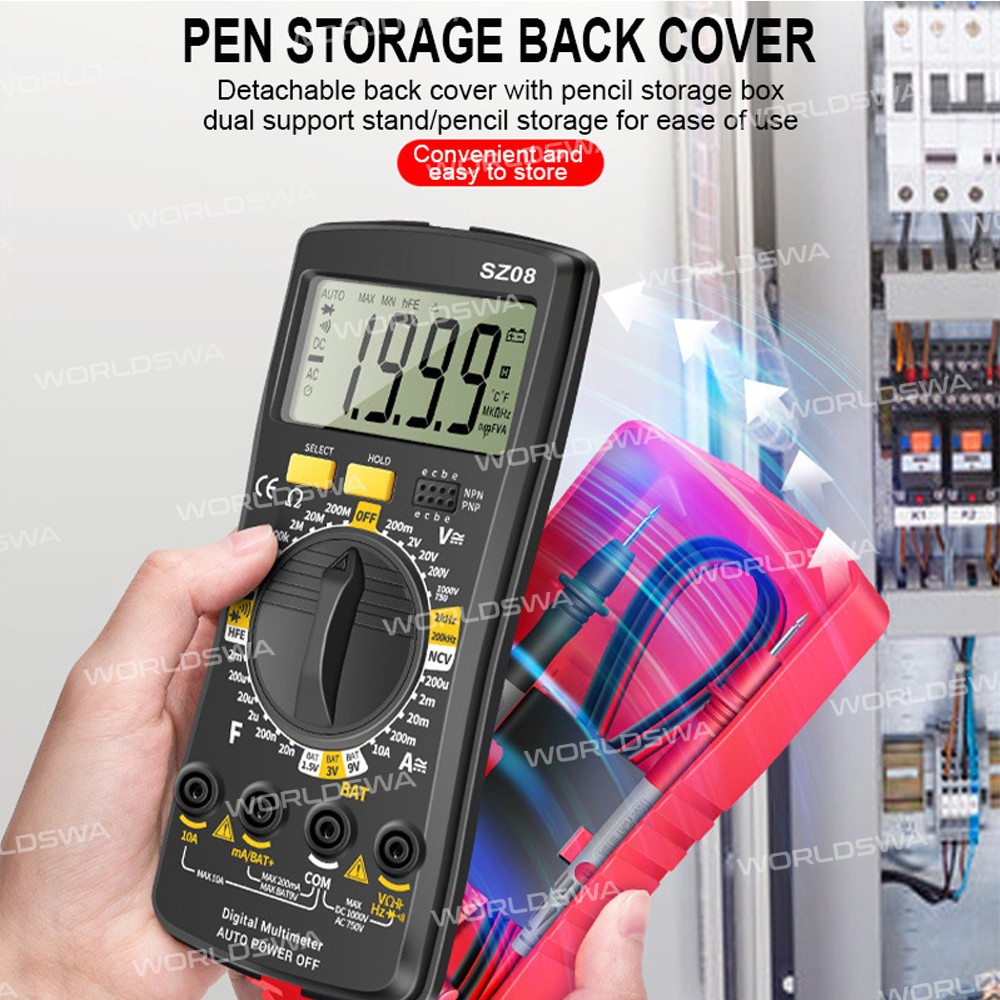

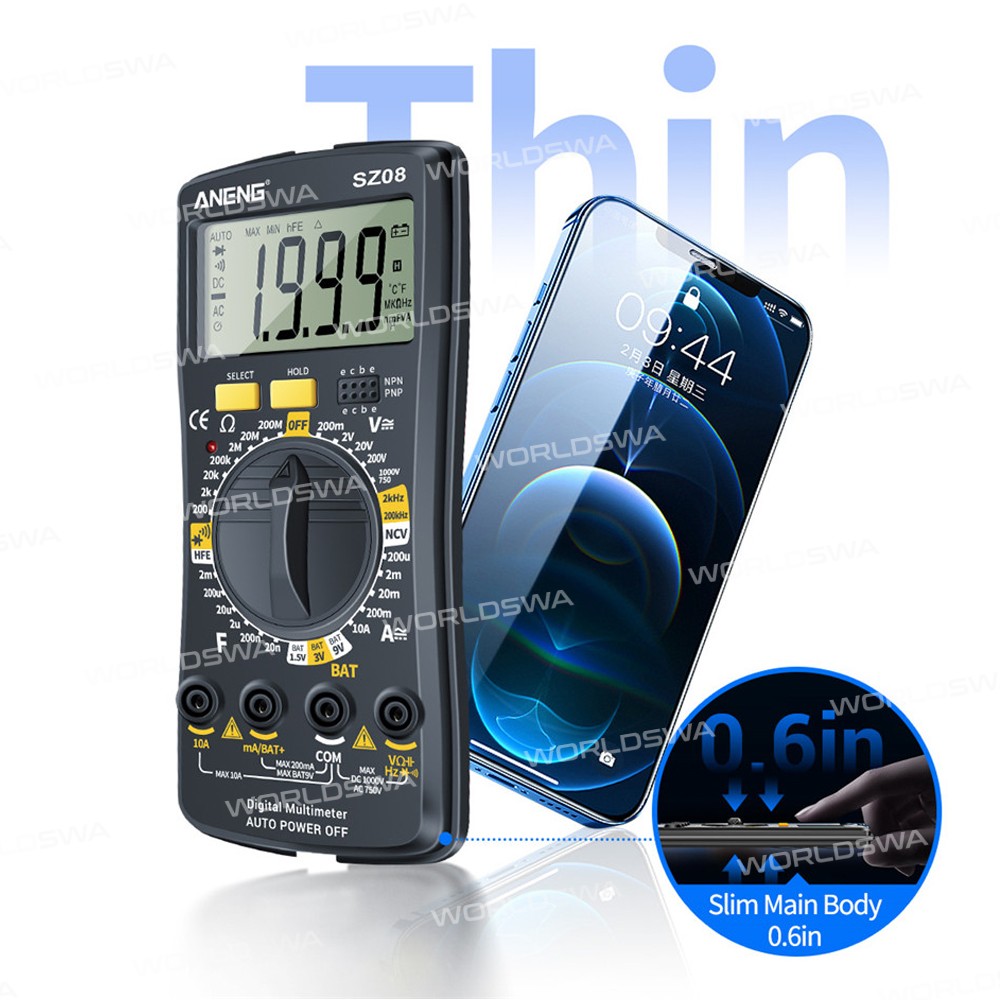

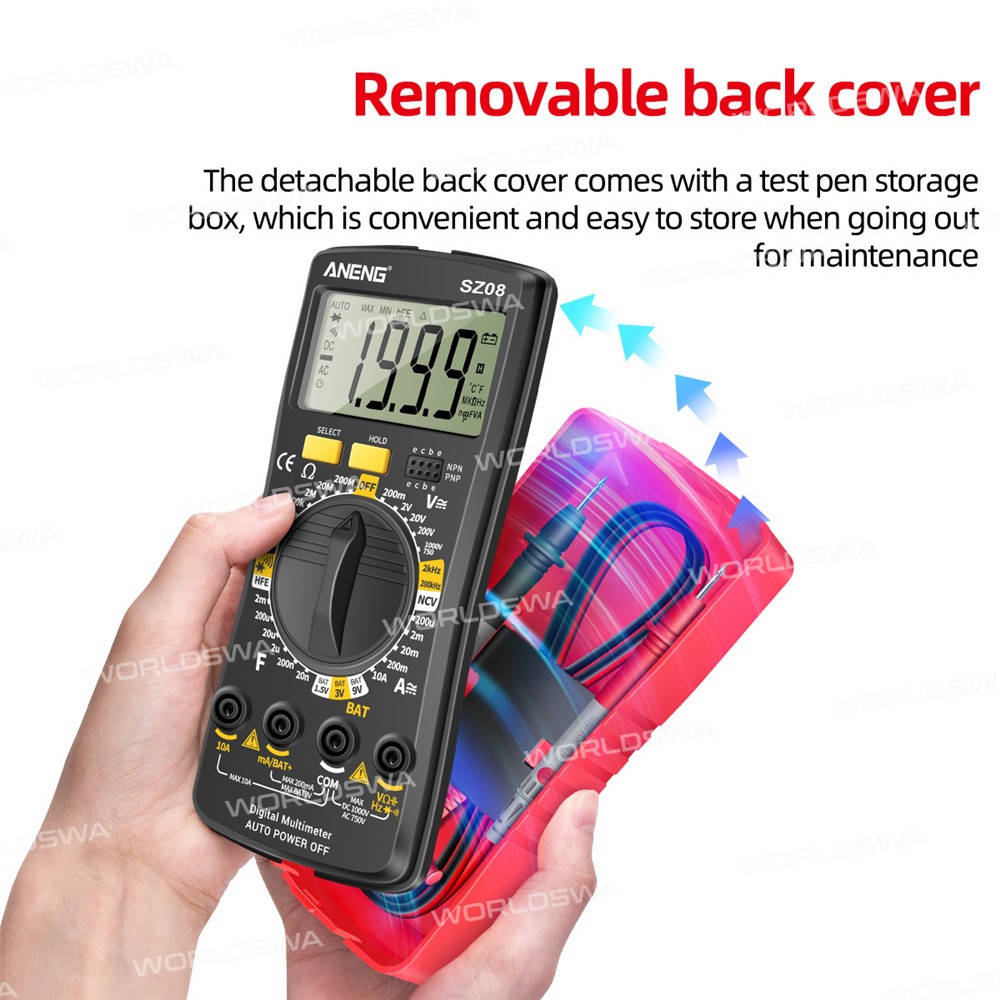

This high-precision multi-functional intelligent digital display multimeter comes with a pen storage back cover, making it more convenient to use. The removable back cover supports frame/pen storage dual design, and the 1.5cm thickness makes it as portable as a cell phone.

Key Features:

• **High-precision and multi-functional**: Intelligent digital display with 1999 counts.

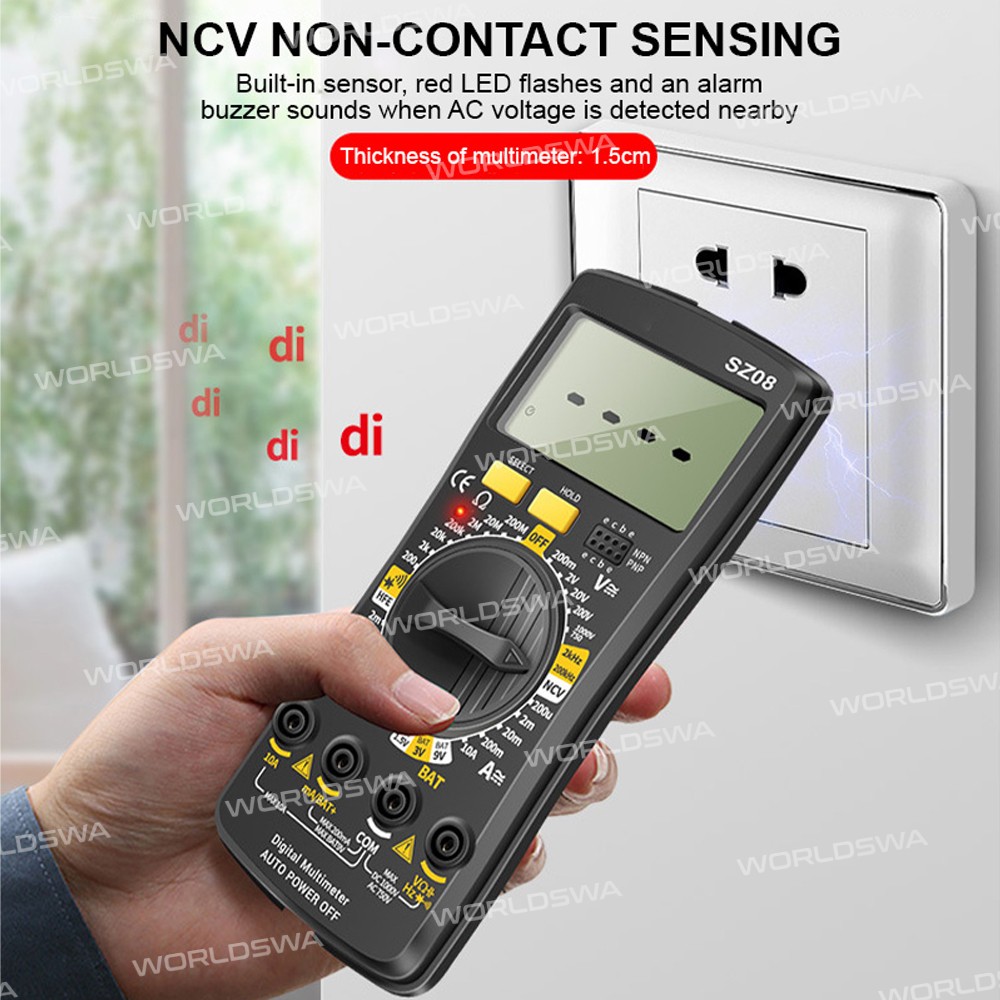

• **NCV non-contact induction**: Built-in sensor detects nearby AC voltage, flashing red LED light and alarm beep prompt.

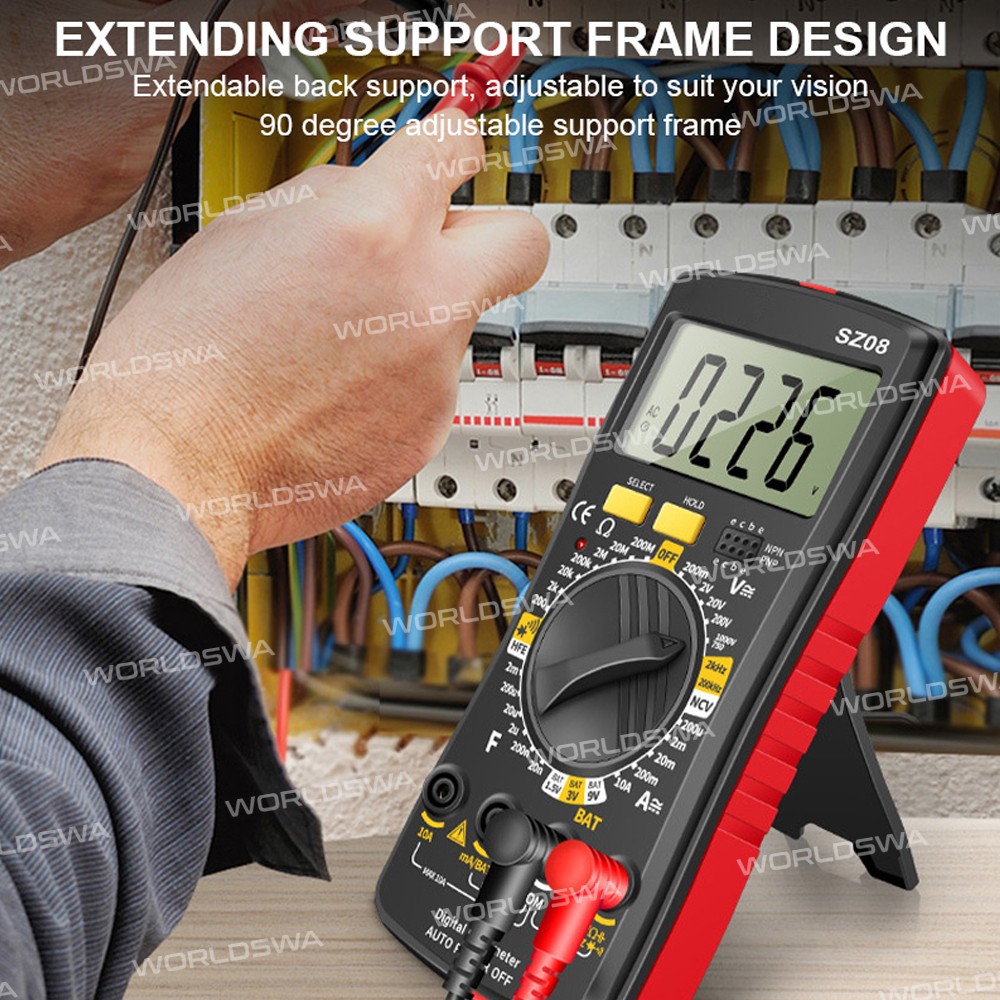

• **Extendable support frame**: Adjustable design for comfortable visual use.
• **Auto power off**: Saves battery life with automatic shut-off.
• **Data hold**: Freeze data for convenient reading.

Specification:

• Brand: ANENG
• Model Number: SZ08
• Display (LCD): 1999 Counts
• Ranging: Auto/Manual
• Material: ABS+TPE
• Auto Power Off: Yes
• Low Battery Indication: Yes
• Data Hold: Yes
• Operating Temperature: 0~40°C; Humidity: 75%
• Storage Temperature: -20~60°C; Humidity: 80%

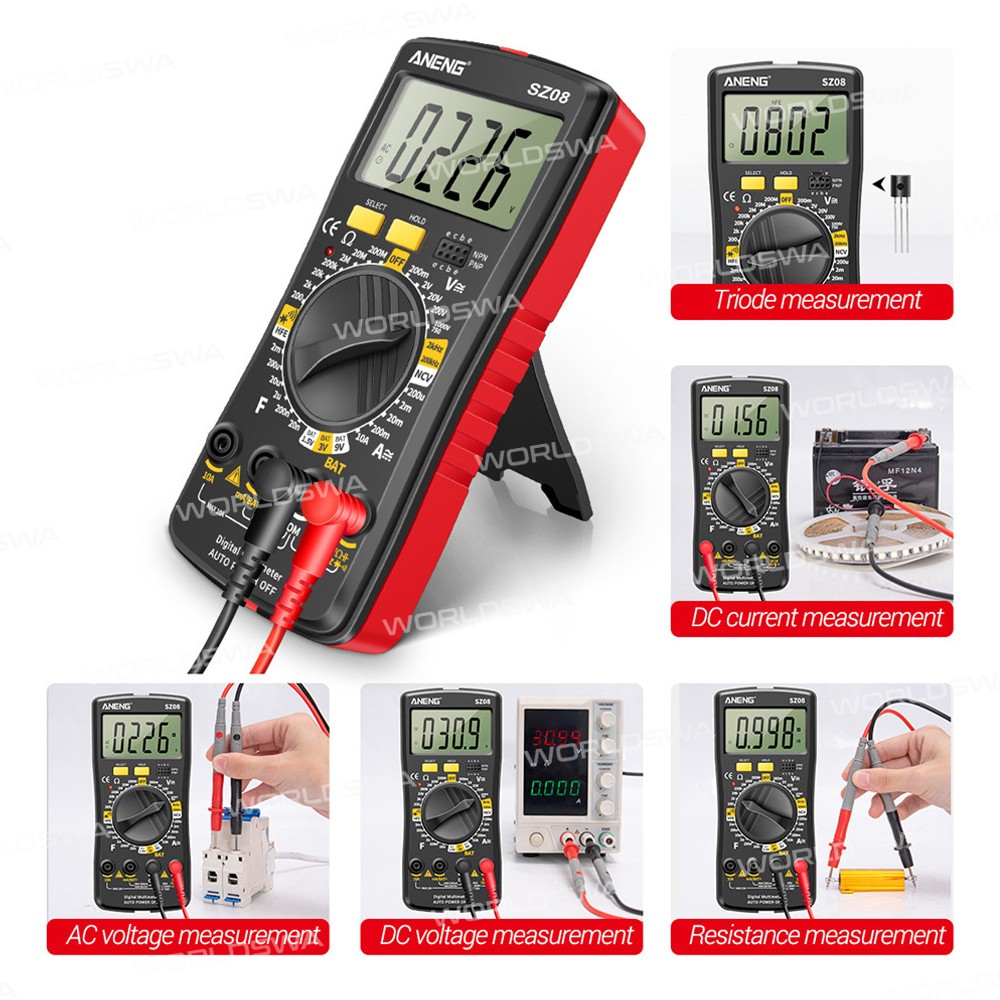

• DC voltage: 2V/20V/200V ±(1.0%+5); 200mV/1000V ±(1.5%+5)
• AC voltage: 200mV/2V/20V/200V ±(1.3%+8); 750V ±(1.5%+10)
• DC Current: 200uA/2mA ±(1.5%+8); 20mA/200mA ±(1.5%+5); 10A ±(2.0%+10)
• AC Current: 200uA/2mA/20mA/200mA ±(2.0%+5); 10A ±(2.5%+10)
• Resistance: 200Ω/2KΩ/20KΩ/200KΩ/2MΩ ±(1.0%+5); 20MΩ ±(1.5%+10); 200MΩ ±(5%+10)
• Capacitor: 20nF/200nF/2uF/20uF ±(4.0%+5); 200uF ±(4.5%+5); 2mF ±(5.0%+20)
• Frequency: 2kHz/200kH ±(1.5%+82)
• Diode: Yes
• Continuity: Yes
• NCV: Yes
• Power: 2 * 1.5V AAA batteries(Not included)
• Sample Rate: 3 times per second

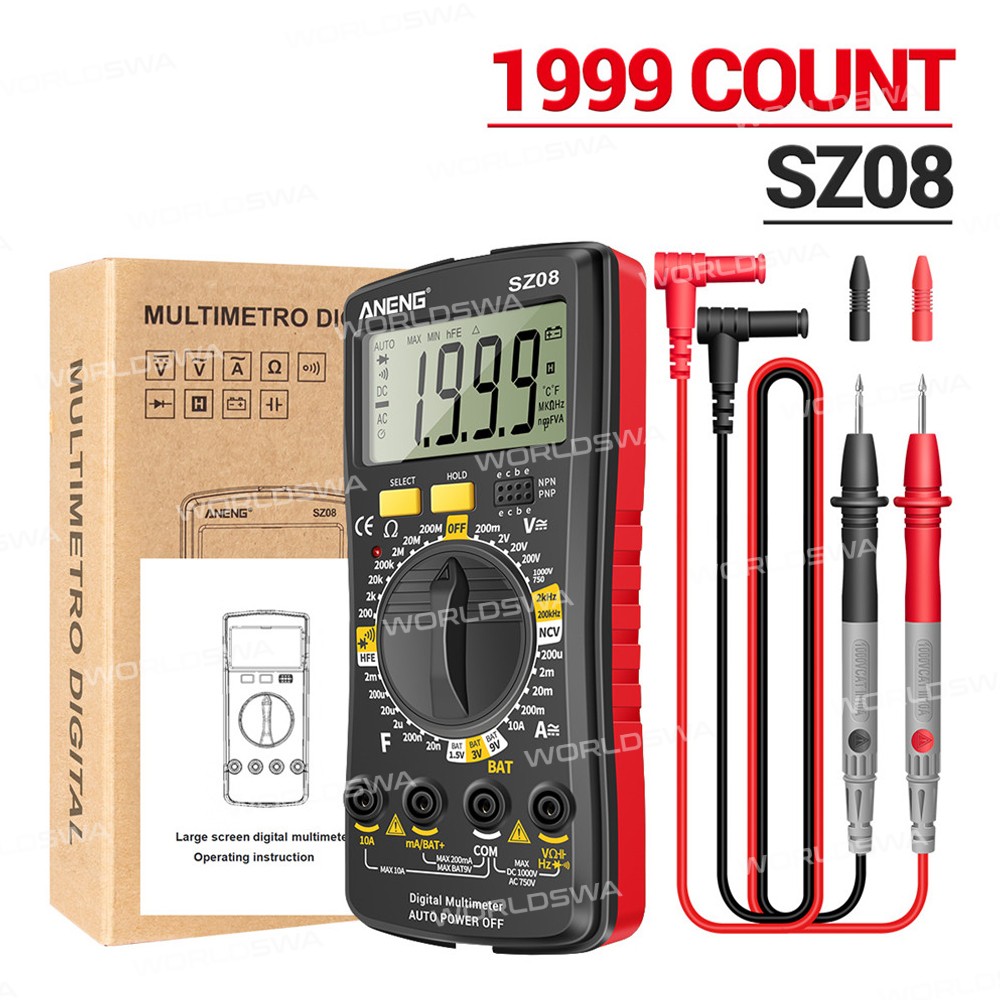

Package includes:

• 1 x Multimeter(without Batteries)
• 1 x Test lead
