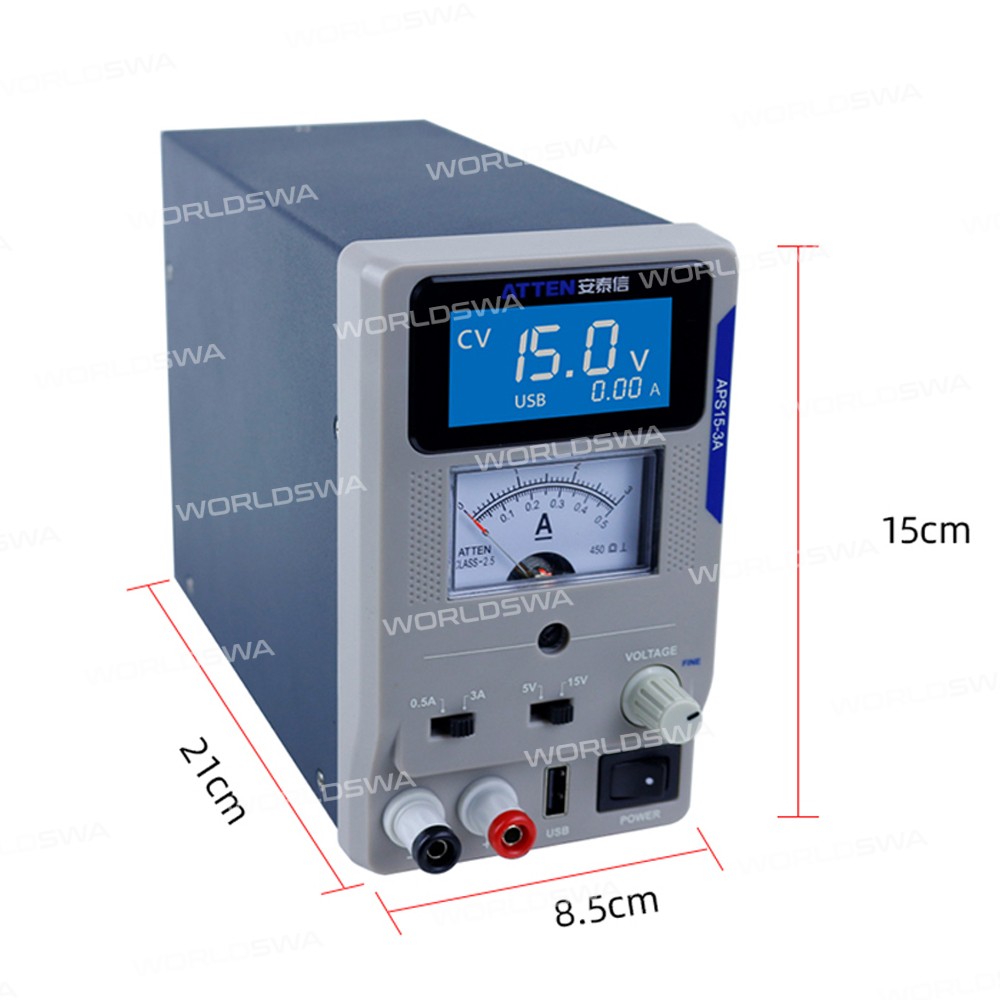

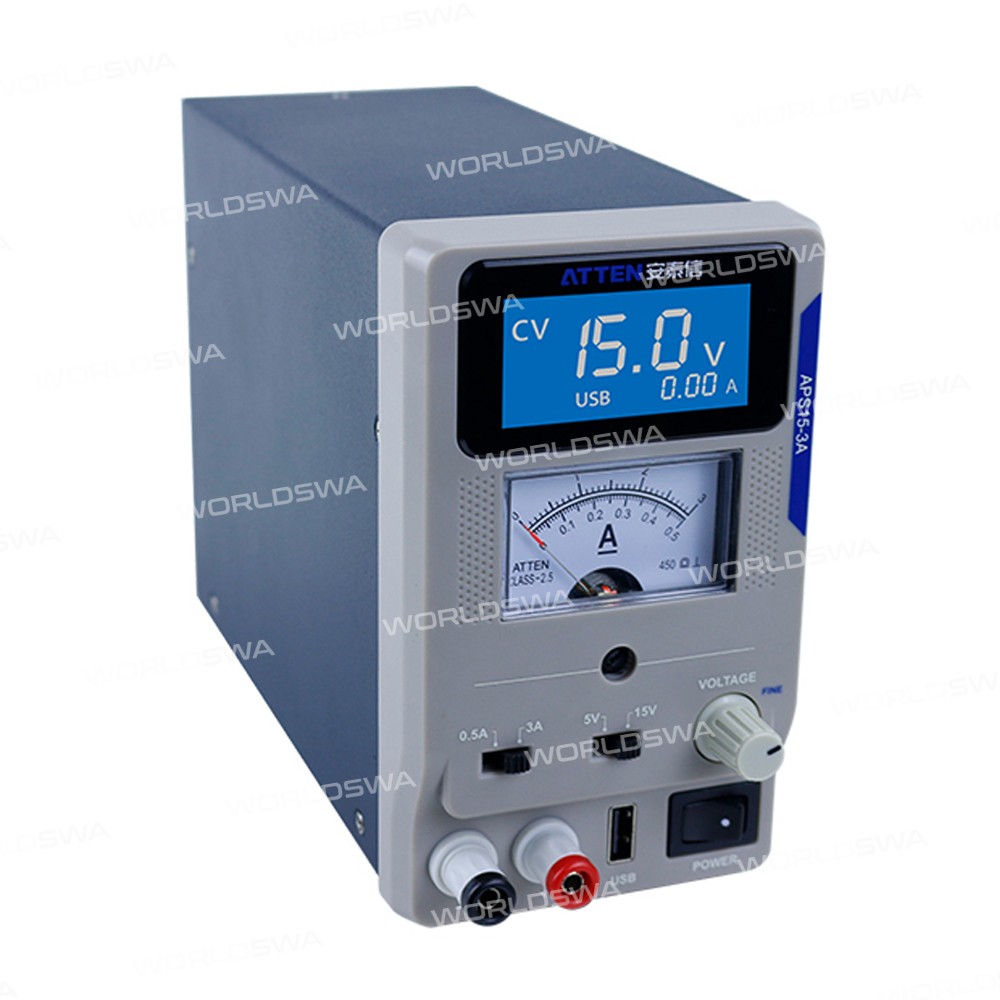

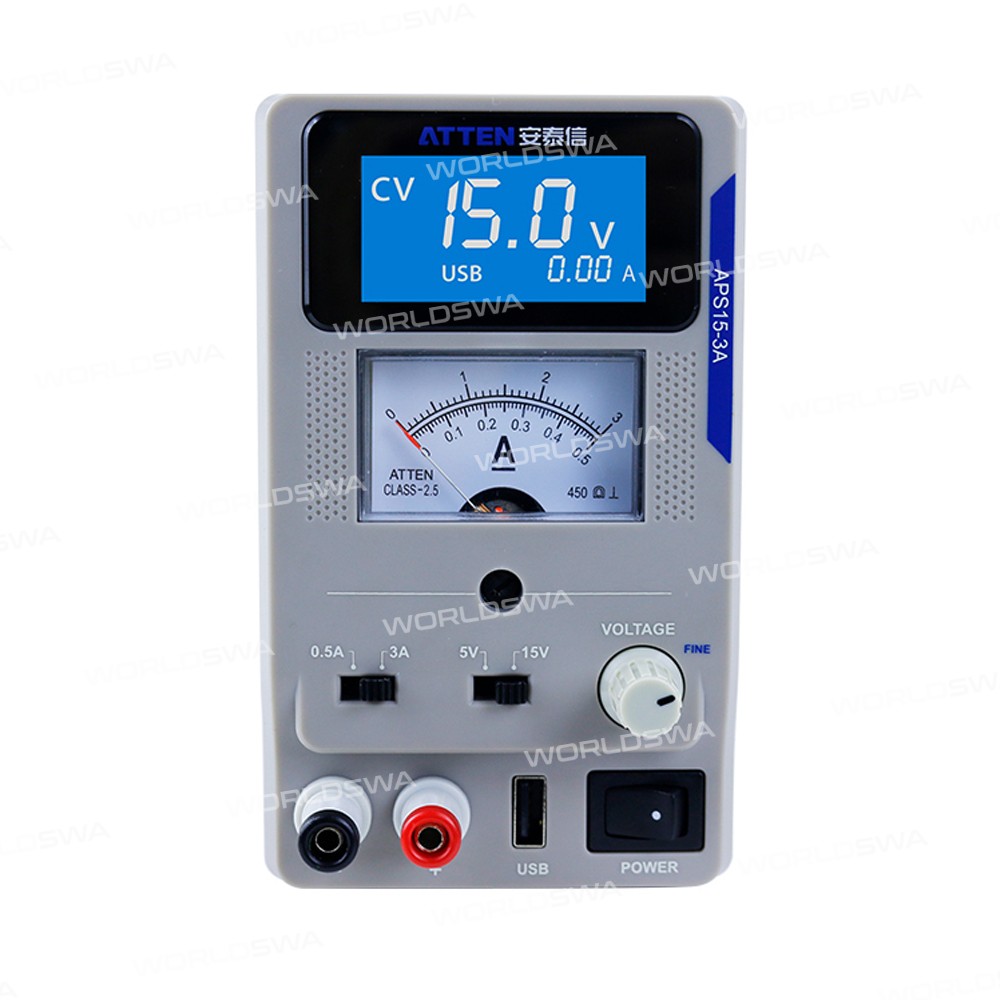

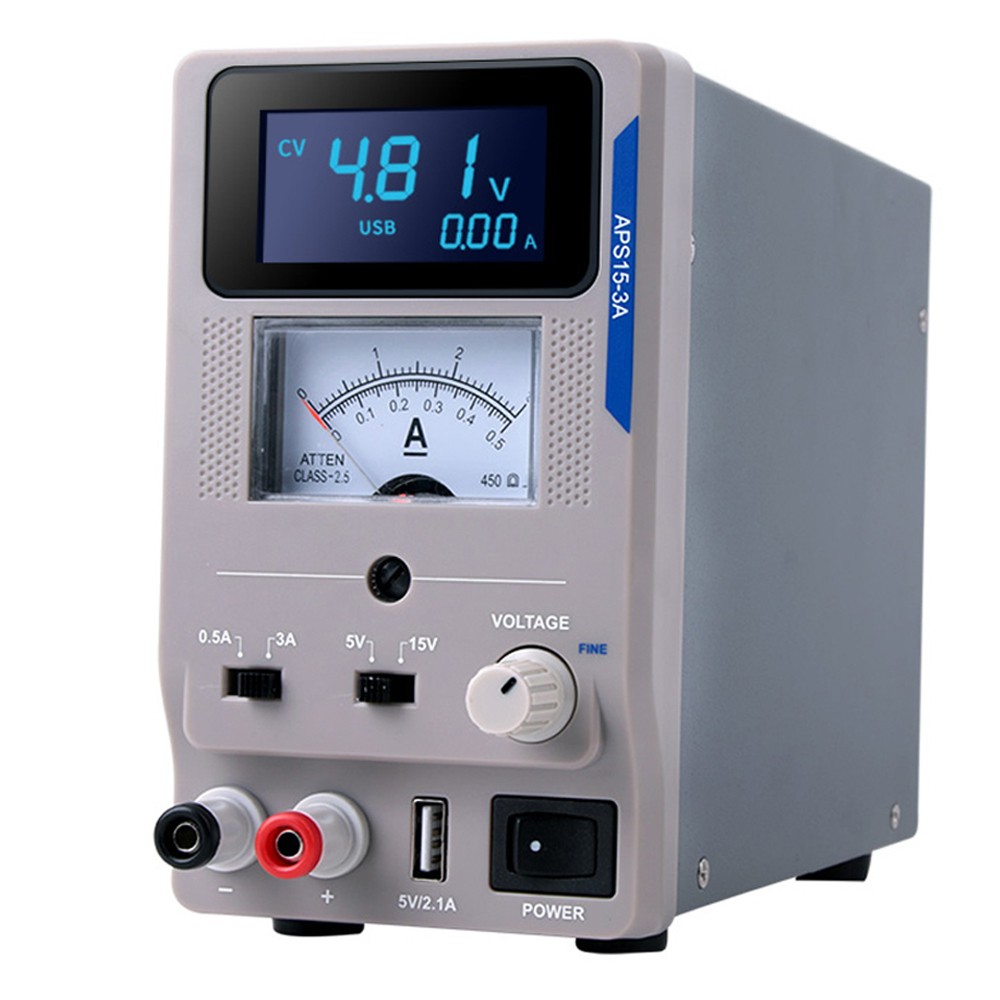

Atten APS15-3A Single Channel Linear Stabilized 15V 3A DC Power Supply

Atten APS15-3A Single-Channel Linear Stabilized DC Power Supply

Features:

• Double-type header design, more suitable for the use of communication equipment products
• Fast dynamic load response speed, optimized processing for communication equipment
• The product is designed with a cut-off self-recovery protection function and over-temperature protection function

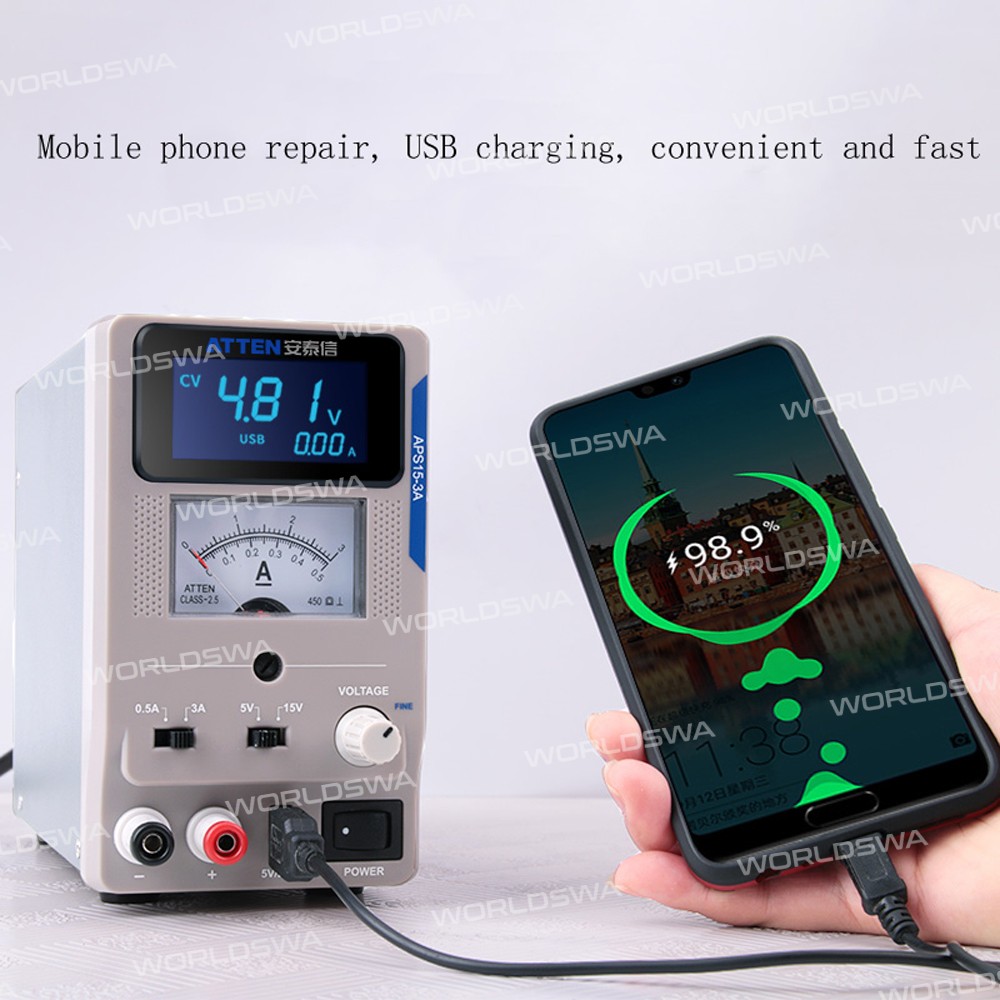

• Independent 5γUSB interface, providing 2.1A current output capability, with overcurrent short circuit protection function
• Voltage and current dual gear switch, respectively adapt to different equipment
• Built-in voltage gear automatic adjustment function, which can better adapt to full load use
• Digital encoder adjusts voltage, coarse adjustment and fine adjustment function switch, more precise control and longer life
• With input adjustment and lock function, alarm prompt function, effectively prevent misoperation
• Intelligent fan control automatically controls the temperature of the internal power device
• Summary:** Fast dynamic load response, optimized for communication equipment, with advanced protection functions and precise voltage control.

Specification:

• Input voltage: AC 220V/110V (optional)
• Main output voltage: 0-5V/0-15V dual gear
• Main output current: 0.5A/3A dual gear
• Rated output power: 56W (including USB interface output)
• Ripple and noise: CV≤0.5mvrms
• Power regulation rate: CV≤0.01%+3mV
• Load regulation rate: CV≤0.01%+8mV
• Readback accuracy: LCD meter head: ± (0.5 reading + 2 digits)
• Current pointer meter head: CLASS-2.5
• Protection function: OCP (over current cut-off recoverable type) / OHP (overheat protection)
• Other functions: coarse adjustment and fine adjustment, 5V/15V switching, 0.5A/3A switching, parameter lock function
• USB interface: fixed 5V output (±5% accuracy, 2.1A maximum (overcurrent protection, cut-off output))
• Cooling method: intelligent temperature control air cooling
• Digital control, series adjustment mode control, low ripple, low noise, high stability

Package includes:

• 1 x APS15-3A DC Power Supply
• 1 x Power cable
