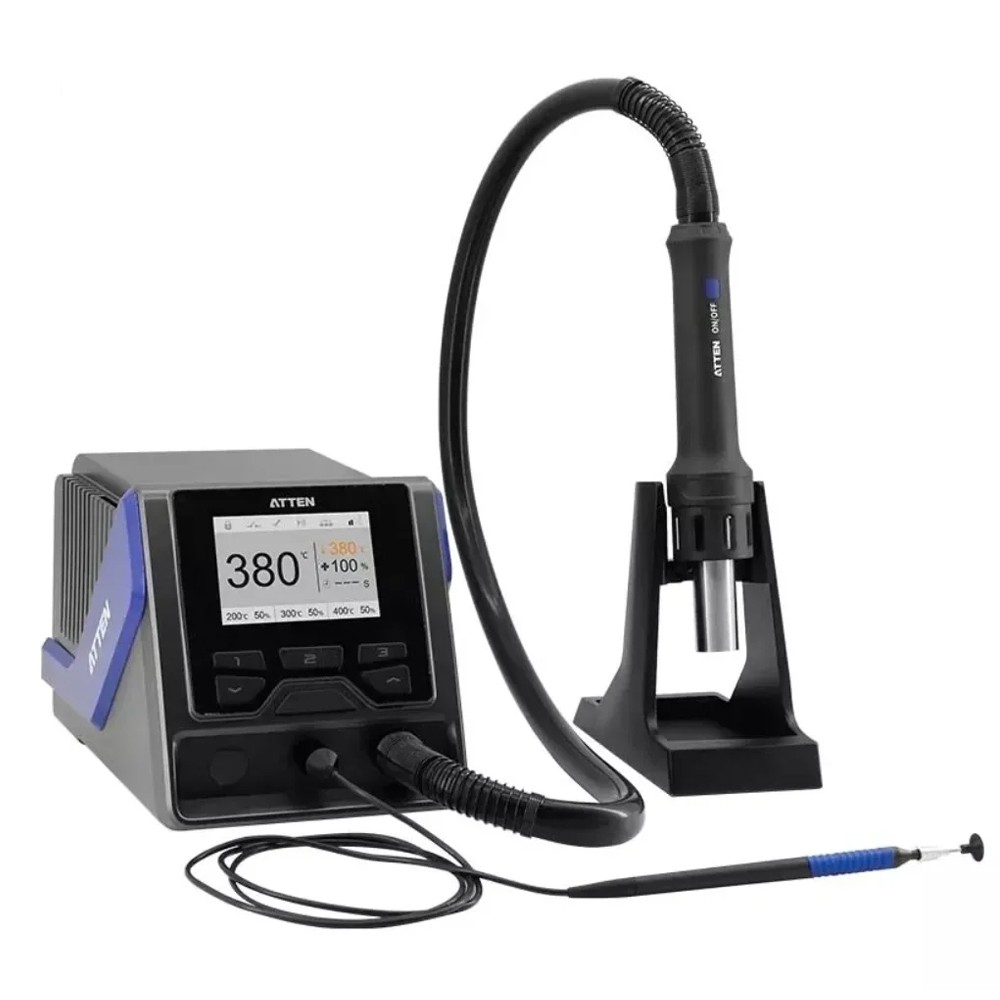

Atten GT-1028 1300W Programmable Intelligent Hot Air Desoldering Station with Digital Display

Atten GT-1028 1300W High Power Programmable Intelligent Digital Display Hot Air Desoldering Station

Overview:

The Atten GT-1028 is a high-performance desoldering station with a large TFT color screen, programmable temperature control, and a built-in vacuum pick-up tool. It's designed for efficient and precise desoldering, and is ideal for professionals and DIY enthusiasts alike.

Features:

• **Intelligent Rework Station** with vacuum pick-up tool
• Large TFT color screen for easy parameter setting and monitoring
• 1300W pluggable ceramic heater for fast heating
• **Vacuum Suction Pen** for easy component extraction after desoldering
• Built-in brushless fan for long life and low noise
• **PID Algorithm Temperature Control** for accurate and stable temperatures
• Infrared temperature calibration function
• Temperature curve setting function
• 3 sets of shortcut air volume/temperature for simplified operations
• Supports control of smoke purifier on/off switch
• Can be controlled by an external pedal
• Built-in RS-485 communication interface for IoT functionality
• **Summary:** Advanced desoldering station with programmable temperature control, vacuum pick-up tool, and IoT functionality.

Specifications:

• Model: GT-1028
• Rated operating voltage: AC 110V/220V
• Power: 1330W(220-240V)/1000W(110-120V)
• Fuse: T8A(AC 250V)/T12A (AC 125V)
• Temperature Range: 100℃~500℃/212℉~932℉
• Air Volume Range: 1%~100%
• Timing Time: 10~900s (Can be turned off)
• Temperature unit: ℃/℉, default ℃
• Vacuum pressure: -60Kpa
• Airflow: 120L/Min (Max)
• Multiple alarm and protection functions: Heater open circuit alarm, sensor fault alarm, zero crossing signal alarm, SCR damage alarm, over-temperature protection alarm
• Password protection function: Available (Off by default)
• Alarm function: Available (On by default)
• User temperature compensation: ±50℃/±90℉
• Multiple languages for user interface: Chinese/English
• Heating power display: 5 dynamic power bars
• Temperature adjustment step: Long press for 10 units adjustment, short press for 1 unit adjustment
• Air volume adjustment step: Long press for 2 units adjustment, short press for 1 unit adjustment
• Rapid temperature air volume time: 3 groups of temperature/air volume/time, can be called quickly
• Working conditions: Temperature 0℃~40℃; Relative humidity<85%RH
• Dimension: 230*142*145mm
• Weight (N.W.): Approx. 4Kg

Package Includes:

• 1 x Desoldering Station
• 1 x Power Cord
• 1 x Hot Air Gun Handle
• 3 x Hot Air Gun Nozzle
• 1 x Hot Air Gun Holder
• 1 x USB Cable (A To B)
• 1 x Vacuum Pen (Included Tool Box)
• 2 x Bent Suction Nozzle
• 2 x Straight Suction Nozzle
• 12 x Suction Disc
