Atten ST-8802 Intelligent Dual Channels Soldering Rework Station - Mobile Phone PCB BGA Repair

Atten ST-8802 Intelligent Dual Channels Soldering Rework Station for Mobile Phone PCB BGA Repair

Features:

• Large LCD screen; Temp/Air adjust easily
• Touch sensor inside, auto sleep function will take effect when hot air gun placed on the stand
• Use a brushless vortex fan making cyclone air output more gentle and evenly
• Has an automatic large air volume cooling function, effectively protecting the life of the heating core and handle
• Has an independent cold air function, and can deal with special use purposes.
• Three sets of quick temperature keys can be set and saved independently, use easily
• Has password protection and key lock function, making control easily
• With timing function and temperature compensation function, make use flexibly
• Summary:** All-in-one soldering rework station with advanced features for efficient and precise PCB BGA repair.

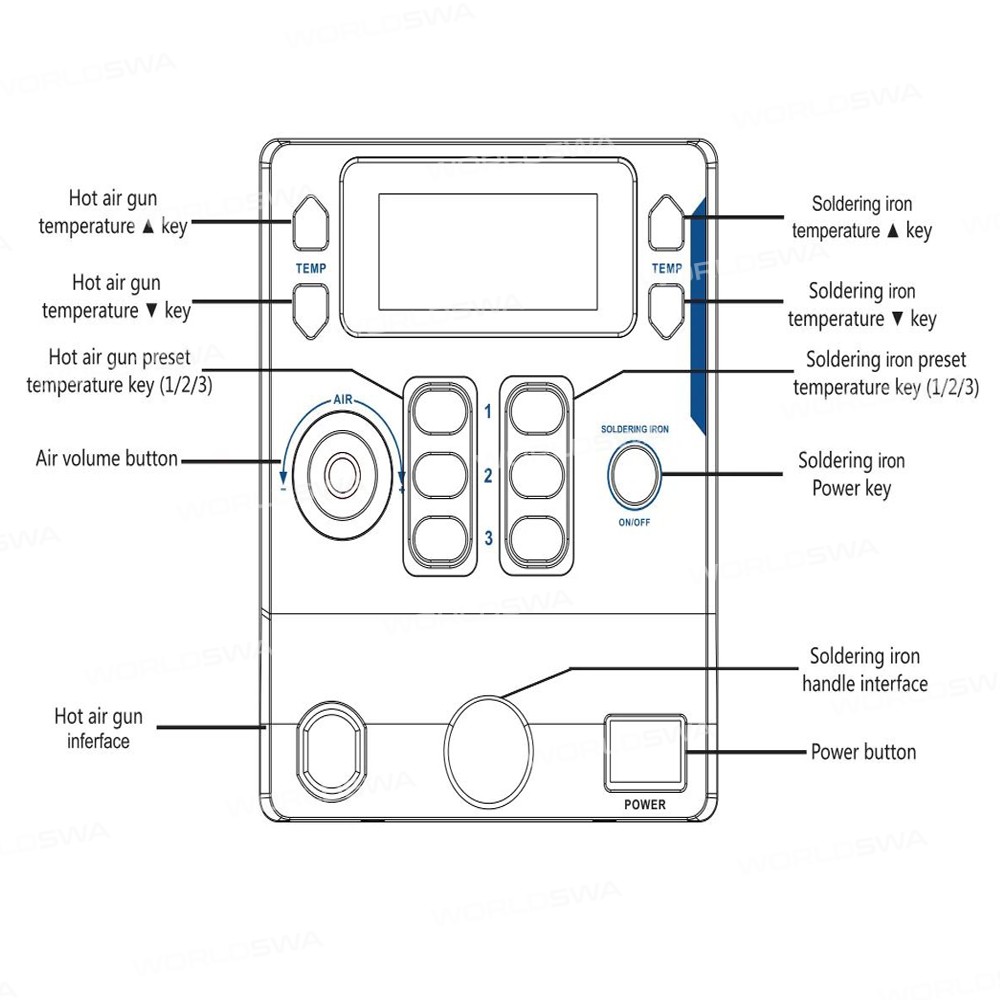

Function Settings and Steps:

Temperature/Air Flow:

• Adjust the airflow value by AIR knob, "+" / "-" to increase/reduce the air volume
• Adjust the temperature value by pressing “▲” or “▼”, long press can be quickly adjusted
• Saving and Call 3 Sets Shortcut Temperature by pressing button “1”/ “2”/ “3”

Temperature Lock Function:

• Under Menu Lock, it can turn on or off the temperature lock function by pressing the “▲” or “▼” key; then press Button “2” to exit and save your setting

Temperature Calibration:

• Under menu CAL mode, press the “▲” or“▼” key to enable the temperature calibration function, which calibration range is -50℃~ 50℃(-90℉~90℉)
• The calibration value will be negative as the actual-measured temperature is lower than the set temperature; the Calibration value will be positive as the actual-measured temperature is higher than the set temperature

℃/℉ Switch:

• In menu C-F mode, it can switch temperature unit ℃/℉ by pressing “▲” or “▼” key

Password Setting Function:

• In the PSD menu, press “▲” or “▼” to adjust the password setting value, which can be set from 01 to 999. “00” means the password function is off. Default no password for the first-time entrance. (Note: Directly input 906 passwords to enter the menu in case of forgot the password.)

Beeping function:

• Under menu BL mode, it can turn on/ off the beeping function by pressing the “▲” or “▼” key.

Auto-sleep/Standby Function:

• In the SLP menu, press the right side “▲” or “▼” key to turn the ON/OFF auto sleep function. Soldering iron auto-sleep time setting range is 0-60mins (default 10mins). In sleep mode, the heater temperature is 200℃.
• Picking up the soldering iron and it will back to normal working mode. The hot air gun will enter into sleep mode automatically when putting it on the holder

Cool Air Function of Hot Air Gun:

• When setting the temperature under 100℃, or pressing shortcut key “1”, the hot air gun will enter into cool air mode. LCD C-L and heating element turn off heating and hot air gun blows cool air

Timing function of Hot Air Gun:

• Under menu HT mode, it can adjust the time of the timing function by pressing the “▲” or “▼” key. Time range from 10 to 900 seconds

Fault alarm function:

• S-E: Sensor fault
• H-E: Heating element fault

Package includes:

• 1 x Host
• 1 x Hot air gun handle
• 1 x Hot air gun handle
• 1 x Soldering iron
• 1 x Hot air gun holder
• 1 x Soldering iron holder
• 4 x Nozzles
• 1 x Power cord
