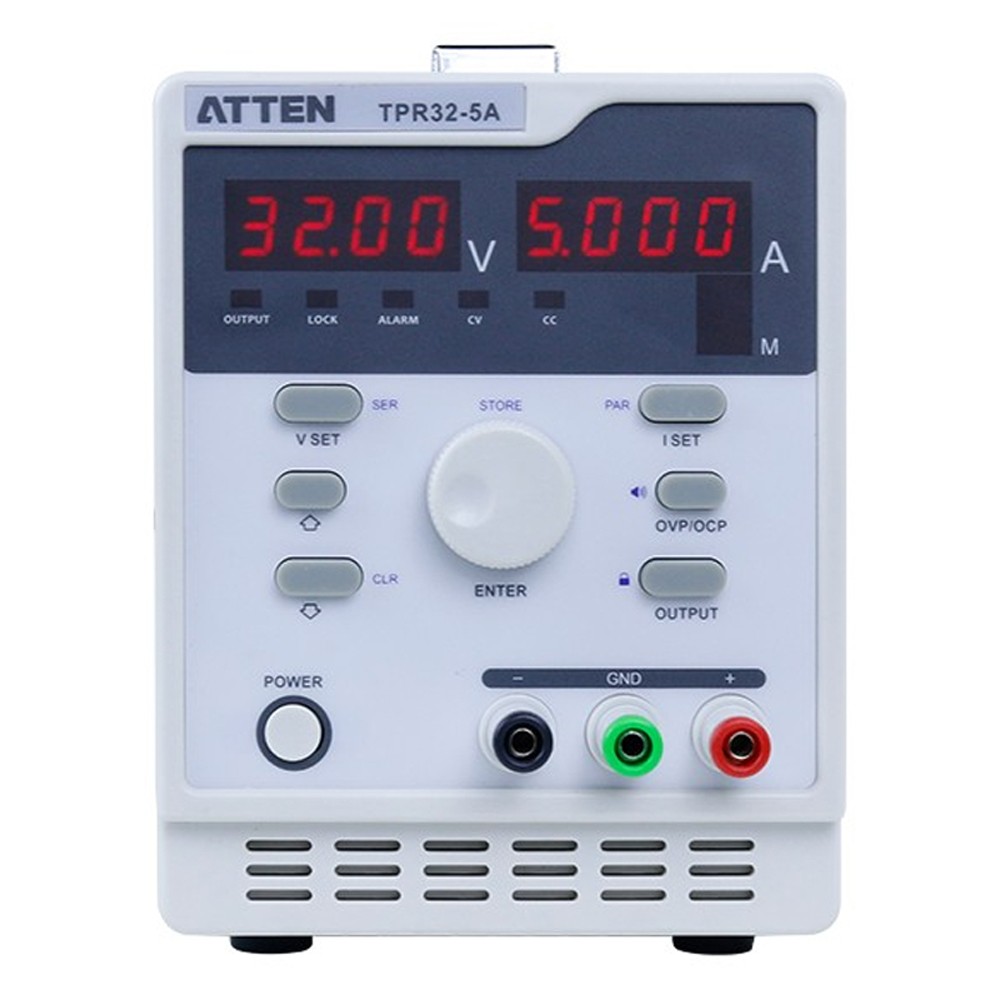

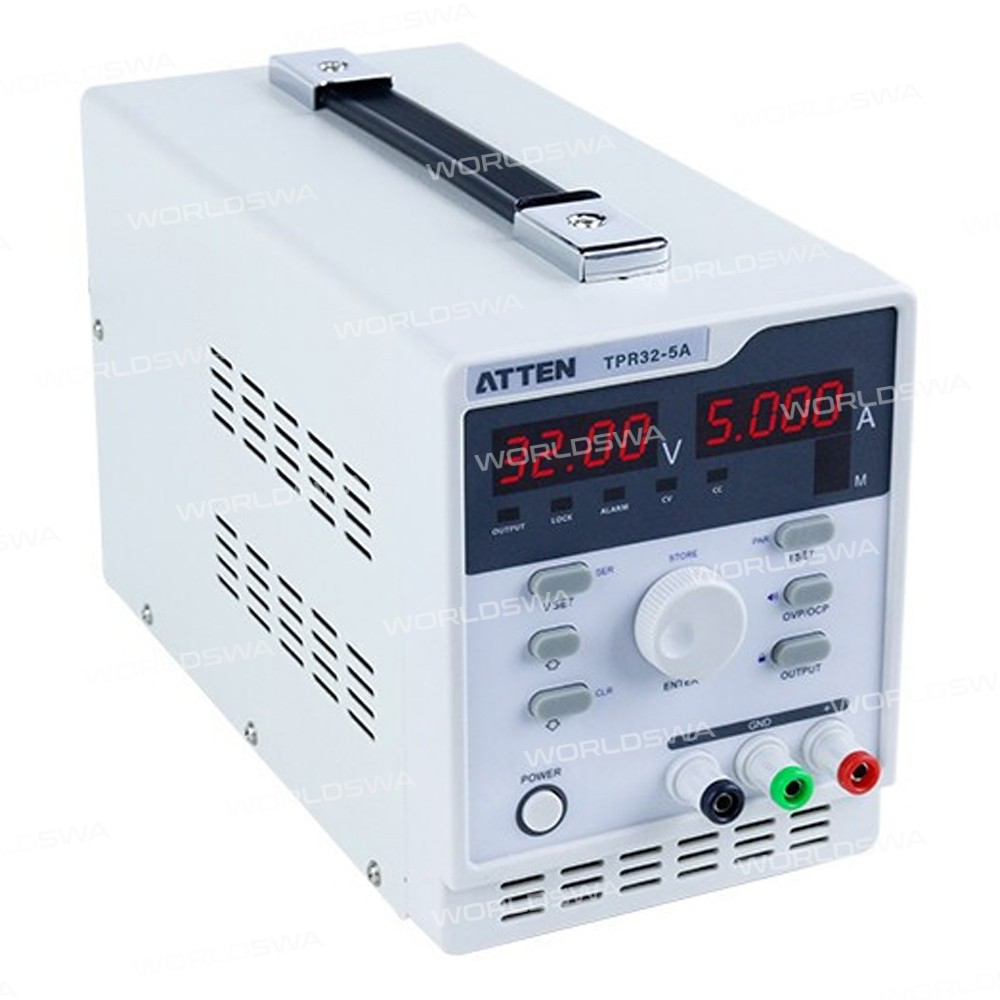

Atten TPR32-5A 30V 5A Single-Channel Adjustment Regulated Linear Digital DC Power Supply

Atten TPR32-5A 30V/5A Single Channel Adjustment Regulated Linear Digital DC Power Supply

Features:

• It adopts a double four-position high-precision voltage, ammeter head, and pure MCU digital control output for better stability and higher precision
• Product constant voltage CV / constant current CC mode, which enables continuously adjustable output within the rated range
• It can be converted to external control mode, external input control voltage, used to control the main power supply voltage and current output
• It has an extended master-slave parallel, series operation mode, which is more convenient for users to use series-parallel expansion
• Provide 10 convenient and fast parameter storage functions (including OVP and OCP setting values), which is convenient for users to quickly and directly call the output.
• Provide an external monitoring function for main output voltage and current parameters, which can be connected to a higher precision meter for display
• It has functions of storable output parameters, status lock, and alarm
• The intelligent cooling system adopts a double ball fan to automatically control the fan speed according to the internal temperature, making it quieter and longer-lived
• Support computer program control and standard RS232 communication interface
• Summary:** High-precision voltage and current control, multiple operation modes, and external monitoring capabilities for precise power supply management.

Specification:

• Product number: TPR32-5A
• Input voltage: AC 110V/220V
• Rated output voltage: 0~32V
• Rated output current: 0~5A
• Rated output power: 160W
• Ripple and noise: CV≤0.5mVrms; CC≤1mArms
• Power supply changes: CV≤0.01%+3mV; CC≤0.2%+3mA
• Load fluctuation: CV≤0.01%+5mV; CC≤0.2%+3mA
• Readback display error: ±(0.5% rdg+2digits)
• Protective function: OVP (overvoltage) / OCP (overcurrent) / OHP (overheat) protection
• Cooling method: Intelligent speed regulation air cooling
• Working condition: Temperature: 0~40℃; Humidity: <80%
• Storage conditions: Temperature: -20~70℃; Humidity: <80%
• Dimensions: 125*170*260mm

Package includes:

• 1 x Power Supply
• 1 x Power Cable
