"1660 16MP HDMI Microscope Industrial Camera - BEST for Phone CPU PCB Repair"

BEST HDMI 1660 16MP HDMI Microscope Industrial Camera for Phone CPU PCB Repair

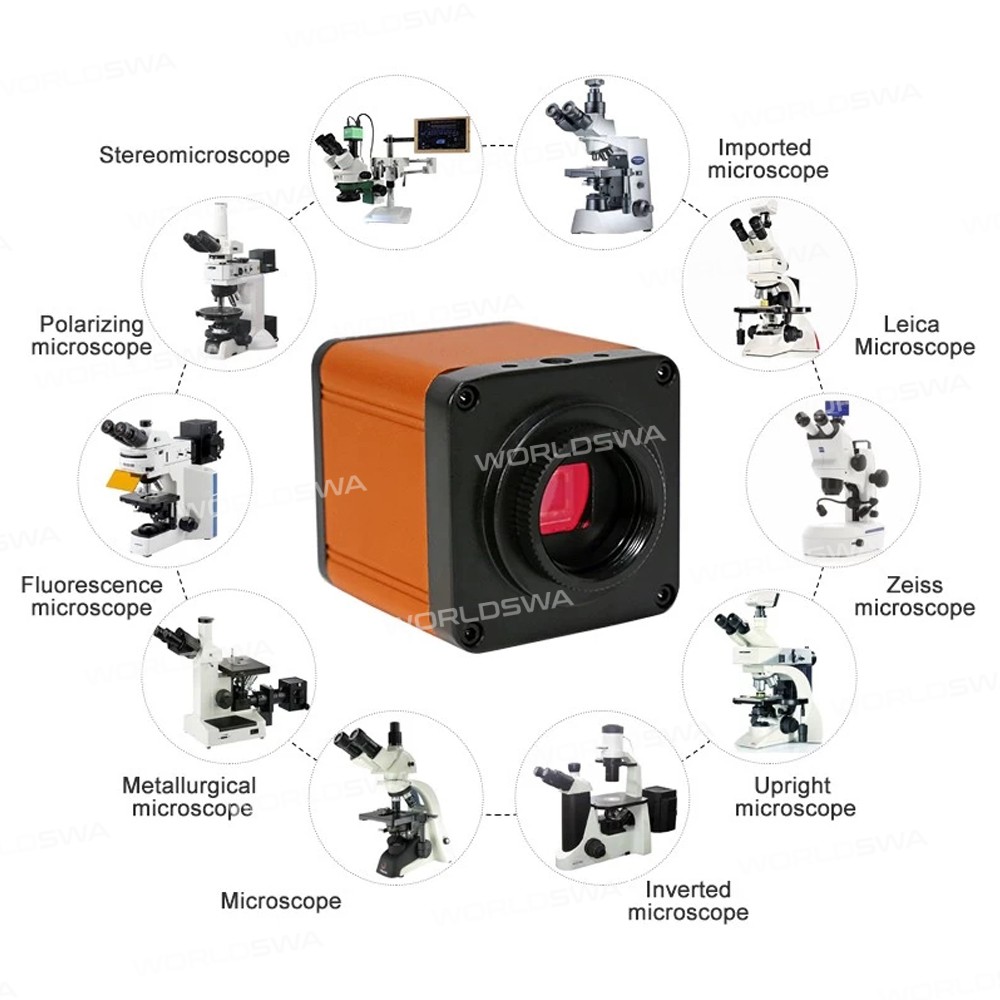

Product Overview

This HDMI microscope industrial camera is designed for phone CPU PCB repair and other industrial applications. It features a Panasonic 16MegaPixel MN34120 CMOS sensor, 1/2.3 inch optical format, and 1.335µm * 1.335µm pixel size.

Key Features:

**Summary:** 16MP HDMI microscope industrial camera with 1080P@60FPS video record resolution and 1920*1080 60FPS HDMI output.

• Module: HDMI 1660
• Sensor: Panasonic 16MegaPixel MN34120 CMOS Sensor
• Optical format: 1/2.3 inch
• Pixel size: 1.335µm * 1.335µm
• Interface: HDMI(Type-A)、USB(Type-B)、TF Card
• Image resolution: 16 MegaPixel
• Video record resolution: 1080P@60FPS
• HDMI resolution: 1920*1080 60FPS, Can output with USB at the same time
• HDMI scale: Support 4:3, 16:9, 16:10 screen
• USB2.0(Drive free): 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS, Can output with HDMI at the same time
• TF card: Max 64GB
• AWB: WB color correction/Auto/Manual R,G,B value setting independent
• Exposure: Auto/Manual, AE value can be set
• Cross lines: 8 lines, Can set color& width& position
• Scale mark lines: 2 lines
• Dotted lines: 2 lines, Can set color& width& position
• Sharpness Contrast Color Gain: Support
• Mono Negative: Support
• Mirror: Horizontal vertical mirror
• Language: English/Simplified Chinese
• Digital Zoom: Support
• IR remoter: Support

Technical Specifications:

• Voltage in: DC 12V (5-19V)，55-21mm size
• Power consumption: Max 0.15W (12V, 0.12A)
• Lens interface: C/CS
• Net weight: 180g
• Camera size: 51*51*55mm

What's in the Box:

• 1 x Camera
• 1 x Power Cable
• 1 x Remoter
• 1 x USB Cable
