BEST HDMI1030UUC 2K HDMI Microscope Camera - 2MP Full HD for Phone CPU PCB Repair

BEST HDMI1030UUC Full HD 2MP 2K HDMI Microscope Industrial Camera for Phone CPU PCB Repair

Product Overview

This industrial camera is designed for phone CPU PCB repair, offering high-quality images with its 2MP 2K HDMI output. With a Panasonic original CMOS sensor, it provides clear and detailed visuals for precise repair work.

Key Features:

• **High-Quality Imaging**: 2MP 2K HDMI output with 2000TVLine clarity and 30 frames per second.
• **Flexible Output Options**: HDMI, USB-Disk, USB-PC, and TF Card output interfaces for convenient data transfer.
• **Adjustable Settings**: One-key white balance, manual/automatic exposure, and adjustable R, G, and B values for optimal image quality.
• **Remote Control**: Supports remote control camera and video functions for added convenience.
• **Multi-Language Support**: Available in Chinese and English languages.

Technical Specifications:

• Model: HDMI1030UUC
• Image Sensor: Panasonic's original CMOS Sensor
• Sensitivity size: 1/2.8 inch
• Pixel size: 2.8μmx2.8μm
• Output Interface: HDMI, USB-Disk, USB-PC, TF Card
• Effective Pixels: 2MP
• Clarity: 2000TVLine
• HDMI output: Progressive 1920*1080 30 frames
• HDMI output ratio: Support 4:3, 16:9, and 16:10 screens to ensure that the image is not deformed
• USB2.0 output (free drive):1920*1080@30frame, 1280*720@30frame, 640*480@30frame
• TF card storage capacity: Up to 128GB
• White balance: One-key white balance/auto/manual, R, G, and B are individually adjustable
• Exposure: Manual/automatic, the exposure value is adjustable
• Language: Chinese/English
• Remote control: Support, remote control camera, and video, the picture does not shake
• Input voltage: DC 12V (support 5-19V), 55-21 large interface
• Power consumption: Maximum 0.15W(12V,120mA)

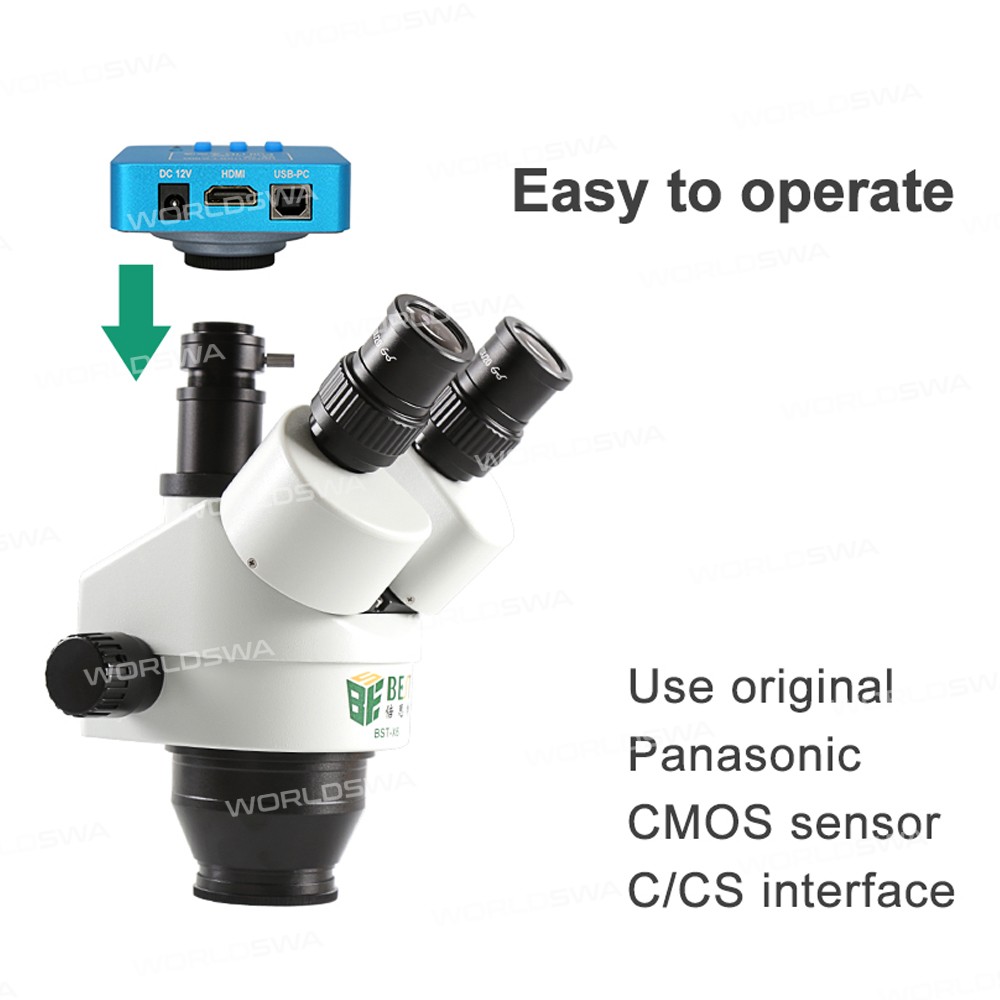

• Lens interface: C/CS port
• Mirroring: Horizontal and vertical mirroring
• Net weight: 180g
• Gross weight: 400g
• Product Size: 74*74*35mm
• Package Size: 160*100*80mm

What's in the Box:

• 1 x Camera
• 1 x Adapter
• 1 x Remote control
• 1 x B-type square port USB cable
