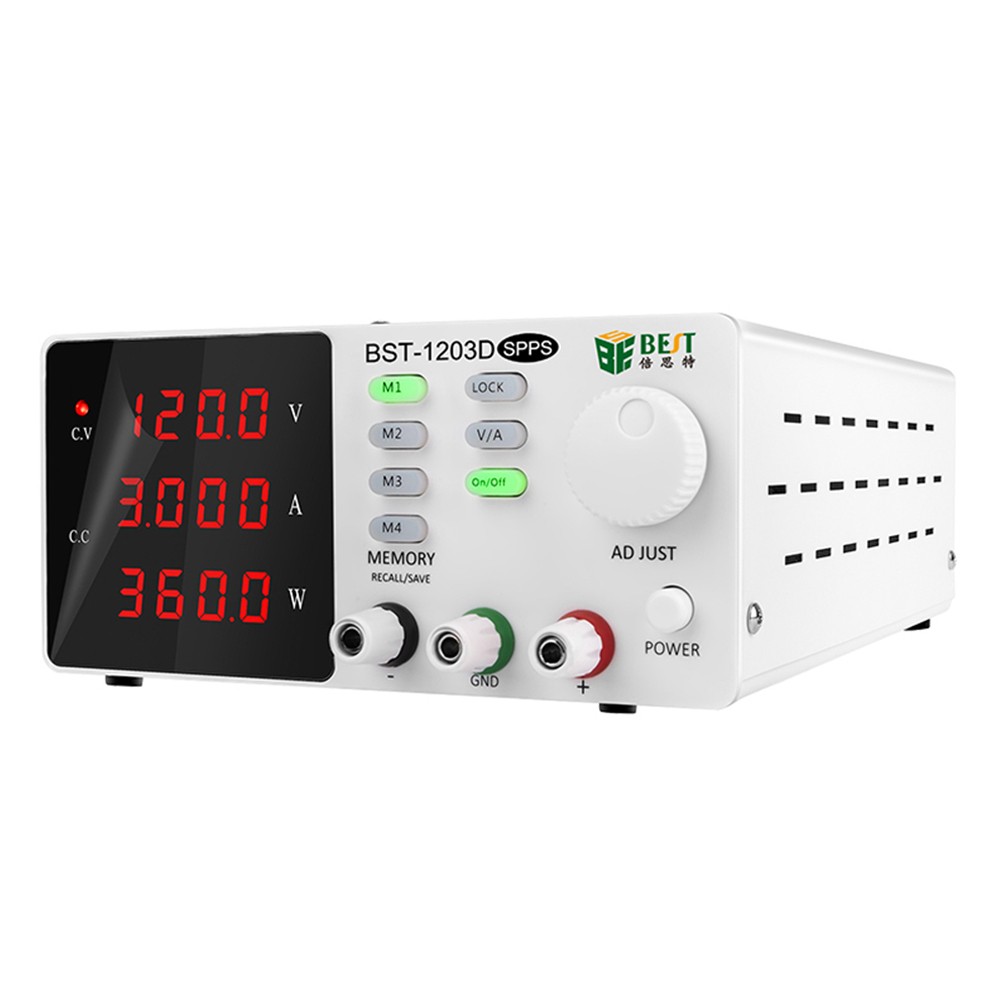

BST-1203D SPPS High-Precision Programmable DC Power Supply with Adjustable Switching Regulation

BST-1203D SPPS High-precision Programmable Adjustable Switching Regulated DC Power Supply

Features:

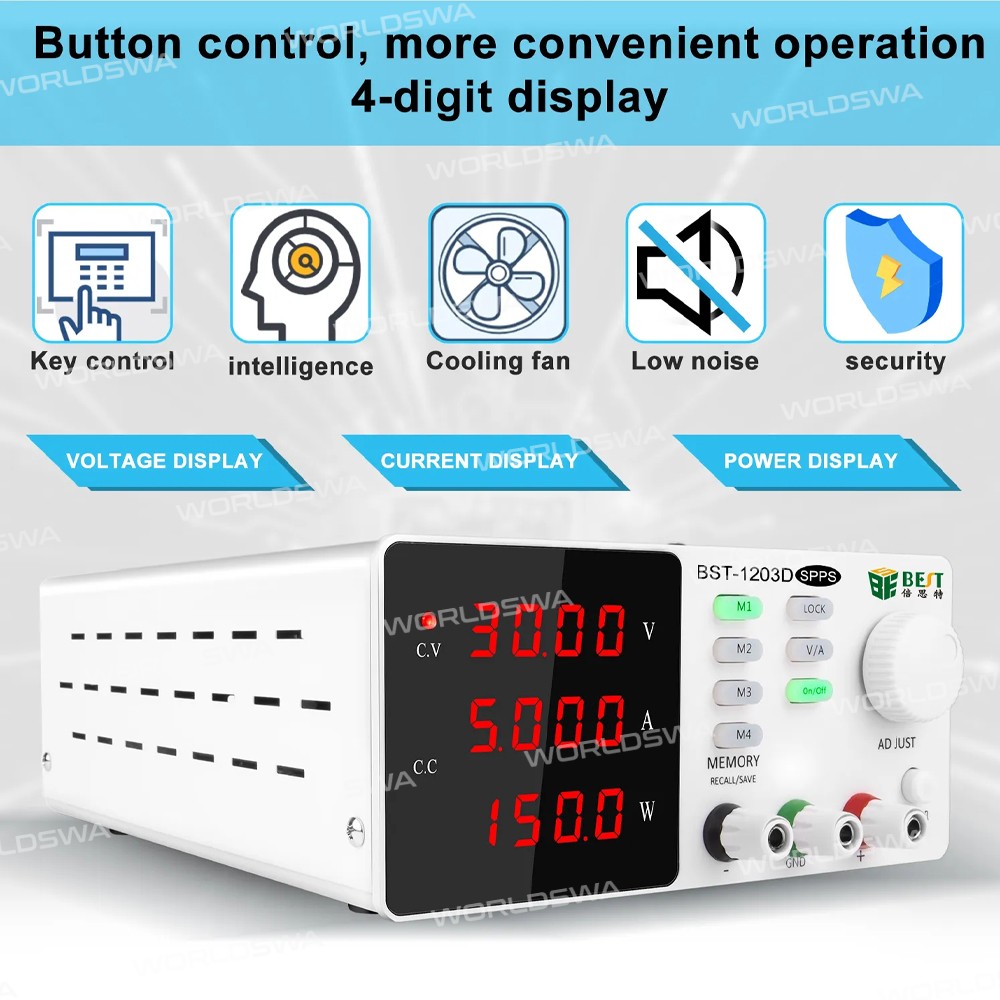

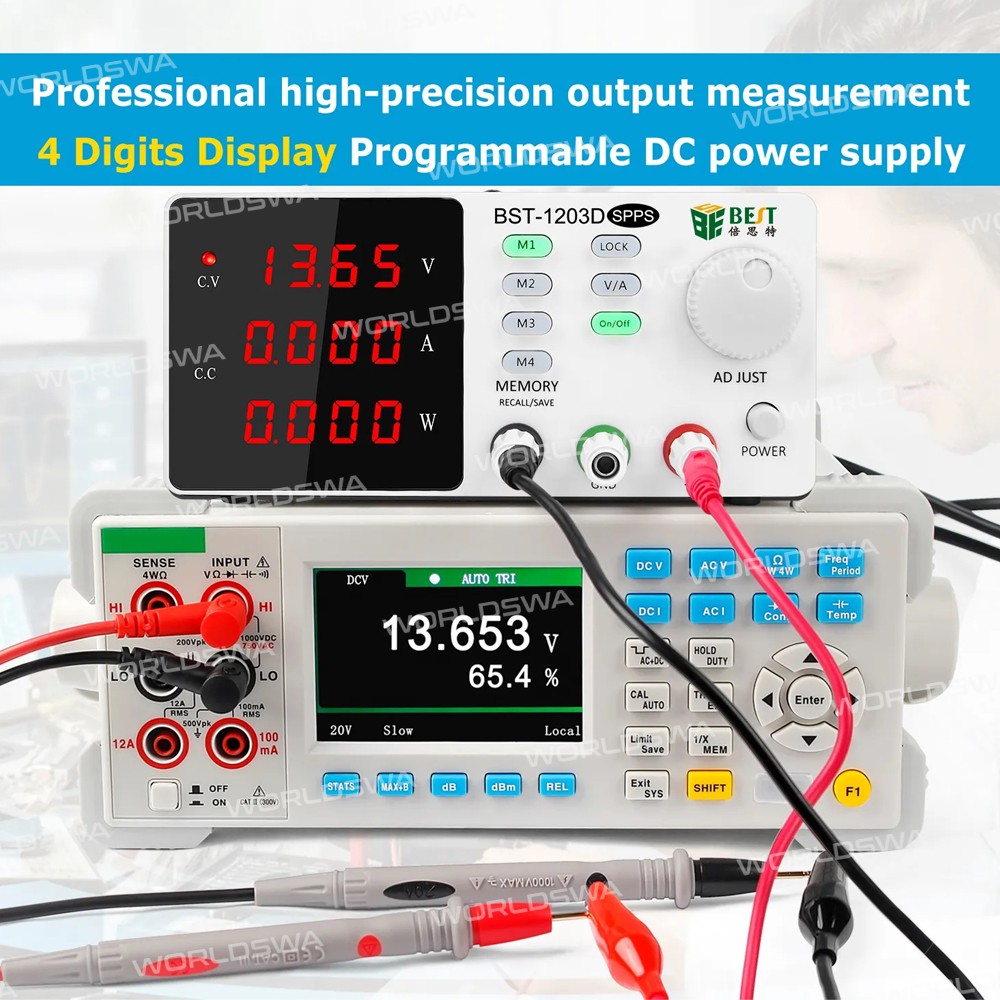

• High-precision Programmable 4-digit LED display, current/voltage/power display
  **Summary: Precise display for easy monitoring**

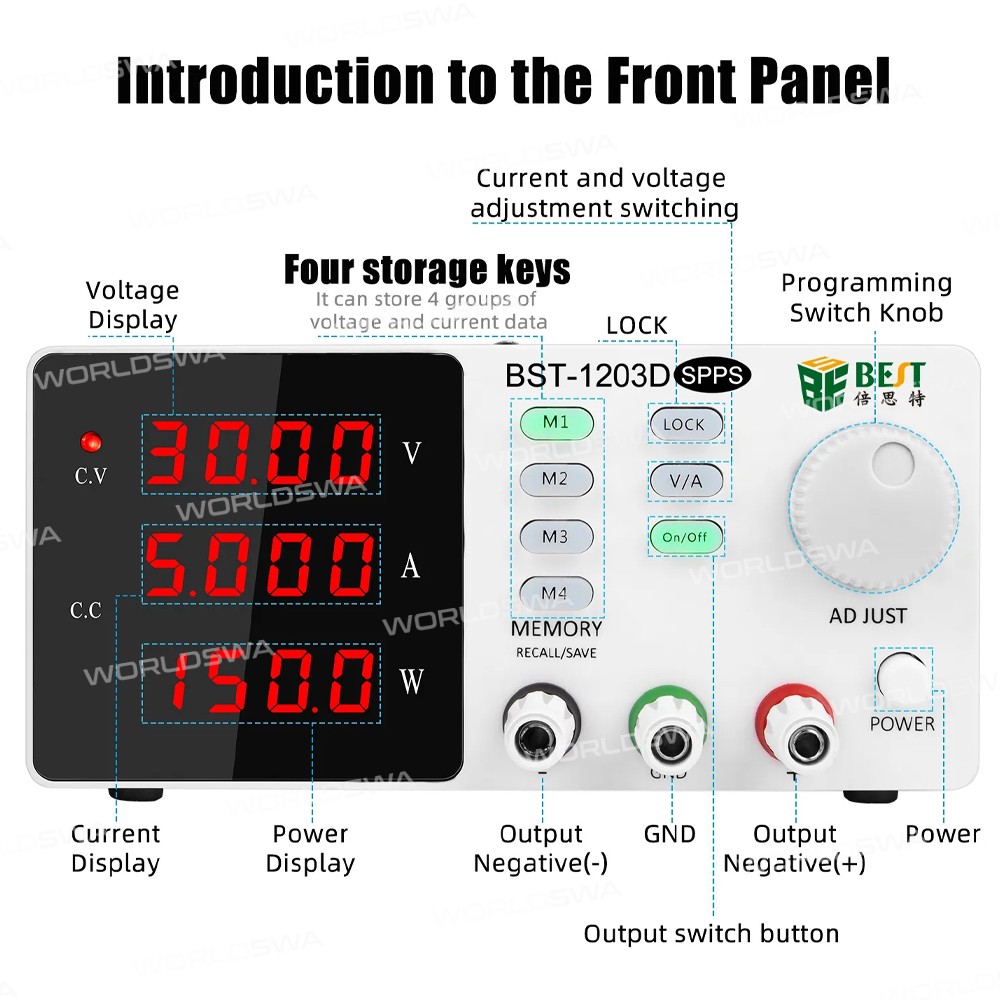

• Current and voltage upgrade encoder knob setting, (press the knob to adjust the digital position / twist the knob to adjust the digital size, accurate adjustment)
• A variety of protection functions, overpower / over voltage / current limit / short circuit / over-temperature / overload protection
  **Summary: Multiple protection features for safe operation**
• Automatic constant voltage or constant current, with constant voltage/constant current light
• With an output stop-start switch, the off state can be preset current voltage, power on safety

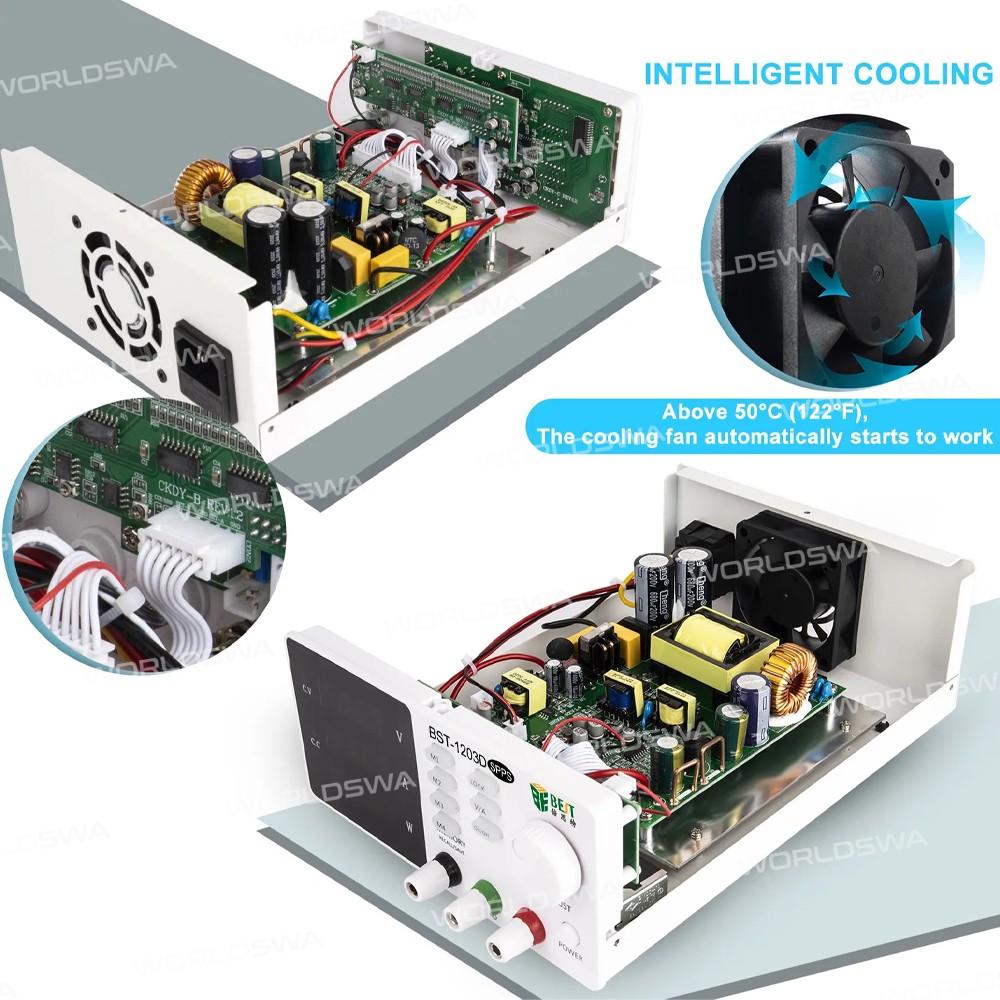

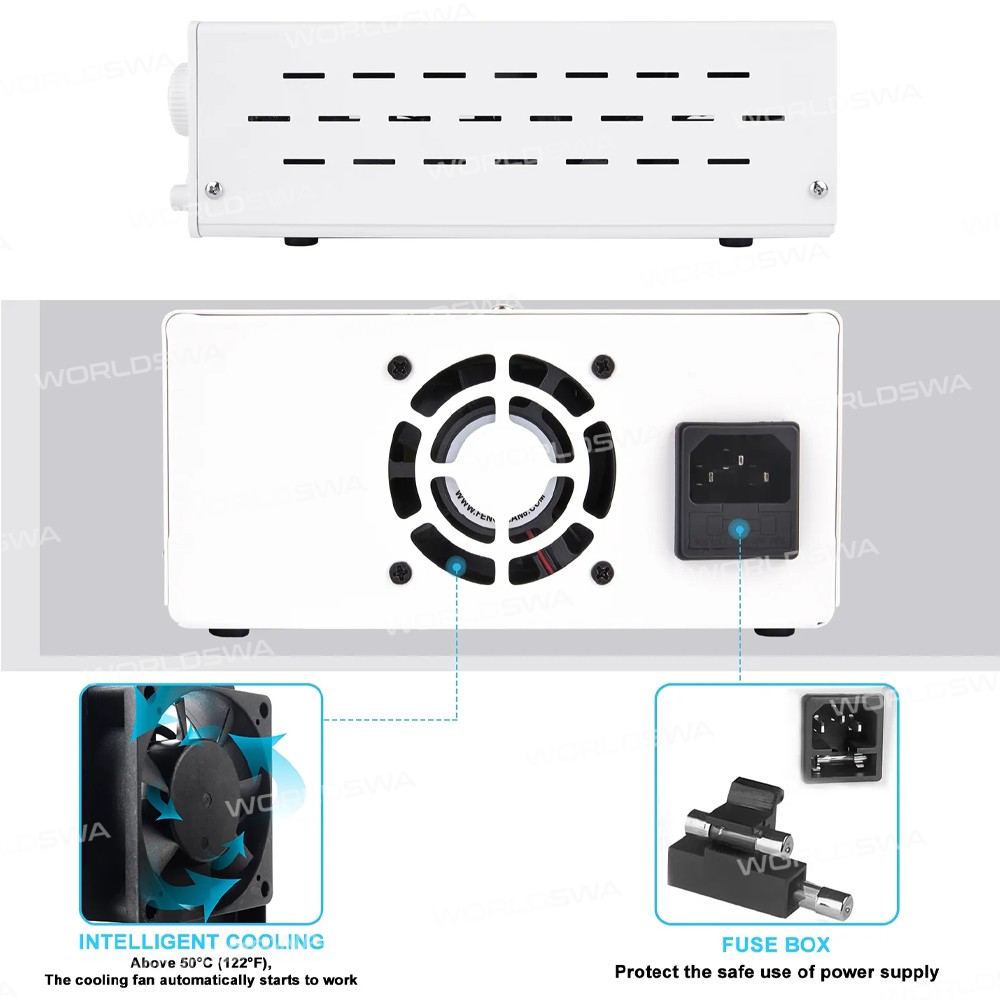

• Forced ventilation, temperature-controlled cooling system, above 50°C (122°F), the fan automatically starts to work
• Fuse box design, to protect the power supply safety use
• PCB integrated panel, reasonable design surface concept

Specification:

• Model: BST-1203D
• Output voltage: 0~120V
• Output current: 0~3A
• Input voltage: 220V
• Working temperature：0℃~40℃；Relative humidity：<80%RH
• Storage temperature: -10℃~70℃ Relative humidity: <70%RH
• Constant voltage state: voltage stability ≤0.1% ±3mV; low voltage: 0.2~0.3% ±3mV
• Load stability: ≤0.5% ±3mV
• Ripple noise: ≤30 mVrms (rms)
• Constant current state: current stability≤0.2%±3mA
• Load stability: ≤0.2% ±3mA
• Ripple noise: ≤20mArms (rms)
• Display accuracy: 0.5% ±2 words
• Display resolution: 0.01V/00.01V
• Current: 0.01A/0.001A

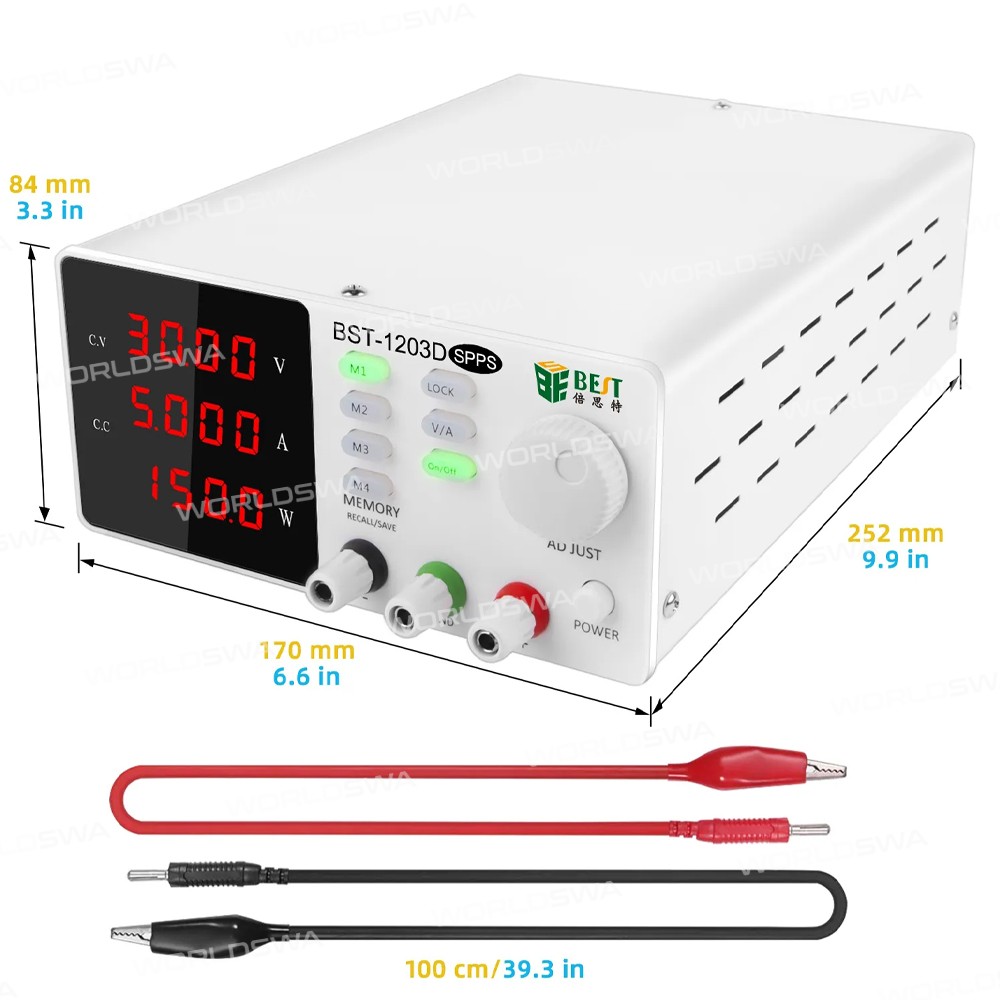

• Product size: 250*170*84mm
• Product weight: 1.2kg
• Fuse specification: 3.15A

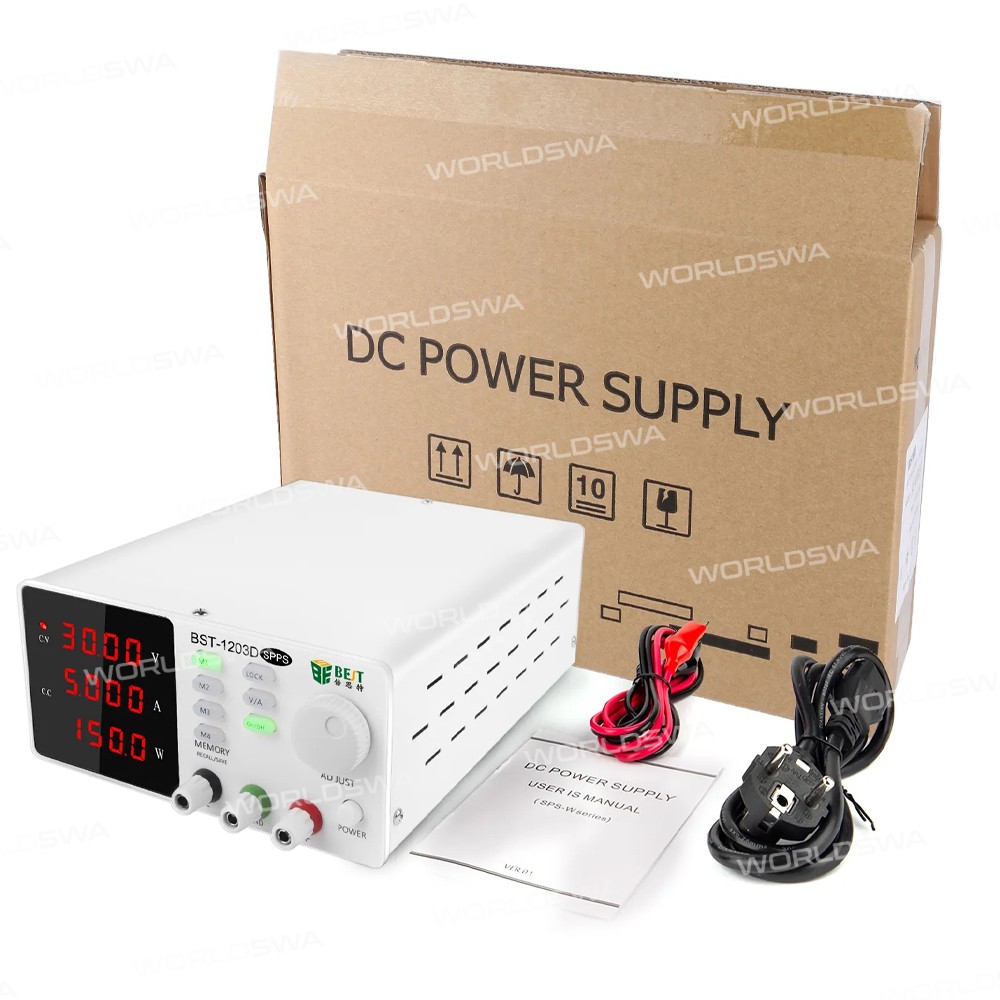

Package includes:

• 1 x Power Supply
• 1 x Test line
• 1 x Power Cable
