BST-X6S 6X-55X Adjustable Trinocular Stereo Microscope with 4K Camera for PCB Soldering Repair

BST-X6S 6X-55X Adjustable Trinocular Stereo Microscope with 4K Camera for PCB Soldering Repair

Features:

• Trinocular vision microscope glasses-free 3D effect, adjustable Binocular Diopter/Continuous zoom/HD Objectives/0.5X zoom lens/LED adjustable light/3D naked eye/Rotate 360 degrees (3D Naked Eye Experience)

• No need to pull the rod, the picture observed by the eyepiece, can be synchronized to the computer display in real-time

• Naked eye 3D experience, two lens barrel optical axis composition, equivalent to the viewing angle of the human eye

• Wide range of applications, suitable for PCB repair, CPU patching, cable repair, etc (Multi-Application)

• High eye point wide angle eyepieces, ultra HD large field of view

• Vertical TV expansion interface comes with 0.5X reducing lens

• Multi-Coated Objectives, spoiler, and anti-reflection, stable and clear image

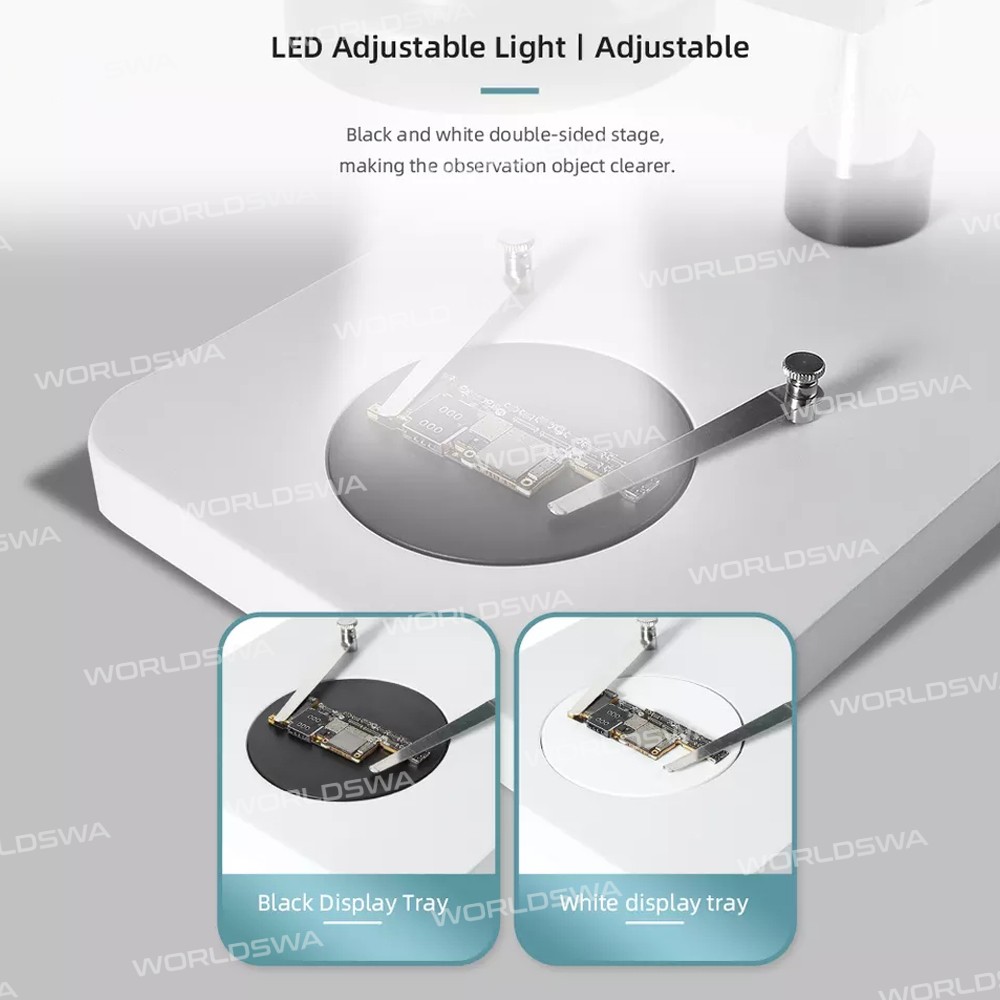

• Black and white double-sided stage, making the observation object clearer

4K Camera Specification:

• Model: BST-4KHUU-66

• Video Interface: HDMI USB-PC U disk photo video

• The HDMI output of display resolution: 4K@30FPS frame rate;1080p@60FPS frame rate

• USB-PC output resolution: 4K@25FPS frame rate

• U-disk video resolution: 4K@30FPS frame rate; 1080p@60FPS frame rate

• Lens: CS

• Working voltage: 12V

• Working current: 200mA

• Optical format: 1/2"

• Pixel size: 2um*2um

• Pixel array:4K 3840*2160

• TV Lines: 2000TV Line

• FPS: 4K@30FPS frame rate; 1080p@60FPS frame rate

• Scanning mode: Progressive

• Shutter mode: Electronic shutter

• Dynamic range: 78dB

• S/N radio: 40dB OSD

• Language: Chinese/English

• AWB mode: Primary White Balance/Manual/Auto

• Reduced Reflection Adjustment: Yes

• Black and white: Yes

• Negative: Yes

• Mirror flip: Yes

• Freeze: Yes

• Compare: Yes

• Manual set: Brightness/Contrast/Sharpness/Saturation

• Removable crosshair: Support 20 cross lines, color/line width/position/horizontal and vertical adjustable

• Overall size: 66*66*40 mm

• Package size: 160*100*80mm

Package includes:

• 1 x Microscope

• 1 x Base

• 1 x 144 LED light

• 1 x Dustproof len

• 1 x 0.5X CTV lens

• 1 x 4K Camera

• 1 x Display(Optional)
