BY-T203 Data Assistant for MacBook: Read & Backup Data Tester

BY-T203 Data Assistant for MacBook Read Backup Data Test **NOT comes with cheackm8 T2 and ibridge 7.0 data files**

Function:

• T203 is mainly used to unlock the ID activation lock that appears on the activation interface of the Macbook with T2 chip
• When T203 is used to remove the ID activation lock, it can also be used to determine whether the T2 ROM data is damaged and the failure to boot is caused.

Activate ID lock Function:

When the Macbook you are using forgets the ID password and refreshes the system again, the ID activation lock will appear on the activation system interface. If you forget your ID account and password, you will not be able to activate the system.

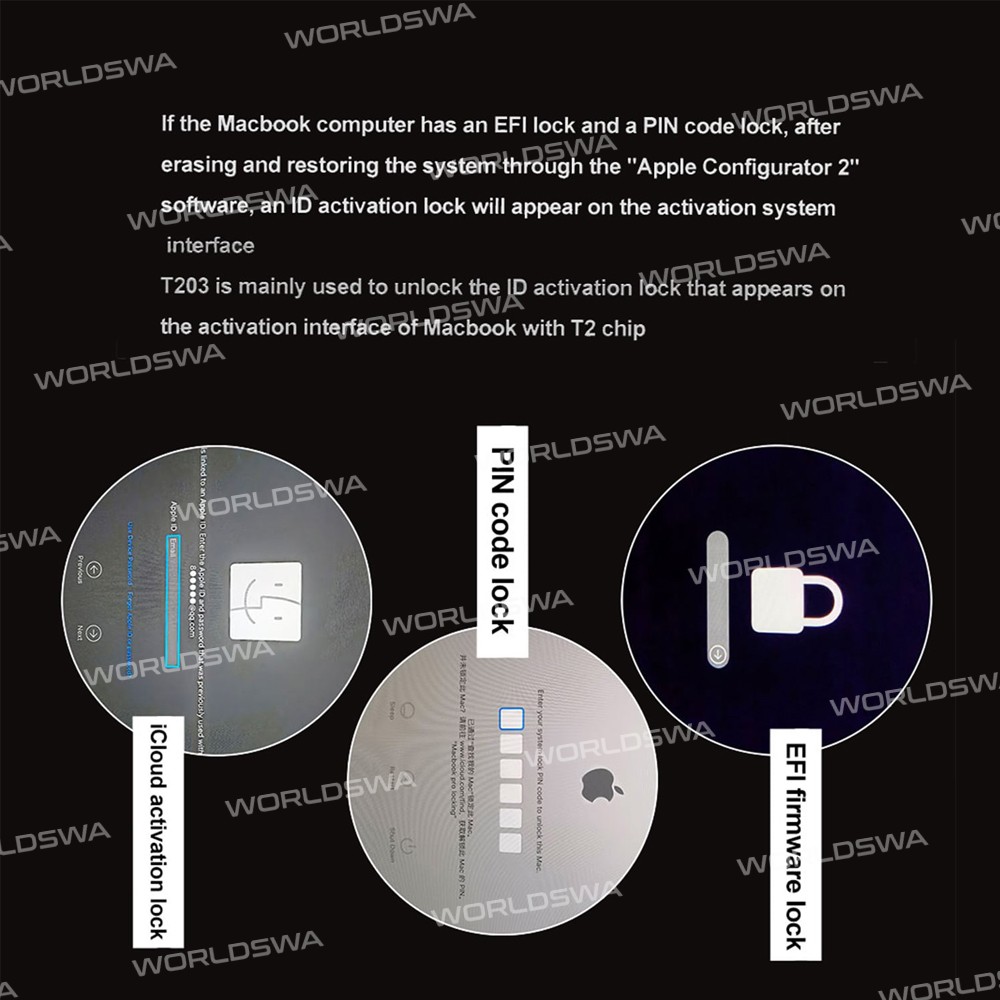

If the Macbook has an EFI lock and a PIN code lock, after erasing and restoring the system through the "Apple Configuration 2" software, an ID activation lock will appear on the activation system interface

When the Macbook you bought is second-hand, and the system has logged in the ID and turned on the search function, if the system is reinstalled, the ID activation lock interface will appear.

Features：

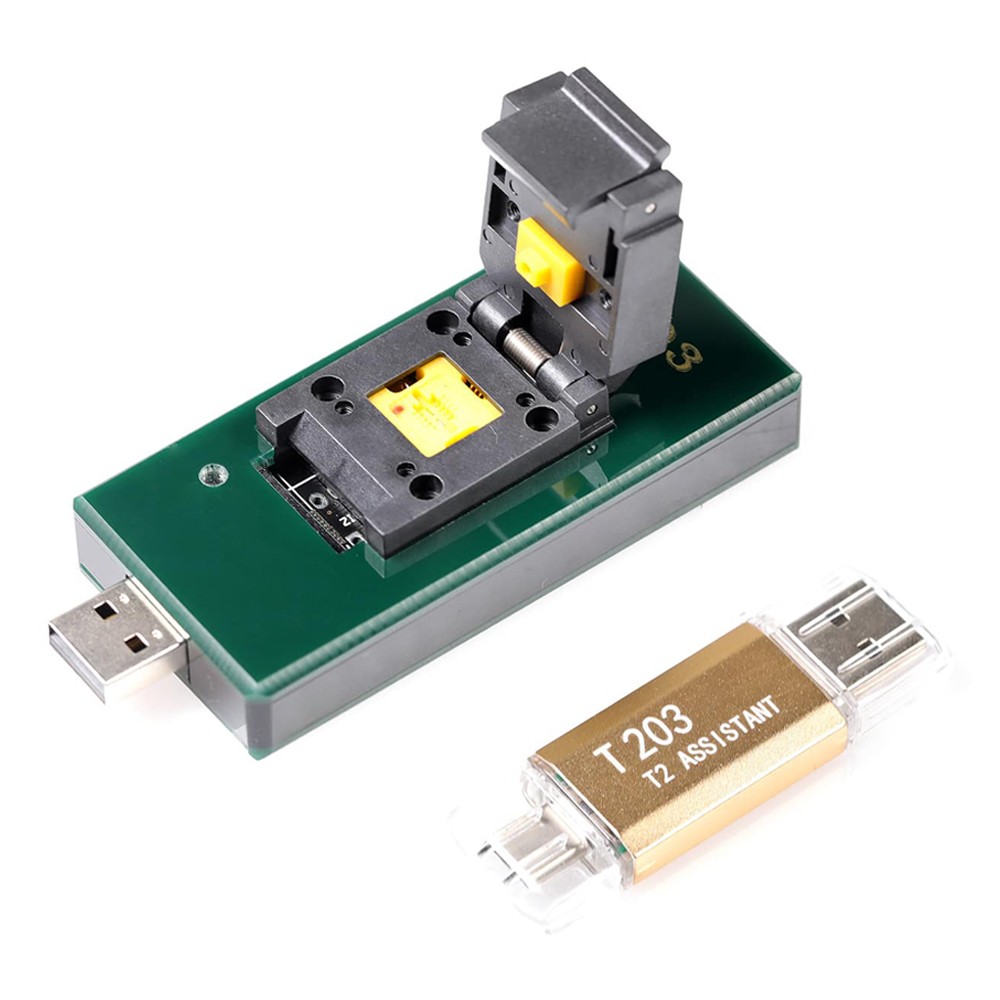

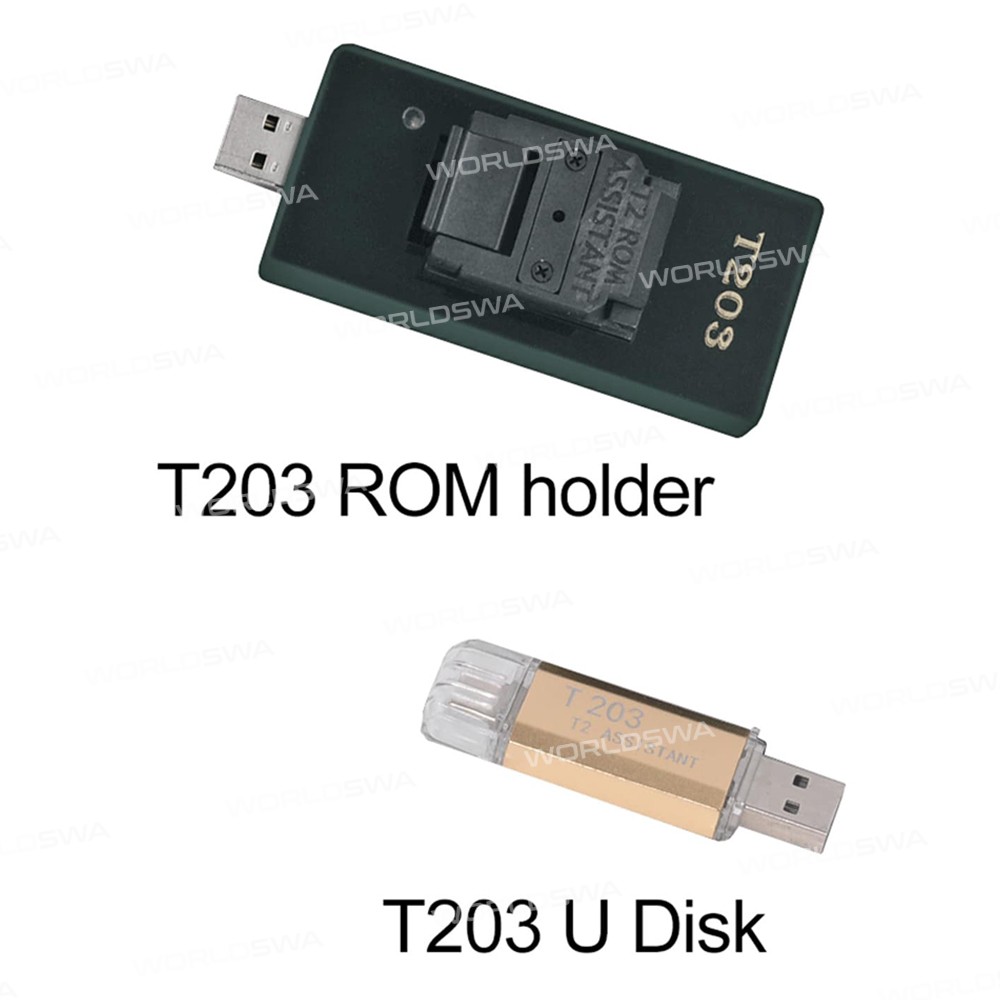

The T203 device includes two tools, T203 U disk, and T203 ROM holder.

**Summary:** T203 is a data assistant for MacBook that reads backup data and tests, mainly used to unlock the ID activation lock that appears on the activation interface of the Macbook with T2 chip.

1. The activation lock unlocking software is written into the T203 U disk, and it supports MacBook with USB interface and Type_C interface.

It is mainly responsible for reading the serial number and machine code of the machine and unlocking the activation lock by analyzing the code.

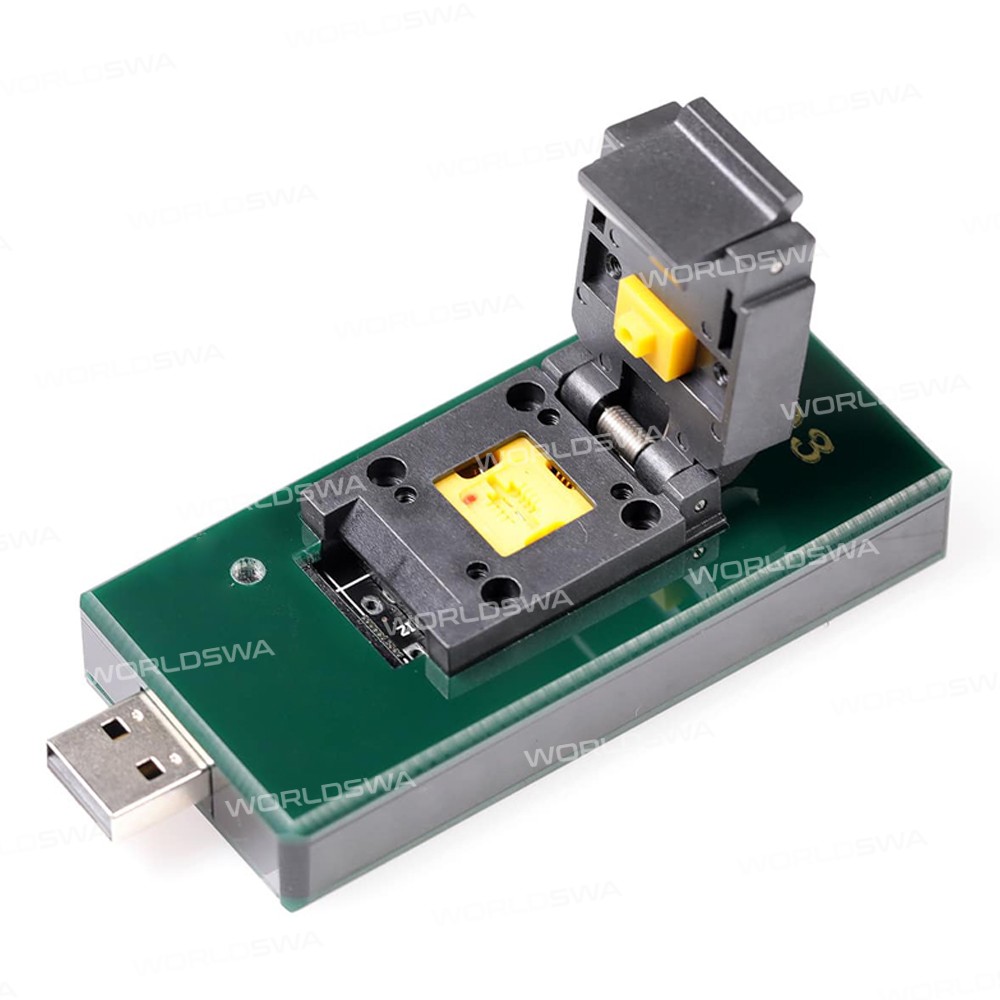

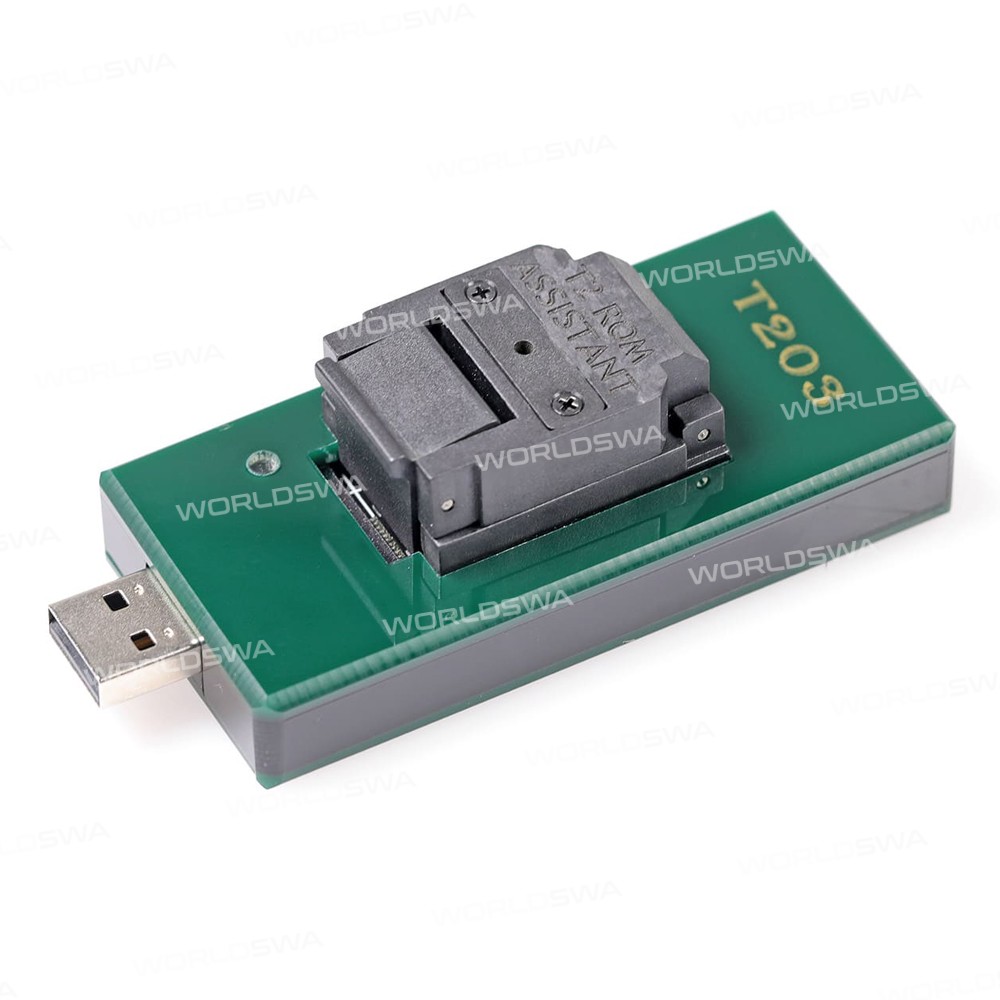

2. T203 ROM socket is written with T2 ROM data of special equipment and T2 ROM read-write socket.

Mainly responsible for reading and writing T2 ROM data and saving T2 ROM unlock files. (The unlocking data inside the T203 ROM can only be used on the T203 machine. If other devices are used to read and write, it will damage the T2 ROM chip and cause the motherboard to not boot)

Support Models：

Applicable to all MacBooks with T2 chips from 2018 to 2020

MacBook Pro 13.3/15.4/16 inches: A1989 A1990 A2159 A2141 A2289 A2251

MacBook Air 13.3 inches: A1932 A2179

Board number corresponding to the machine：

A2251 820-01949

A2289 820-01987

A2141 820-01700

A2159 820-01598

A1990 820-01041

A1989 820-00850

A1932 820-01521

A2179 820-01958

T203 Precautions and Usage

• After the iCloud activation lock or PIN code lock appears on the 2018-2020 MacBook, do not enter the DFU mode and use the "Apple Configurator" software to restore the T2 system
• If you enter the DFU mode to restore the machine with the T2 system, the T203 will not be able to bypass the activation lock normally
• For machines that cannot bypass the activation lock normally, only the T2 chip and T2 ROM chip can be replaced by a hard solution
• According to the new operation method, read the original ROM data, then change the new serial number, write the data back to the ROM chip, and finally use the T203 software to bypass the activation lock
• Remember: After changing the serial number and writing back the ROM data, you must not enter the DFU mode to use the "Apple Configurator" software to restore the T2 system
• Bridge OS systems below 6.0 can be read successfully, but the ones that have been swiped can't, and those that have been swiped can only be hard-solved, that is, change the kit
• T203 Now there is no cheackm8 T2 and Need ibridge 7.0 data for these two software, but as long as the system version is lower than 6.0 and did not brush the machine, it can be used normally

Note:

The data written inside T203 can only be used on T203 machines. If other equipment is used to read and write, the motherboard will not boot or the T2 chip will be damaged, your need to take any responsibility yourself.

Package includes:

1 x T203 U disk

1 x T203 ROM holder
