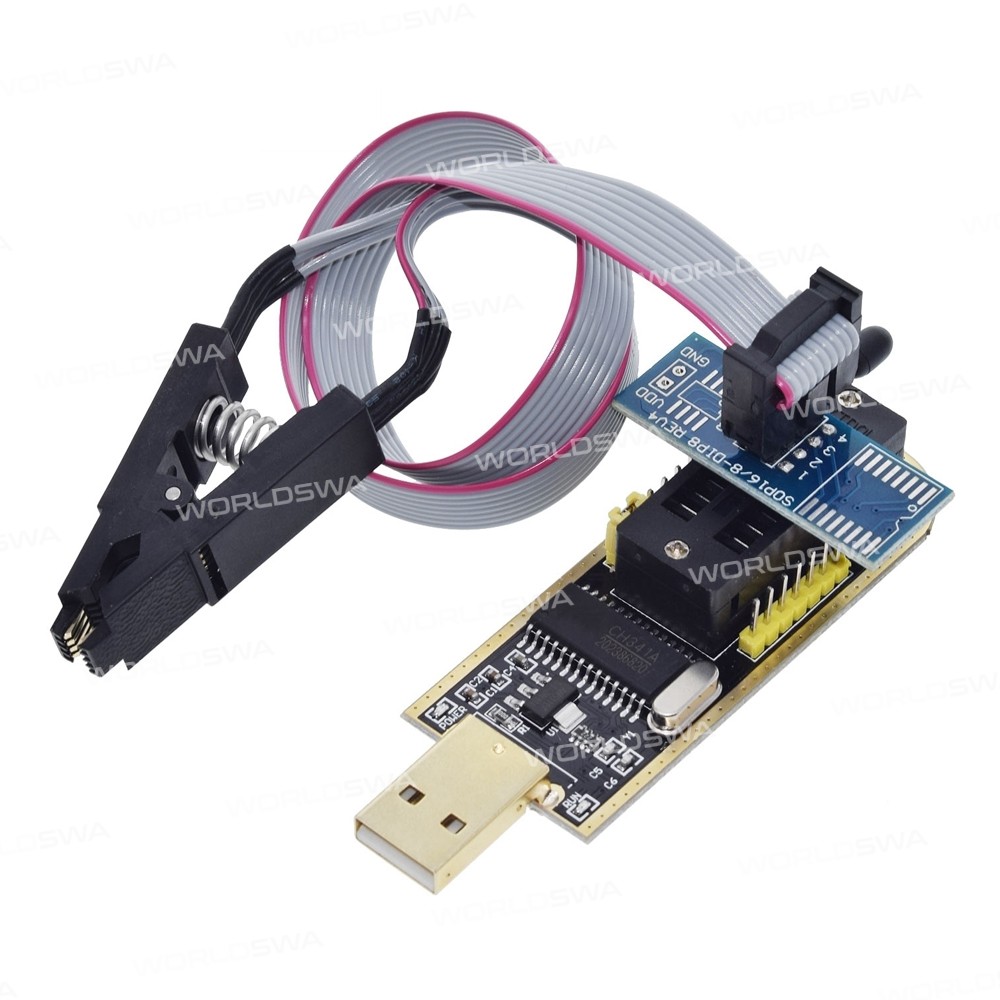

CH341A 24 / 25 Series EEPROM Flash BIOS USB Programmer Module with SOIC8 SOP8 Test Clip for Arduino

CH341A 24/25 Series EEPROM Flash BIOS USB Programmer Module SOIC8 SOP8 Test Clip for Arduino

Features:

• **Summary:** USB Programmer for 24/25 Series EEPROM and SPI Flash Chips
• USB Programmer Condition: New
• TZT Support 24 EEPROM and 25 SPI flash 8pin/16pin chip
• USB to TTL port can get root online With CH341A chip
• Recognize 25 series chip automatically
• And support download STC series procedure of single-chip
• With a 24/25 status indicator lamp, SPI pin to support expanding the utility
• Dimension: 70*27mm
• Support 24/25 chip models (must be in the list of supported models)
• Support USB to TTL online flashing (if you need DuPont cable to buy separately)
• The board leads out the SPI pin corresponding to the MSI JSP11 interface, which is convenient for customers to directly connect to the MSI motherboard for flashing (if a special cable is required, purchase it separately)
• Support STC microcontroller online program download (if you need DuPont line to buy separately)

TZ55:

• Support parallel port: Support USB printer parallel port and EPP or MEM way parallel port
• Support serial port: Support USB to UART I2C SPI interface
• The output voltage signal level can be selected from 3.3V or The output voltage 5V
• Onboard power indicator and read & write indicators, onboard another self-recovery fuse

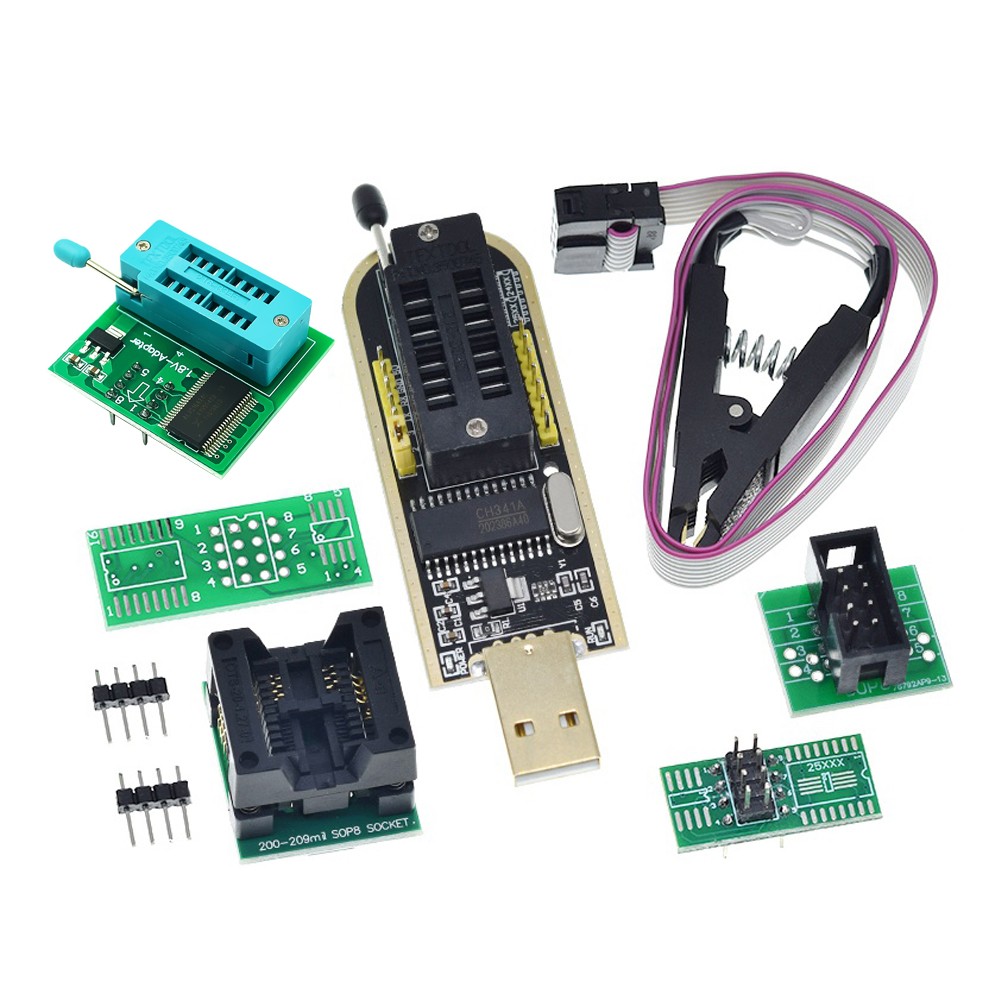

Package includes:

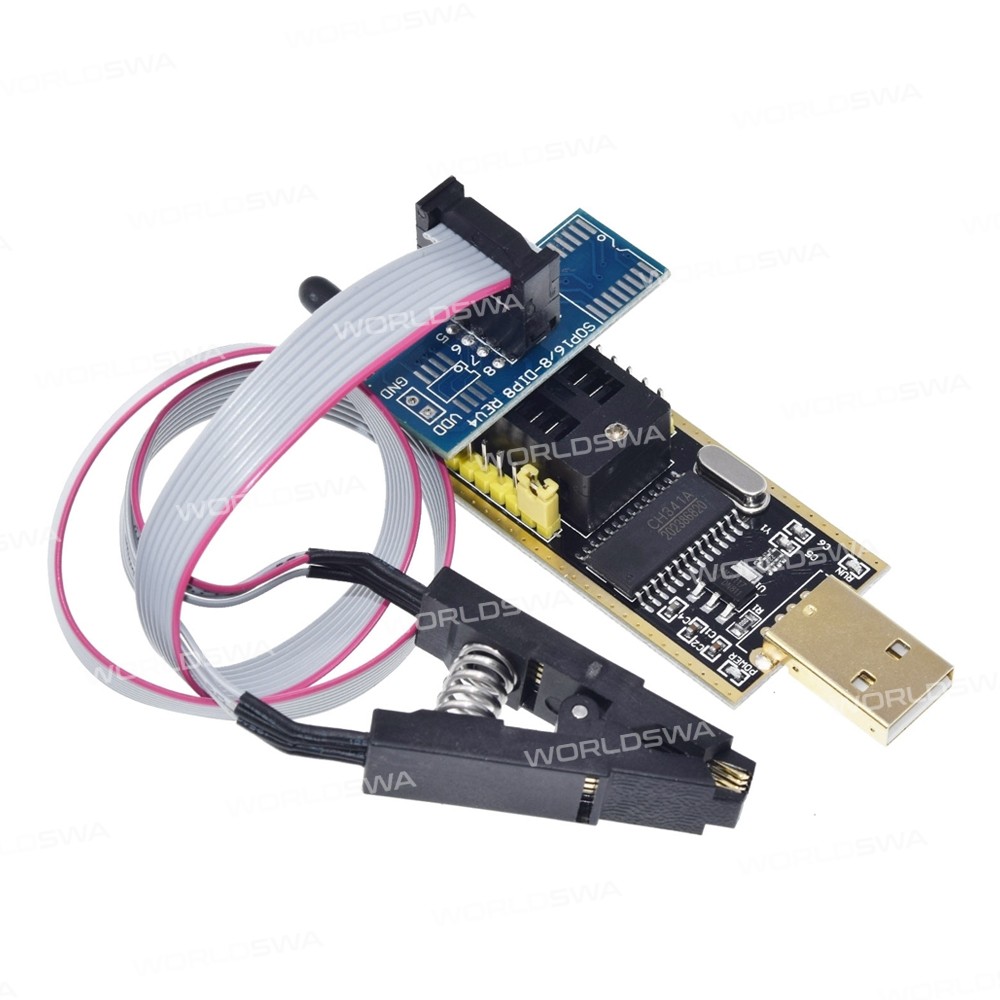

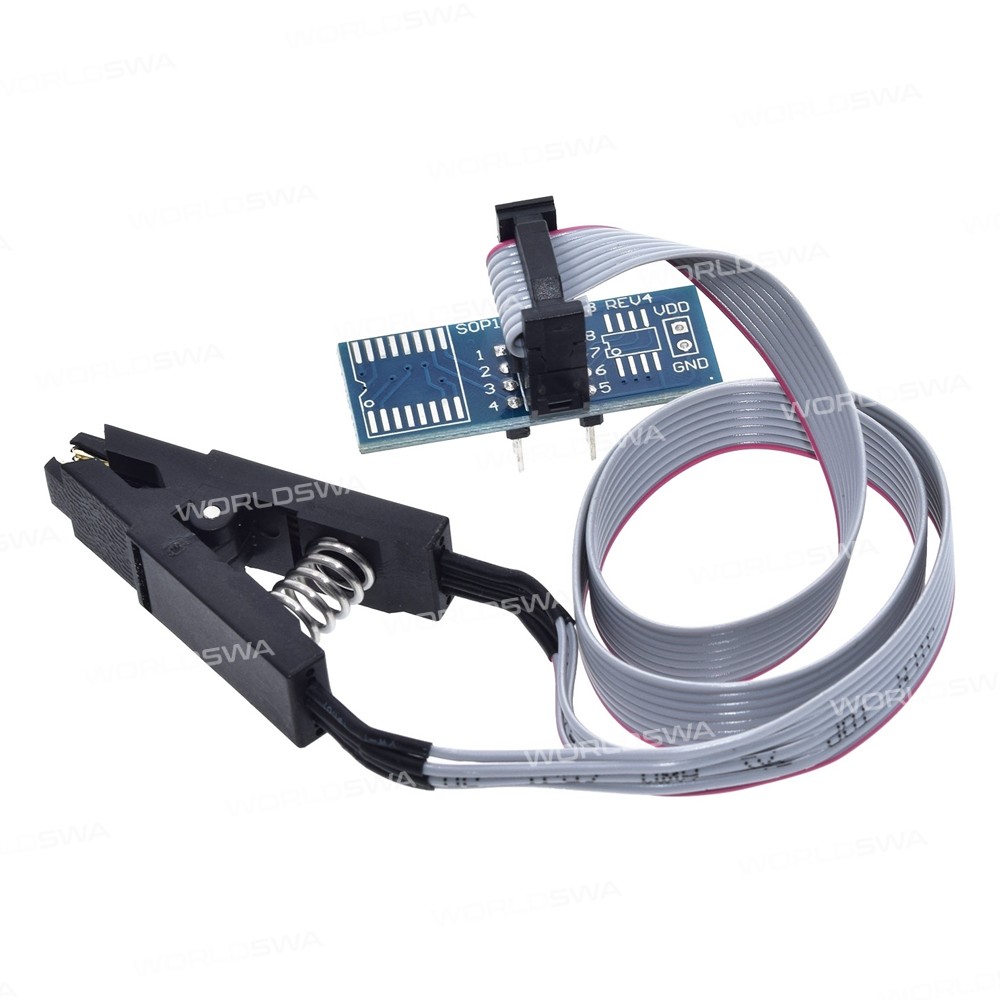

• 1 x SOP8 test programming clip motherboard

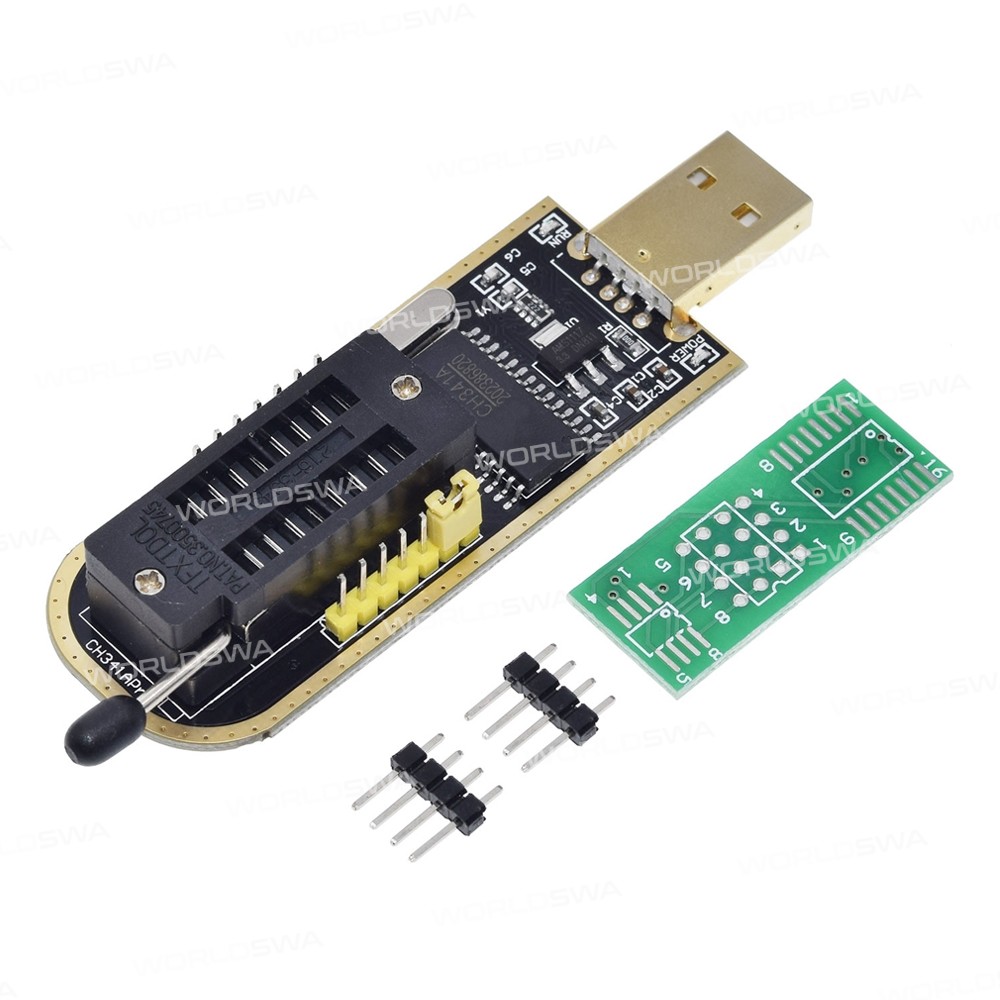

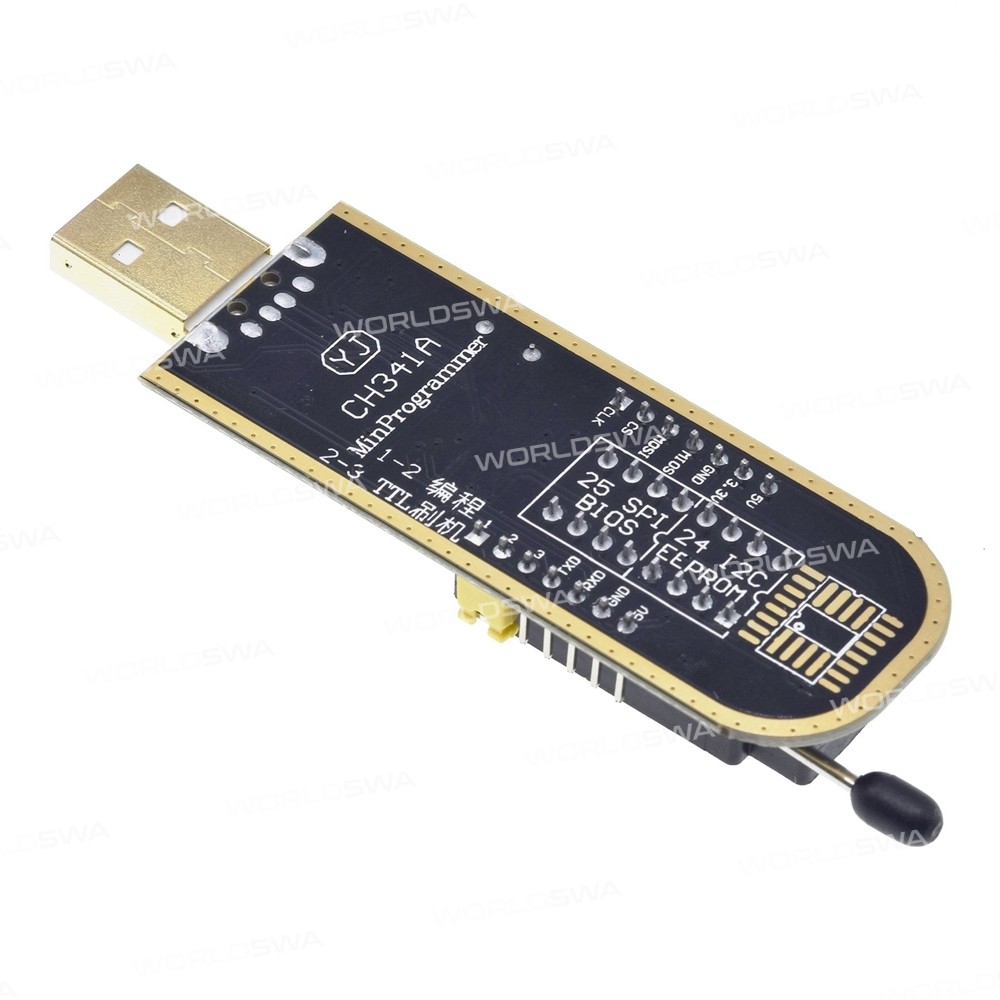

• 1 x USB programmer

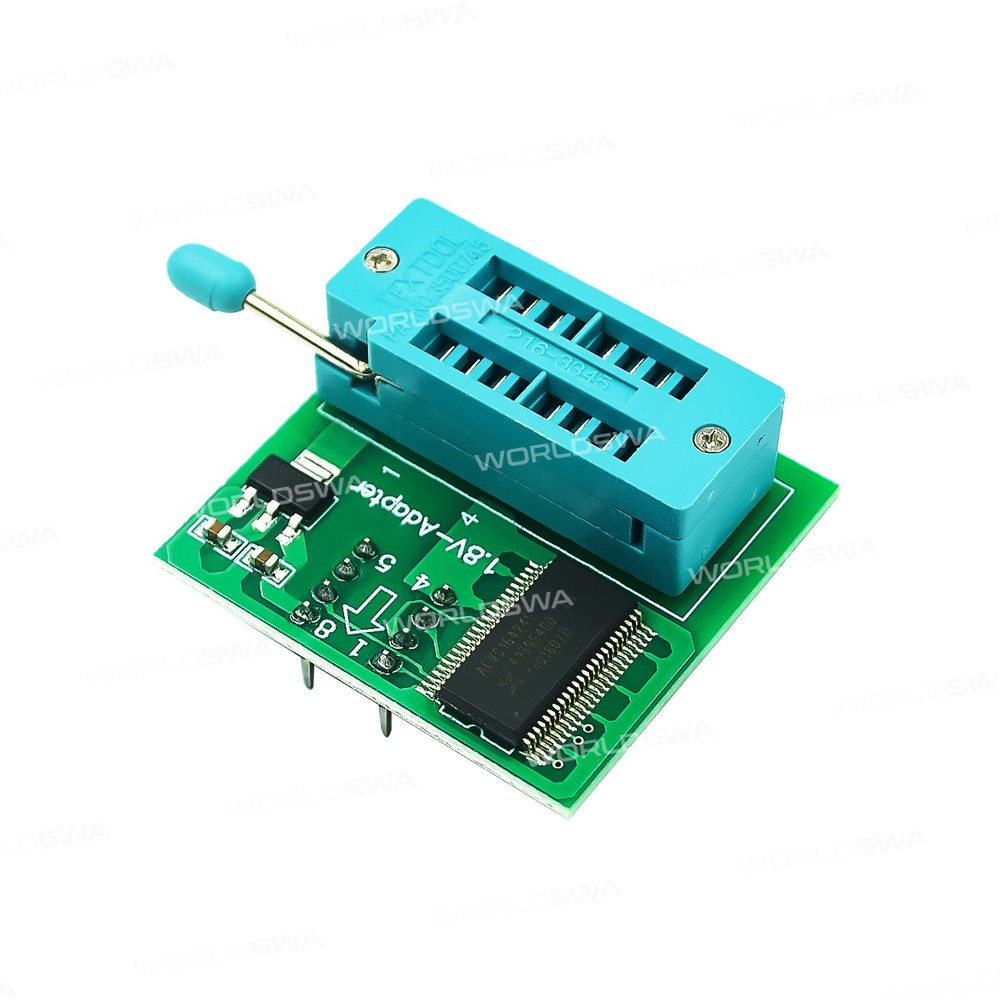

• 1 x Adapter
• 1 x SOIC8 adapter
