ChargerLAB Power-Z KM002C Type-C USB PD3.1 Tester for Fast Charging and Data Transfer

ChargerLAB Power-Z KM002C USB PD3.1 Type-C Tester

Features:

• Plug and Play
• Upgrade PD3.1 protocol, support up to 240W power test, test range 50V/6A
• Added functions such as Super-VOOC, VIFC, and QC5 to detect and deceive.
• Larger ROM space, more expansion capabilities, M4 chip blessing, faster processing capabilities, high-level
• The machine has a PD packet capture function

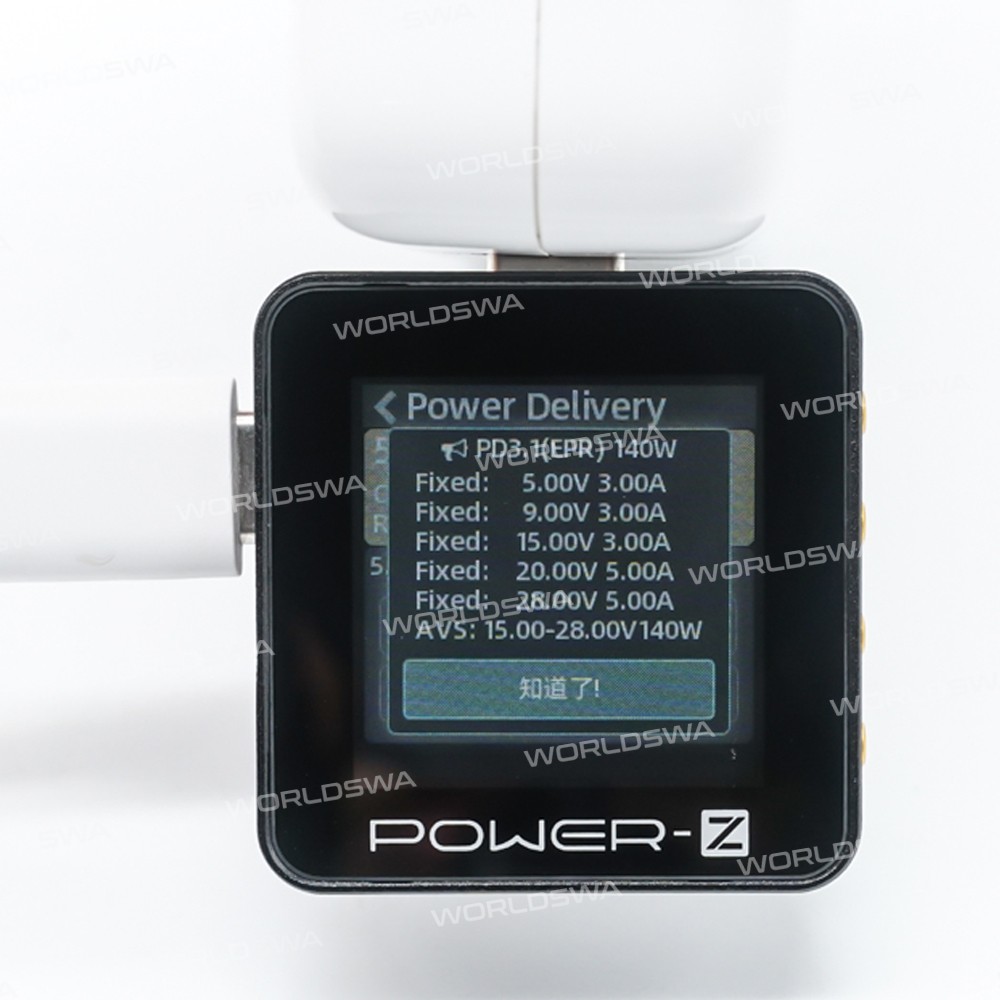

• The main page displays the voltage, current, and power in order from top to bottom, and the lower-left corner displays the charging protocol that may be in use
• The display page can switch 4sps, 15sps, 60sps, and 1Ksps refresh rate
• It can display the working curve of voltage and current during charging; the working waveforms of D+ and D- and CC1 and CC2
• Support fast charging protocol detection, currently supported protocols include: FCP, SCP, AFC, QC3.0, QC4+, QC5, PD3.1, PD3.0, PPS, Apple2.4A, VOOC, SVOOC, VIFC, UFCS, etc. charging agreement
• Data cable wire detection, by reading the information of the E-marker chip inside the wire, the power and transmission performance supported by the wire can be obtained.
• Apple charger SN code reading
• Offline recording of charging data, you can use a single machine to record the data changes of the device during charging, and store it in the form of data, users can call and review on the host computer, and export charts
• Support the host computer, the host computer is a very powerful function extended to the PC side, including data reading, recording, and exporting functions, as well as protocol decoy voltage regulation, PD protocol analysis, upgrade tester firmware, and other functions. Supports multi-camera simultaneous operation, in principle, there is no limit on the number. At present, the host computer only supports WIN10 and WIN11 system versions
• Summary:** Fast charging protocol detection, PD packet capture, offline recording of charging data, and support for host computer.

Specification:

• Model: KM002C
• Dimensions 36*37*8mm
• Screen size: 1.3 inches
• Screen material: IPS
• Screen resolution: 240×240 pixels
• Language: English/Chinese
• Test interface type: Type-C
• Number of test ports: 2C port
• Operation type: Button
• Independent power supply, computer communication port: Type-C (5V) Name: HID
• Processor: ARM Cortex-M4 192MHz
• Shell material: CNC aluminum shell
• PD3.1: Support
• Withstand voltage range: 0-50V
• Apple charger SN code reading: Support
• ADC: 20 Bits
• Interface internal resistance: About 28mΩ
• Typical working current: 8~25mA
• Voltage accuracy: 0.00002V
• Current accuracy: 0.000003A
• Voltage range: 0-50V
• Current range: 0~6A
• Number of offline recording groups: 4MB of built-in storage
• Maximum number of sets of capacity energy: 50

Application:

• Mobile phone charging power monitoring
• Mobile power input and output test
• Charger multi-specification fast charging protocol test
• PD protocol device test
• QI wireless charging power test
• Voltage and current curve recording, etc. should be used in places

How to use:

• Insert the Type-C port of the Power-Z into the charging port of the mobile phone
• Insert the original charger into the C port at the bottom of the Power-Z
• Turn on the power to start using, easily monitor charging voltage, current, power, and other data

Key Description(top to bottom):

• Button 1: Return, the main interface adjusts the text display direction
• Button 2: OK, the main interface adjusts the data refresh frequency
• Button 3: Previous page, the cursor moves up
• Button 4: Next page, cursor down

Package includes:

• 1 x USB tester
