ChargerLAB Power-Z KM003C Dual Type-C Tester, USB PD3.1 Protocol, 48V Range

ChargerLAB Power-Z KM003C USB PD3.1 Protocol 48V Range Dual Type-C Tester

Features:

• **Summary:** Supports USB PD3.1, up to 48V voltage output, and 240W charging power.

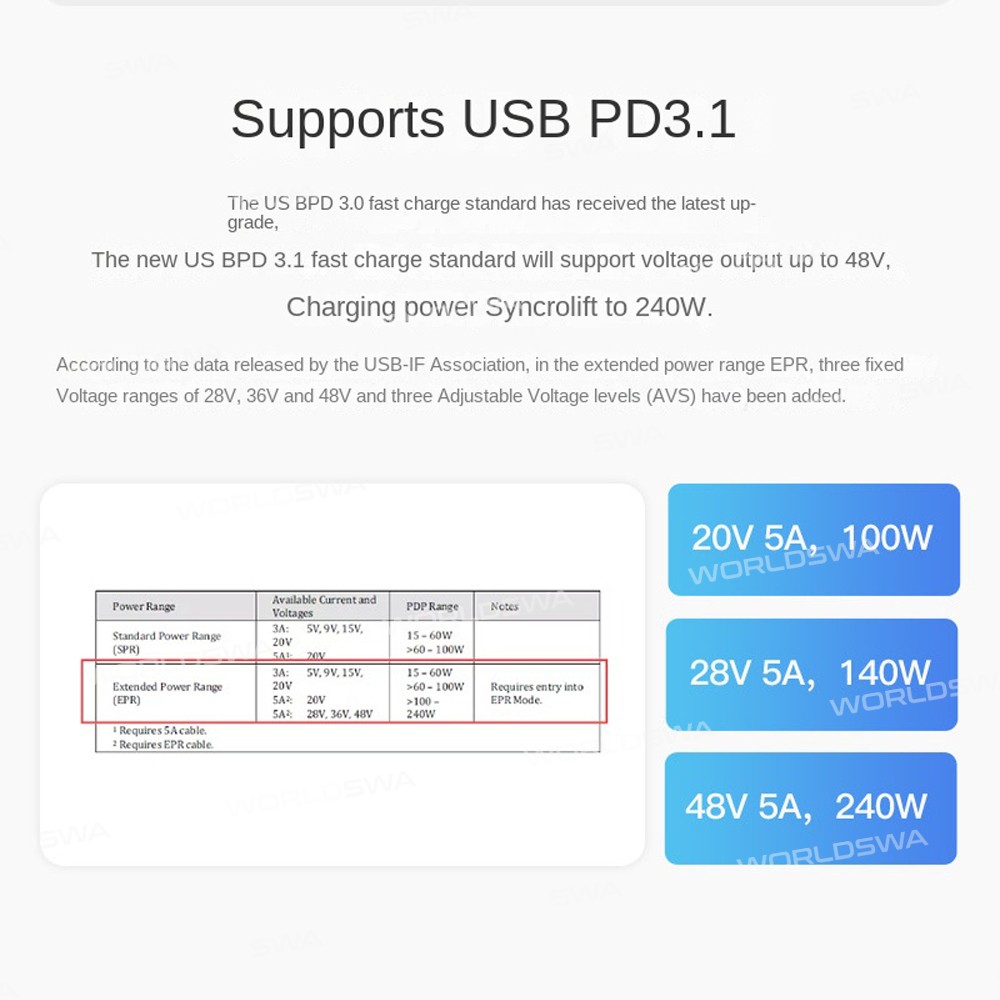

• The new USB PD3.1 fast charging standard will support up to 48V voltage output and increase the charging power to 240W at the same time
• Apple 140W charger supports five fixed voltage levels of 5V, 9V, 15V, 20V, 28V
• Support protocol detection: PD3.1, QC4, QC5, SCP, FCP, AFC, VFCP, SVOOC, MTK, EPR, UFCS
• 1.54-inch screen size, 240x240 resolution, high brush high brightness, screen upgrade again
• Added functions such as Super-VOOC, VIFC, and QC5 to detect and deceive.
• Larger ROM space, more expansion capabilities, M4 chip blessing, faster processing capabilities, high-level
• The machine has a PD packet capture function
• The main page displays the voltage, current, and power in order from top to bottom, and the lower-left corner displays the charging protocol that may be in use
• The display page can switch 4sps, 15sps, 60sps, and 1Ksps refresh rate
• It can display the working curve of voltage and current during charging; the working waveforms of D+ and D- and CC1 and CC2
• Support fast charging protocol detection, currently supported protocols include: FCP, SCP, AFC, QC3.0, QC4+, QC5, PD3.1, PD3.0, PPS, Apple2.4A, VOOC, SVOOC, VIFC, UFCS, etc. charging agreement
• Data cable wire detection, by reading the information of the E-marker chip inside the wire, the power and transmission performance supported by the wire can be obtained.
• Apple charger SN code reading
• Offline recording of charging data, you can use a single machine to record the data changes of the device during charging, and store it in the form of data, users can call and review on the host computer, and export charts

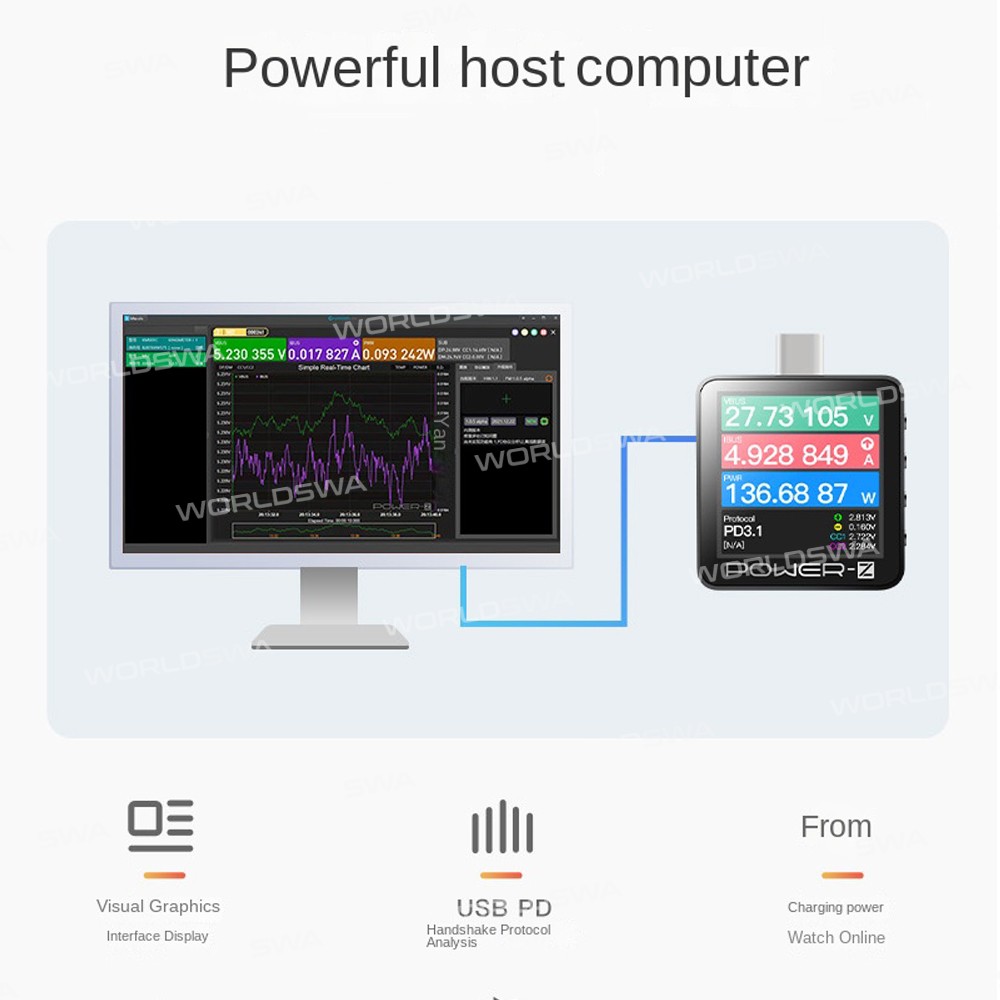

• Support the host computer, the host computer is a very powerful function extended to the PC side, including data reading, recording, and exporting functions, as well as protocol decoy voltage regulation, PD protocol analysis, upgrade tester firmware, and other functions. Supports multi-camera simultaneous operation, in principle, there is no limit on the number. At present, the host computer only supports WIN10 and WIN11 system versions

Specification:

• Model: KM003C
• Number of offline record groups: 4MB internal storage
• Capacity energy maximum group: 15-40
• Accuracy: 0.00003
• HD interface: Type-C
• ADC: 20 Bit
• Screen size: 1.54 inch
• Screen resolution: 240×240
• Screen material: IPS
• Gravity sensing: Support
• Power failure life: 5s
• Processor: ARM Cortex-M4 192MHz
• Case material: CNC aluminum case
• PD3.1: Support
• Language: English/Chinese
• Test interface type: Type-C
• Operation type: Key
• Power supply, communication port: Type-C (5V)
• Interface internal resistance: about 20mΩ
• Typical operating current: 15~50mA
• Voltage accuracy: 0.00002V
• Current accuracy: 0.00003A
• Voltage range: 0-50V
• Current range: 0-6A
• Operating temperature: 60°C
• Apple charger SN code reading: support
• Upper computer: new interface, 4K picture quality, 10 million data, 10,000,000 packet capture function
• External size: 36*37*8(mm)

Application:

• Mobile phone charging power monitoring
• Mobile power input and output test
• Charger multi-specification fast charging protocol test
• PD protocol device test
• QI wireless charging power test
• Voltage and current curve recording, etc. should be used in places

How to use:

• Insert the Type-C port of the Power-Z into the charging port of the mobile phone
• Insert the original charger into the C port at the bottom of the Power-Z
• Turn on the power to start using, and easily monitor charging voltage, current, power, and other data

Key Description(top to bottom):

• Button 1: Return, the main interface adjusts the text display direction
• Button 2: OK, the main interface adjusts the data refresh frequency
• Button 3: Previous page, the cursor moves up
• Button 4: Next page, cursor down

Package includes:

• 1 x Type-C Tester
