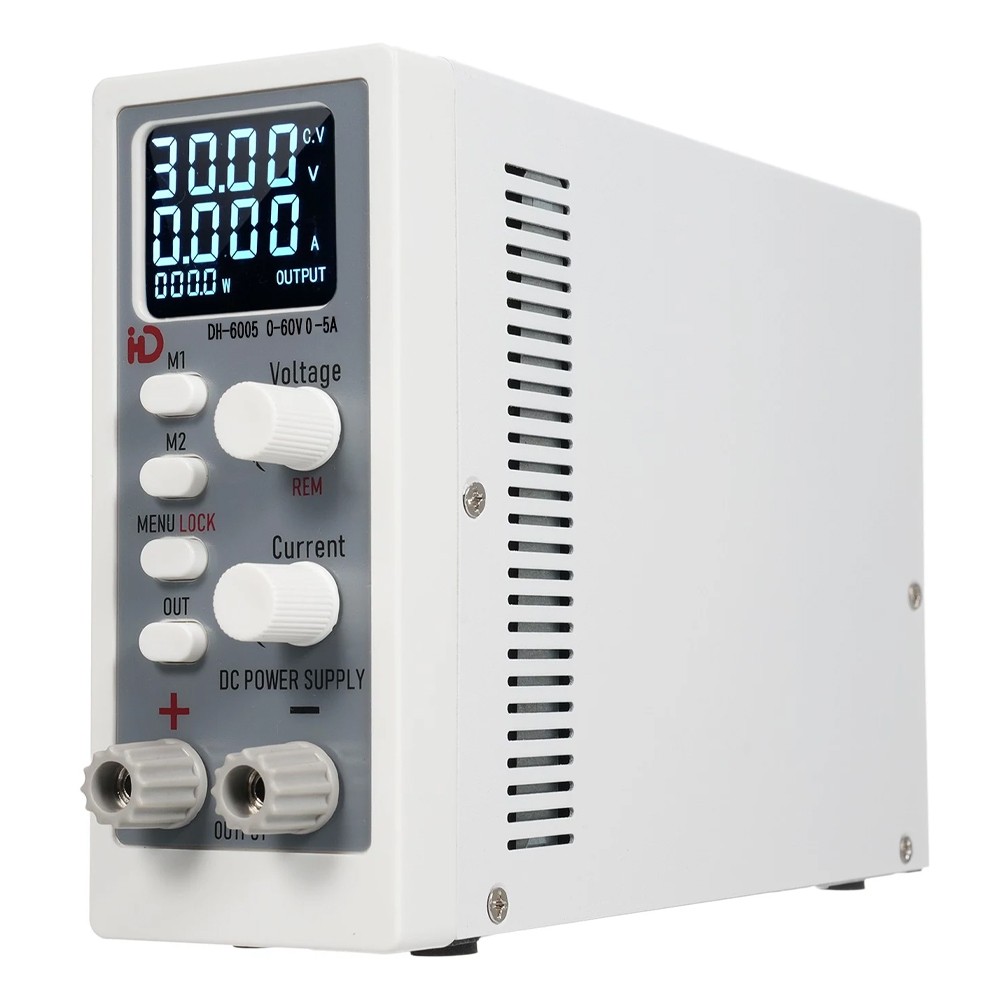

DH-6005 60V / 5A Adjustable Switching Regulated DC Power Supply with 4-Digits LED Display

DH-6005 60V / 5A 4-Digits LED Display Adjustable Switching Regulated DC Power Supply

Overview: The DH series is a single-output CNC DC switch power supply, characterized by high output power and compact size.

Features:

• High-Performance Output**: Compact size with high output power

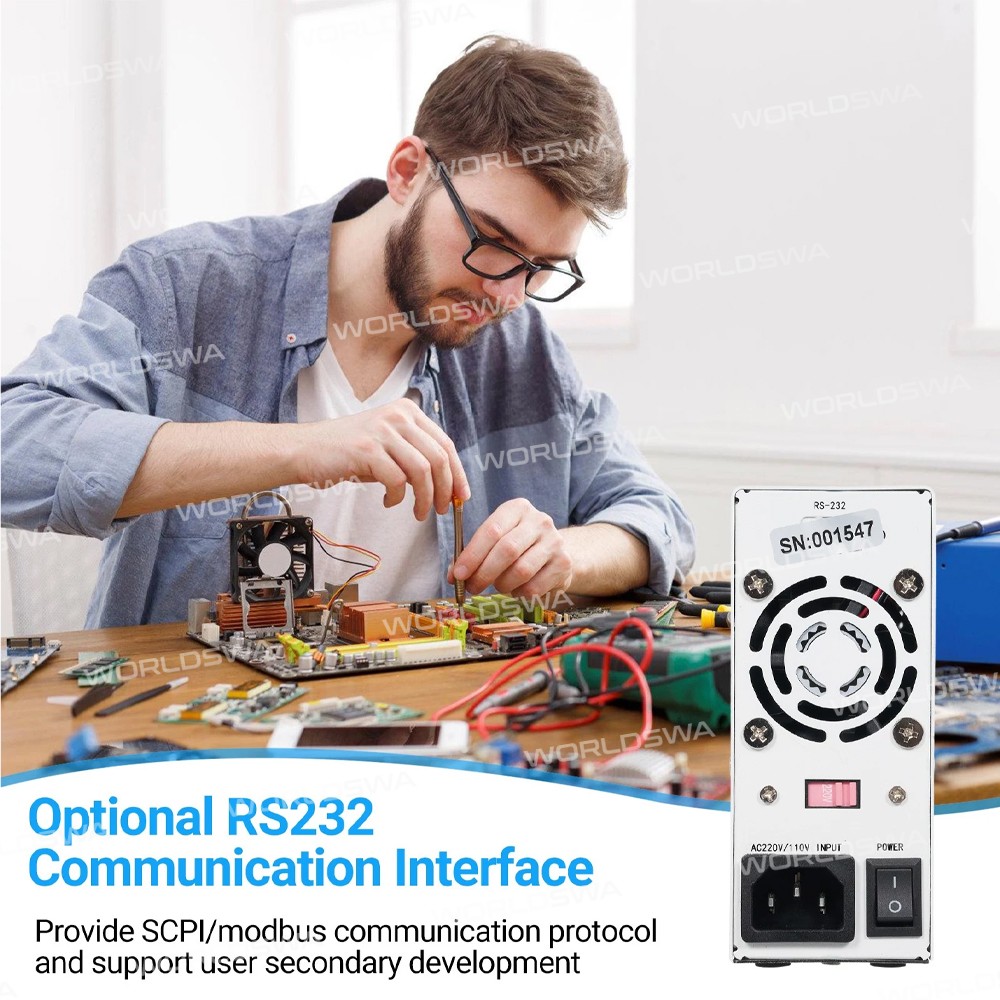

• RS232 Communication Interface**: Supports SCPI and Modbus communication protocols for connecting with other devices

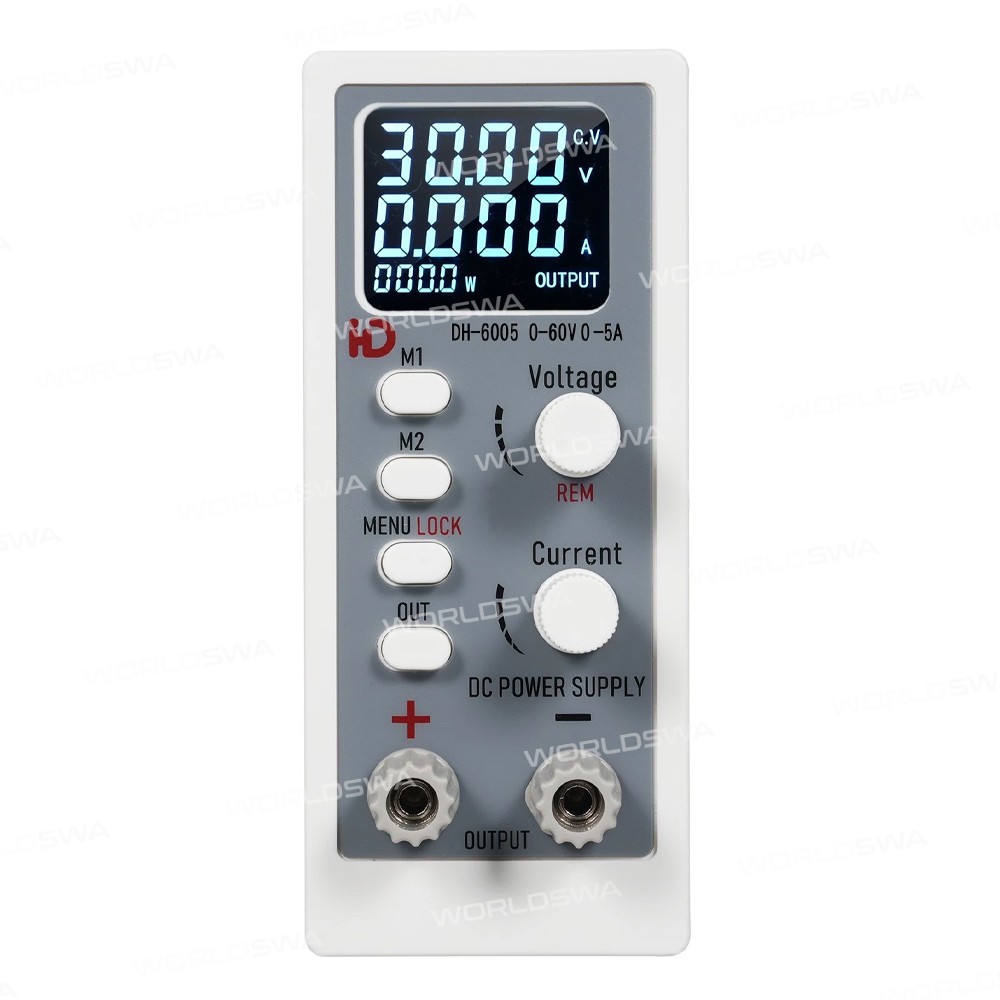

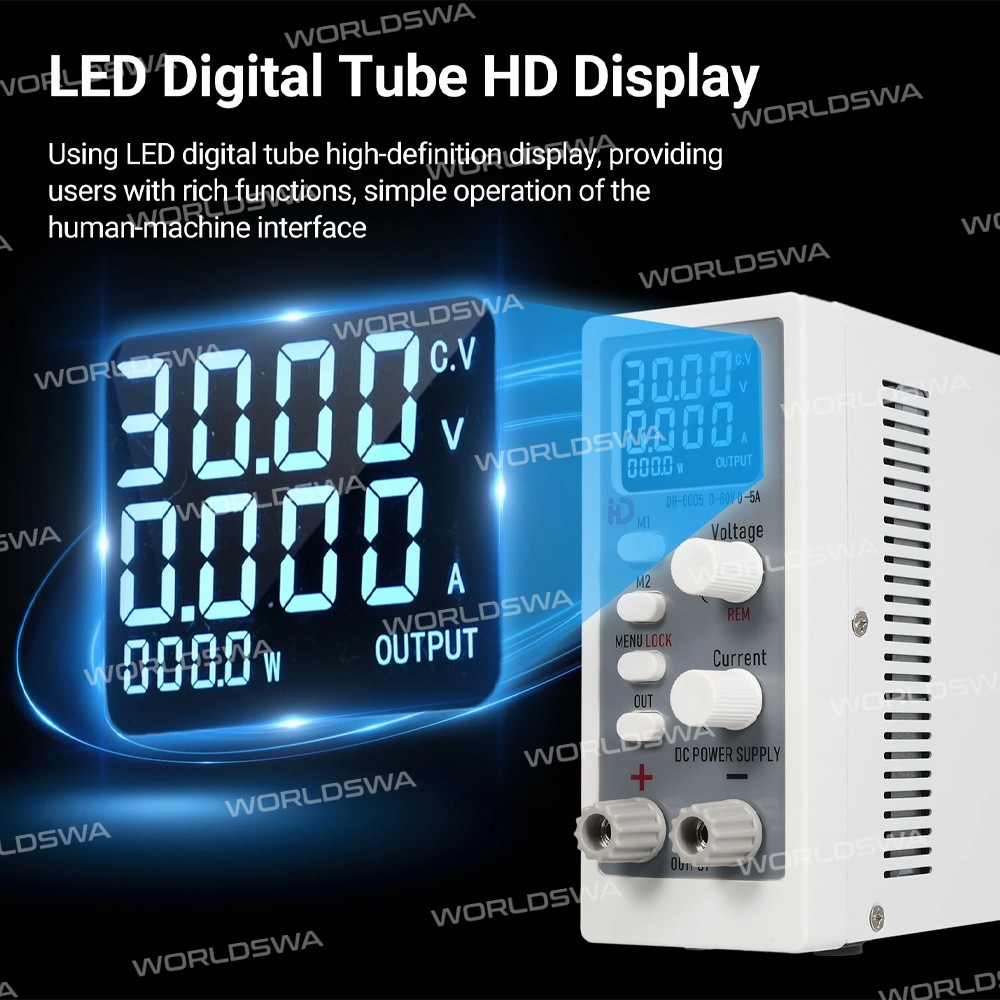

• LED Digital Tube HD Display**: Provides users with rich functions and simple operation of the human-machine interface
• 2 Groups of Data Storage Function**: "M1-M2" a key storage call, easy to operate

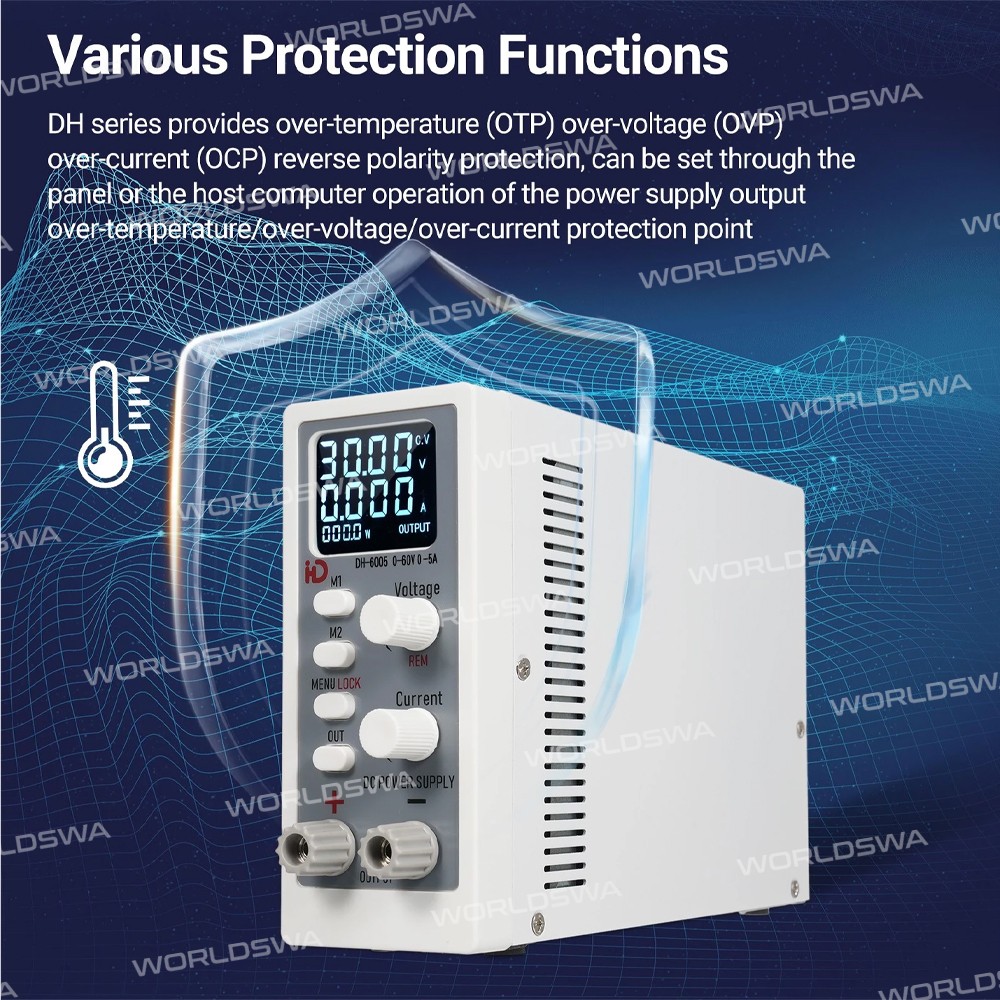

• Various Protection Functions**: Over-temperature, over-voltage, over-current, and reverse polarity protection

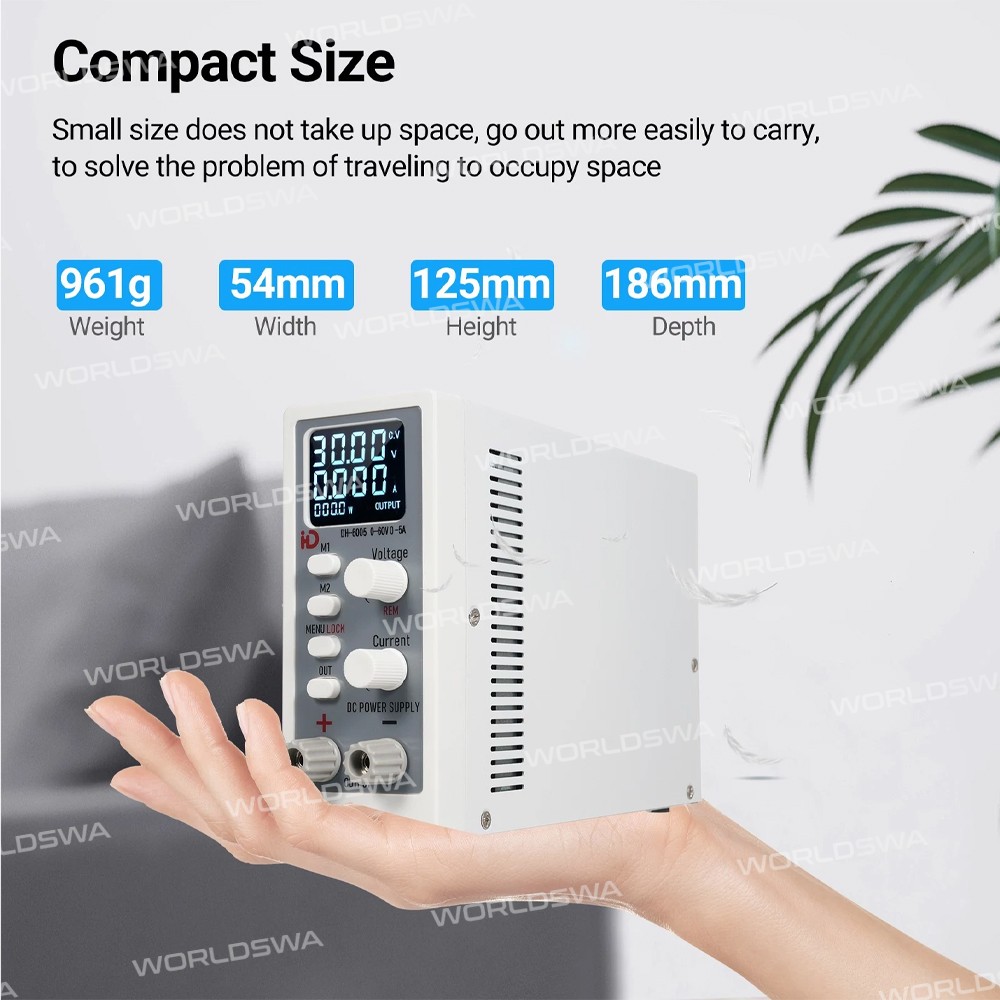

• Compact Size**: Small size, easy to carry, and solves the problem of traveling to occupy space

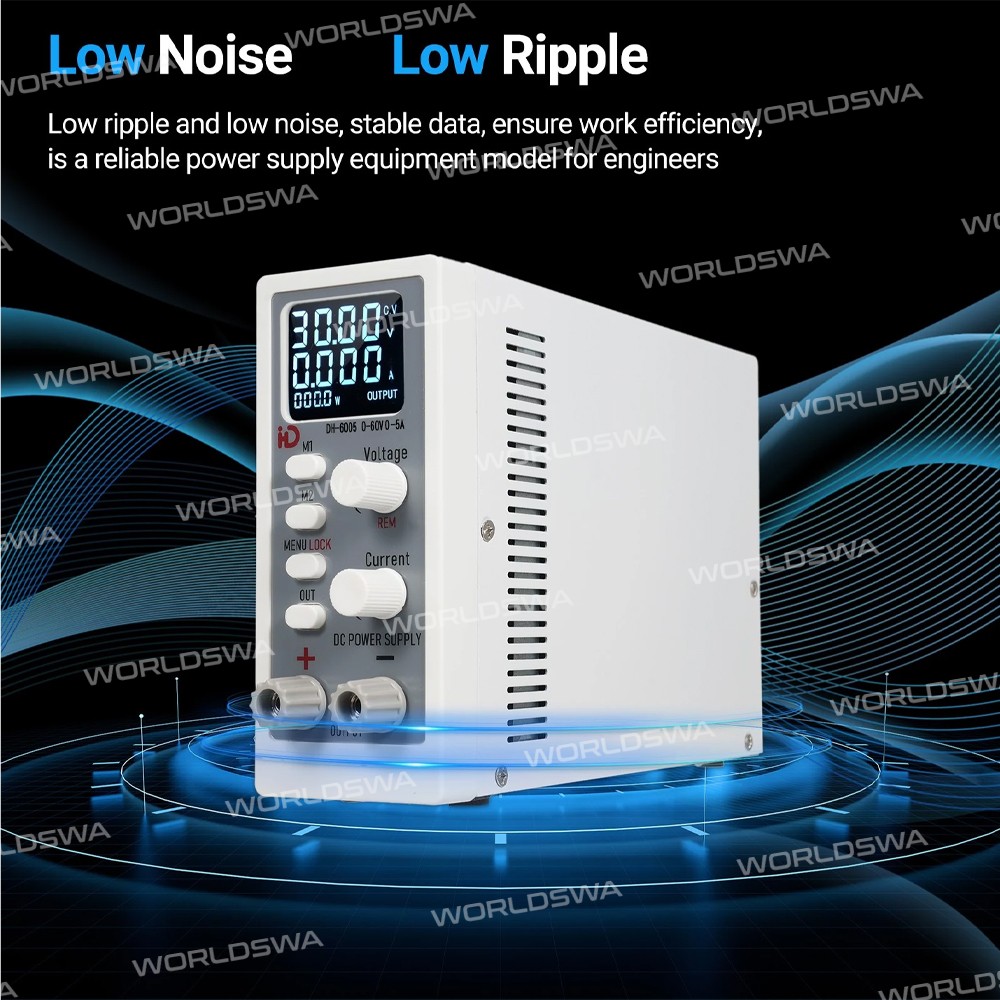

• Low Noise and Ripple**: Low ripple and low noise, stable data, and ensures work efficiency
• Wide Range of Applications**: Used in testing, aging, LED drive, industrial control, solar regulation, battery charging, etc.

Summary:

• Compact and High-Performance**: Compact size with high output power and low noise
• Advanced Protection**: Various protection functions for safe and reliable operation
• Easy to Use**: LED digital tube HD display and simple human-machine interface

Specification:

• Model: DH-6005
• Material: ABS
• AC Input: 110V/220V
• Output Voltage: 0~60V
• Current Output: 0~5A
• Output Power: 300W
• Power Supply Stability: ≤0.02%+5mV
• Load Stability Ratio: ≤0.1%+5mV
• Ripplerms (1-20KHz): 8mVrms
• Backward Resolution Ratio: Voltage 10mV; Current 1mA
• Read Back Precision: Voltage 0.1%+3 digital; Current 0.1%+3 digital
• Setpoint Accuracy: 0.1%+3 digital
• Output Over-voltage Protection: Menu Setting for OVP Protection: The protective value can be set arbitrarily. After protection is triggered, the output will be turned off
• Output Over-current Protection: Menu Setting for OCP Protection: The protective value can be set arbitrarily. After protection is triggered, the output will be turned off
• Voltage Setting: Voltage encoder setting or memory key input
• Current Setting: Current encoder setting or memory key input
• Control Interface (Optional): RS-232 (Support Modbus & SCPI Protocol)
• Function: Constant Voltage/Constant Current; Foldback Current Protection; Dual Preset Voltage and Current; Key Lock
• Output Polarity: The positive (+) and negative (-) outputs can be grounded arbitrarily
• Heat-Dissipating Method: Intelligent air-cooled (variable speed)
• Operating Environment: Designed for indoor use, temperature: 0℃ to 40℃; humidity: 10 to 85 percent RH
• Storage Environment: temperature: -20℃~70℃; humidity: 10%~90%RH

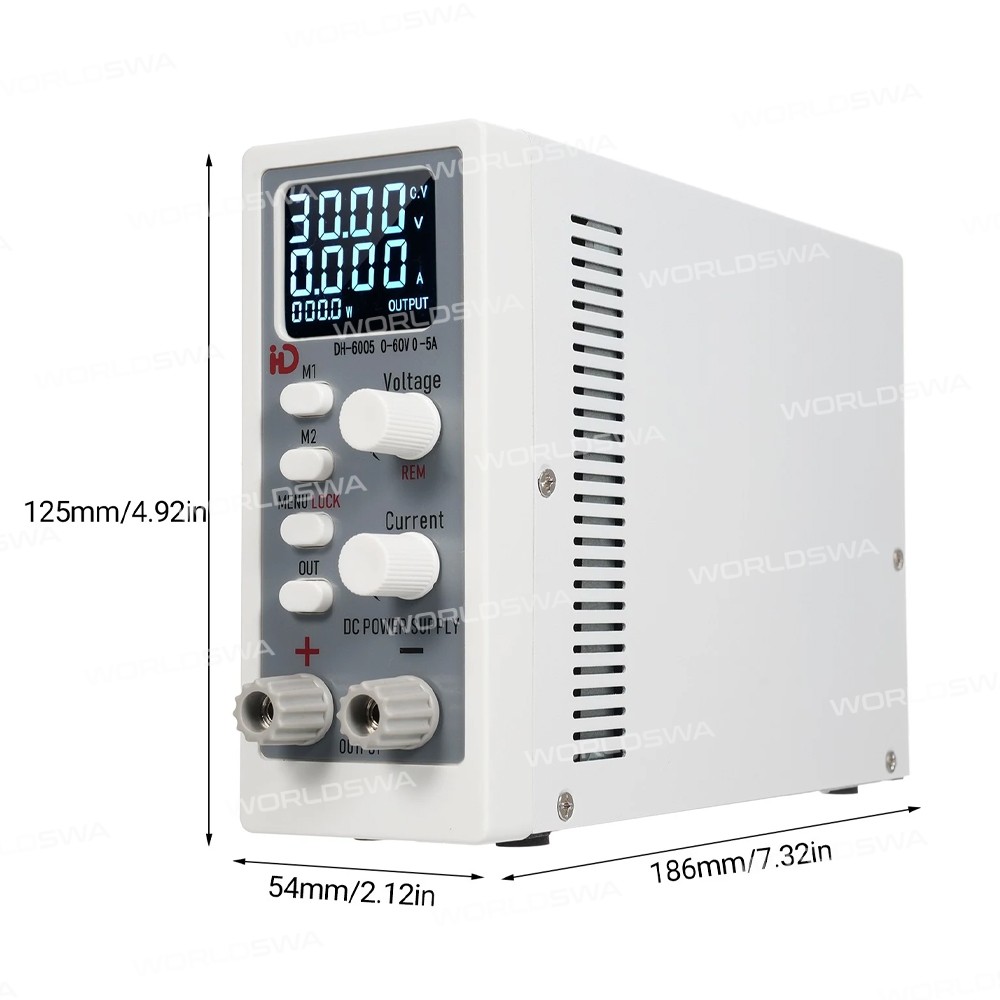

• Item Size: 186 * 54 * 125mm
• Item Weight: 954g

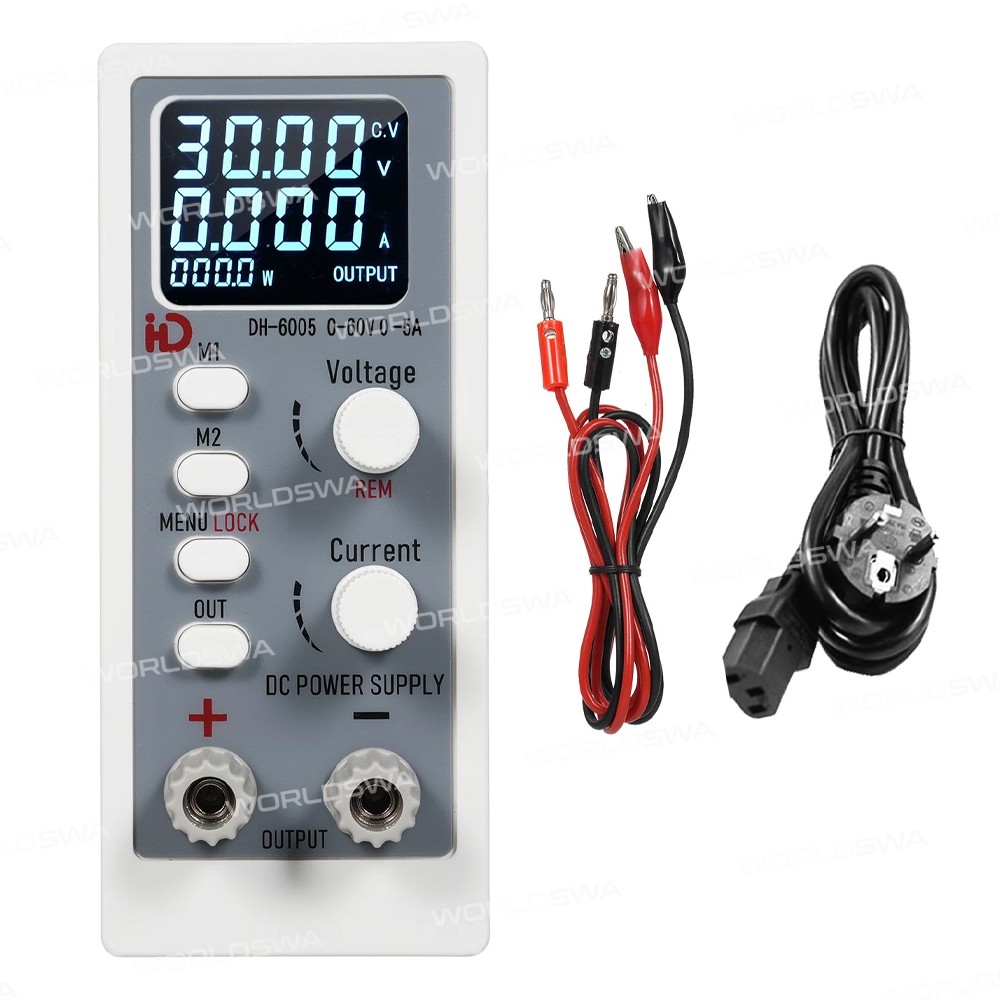

Package includes:

• 1 x Power Supply
• 1 x Power Cord
• 1 x Alligator Clip Lead
