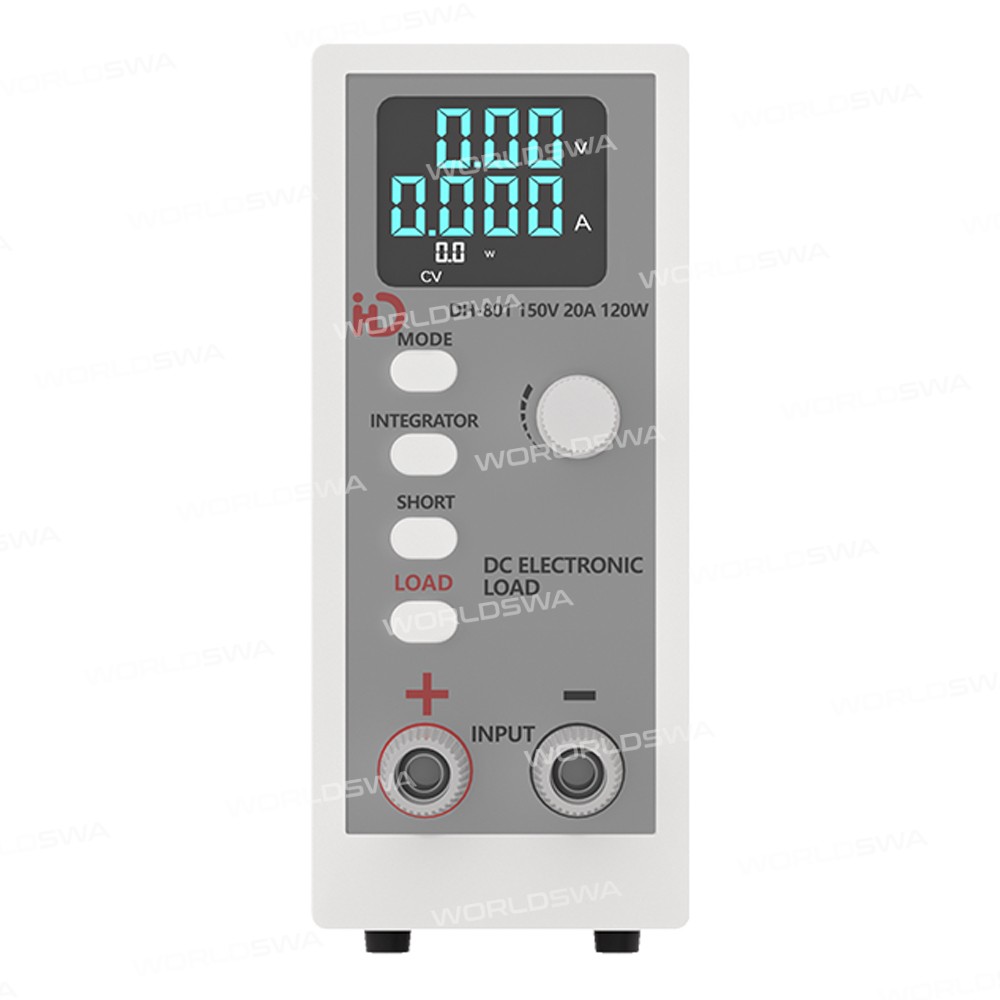

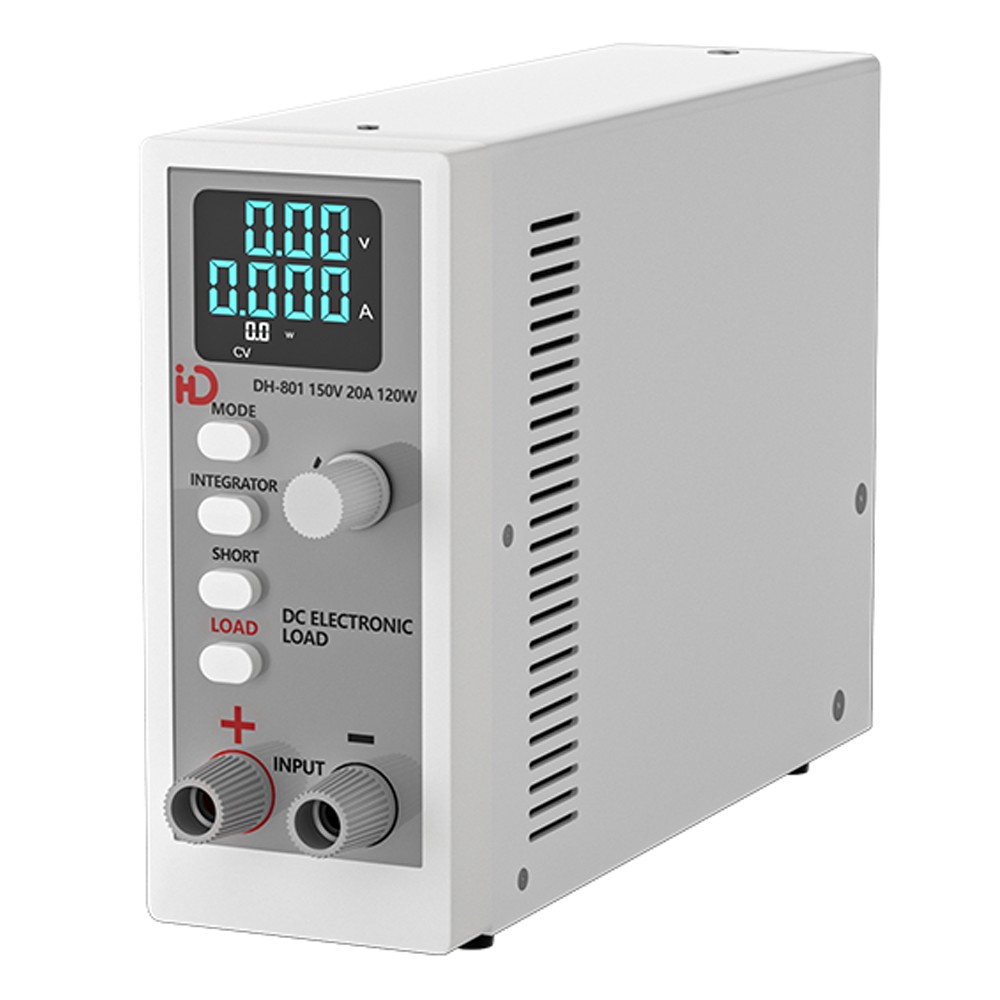

DH-801 120W Adjustable Switching Regulated DC Power Supply, 150V / 20A, 4-Digits LED Display

DH-801 150V / 20A 120W 4-Digits LED Display Adjustable Switching Regulated DC Power Supply

Features:

• DC voltage regulator, electronic load machine, CC constant current, CV constant voltage, CR constant resistance, CP constant power

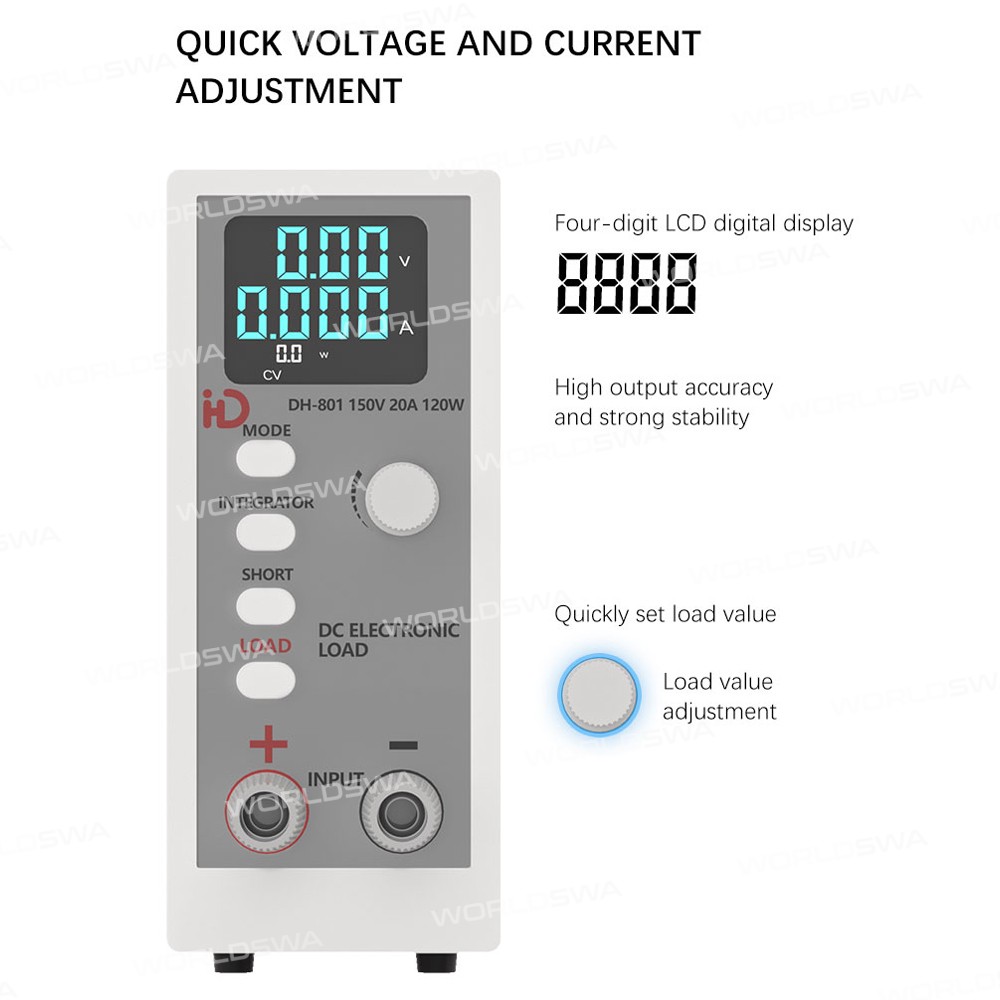

• Four-digit LCD digital display, high output accuracy, and strong stability, quickly set load value
• A wide range of applications can involve repair needs such as mobile phones/home appliances/electronics/factory/new energy testing
• Summary:** High-precision DC power supply with adjustable voltage, current, resistance, and power modes, suitable for various repair and testing applications.

Specification:

• Model: DH-801
• Input voltage: 0~150V
• Input Current: 0~20A
• Input power: 120W
• Current mode CC: 0~20A 10mA ±(0.1%+0.1%FS)
• Voltage mode CV: 1~150V 100mV ±(0.1%+0.1%FS)
• Resistance mode CR: 0.1~999.9Ω 12bit VIN/RSET*0.2%+0.2%FS
• Power mode CP: 0~120W 100mW ±(0.2%+0.5%FS)
• Current measurement: 0~20A 1mA(Under 3.5A); 10mA(Up 3.5A) ±(0.1%+0.1%FS)
• Voltage measurement: 1~150V 10mV(Under 35V); 100mV(Up 35V) ±(0.1%+0.1%FS)
• Power measurement: 0~120W 100mW ±(0.2%+0.5%FS)
• Timing range: 1S-99H59M
• Maximum allowable input voltage: 155V
• Maximum allowable input current: 20.2A

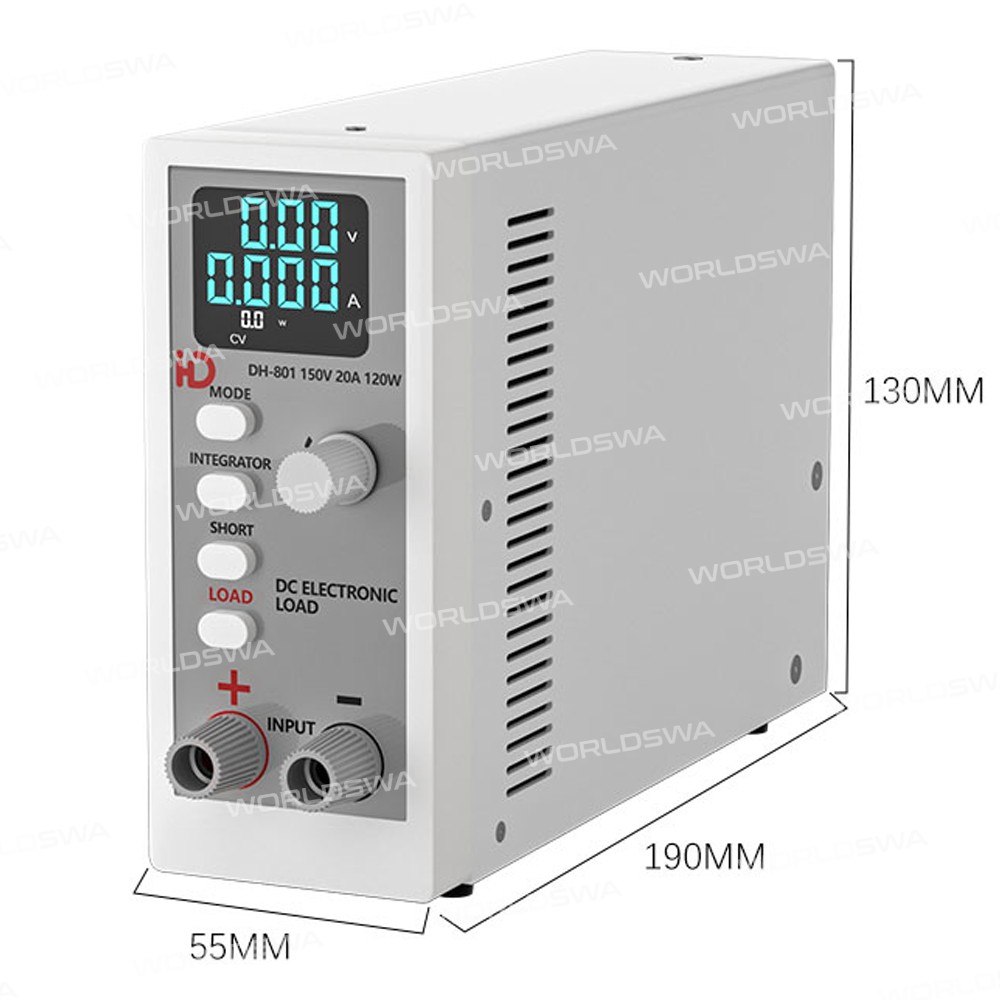

• Dimensions and weight: 190*55*130mm
• Packaging and weight: 230*100*170mm

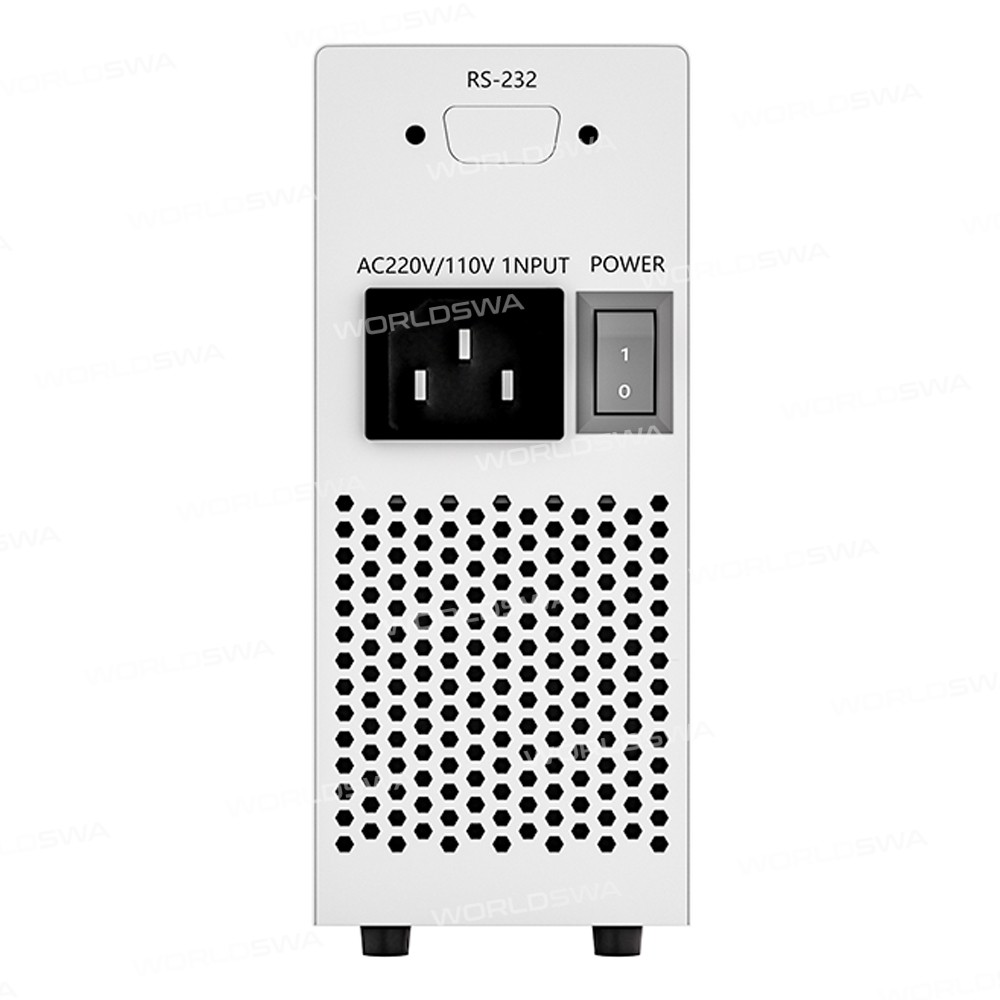

• System supply voltage: AC 90~264V 50/60HZ

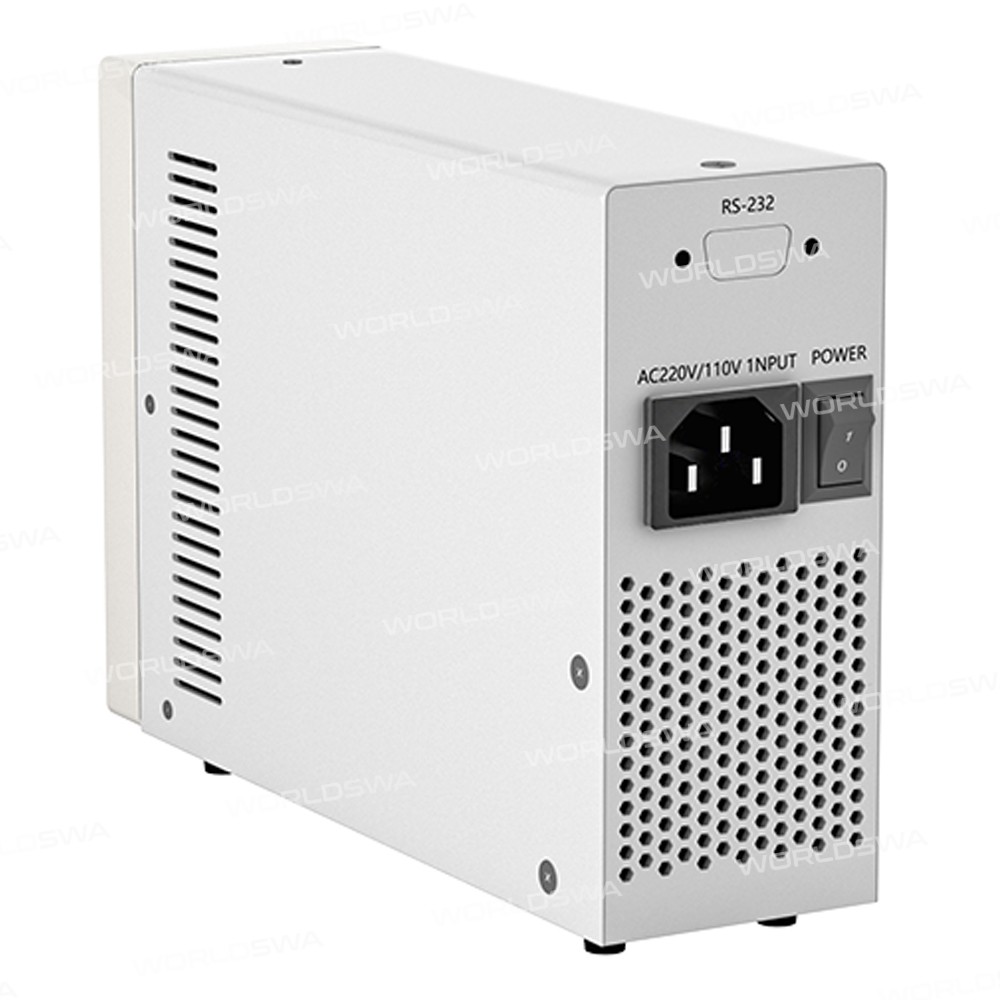

• Heat dissipation method: Air cooling

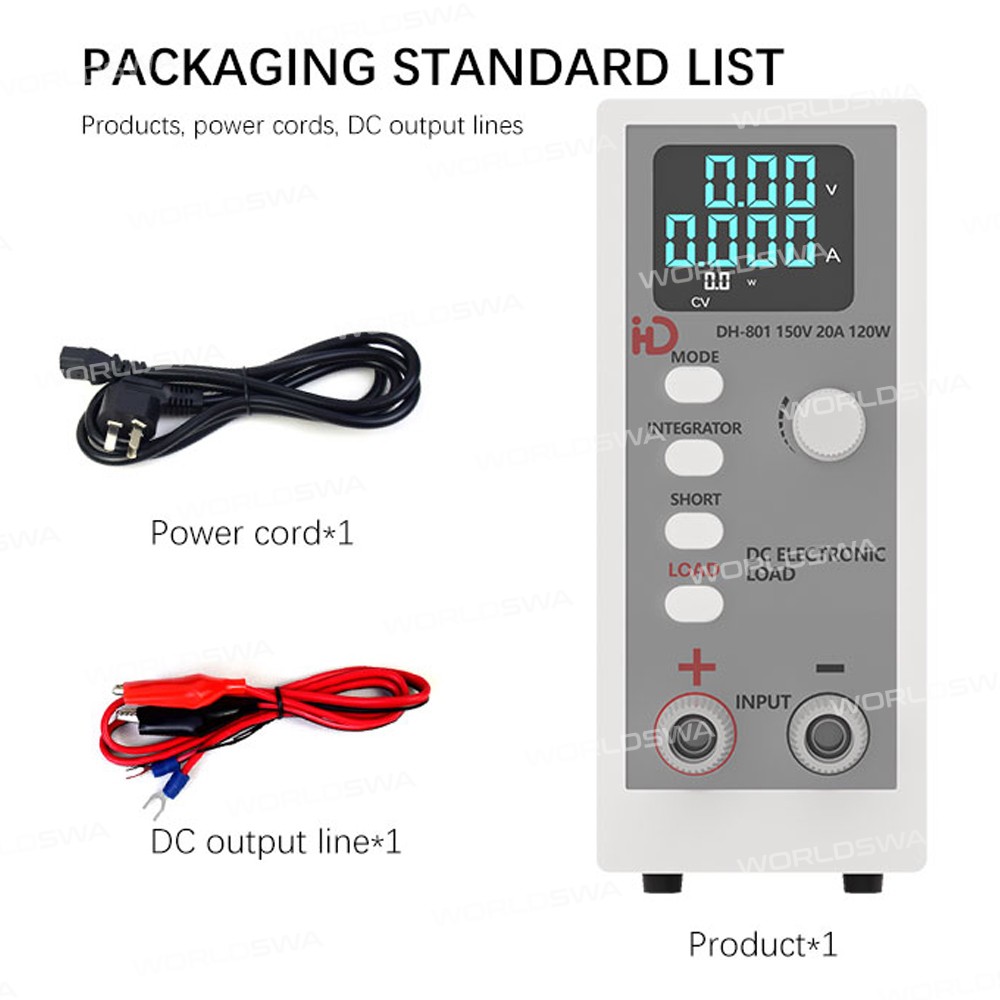

Package includes:

• 1 x Power Supply
• 1 x Test Line
• 1 x Power Cable
