DSO150 Portable Handheld Mini Digital Oscilloscope Kit - Housing Case Box Included

DSO150 Portable Handheld Mini Digital Oscilloscope Kit with Housing Case Box

Features:

• This DIY digital oscilloscope kit adopts an ARM Cortex-M3 processor with a 2.4-inch TFT screen and protective case.
• It can display waveform parameters, such as frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
• Adopt ARM Cortex-M3 processor, and include a 2.4-inch color TFT display screen.
• Used for secondary development based on this kit, for example, it can be changed to Millivoltmeter, data loggers.
• Come with instructions, easy to install and operate.
• With Auto/Normal/Single trigger modes, easy to capture the moment waveform.
• Available rising or falling edge trigger.
• Observable previous waveform before trigger(negative delay).

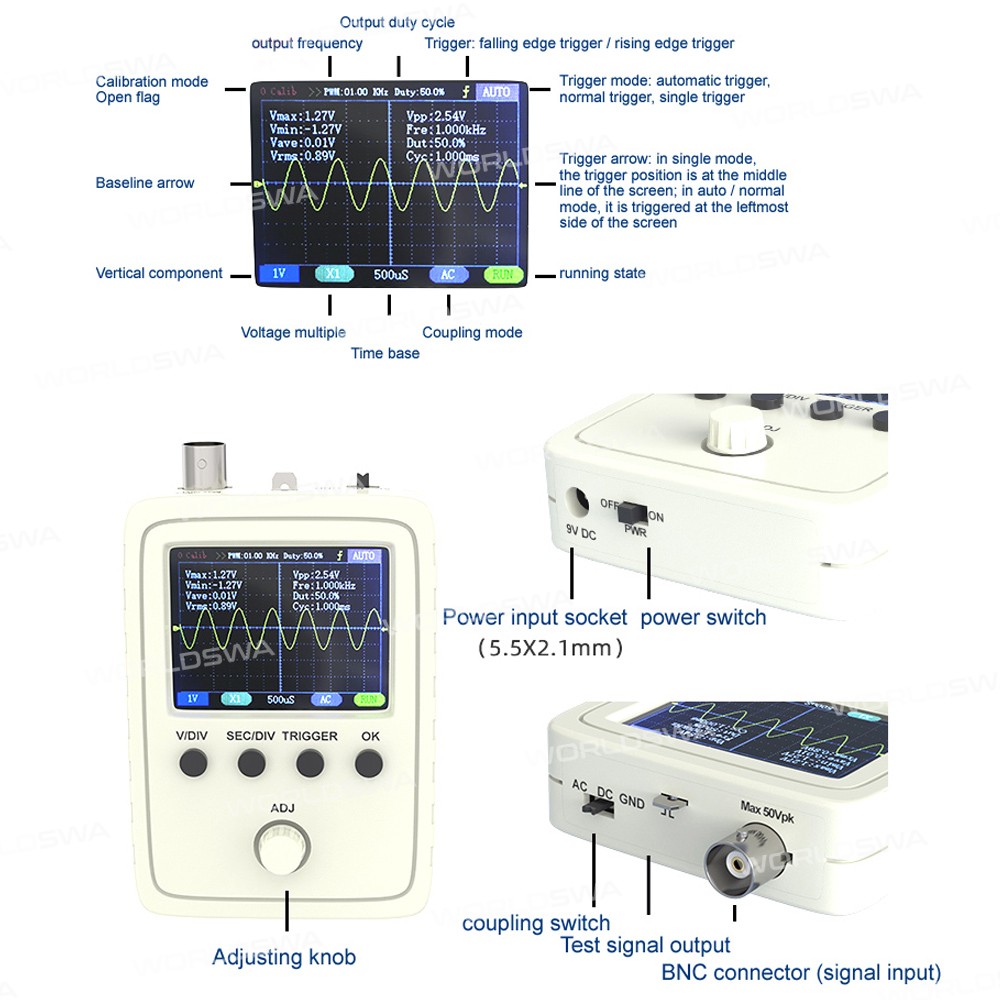

• With waveform parameter digital display, including frequency, period, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
• Short-circuit and open-circuit detection: this can help the user find out the soldering error.
• TFT controller recognition function.
• The SMD has been soldered, more suitable for an electronic beginner.

Summary of Key Features:

• 2.4-inch color TFT display screen

• ARM Cortex-M3 processor

• Auto/Normal/Single trigger modes

• Waveform parameter digital display

• Short-circuit and open-circuit detection

Specification:

• Maximum Real-time Sampling Rate: 1MSa/s
• Analog Bandwidth: 0-200KHz
• Sensitivity Range: 5mV/div-20mV/idv
• Maximum Input Voltage: 50Vpk (1X probe)
• Input Impedance: 1M ohms/20pF
• Accuracy: 12 Bits
• Record Length: 1024 points
• Coupling Modes: DC / AC / GND
• Time Base Range: 500s/Div - 10us / Div
• Trigger Modes: Auto, Normal, and Single
• Trigger Position: Center of Buffer
• Supply Voltage: DC 9V(8-10V)
• Current Consumption: ~120mA @ 9V
• Main Board Size: 94 * 65mm
• Analog Board Size: 65 * 47mm
• Screen Size: 52 * 40mm
• Package Size: 14.5 * 10 * 3.7cm
• Package Weight: 179g

Package includes:

• 1 x Oscilloscope
• 1 x Alligator clip
• 1 x Power cable(optional)
• 1 x Probe(optional)
