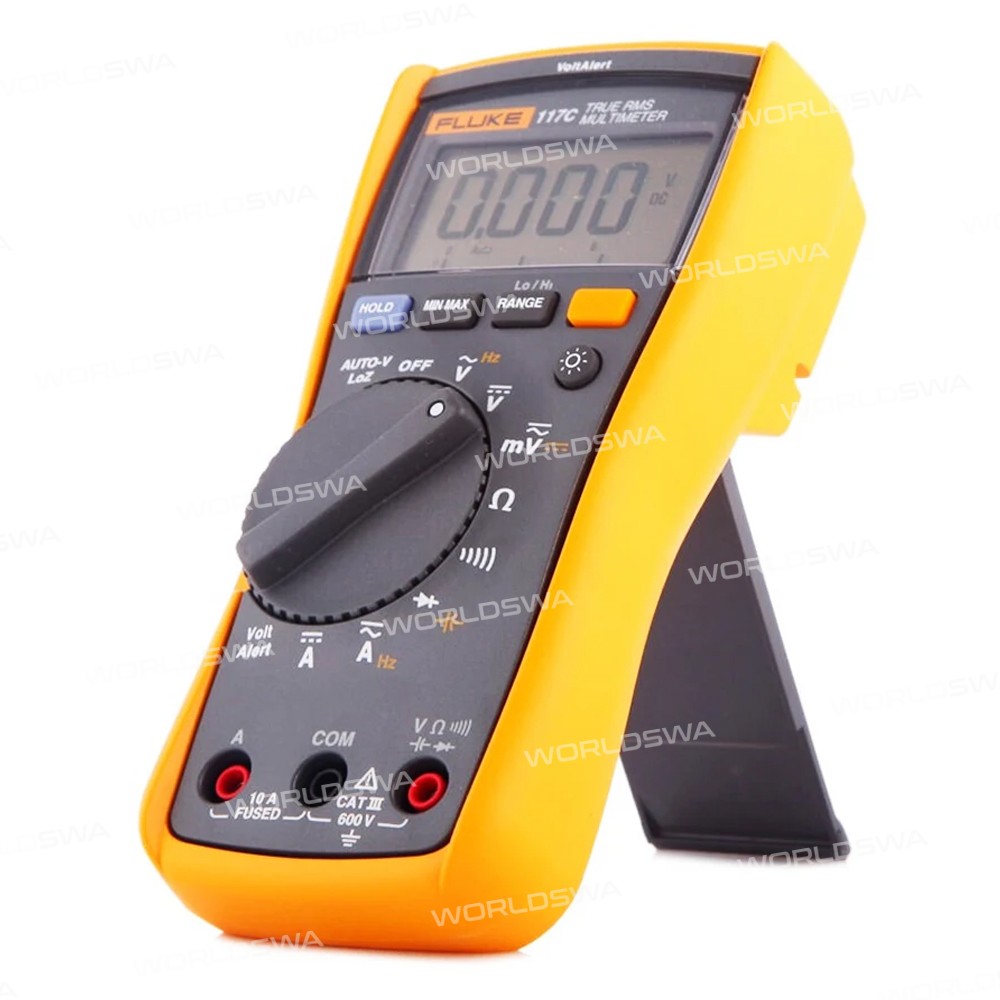

Fluke 117C High Precision True RMS Auto Range Digital Multimeter

Fluke 117C Auto Range High Precision True RMS Digital Multimeter

Overview

The Fluke 117C is a high-precision true RMS digital multimeter that offers advanced features and accuracy for professional electricians and technicians.

Features:

• Voltage technology for non-contact voltage detection
• Automatic AC/DC voltage selection
• Low input impedance helps prevent false readings due to ghost voltage
• Large white LED backlight to work in poorly lit areas
• True-RMS for accurate measurements on non-linear loads
• Measures 10A (20A overload for 30-seconds)
• Resistance, continuity, frequency, and capacitance
• Min/Max/Average with elapsed time to record signal fluctuations
• Compact ergonomic design for one-handed operation

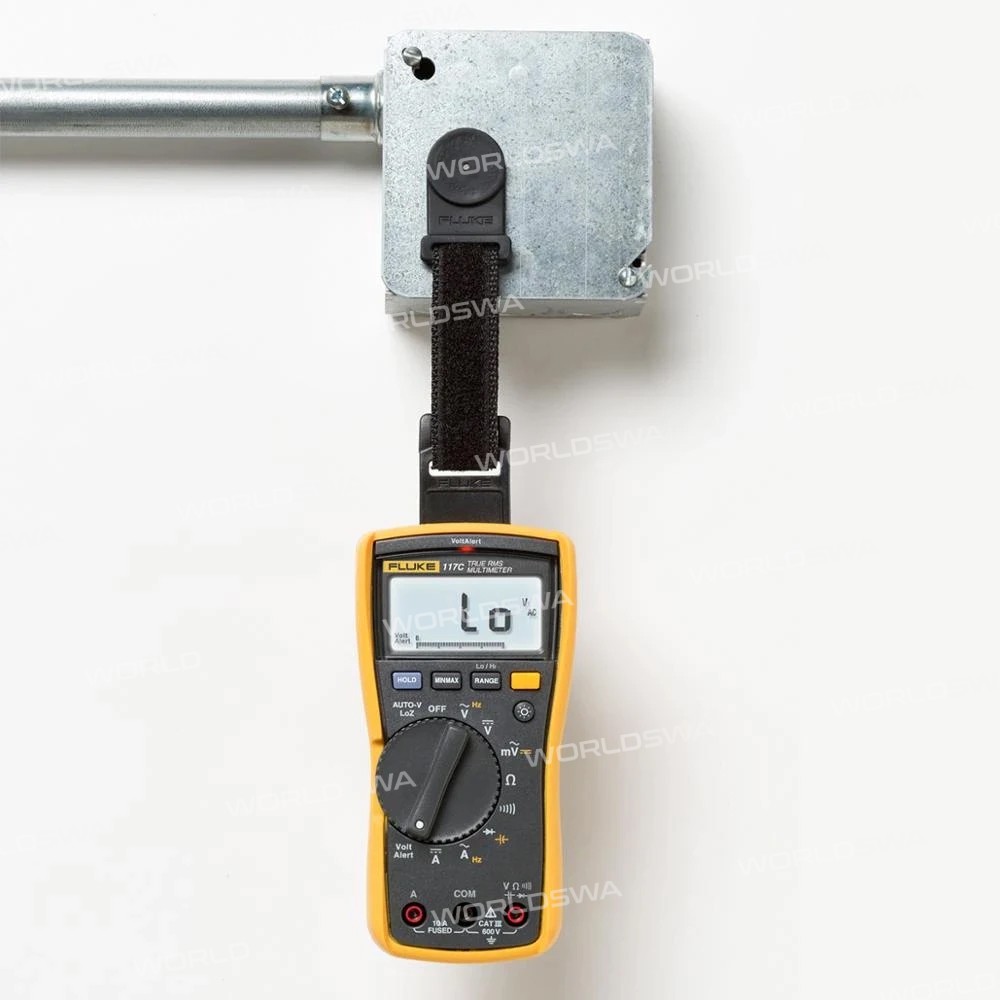

• Compatible with optional magnetic hanger (Not included) for hands-free operation
• CAT III 600 V safety rated
• Summary:** Advanced features for accurate and efficient measurements

Specification:

• Model: 117C
• Basic DC accuracy: 0.5%
• LCD display: 6000
• AC/DC Voltage: 600.0V
• AC/DC mV: 600.0mV
• AC/DC current: 10.00A
• Diode: 2.000V
• Resistance range: 40.00MΩ
• Capacitance range: 9999uF
• Frequency range: 50kHz
• Size: 167*84*46mm
• Voltage Sensing: Yes
• L0Z low input impedance: Yes
• On/Off Beep: Yes
• Data Hold: Yes
• Backlight/Sleep: Yes
• Max/Min/Ave: Yes
• Surge protection: 6kV Peak Per, IEC 61010-1 600 V CAT III, Pollution Degree 2
• Fuse for A input: 11A, 1000 V FAST Fuse
• Bar graph: 33 segments, updates 32 per second
• Operating Temperature: -10℃~50℃
• Storage Temperature: -40℃~60℃
• Battery type: 9 Volt Alkaline
• Battery Life: 400 hours typical

Package includes:

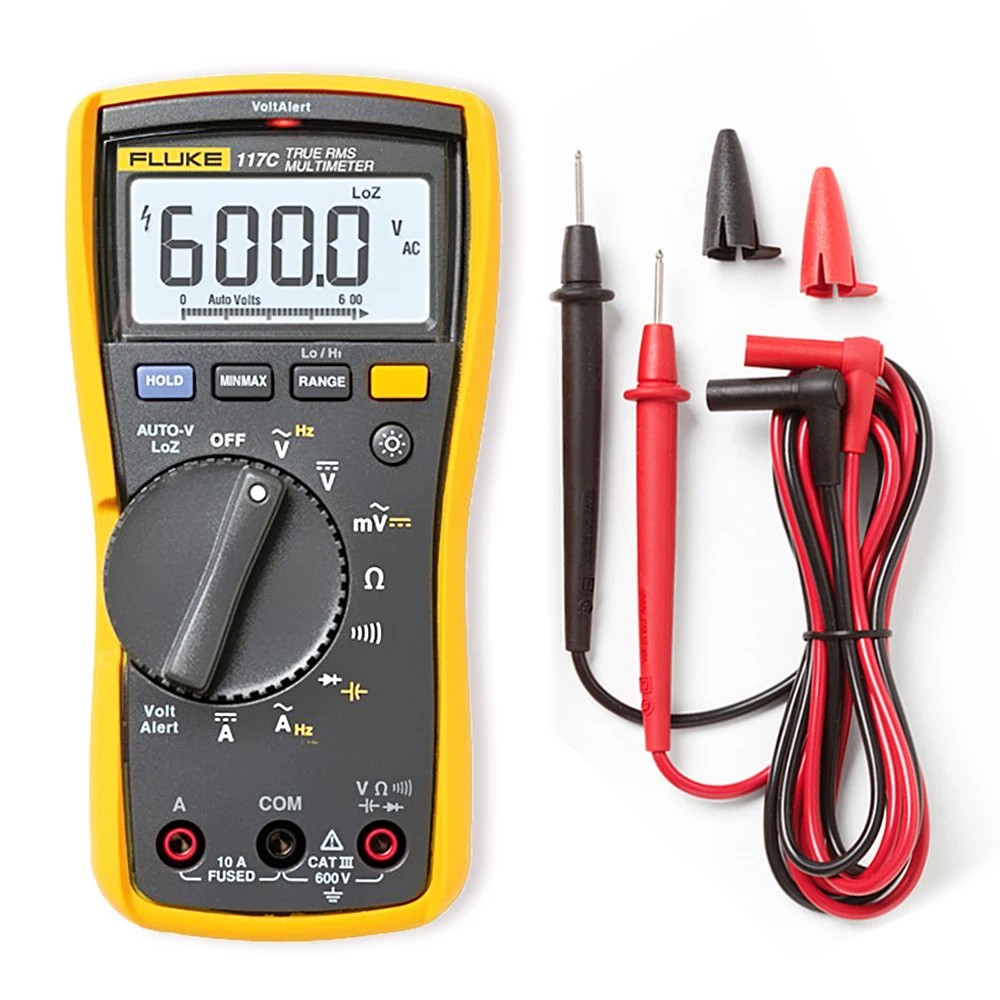

• 1 x Multimeter (without Battery)
• 1 x Test Leads
