Product details

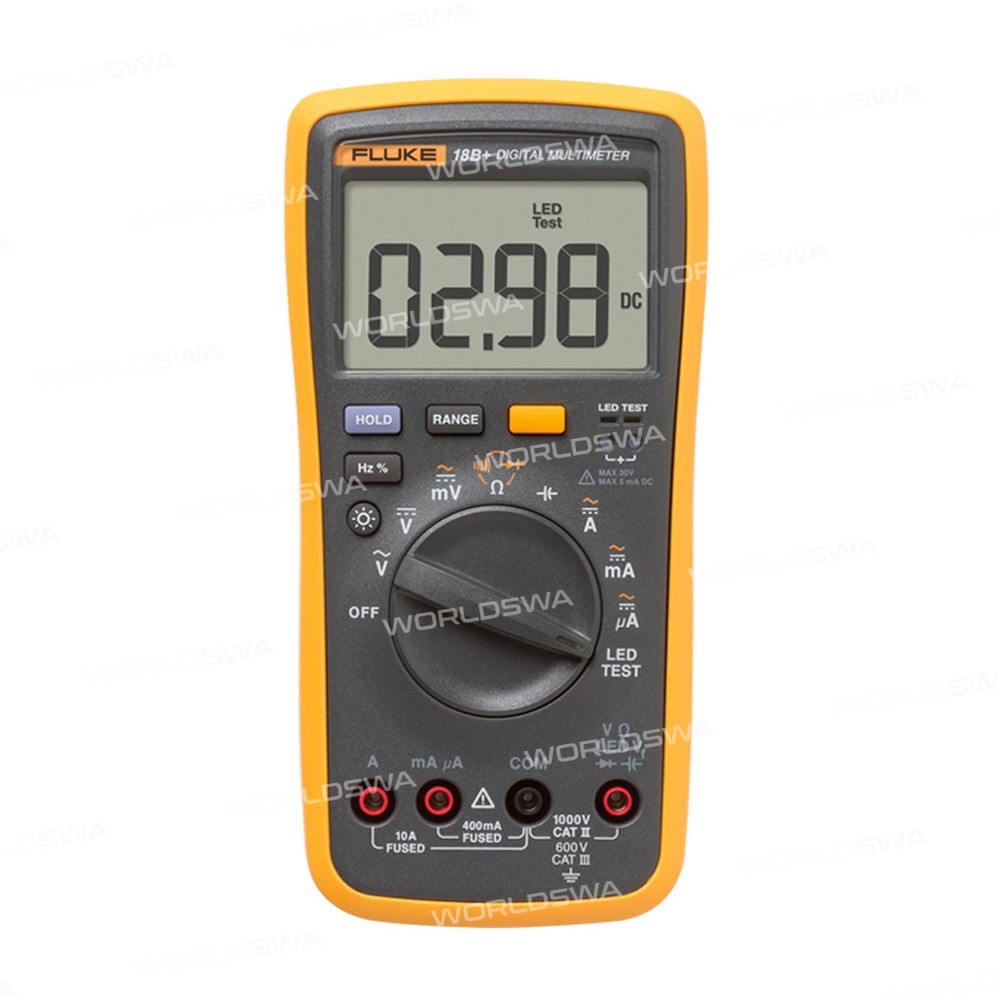

Fluke 18B+ AC DC Auto Range LED Test Digital Multimeter Meter Tester

Features:
Faster response
Greater capacitance range: 0.01nF ~ 1000μF
LED backlight
Larger screen
Display(LCD):4000 counts,updates 3/sec
Battery Type:2 AA,NEDA 15A, IEC LR6 (not included)
AC and DC Voltage

Function	Range	Resolution	Accuracy
Function	Range	Resolution	15B+	17B+	18B+
AC Volts (40Hz-500Hz)^[1]	4.000V 40.00V 400.0V 1000V	0.001V 0.01V 0.1V 1V	1.0 % + 3	1.0 % + 3	1.0 % + 3
AC Millivolts	400.0mV	0.1mV	3.0 % + 3	3.0 % + 3	3.0 % + 3
DC Millivolts	400.0mV	0.1mV	1.0 % + 10	1.0 % + 10	1.0 % + 10
DC volts	4.000V 40.00V 400.0V 1000V	0.001V 0.01V 0.1V 1V	0.5 % + 3	0.5 % + 3	0.5 % + 3
[1]All ac, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified.

AC and DC current

Function	Range	Resolution	Accuracy
Function	Range	Resolution	15B+	17B+	18B+
AC Current μA (40 Hz-400Hz)	400.0 μA 4000 μA	0.1 μA 1 μA	1.5 % + 3	1.5 % + 3	1.5 % + 3
AC current Ma (40Hz – 400Hz)	40.00 m 400.0 mA	0.01 mA 0.1 mA	1.5 % + 3	1.5 % + 3	1.5 % + 3
AC current A^[1] (40Hz – 400Hz)	4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3	1.5 % + 3	1.5 % + 3
DC current μA	400.0 μA 4000 μA	0.1 μA 1 μA	1.5 % + 3	1.5 % + 3	1.5 % + 3
DC current mA	40.00 mA 400.0 mA	0.01 mA 0.1 mA	1.5 % + 3	1.5 % + 3	1.5 % + 3
DC current A^[1]	4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3	1.5 % + 3	1.5 % + 3
[1] 10 A duty cycle < minutes on, 20 minutes off.

Diode Test, Temperature, Resistance, Capacitance, Frequency, and Duty Cycle

Function	Range	Resolution	Accuracy
Function	Range	Resolution	15B+	17B+	18B+
Diode Test^[1]	2.000V	0.001V	10 %
Temperature	50.0°C-400.0°C 0°C-50.0°C -55.0°C -0°C	0.1°C	NA	2 % +1°C 2°C 9% +2°C	NA

Resistance (Ohms)	400.0Ω 4.000KΩ 40.00KΩ 400.0KΩ 4.000MΩ 40.00MΩ	0.1Ω 0.001KΩ 0.01KΩ 0.1KΩ 0.001MΩ 0.01MΩ	0.5%+3 0.5%+2 0.5%+2 0.5%+2 0.5%+2 1.5%+3	0.5%+3 0.5%+2 0.5%+2 0.5%+2 0.5%+2 1.5%+3	0.5%+3 0.5%+2 0.5%+2 0.5%+2 0.5%+2 1.5%+3
Capacitance^[2]	40.00 nF 400.0 nF 4.000 μF 40.00 μF 400.0 μF 1000 μF	0.01 nF 0.1 nF 0.001μF 0.01μF 0.1μF 1μF	2% + 5 2% + 5 5% + 5 5% + 5 5% + 5 5% + 5	2% + 5 2% + 5 5% + 5 5% + 5 5% + 5 5% + 5	2% + 5 2% + 5 5% + 5 5% + 5 5% + 5 5% + 5
Frequency^[3] (10Hz -100kHz) Hz	50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz	NA	0.1%+3	0.1%+3
Duty Cycle^[2]	1% to 99%	0.1 %	NA	1%typical^[4]	1% typical^[4]
[1] Typically, open circuit test voltage is 2.0 V and short circuit is <0.6 mA [2] Specifications do not include errors due to test lead capacitance and capacitance floor(may be up to 1.5nF in the 40 nF range). [3] All ac, Hz, and duty cycle are specified from 1 % to 100 % of range. In puts below 1 % of range are not specified. [4] Typical means when the frequency is at 50 Hz or 60 Hz and the duty cycle is between 10% and 90 %.

LED Test and Continuity Threshold

Function	Lighting Range	Measurement Range	Resolution	Accuracy
LED V_FTest^[1] (LED Test Socket)	1.00 to 6.00 V	NA	NA	NA
LED V_FTest^[^2] ( Test leads)	1.00 to 6.00V	1.00 to 6.00V	0.01V	10%^[3]
Continuity Threshold	NA	NA	NA	NA
[1] Open circuit test voltage is±12V and short-circuit current is<±5mA(typical) [2] Open circuit test voltage is±12V and short-circuit current is<±3mA(typical) [3] V_F Measurement with driving current under2.2±0.4 mA

Input Characteristics

Function	Overload Protection	Input Impedance (Nominal)	Common Mode Rejection Ratio	Normal Mode Rejection Ratio
AC Volts	1000V^[1]	>10MΩ,	>60 dB at dc, 50Hz or 60Hz	_
AC Millivolts	400mV	>1MΩ,<100pF	>80dB at dc, 50Hz or 60 Hz	_
DC Volts	1000V^[1]	>10MΩ,<100pF	>100dB at dc, 50Hz or 60 Hz	>60dB at 50Hz or 60 Hz
DC Millivolts	400mV	>1MΩ,<100pF	>80dB at ac, 50 Hz or Hz	_
[1]10⁶V Hz Max
