Fluke 362 AC / DC Portable High Precision Clamp Multimeter with Digital Display

No review yet

How to order?

Ready stock

NaN

As low as NaN

Worldwide shipping

Seller: Worldswa Shenzhen

ID: MV-220608FJNH23

Weight: 0.60 kg

Qty	Price	Discount
1	NaN
3	NaN	-3.2%
5	NaN	-4.8%
10	NaN Wholesale Price	-7.3%

Product details

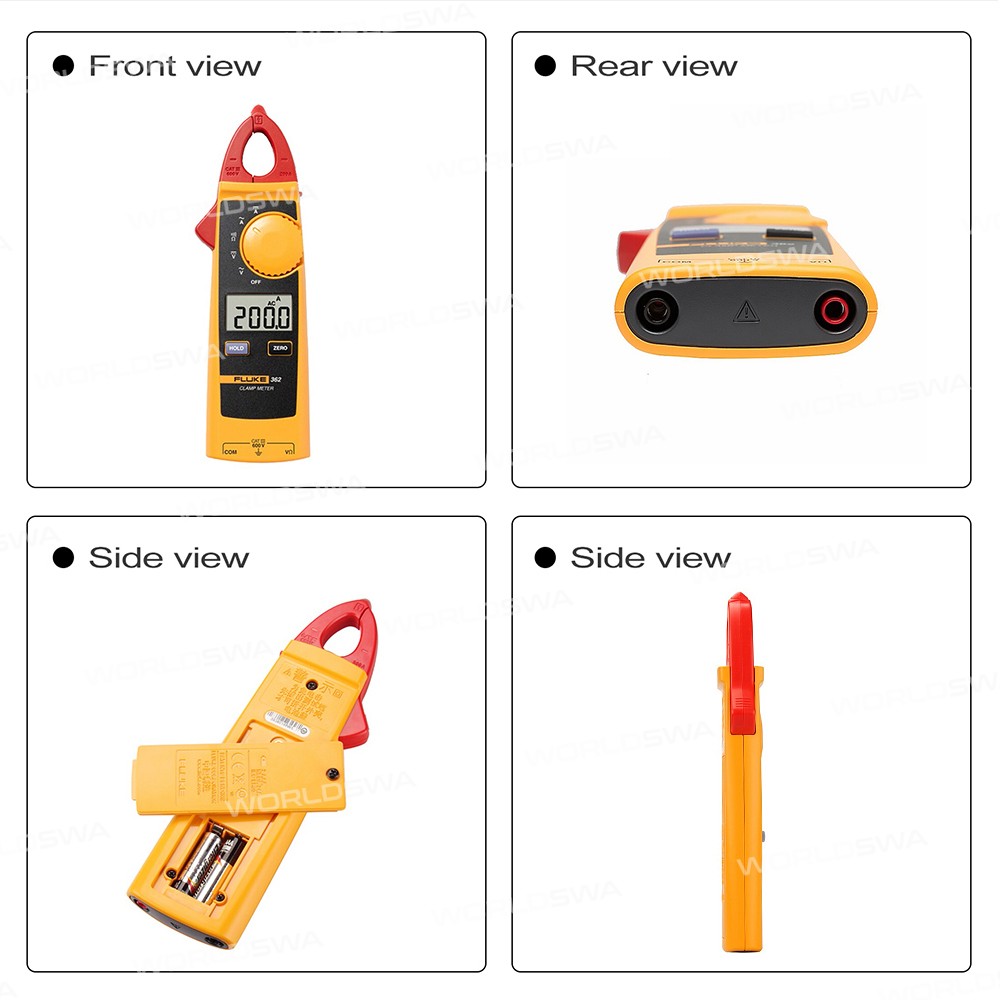

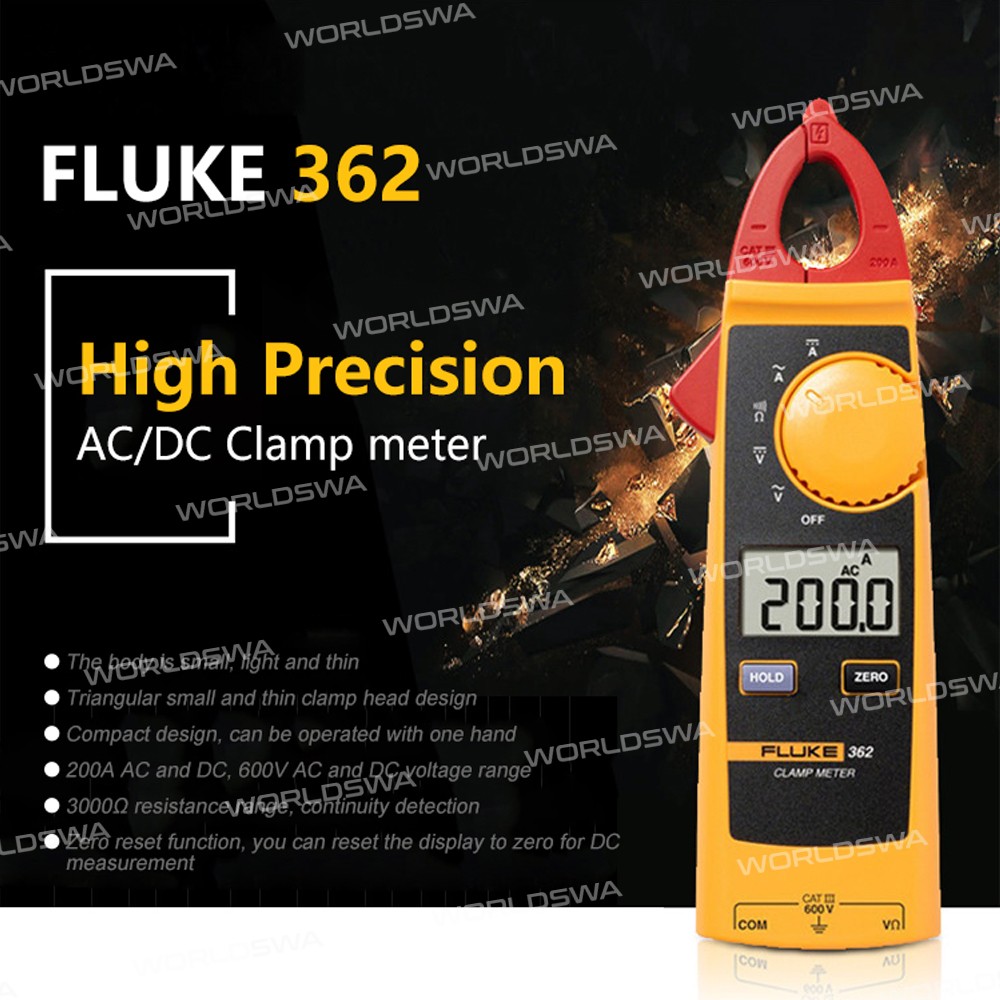

Fluke 362 AC/DC Portable High Precision Clamp Multimeter with Digital Display
Features:
VoltAlert™ technology for non-contact voltage detection;
AutoVolt automatic AC/DC voltage selection;
Low input impedance: helps prevent false readings due to ghost voltage;
Large white LED backlight to work in poorly lit areas
True-RMS for accurate measurements on non-linear loads
Measures 10 A (20 A overload for 30-seconds)
Resistance, continuity, frequency, and capacitance
Min/Max/Average with elapsed time to record signal fluctuations
Compact ergonomic design for one-handed operation
Compatible with optional magnetic hanger (ToolPak™) for hands-free operation
CAT III 600 V safety rated

Specification:

Specifications

Maximum voltage between any terminal and earth ground

600 V

Surge protection

6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2

Fuse for A input

11 A, 1000 V FAST Fuse (Fluke PN 803293)

Display

Digital:

6,000 counts, updates 4 per second

Bar graph

33 segments, updates 32 per second

Operating Temperature

-10 °C to + 50 °C

Storage Temperature

-40 °C to + 60 °C

Battery type

9 volt Alkaline, NEDA 1604A/ IEC 6LR61

Battery Life

400 hours typical, without backlight

Accuracy Specifications

DC millivolts

Range:	600.0 mV
Resolution:	0.1 mV
Accuracy:	± ([% of reading] + [counts]): 0.5% + 2

DC volts

Range/Resolution:	6.000 V / 0.001 V
Range/Resolution:	60.00 V / 0.01 V
Range/Resolution:	600.00 V / 0.1 V
Accuracy:	± ([% of reading] + [counts]): 0.5% + 2

Auto volts

Range:	600.0 V
Resolution:	0.1 V
Accuracy:	2.0 % + 3 (dc, 45 Hz to 500 Hz) 4.0 % + 3 (500 Hz to 1 kHz)

AC millivolts1true-rms

Range:	600.0 mV
Resolution:	0.1 mV
Accuracy:	1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz)

AC volts1 true-rms

Range/Resolution:	6.000 V / 0.001 V
Range/Resolution:	60.00 V / 0.01 V
Range/Resolution:	600.0 V / 0.1 V
Accuracy:	1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz)

Continuity

Range:	600 Ω
Resolution:	1 Ω
Accuracy:	Beeper on < 20 Ω, off > 250 Ω; detects opens or shorts of 500 μs or longer.

Ohms

Range/Resolution:	600.0 Ω / 0.1 Ω
Range/Resolution:	6.000 kΩ / 0.001 kΩ
Range/Resolution:	60.00 kΩ / 0.01 kΩ
Range/Resolution:	600.0 kΩ / 0.1 kΩ
Range/Resolution:	6.000 MΩ / 0.001 MΩ
Accuracy:	0.9 % + 1
Range/Resolution:	40.00 MΩ / 0.01 MΩ
Accuracy:	1.5 % + 2

Diode Test

Range/Resolution:	2.000 V / 0.001 V
Accuracy:	0.9% + 2

Capacitance

Range/Resolution:	1000 nF / 1 nF
Range/Resolution:	10.00 μF / 0.01 μF
Range/Resolution:	100.0 μF / 0.1 μF
Range/Resolution:	9999 μF / 1 μF
Range/Resolution:	100 μF to 1000 μF
Accuracy:	1.9% + 2
Range/Resolution:	> 1000 μF
Accuracy:	5% + 20%

LoZ capacitance

Range:	1 nF to 500 μF
Accuracy:	10% + 2 typical

AC amps true-rms (45 Hz to 500 Hz)

Range/Resolution:	6.000 A / 0.001 A
Range/Resolution:	10.00 A / 0.01 A
Accuracy:	1.5% + 3
	20 A continuous overload for 30 seconds max

DC amps

Range/Resolution:	6.000 A / 0.001 A
Range/Resolution:	10.00 A / 0.01 A
Accuracy:	1.0% + 3
	20 A continuous overload for 30 seconds max

Hz (V or A input)2

Range/Resolution:	99.99 Hz / 0.01 Hz
Range/Resolution:	999.99 Hz / 0.1 Hz
Range/Resolution:	9.999 Hz / 0.001 Hz
Range/Resolution:	50.00 Hz / 0.01 Hz
Accuracy:	0.1% + 2
