Fnirsi-1014D Portable Oscilloscope: 2-in-1 Dual Channel, 100MHz, 2 Ana-log, 1GSa / s, Signal Generator

Fnirsi-1014D Portable Oscilloscope 2 In 1 Dual Channel Input Signal Generator 100MHz * 2 Ana-log Bandwidth 1GSa/s Sampling Rate

Overview

The Fnirsi-1014D is a portable oscilloscope that combines a 2-channel input signal generator with a 100MHz analog bandwidth and 1GSa/s sampling rate. This versatile tool is designed for professionals and hobbyists alike, offering a range of features to help you analyze and troubleshoot electronic signals.

Specifications:

• Material: ABS
• Ana-log Bandwidth: 100MHz * 2
• Number of Channels: 2 channels
• Maximum Real-Time Sampling Rate: 1GSa/s
• Vertical Sensitivity: 50 mV/div ~ 500 V/div
• Horizontal Time Base Range: 50S/div ~ 10nS/div
• Maximum Test Voltage: 40 V (1X probe), 400 V (10X probe)
• Input Resistance: 1MΩ
• ADC Precision: 8bits
• Record Length: 30KB
• Storage Depth: 240Kbit
• Max Waveform Capture Rate: 50,000wfm/s
• Band Width: 100-349MHz
• Coupling Mode: AC/Direct Current
• Trigger Mode: Single, Normal, Auto
• Trigger Edge: Rising edge/Falling edge
• External Trigger Voltage: 0~40 V

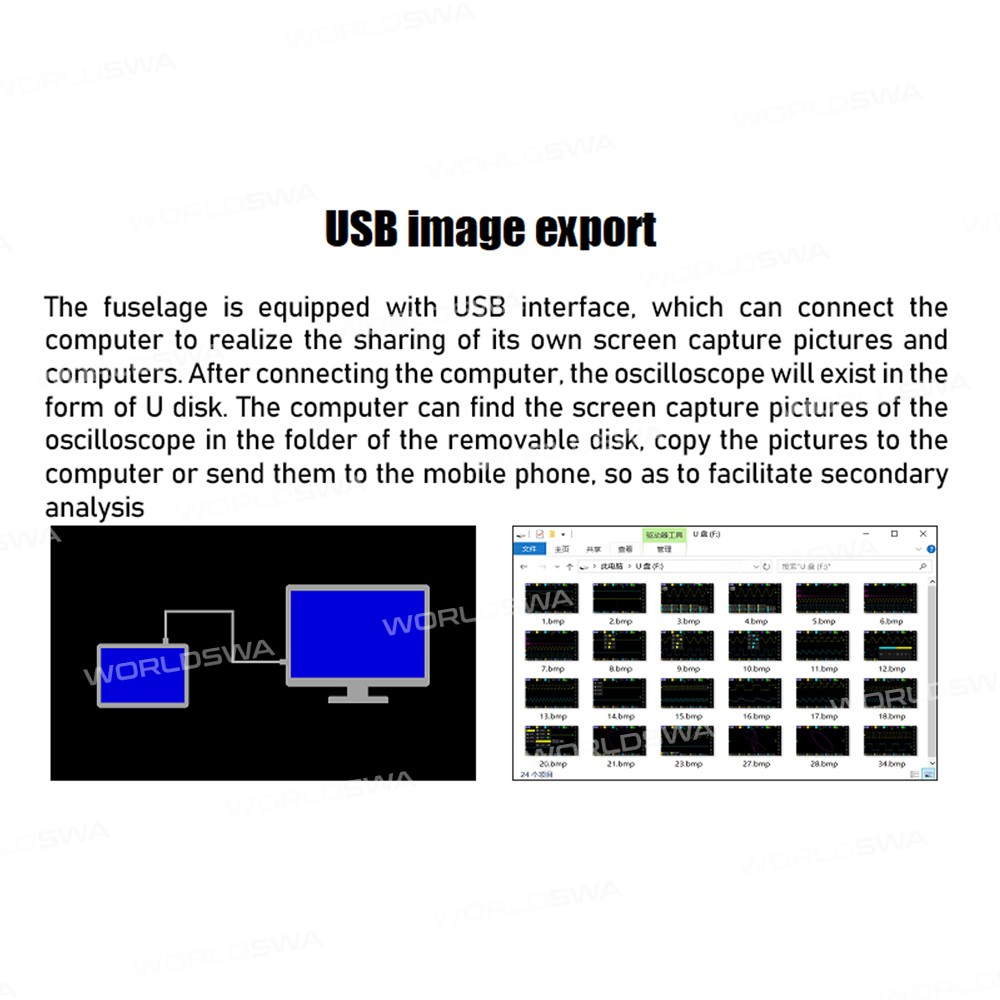

• Extension Ports: USB picture export
• Package Size: 340 * 140 * 70mm / 13.4 * 5.5 * 2.8in
• Package Weight: 1949g / 4.3lb

**Summary of Key Features:**

• Dual-channel input signal generator
• 100MHz analog bandwidth
• 1GSa/s sampling rate
• Up to 50,000wfm/s waveform capture rate
• USB picture export and external trigger voltage

What's in the Box:

• 1 x Fnirsi-1014D Portable Oscilloscope
