Fnirsi 2C23T Handheld 3-in-1 Digital Oscilloscope, Multimeter and Signal Generator

Fnirsi 2C23T Handheld 3-in-1 Dual Channel Digital Oscilloscope + Multimeter + Signal Generator

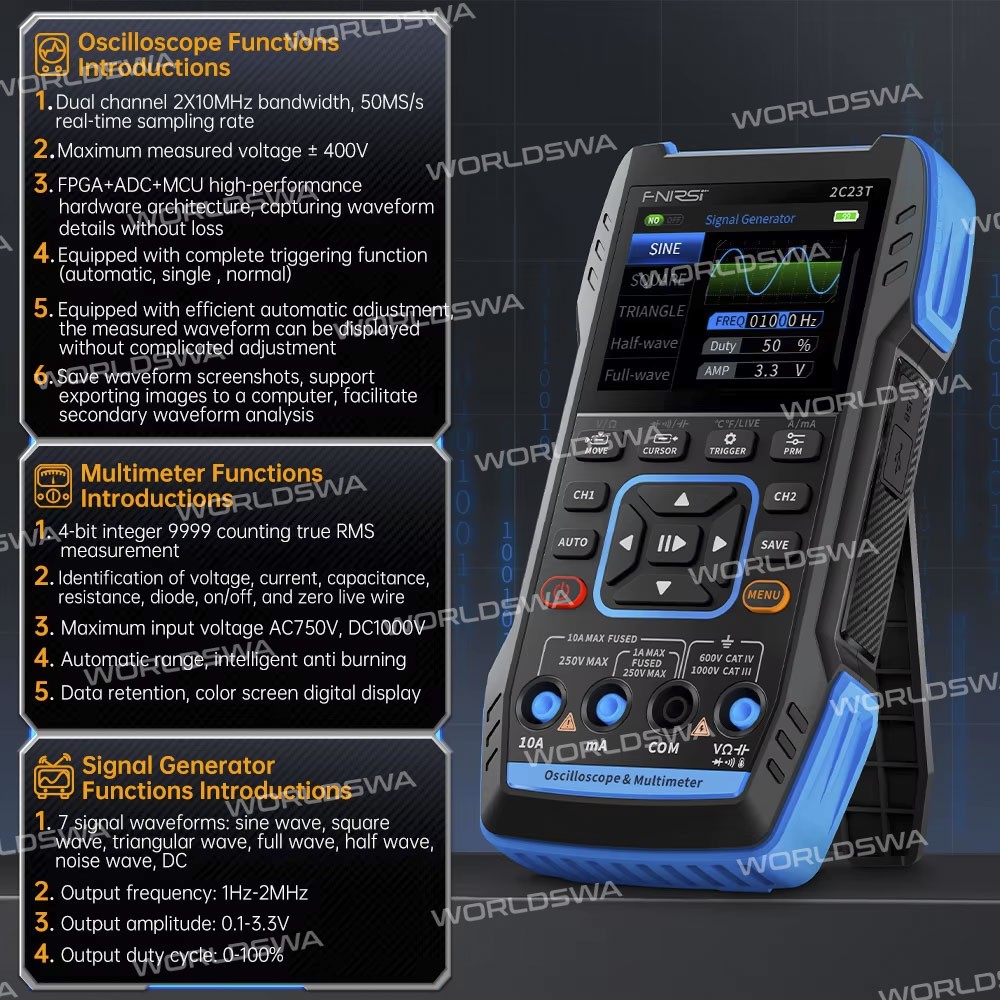

Features:

• **3-in-1 Multi-Functional Design**: Oscilloscope, Multimeter, and Signal Generator in one device, perfect for maintenance and development industries.
• FPGA+MCU+ADC hardware architecture with a sampling rate of 50MS/s, 10Mhz analog bandwidth, and built-in high-voltage protection module.
• **Save and View Waveform Screenshots**: 4-digit 10000 point true effective value, supports AC/DC voltage and current measurement, capacitance, resistance, diode, on/off, and other measurement functions.
• **DDS Function Signal Generator**: Outputs 7 types of function signals, with a maximum output of 2MHz for all signals and a step of 1Hz, adjustable output frequency, amplitude, and duty cycle.
• **High-Definition LCD Screen**: 2.8 inch 320*240 resolution, with a built-in 3000mAh rechargeable lithium battery, standby time up to 6H.
• **Portable and Practical**: Provides users with more and stronger practical functions in a compact size, ideal for professionals, factories, schools, enthusiasts, or families.

Specification:

Oscilloscope:

• Channel: Dual-channel
• Sample rate: 50M
• Analog bandwidth: 10M (Dual channel independent 10M)
• Storage depth: 32kB
• Impedance: 1MΩ
• Time Base Range: 50ns~10s
• Vertical sensitivity: 20mV/div~10V/div (X1)
• Maximum measured voltage: ±400V
• Trigger mode: Auto/Normal/Single
• Trigger type: Rising edge, Falling edge
• Display mode: YT/Scroll
• Coupling method: AC/DC
• Save waveform screenshot: Yes
• Export waveform images: Yes

Multimeter:

• DC Voltage: 9.999V~999.9V
• AC voltage: 9.999V~750.0V
• DC current: 9999uA~9.999A
• AC current: 9999uA~9.999A
• Resistance: 999.9Ω~99.99MΩ
• Capacitance: 9.999nF~99.99mF
• Temperature Range: -55~1300℃/-67~2372℉
• Diode: Yes
• Continuity test: Yes
• Live line detection: Yes

Signal Generator:

• Channel: Single channel
• Frequency: 1Hz~2MHz
• Amplitude: 0.1~3.3V

Package includes:

• 1 x 2C23T
• 1 x P6100 Probe (The Premium Version is two)
• 1 x Crocodile Clip Probe
• 1 x Multimeter Test Leads
• 1 x Charging Cable
