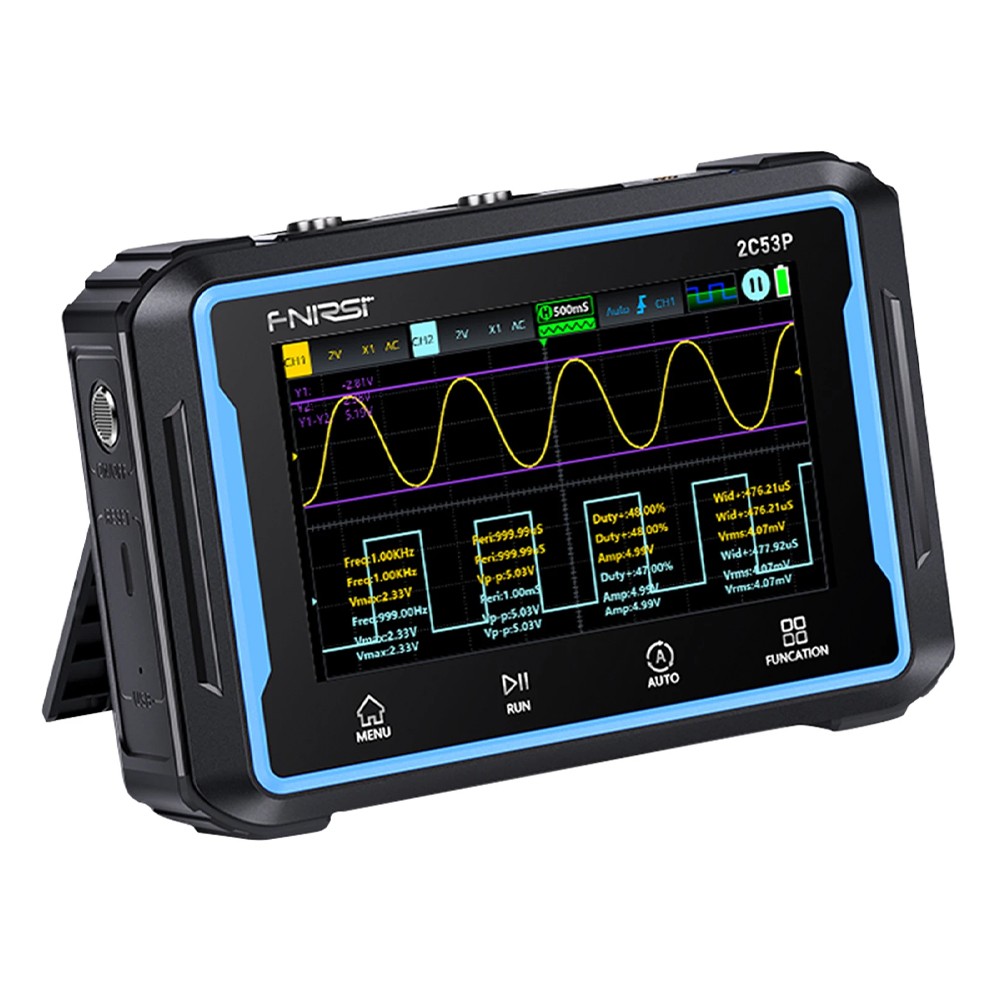

Fnirsi 2C53P 3-in-1 Digital Oscilloscope Multimeter with Touch Screen and Signal Generator

Fnirsi 2C53P Handled 3-in-1 Digital Oscilloscope Multimeter Signal Generator with Touch Screen

Features:

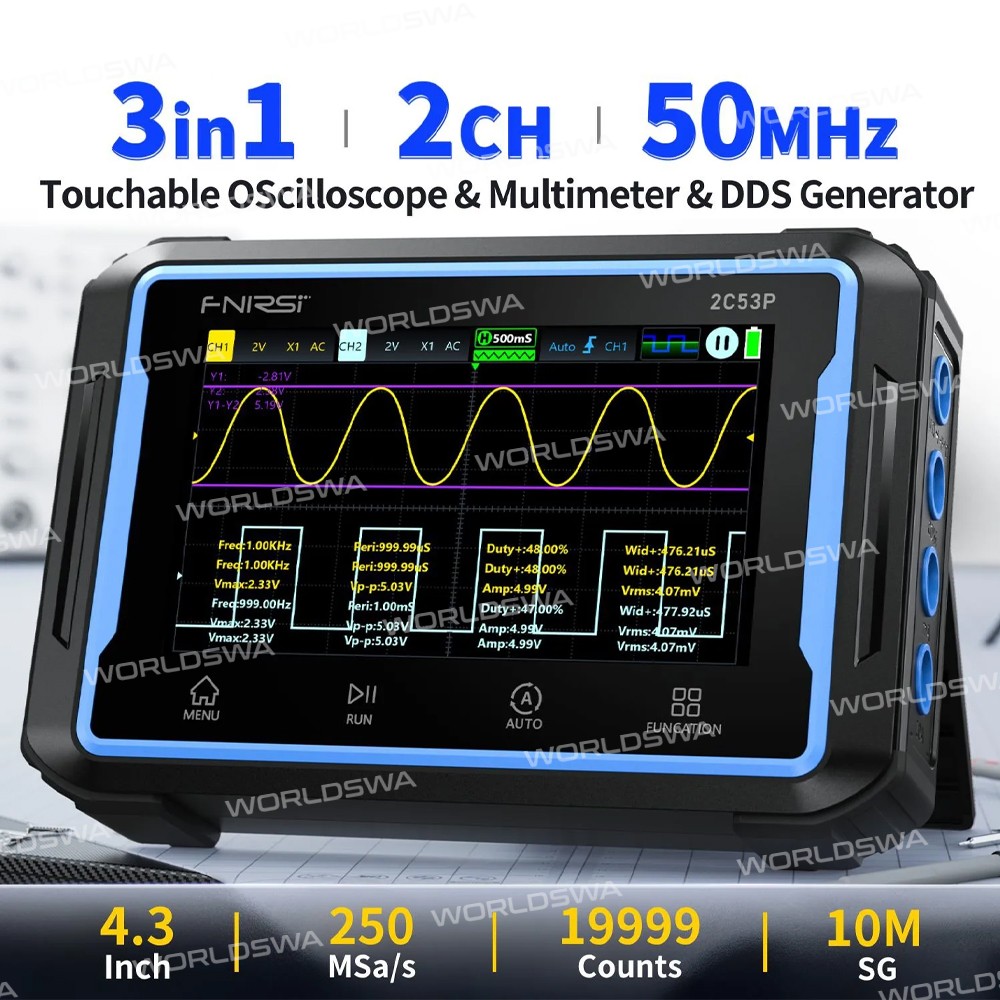

This 3-in-1 device integrates a 50MHz bandwidth oscilloscope, 4.5-digit high-precision multimeter, and 10M signal generator functions into one unit. It features a 4.3-inch IPS touchscreen, enabling multi-faceted and precise electronic signal detection and analysis.

**Key Highlights:**

• **Integrates oscilloscope, multimeter, and signal generator functions**

• **4.3-inch IPS touchscreen for easy operation**

• **50MHz bandwidth oscilloscope with 12-kind adjustable waveform signal generator**

• **4.5-digit high-precision multimeter with various measurement functions**

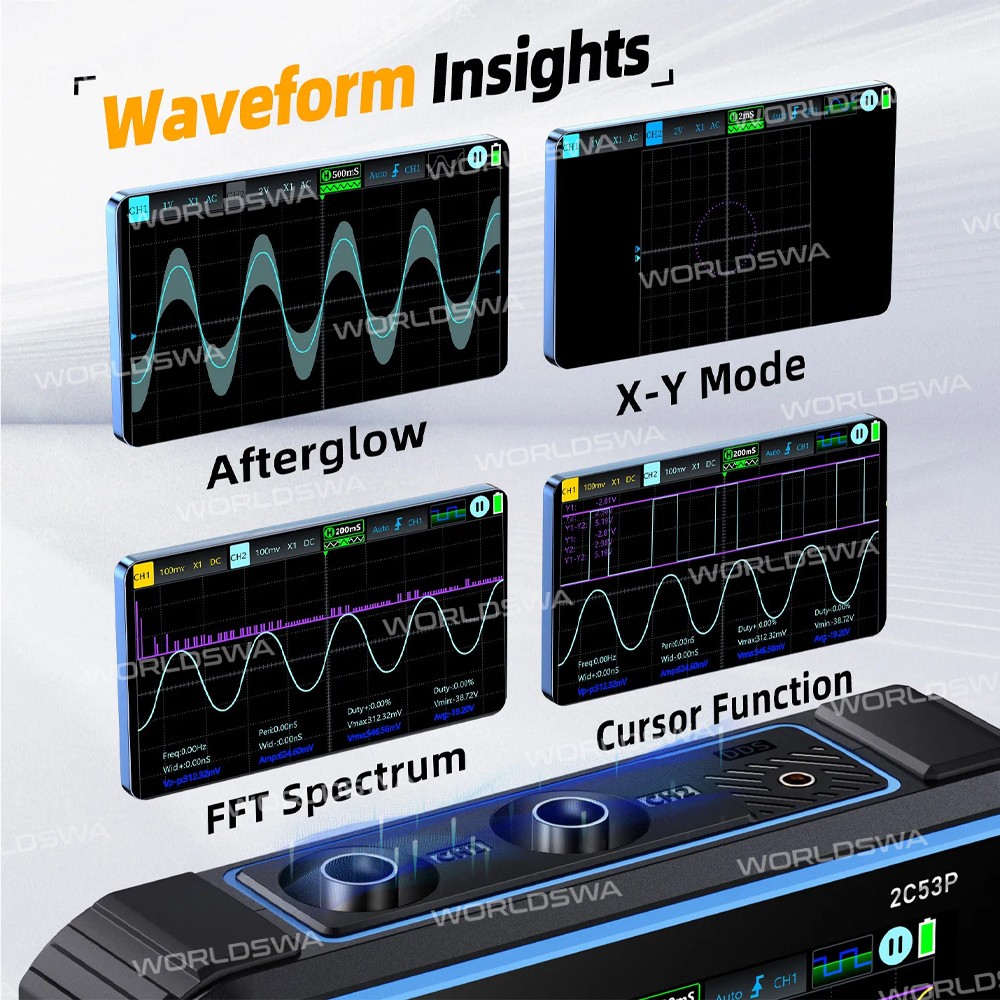

• **Supports FFT spectrum analysis, mathematical operations, and cursor measurement**

• **Built-in 4000mAh high-capacity Li-ion battery for long-lasting power support**

The device supports DC voltage, AC voltage, high current, low current, resistance measurement, capacitance measurement, temperature measurement, diode measurement, and on/off measurement functions. It also features a powerful waveform computing ability, real-time accurate addition, subtraction, multiplication, and division operations, in-depth analysis and processing of complex signals, waveform computing display clearer, helping in signal processing and troubleshooting.

The operation interface is simple and intuitive, with a one-button Auto function for quick setup, a 20M bandwidth limiting function for precise positioning of weak signals, and multiple triggering modes to adapt to complex measurement needs so that every measurement is efficient and accurate.

Specification:

Battery: 1 * built-in 4000mAh battery (included)

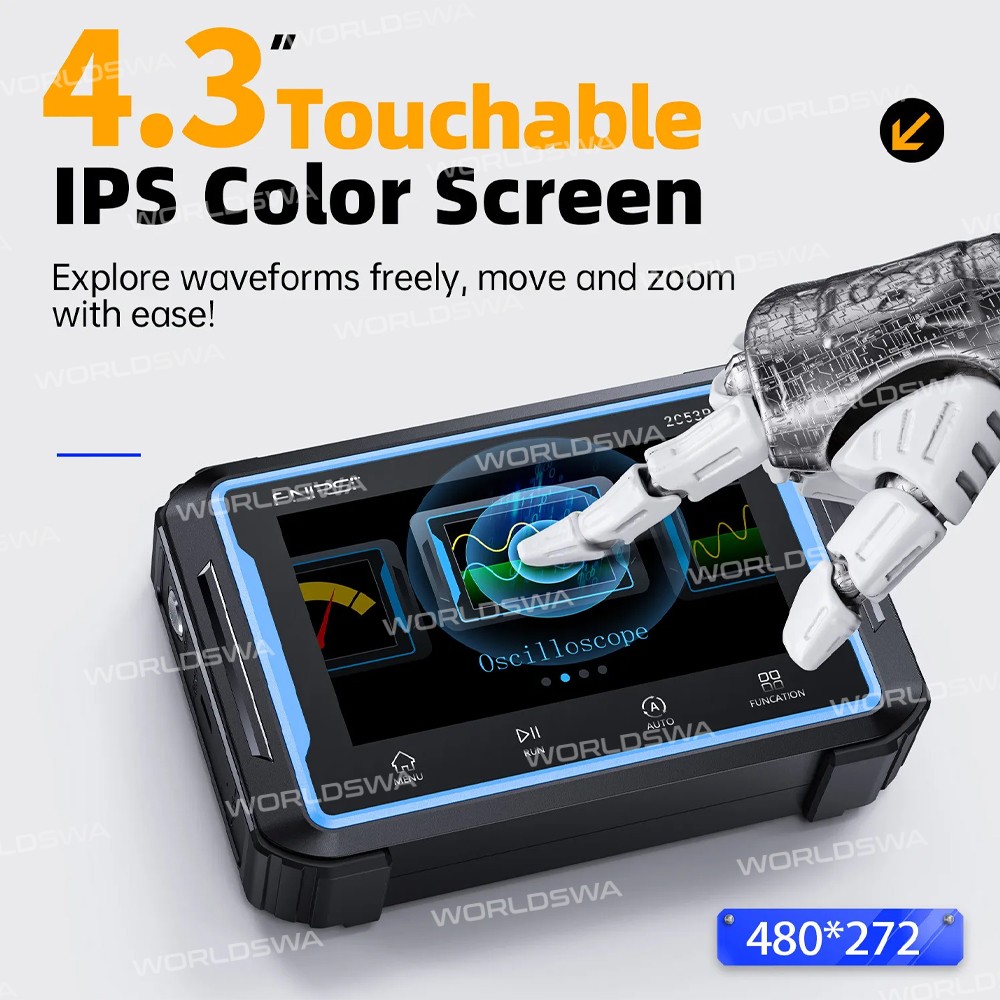

Screen size & resolution: 4.3 Inch (480*272 pixels) IPS display

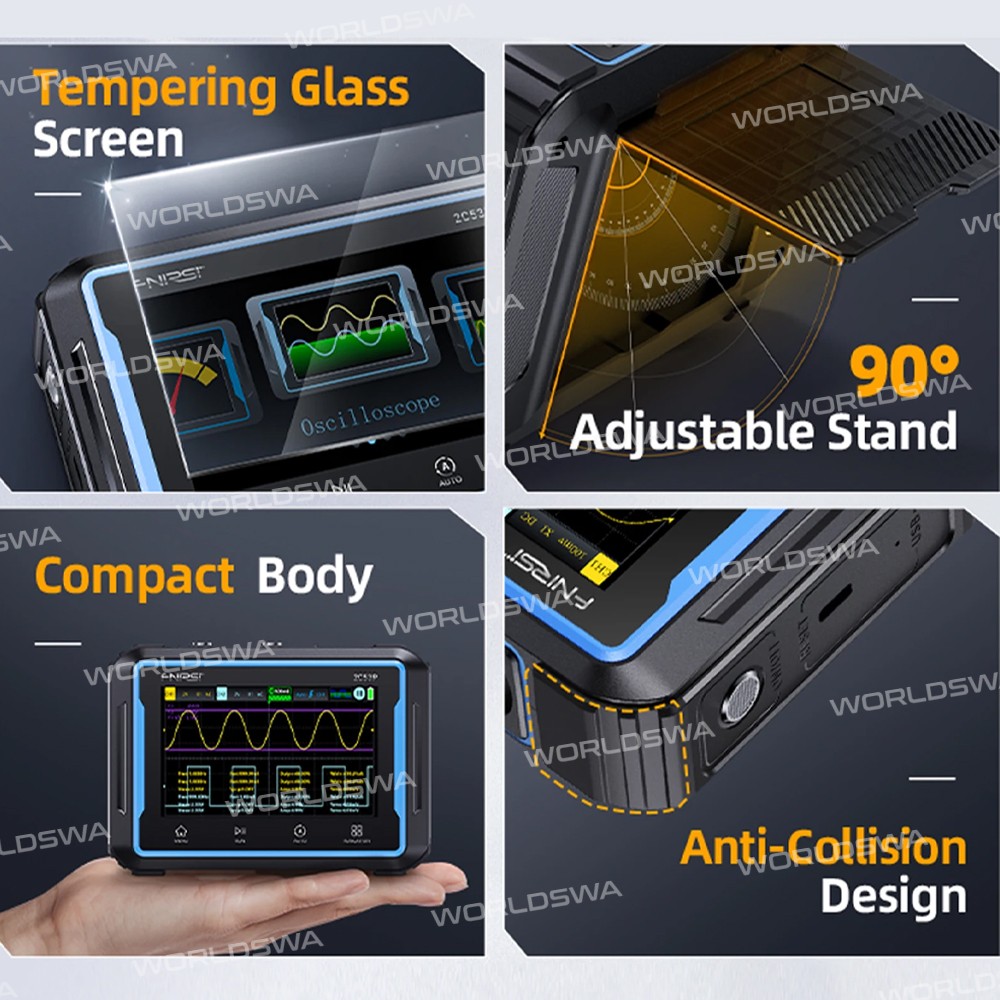

Screen material: surface tempered glass

Architecture: ADC+MCU+FPGA

Backlight: brightness can be set

Charging interface: Type-C (5V/2A)

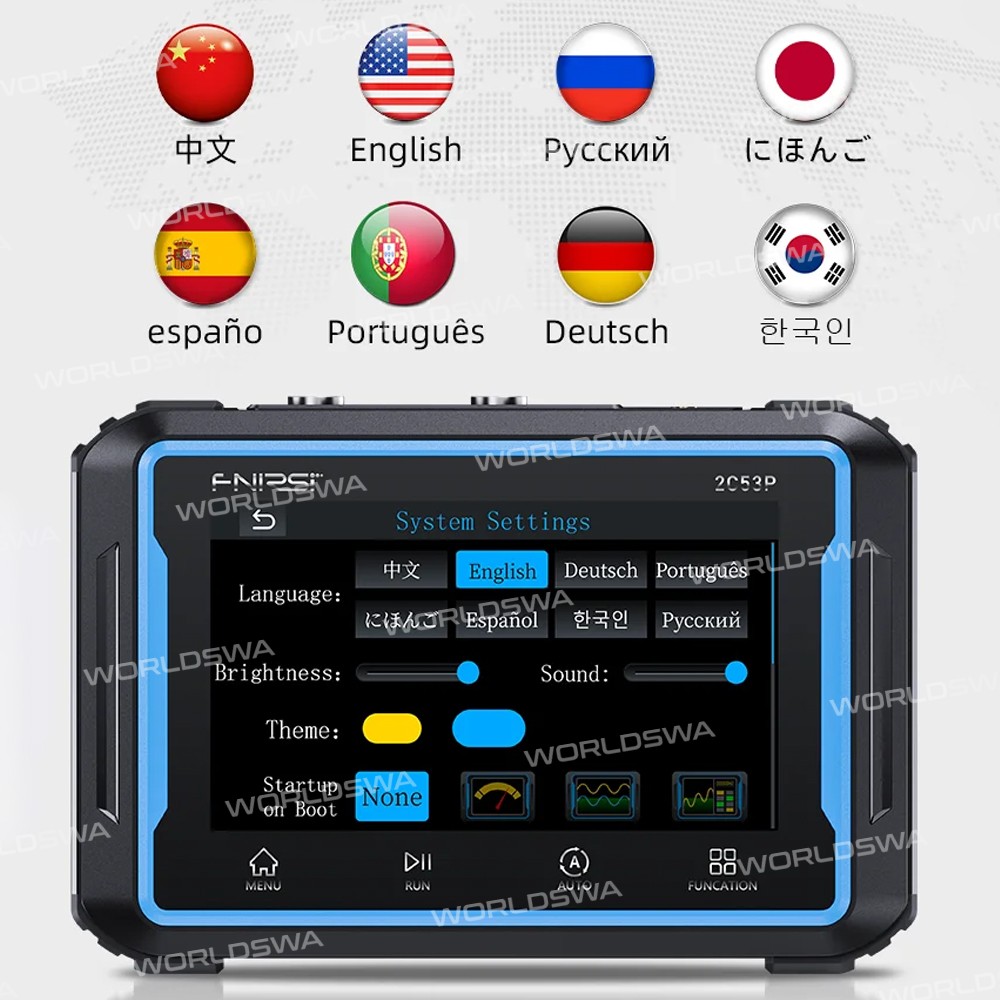

Language: Chinese, English, Pyccкий, にほんご, español, Português, Deutsch, 한국인

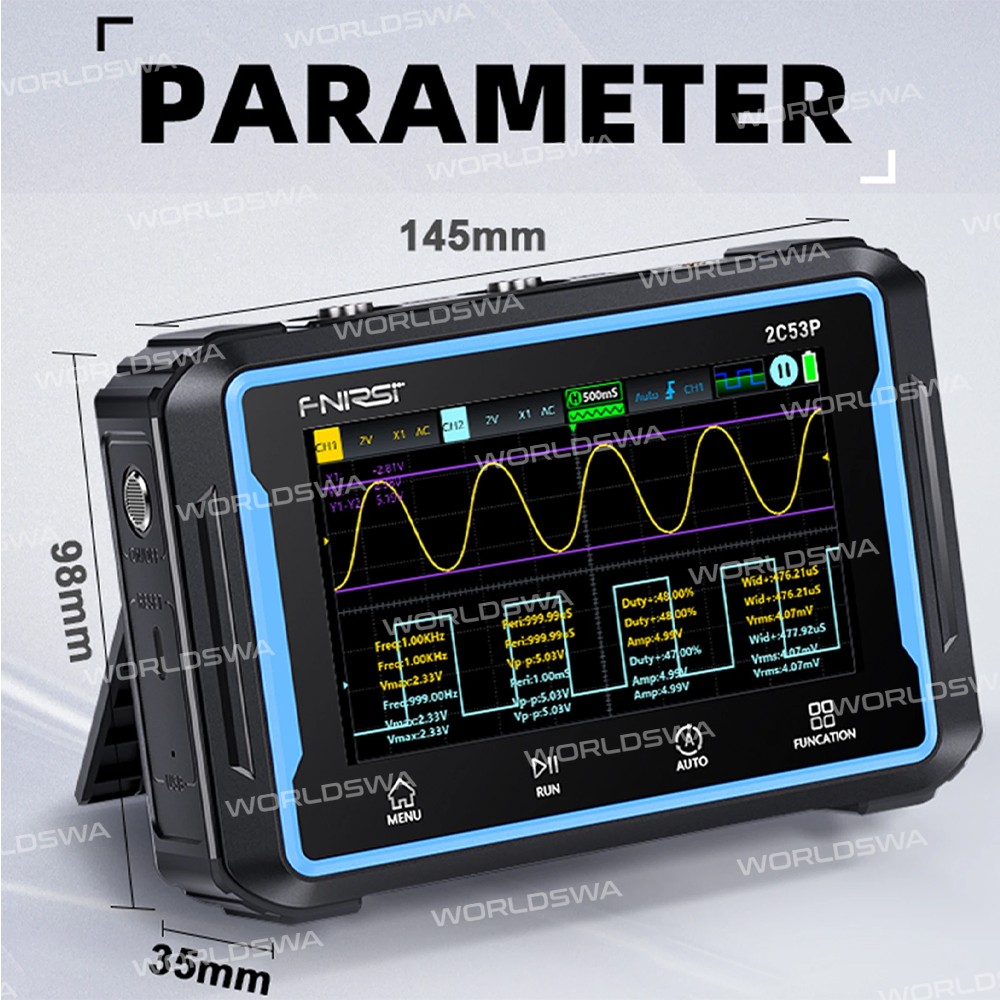

Item size: 145 * 98 * 35mm

Item weight: 360g

Oscilloscope:

Channel: Dual channel

Analog bandwidth: 50MHz

Real-time sample rate: 250MSa/s

Storage depth: Up to 64kByte

Input impedance: 1MΩ

Time base range: 10ns/div - 10s/div

Vertical sensitivity: 10mv/div - 10v/div

Vertical resolution: 8 bits

Maximum measured voltage: ±400V

Probe: 1x/10x

Storage space: 13M

Bandwidth limit: Support 20MHz limit

Trigger mode: AUTO/Normal/Single

Trigger type: Rising edge, Falling edge

Trigger level range: 8 cells (positive/negative)

Waveform display mode: XY/YT/Scroll

Coupling method: alternating current/direct current

Measured data: Period, frequency, peak-to-peak value, maximum value, minimum value, Average value, effective value, amplitude, duty cycle, pulse width

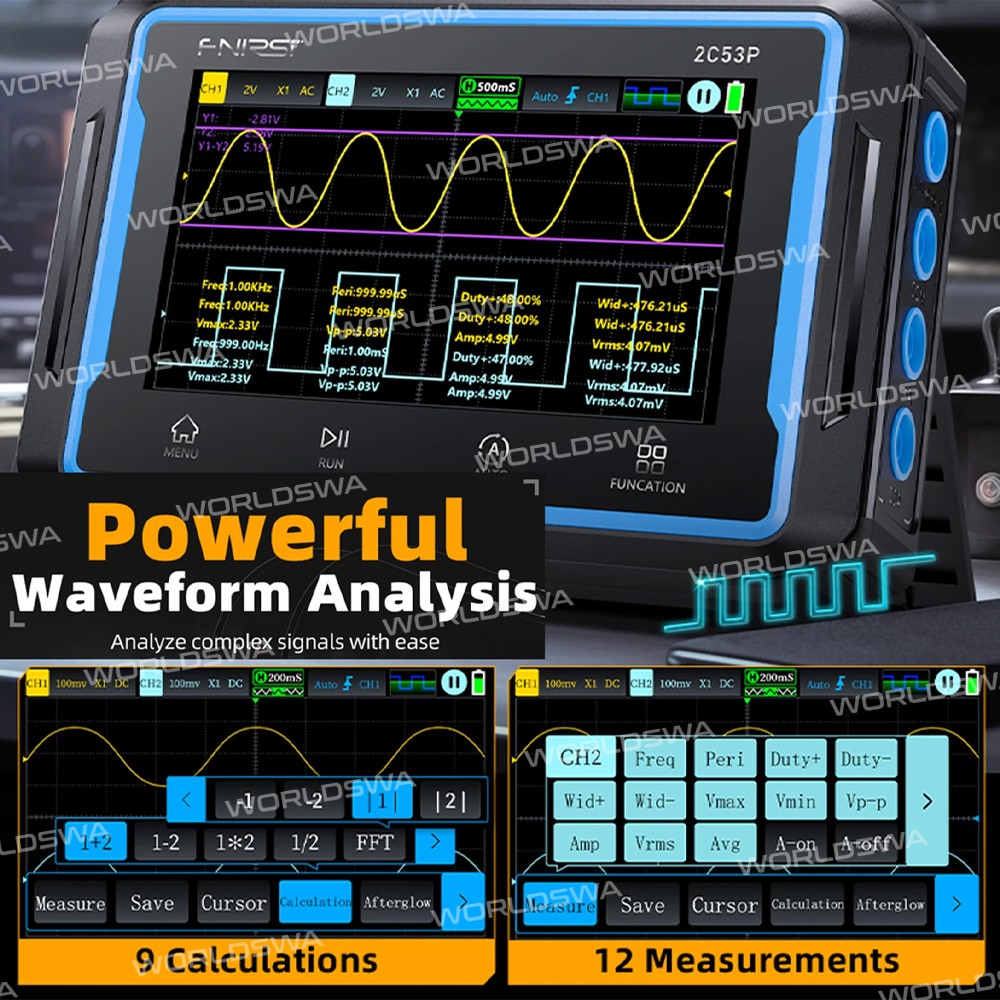

Math calculations: 1+2、1-2、1*2、1/2、-1、-2、|1|、|2|、FFT

Save waveform screenshot: Yes

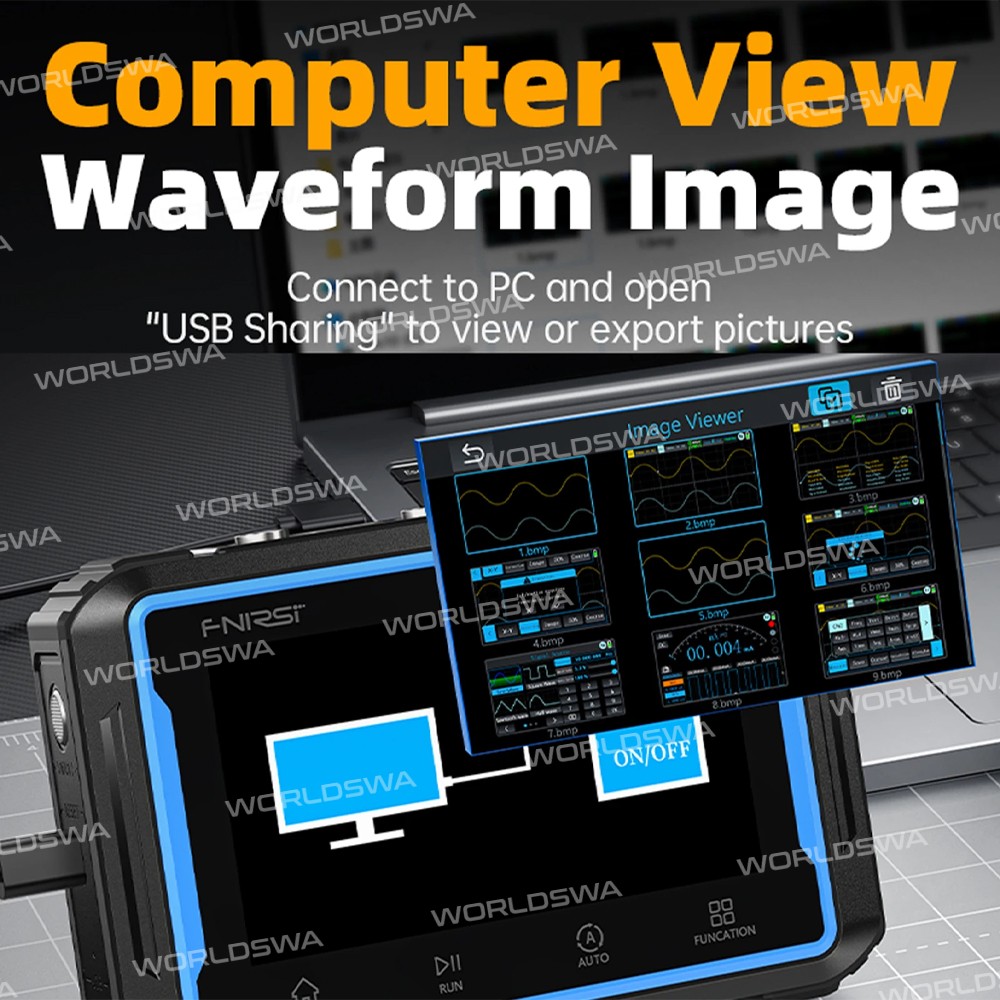

Export waveform images from computers: Yes

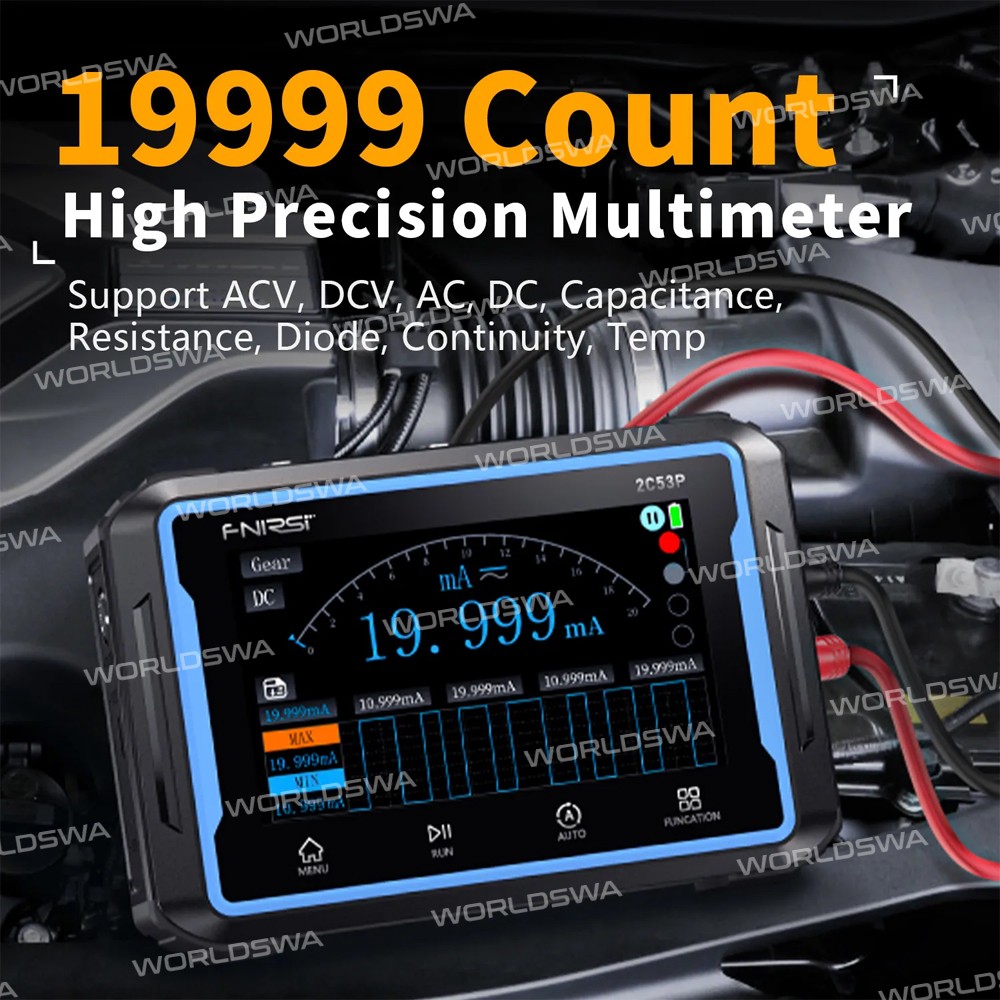

Multimeter:

DC voltage: 1.9999V/19.999V/199.99V/1000.0V, ±(0.5%+3)

AC voltage: 1.9999V/19.999V/199.99V/760.0V, ±(1%+3)

DC current: 19.999mA/199.99mA/1.9999A/9.999A, ±(1.2%+3)

AC current: 19.999mA/199.99mA/1.9999A/9.999A, ±(1.5%+3)

Resistance: 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ, ±(1.5%+3); 1.9999KΩ/199.99Ω, ±(0.5%+3)

Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF, ±(2.0%+5); 9.999mF/99.99mF, ±(5.0%+20)

Temperature: (-55~1300℃)/(-67~2372℉), ±(2.5%+5)

Diode: Yes

Continuity test: Yes

Signal Generator:

Channel: Single-channel

Frequency: 0-10MHz（Sinewave: 10MHz, other waveforms 5MHz）

Amplitude: 0.1V-3.0V

Squarewave duty cycle: 0-100%

Signal type: sinusoidal waves, square waves, sawtooth waves, half waves, full waves, positive step waves, negative step waves, direct current signals, exponential rises, exponential falls, multi-audio signals, and sync pulses

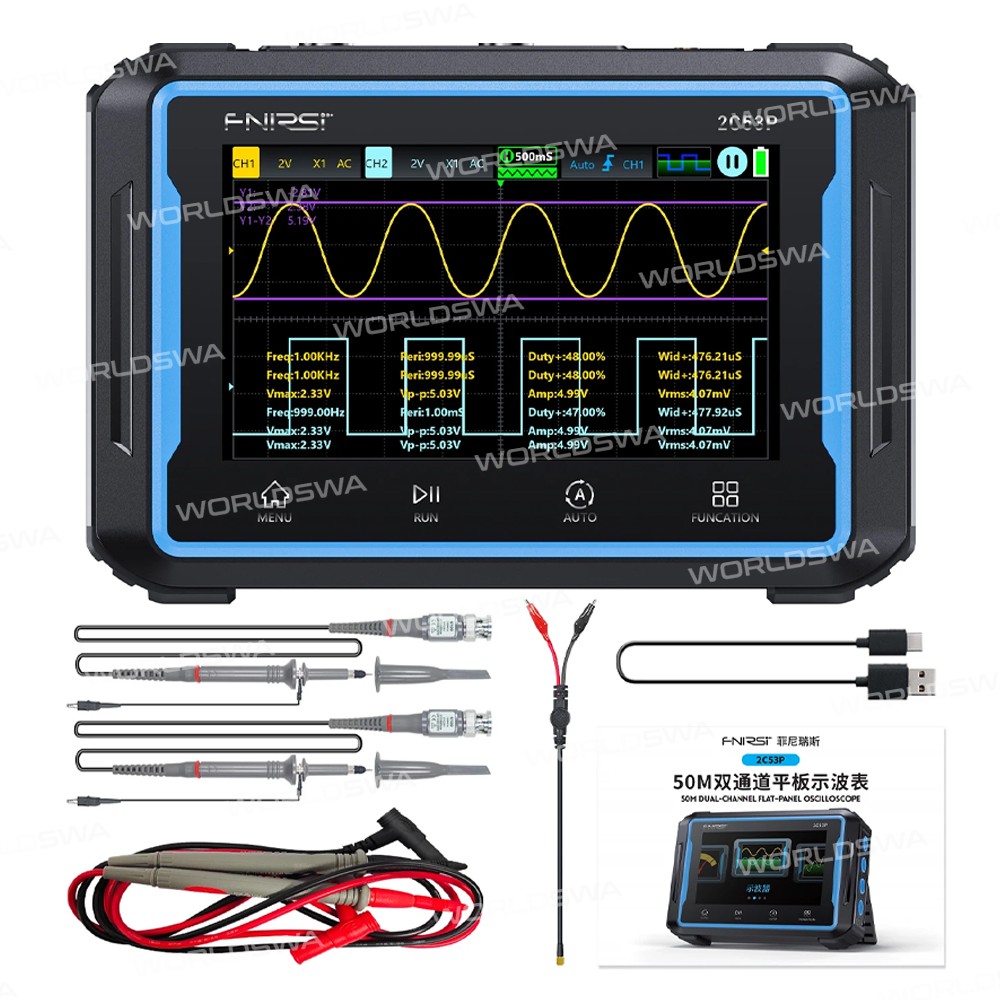

Package includes:

1 x Host

2 x P6100 Probe

1 x Multimeter Pen

1 x Clip Probe

1 x Cable
