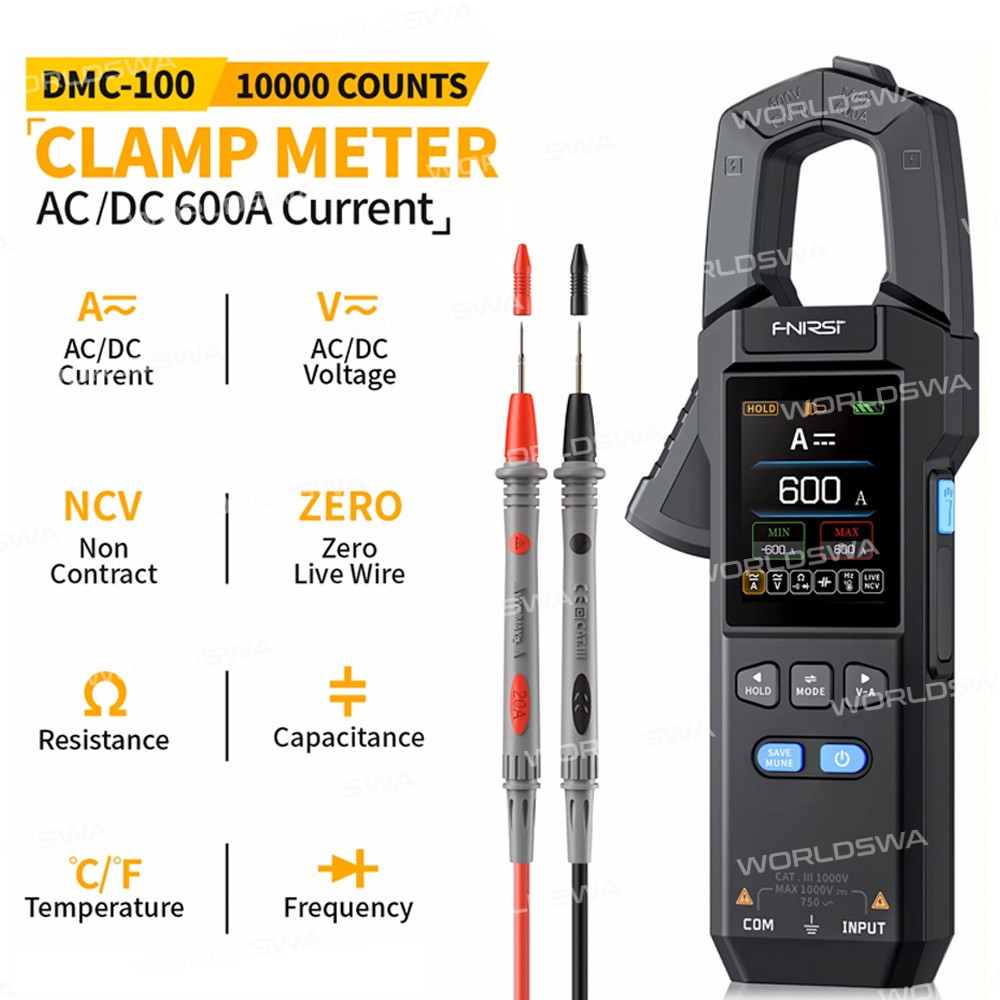

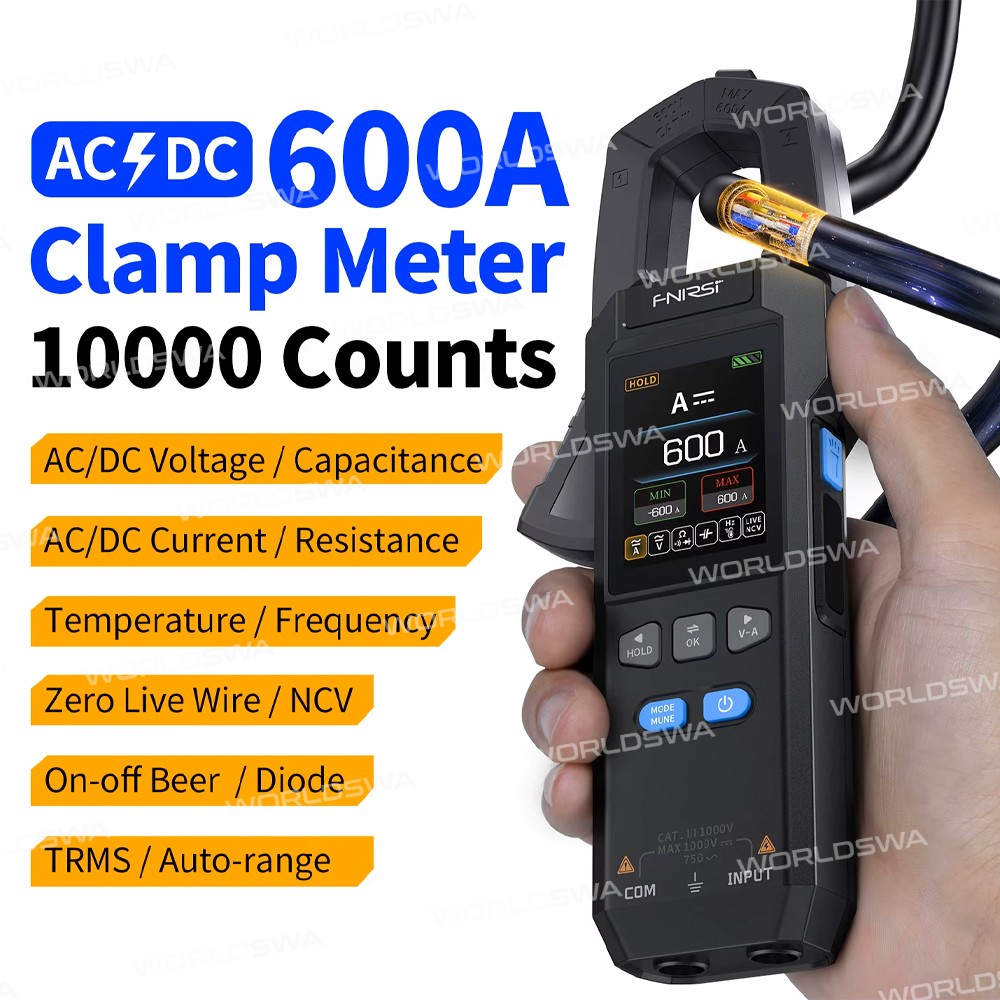

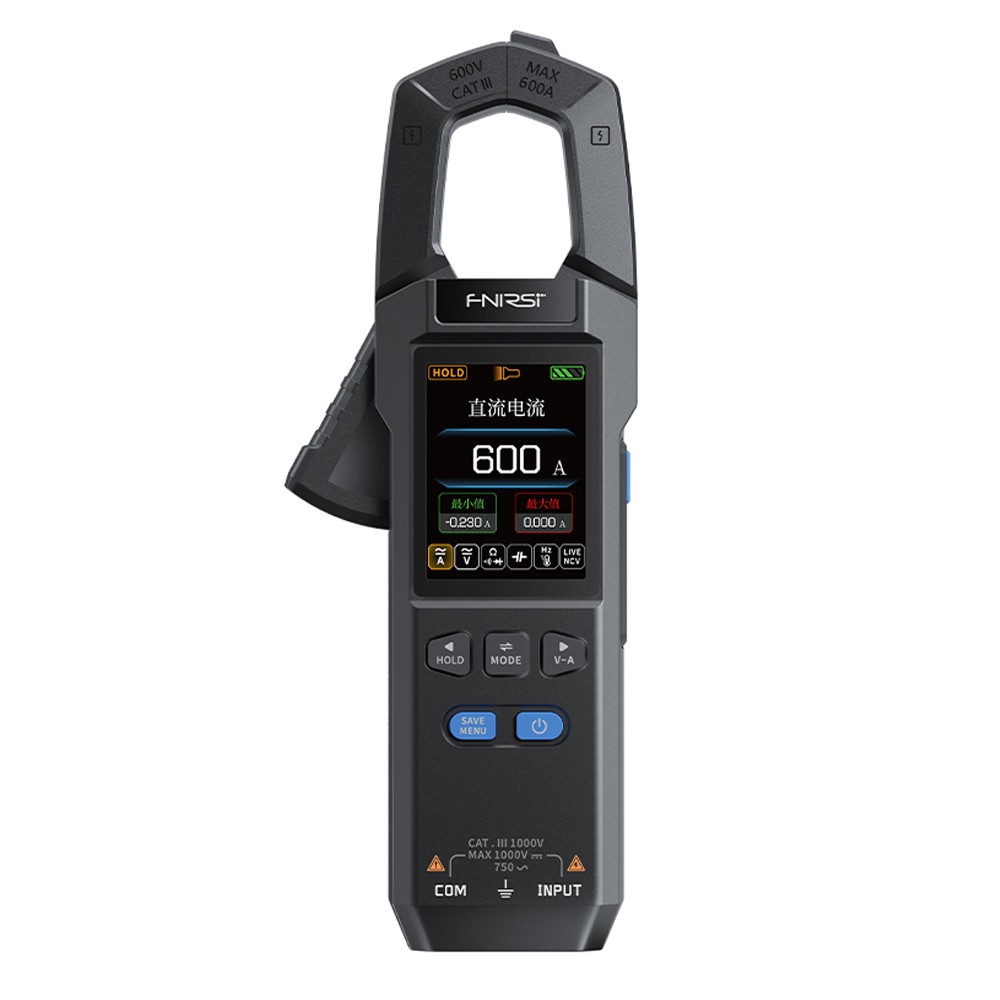

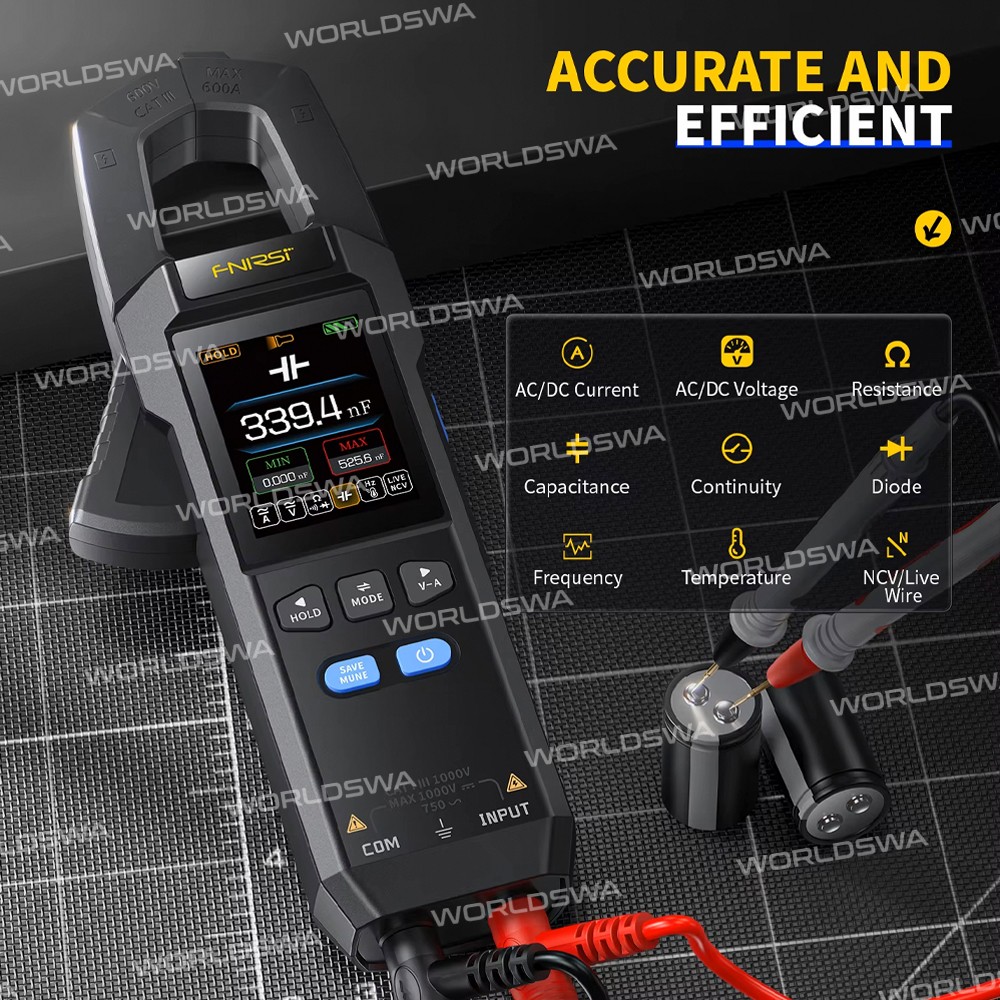

Fnirsi DMC-100 10000 Counts NCV 600A DC / AC Current Clamp Meter

Fnirsi DMC-100 10000 Counts NCV 600A DC / AC Current Clamp Meter

Features:

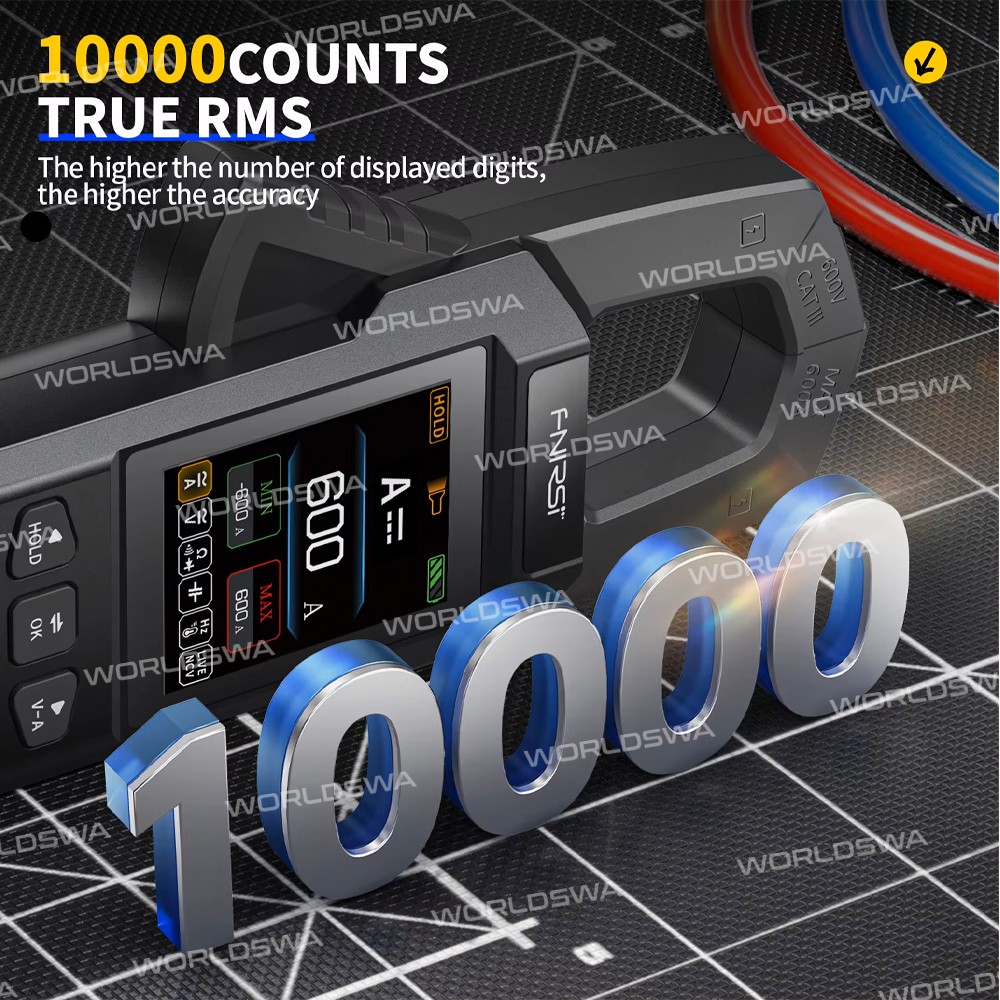

• DMC-100 is a 10000-count high-precision intelligent clamp meter, covering 750V voltage and 600A current ultra-wide range

• Equipped with a 2.0-inch 240 * 320 full-color TFT screen, the new UI and data curve intuitive presentation, so that readings at a glance

• Routine measurement, waveform display, power measurement of the three modes of switching at will, with 3.7V 1500mAh long-lasting battery, lasting battery life

• NCV non-contact power measurement, zero fire line identification, temperature -55 ~ 1300 ℃ wide range of measurement and other powerful features, supplemented by flashlight, screen backlight, data saving and other thoughtful design, Type-C interface to achieve charging and data transmission double convenient

• Intelligent automatic shutdown, temperature unit free switching, brightness adjustable, firmware upgradeable, DMC-100, your indispensable electronic maintenance all-around assistant

Specification:

• Model: DMC-100

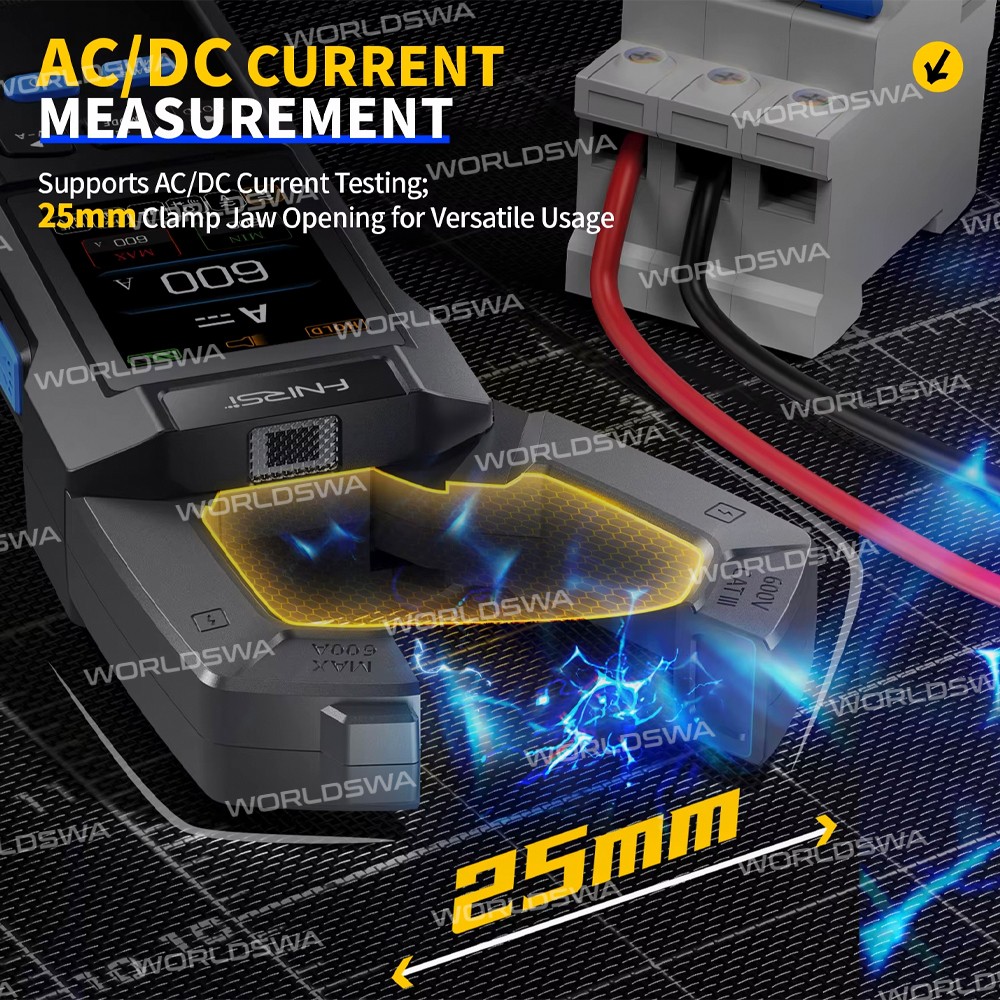

• Maximum size of jaws: 25mm

• Screen: 2.0'' TFT color screen

• Screen resolution: 240*320 pixels

• Battery capacity: 3.7V, 1500mAh battery

• Charging specification: USB Type-C, 5V/1A

• DC voltage: 9.999V/99.99V/999.9V

• AC voltage: 9.999V/99.99V/750.0V

• DC current/AC current: 99.99A/600.0A

• Resistance: 99.99MΩ/9.999MΩ/999.9KΩ/99.99KΩ/9.999KΩ/999.9Ω

• Capacitance: 9.999mF/99.99mF/999.9μF/99.99μF/9.999μF/999.9nF/99.99nF/9.999nF

• Frequency: 9.999MHz/999.9KHz/99.99KHz/9.999KHz/999.99Hz/99.99Hz/9.999Hz

• Temperature: -55~1300℃/-67~2372℉

• Diode Measurement: Yes

• On-off test: Yes

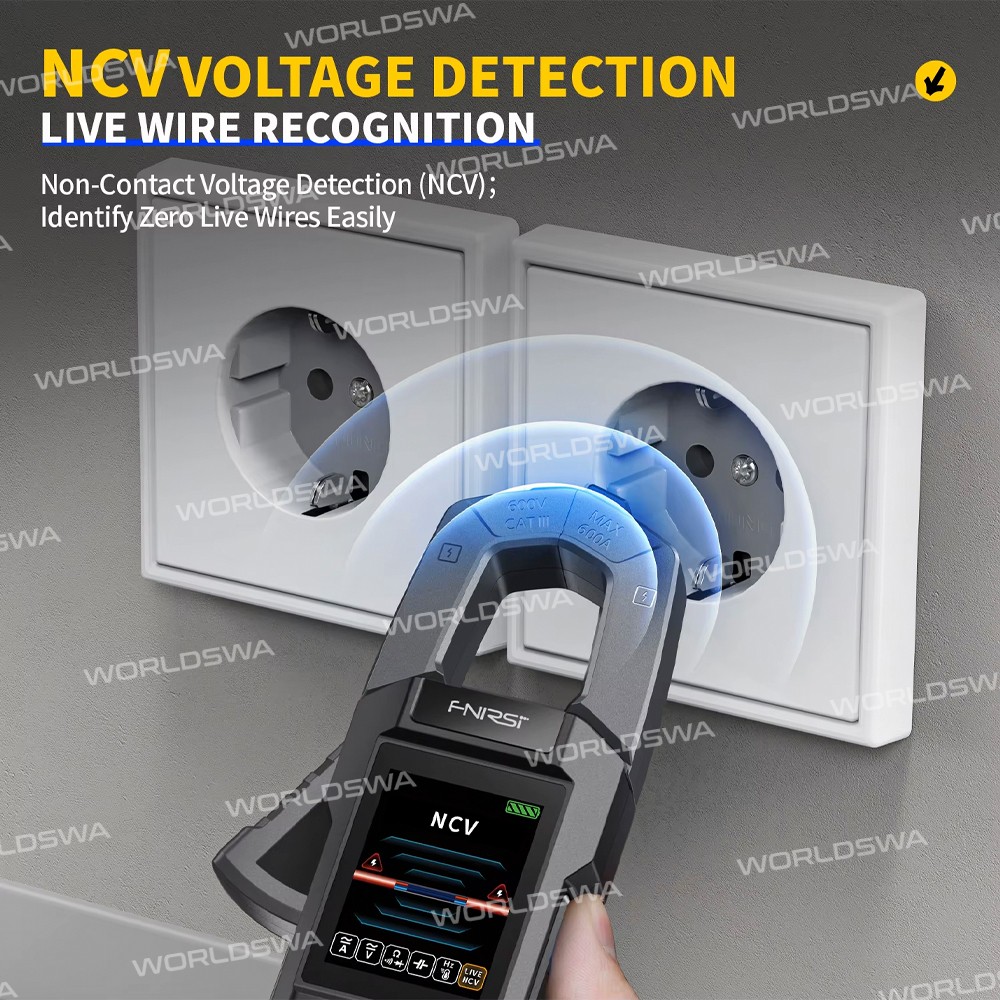

• Non-Contact Voltage Check (NCV): Yes

• Zero Fire Wire Check: Yes

• Measuring Mode 1: general measurement

• Measuring Mode 2: waveform display

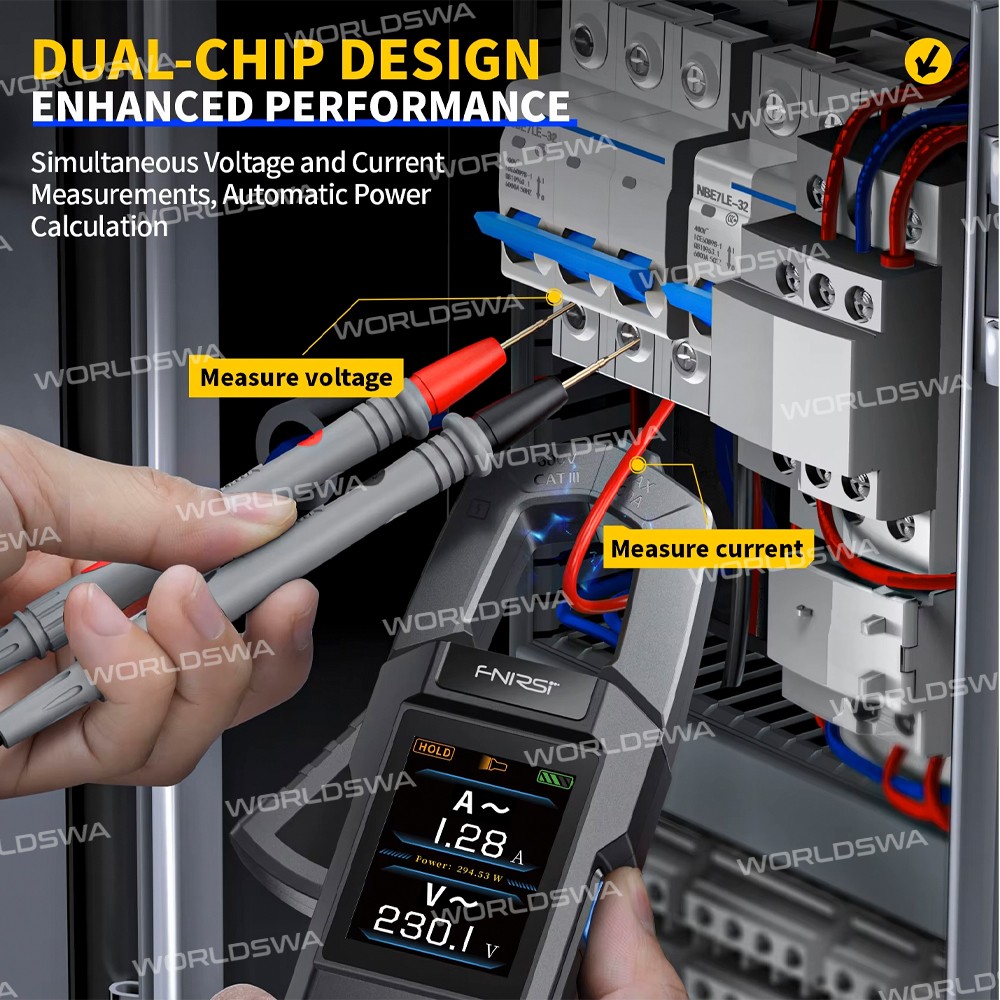

• Measuring Mode 3: power measurement

• Measurement gear: manual adjustment

• Torch: Support

• Data Zeroing: Support

• Maximum/Minimum Value: Support

• Waveform display: Support

• Power Calculation: Support

• Data Hold: Support

• Data Storage and Viewing: Up to 30 groups of data

• Language: Chinese/English

• Brightness Adjustment: 10-speed adjustment

• Temperature unit: ℃/℉

• Auto Power Off: OFF/5min/15min/30m

• Firmware Upgrade: Support

• Product weight: 194g

• Product size: 193*74*32mm

Package includes:

• 1 x Clamp Multimeter

• 1 x Multimeter Pen

• 1 x Temperature Probe
