Fnirsi DPOX180H 2-in-1 Handheld Dual Channel Digital Oscilloscope + Function Signal Generator


Features:

  • Handheld 2-in-1 dual channel digital fluorescence oscilloscope signal generator. As an oscilloscope, it has 180MHz-3DB analog bandwidth and a 500MSPS real-time sampling rate
  • Built-in 20MHz DDS function signal generator with 14 kinds of standard function signals, output amplitude fixed at 1VPP, sinewave frequency up to 20MHz, and other waveform frequency up to 10MHz

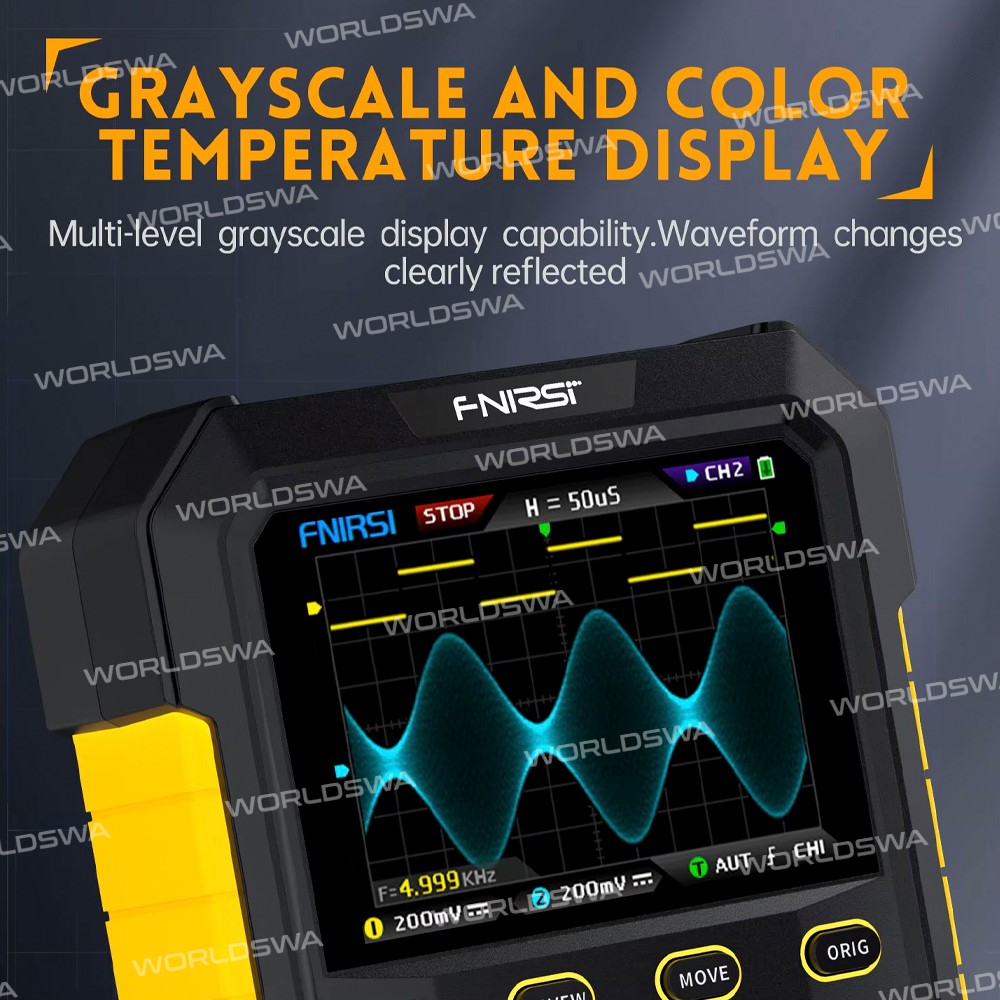

  • 2.8-inch IPS display with clear definition, color temperature display, and multi-level grayscale display capability; waveform changes can be seen in one minute
  • With complete trigger function, automatic, single, regular three trigger modes; rising-edge trigger mode, and falling-edge trigger mode.

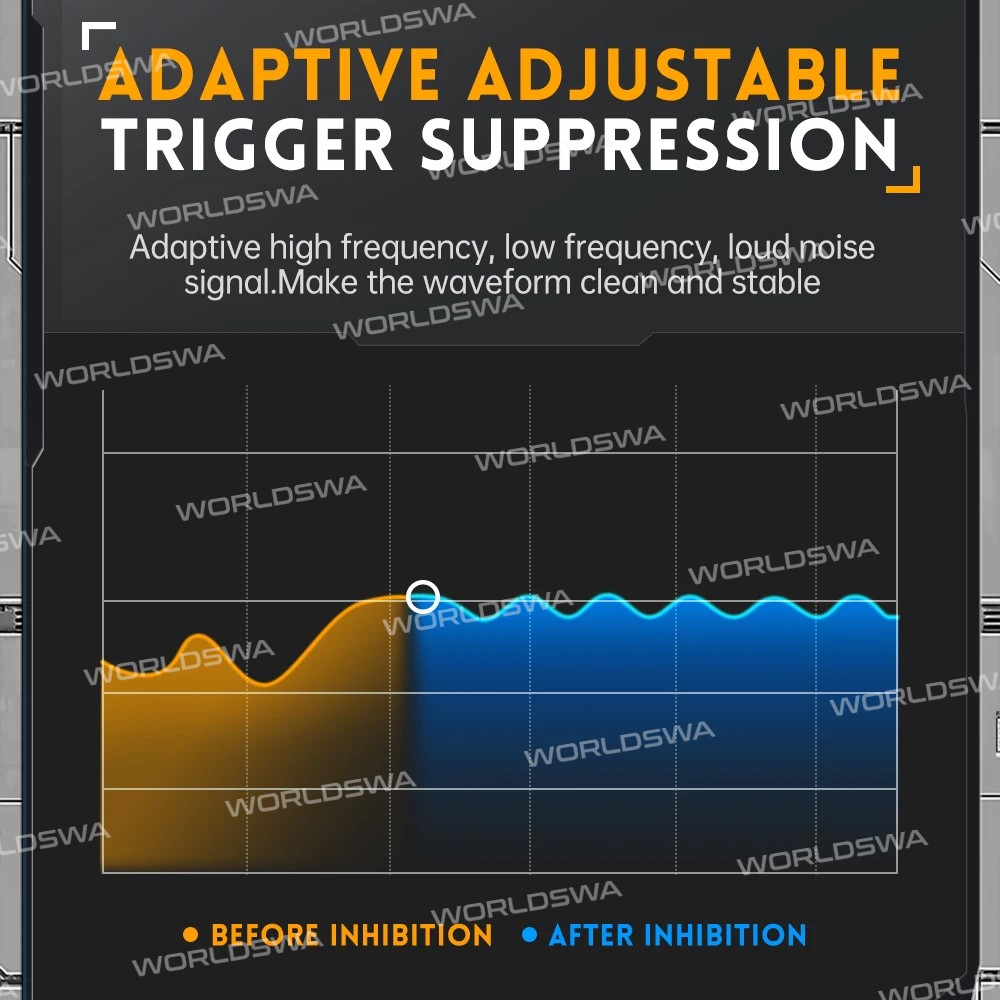

  • Adapts high-frequency, low-frequency, and high-noise signals for clean, stable waveforms

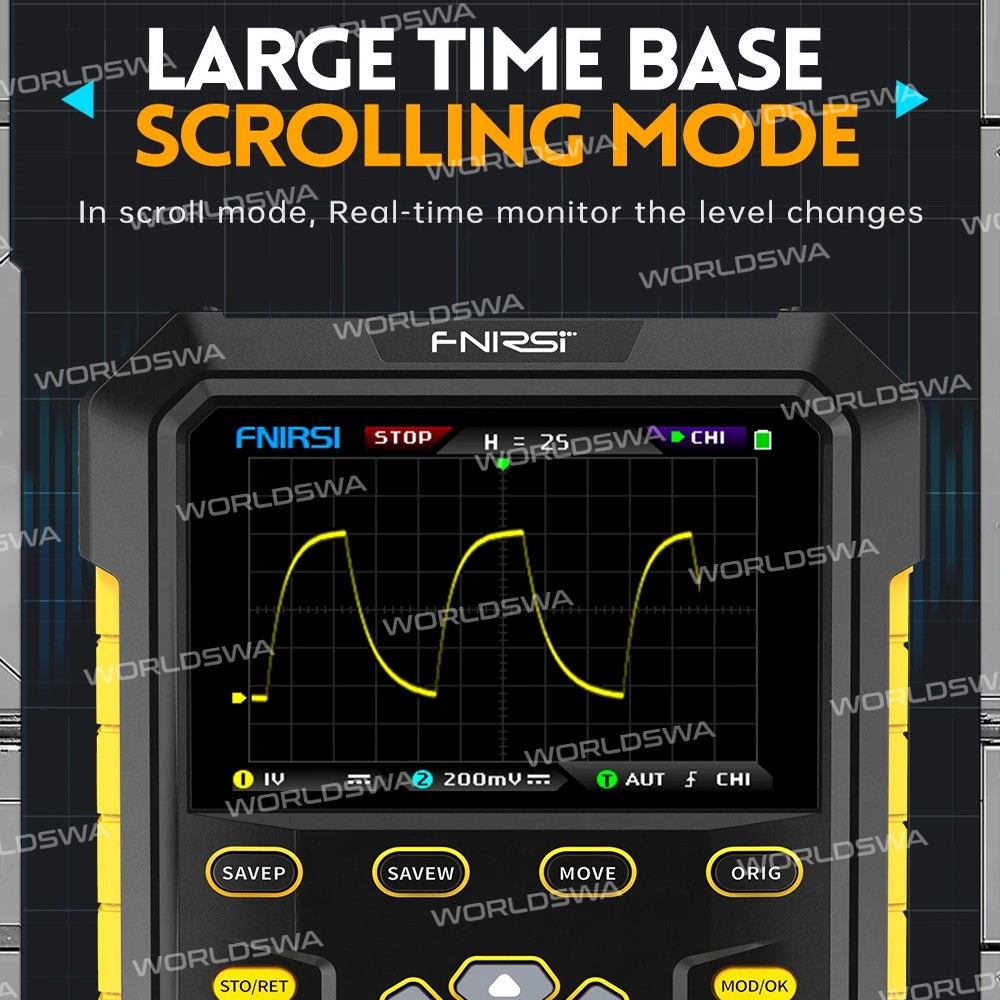

  • In scroll mode, slow-level changes can be monitored in real-time

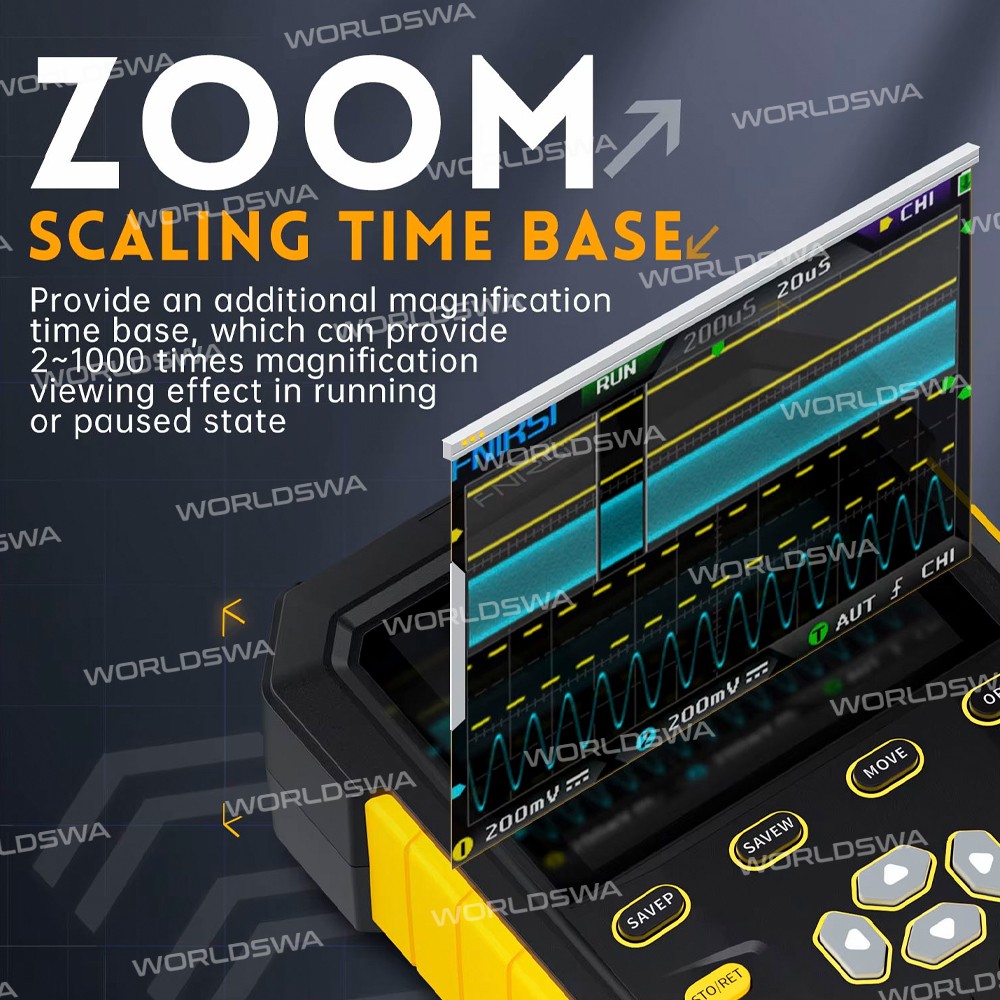

  • Provide an additional amplification time base. It can provide a 2~1000 times amplification view effect in a running or pause state

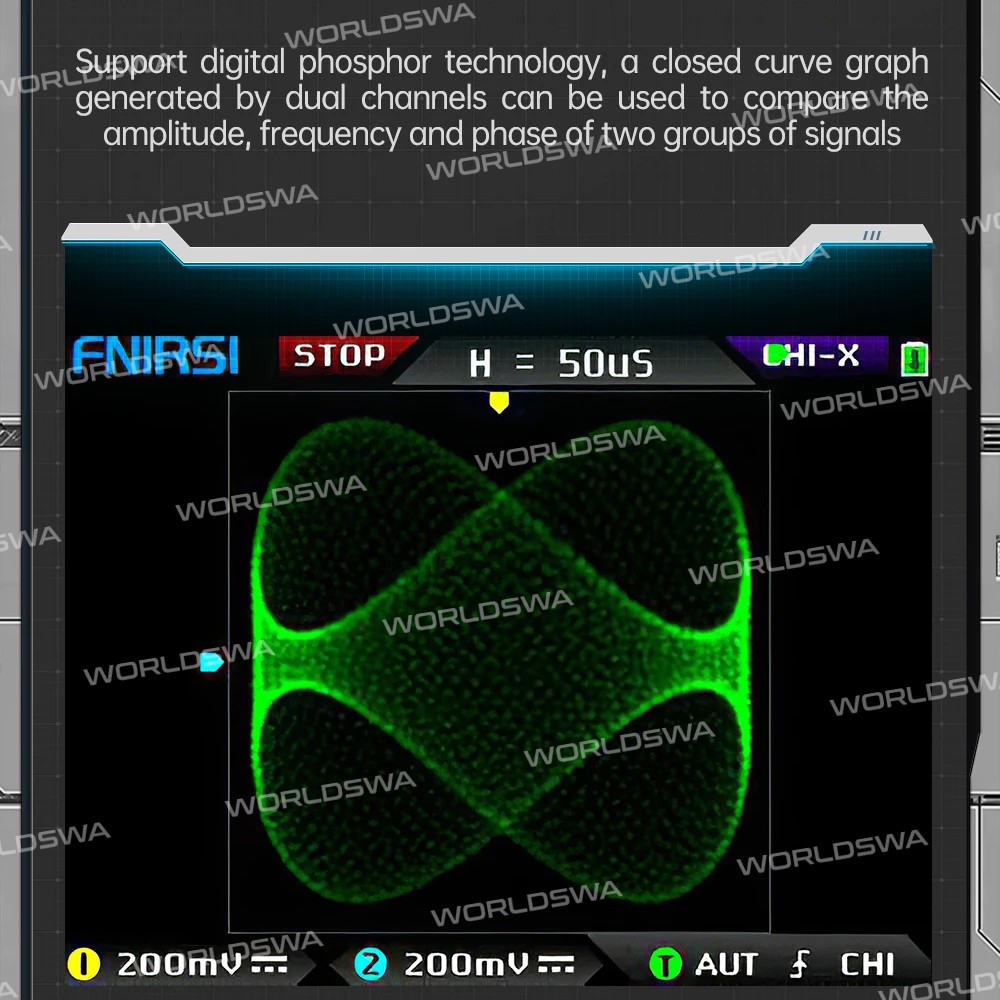

  • Supporting digital fluorescence technology, dual-channel generators generate a closed curve graph that can be used to compare the amplitude, frequency, and phase of two groups of signals

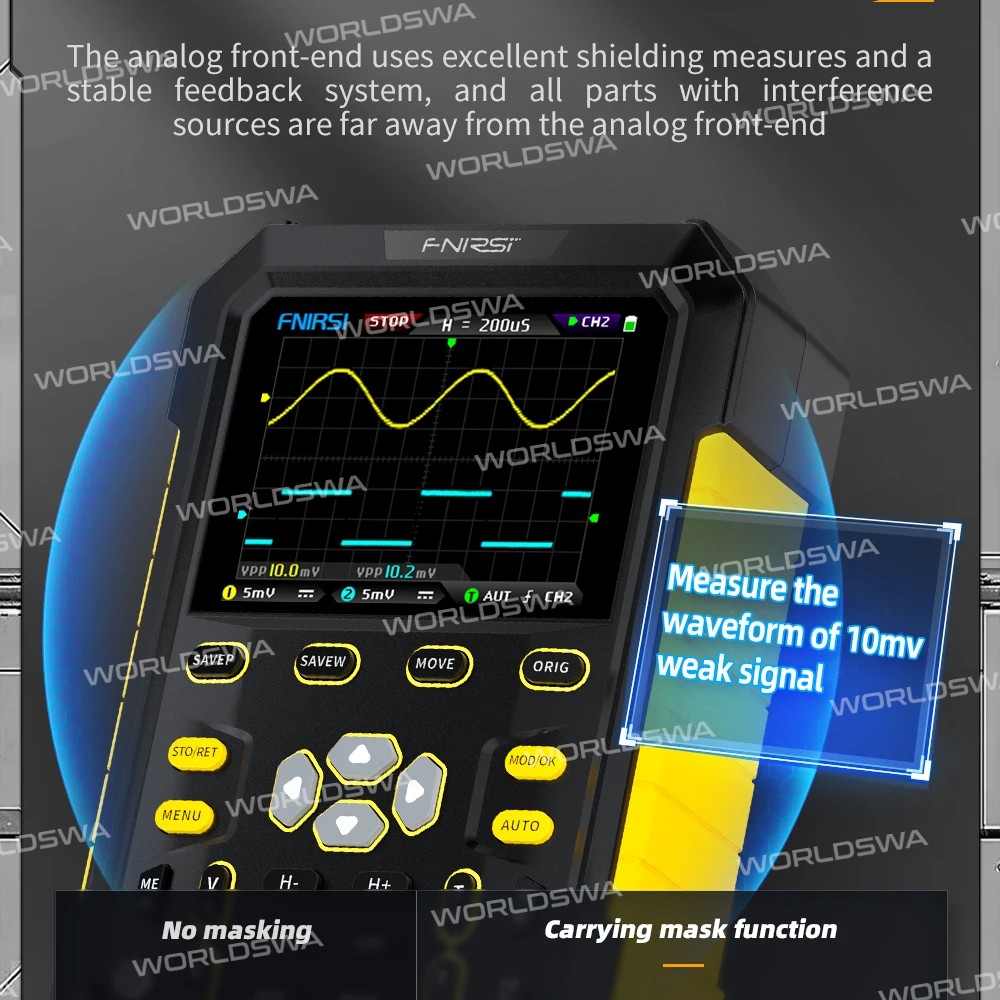

  • The analog front-end uses outstanding shielding measures and a stable feedback system; All parts with sources of interference are located away from the analog front-end

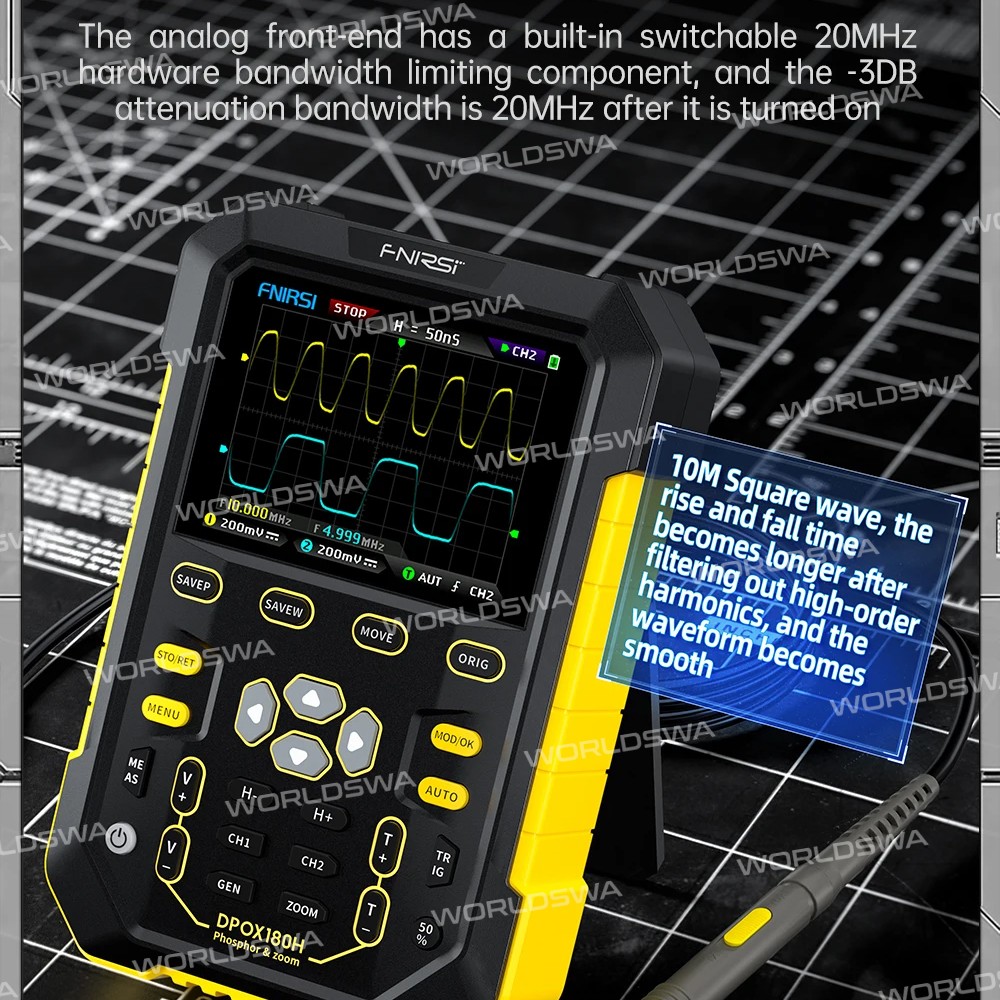

  • The analog front end has a built-in switchable 20MHz hardware bandwidth limiting component, and the -3DB attenuation bandwidth is 20MHz when turned on
  • Intercept part or all of the various signals measured by the oscilloscope to be used as the output signal of the signal generator, up to 500 custom signals can be stored

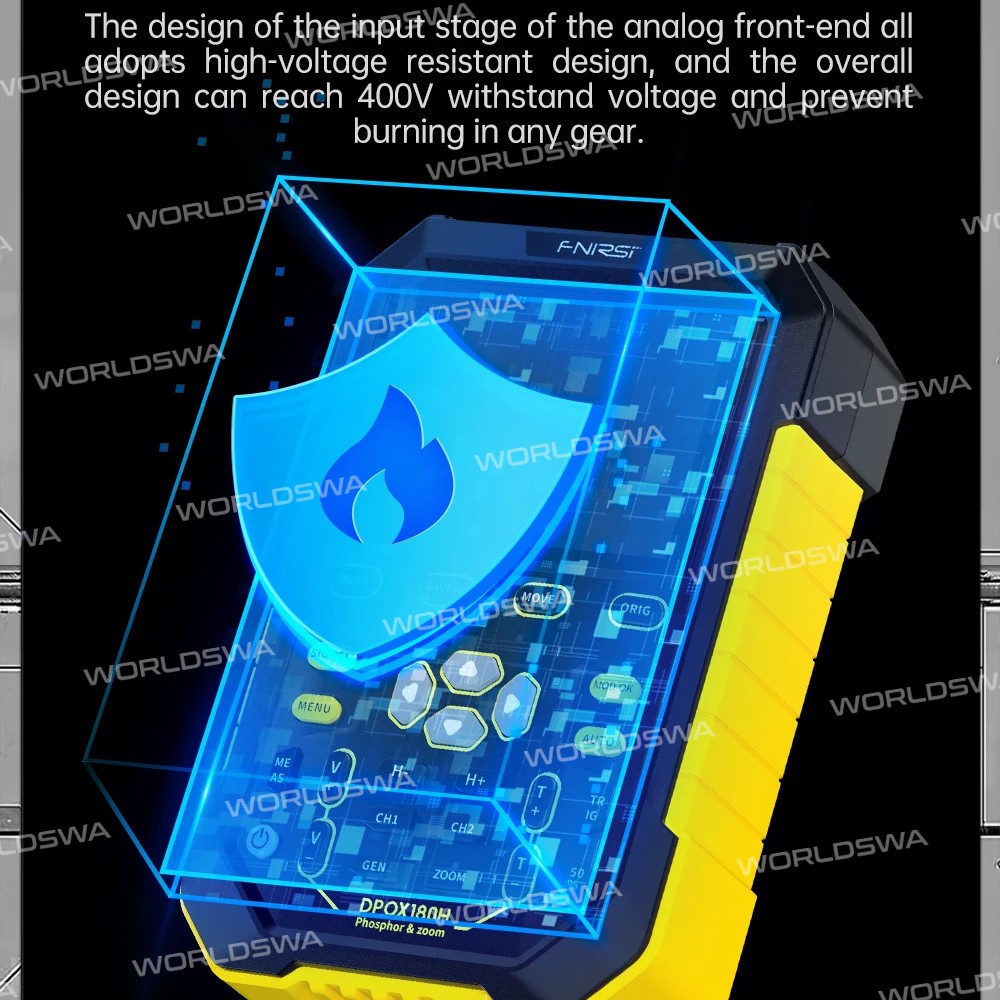

  • The analog front-end input stage is designed with high-voltage resistance, and the overall design can achieve 400V burn-in resistance in any gear

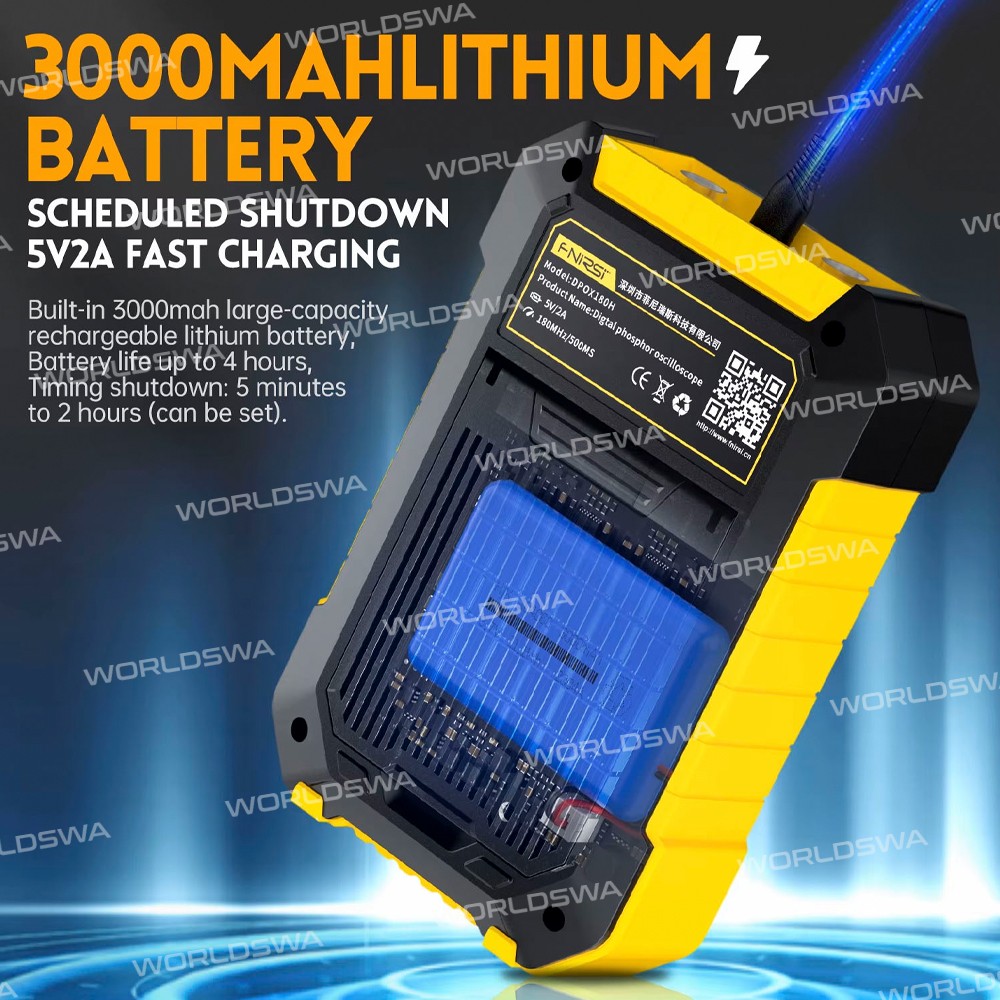

  • Built-in 3000mAh high-capacity rechargeable lithium battery, up to 4 hours of life, can be set from 5 minutes to 2 hours of timeout time, supports 5V/2A quick charging
  • Manual cursor measurement, equipped with efficient one-key auto adjustment function, signal measurement is easy and fast; cursor accurate measurement of waveform parameters
  • Qualitative overview of the current signal spectrum components
  • Built-in 120MBit storage space, up to 250 sets of waveforms and 90 screenshots can be stored, you can view full-screen images and secondary analysis of the stored waveform data
  • Connect to computers via USB cable, and copy the system imaging file ISO to U disk for upgrade, also you can directly view or copy the saved BMP imaging file inside the oscilloscope

**Summary:**

This 2-in-1 handheld oscilloscope and signal generator offers a range of features, including a 180MHz analog bandwidth, 500MSPS real-time sampling rate, and 14 kinds of standard function signals. It also has a 2.8-inch IPS display, complete trigger function, and supports digital fluorescence technology. The device is powered by a built-in 3000mAh rechargeable lithium battery and has a storage space of 120MBit.


Specification:

  • Name: 2-in-1 Oscilloscope Signal Generator
  • Material: Plastics
  • Language: English
  • Battery: Built-in 3000mAh battery
  • Number of channels: 2
  • Analog bandwidth: 180MHz
  • Maximum sampling rate: 500MSPS
  • Input coupling: DC/AC
  • Rise time: 1.8nS
  • Storage depth: 120Kpts
  • Input impedance: 1MQ-18PF
  • Vertical sensitivity: 5mV~10V(1X)
  • Time base range: 5nS~50S
  • DCAccuracy: ±2%
  • Time accuracy: +0.01%
  • Trigger architecture: Digital Trigger
  • Trigger mode: Auto/single/regular
  • Trigger edge: Rising edge/falling edge
  • Test range: 40mV~80V(1X)
  • Screen storage: 90 sheets
  • Interceptwave signal: 500
  • Waveform storage: 250 groups
  • Interceptwave outputter: Support
  • 20M hardware bandwidth limit: Support
  • Cursor measurement: Frequency/period/amplitude
  • ZOOM scaling time base: Support
  • Digital fluorescence technology: Support
  • Adjustable Automatic Bandwidth Limiting: Support
  • Color temperature display technology: Support
  • Scrolling mode: Support
  • X-Y mode: Support
  • Auto-adjustment: Support
  • Waveform manager: Support
  • High voltage anti-burning: All gears withstand voltage 400V
  • Screen size: 2.8 inch
  • Screen resolution: 320 * 240
  • Screen display process: IPS full-view
  • Expansion interface: USB transmission interface
  • Auto shutdown: 5 minutes to 2 hours
  • Firmware upgrade: Support iso imaging upgrade
  • Charging requirements: 5V/2A
  • Standby time: 3~4 hours on full charge
  • Parameter measurement: 12 kinds
  • Signal generator: 14 kinds of standard function signal
  • Item size: 135 * 90 * 40mm
  • Package size: 245 * 147 * 80mm

Package includes:

  • 1 x Host
  • 2 x Matching 200MHz Probe (1X & 10X)
  • 1 x Power Adapter
  • 1 x USB Data Line
