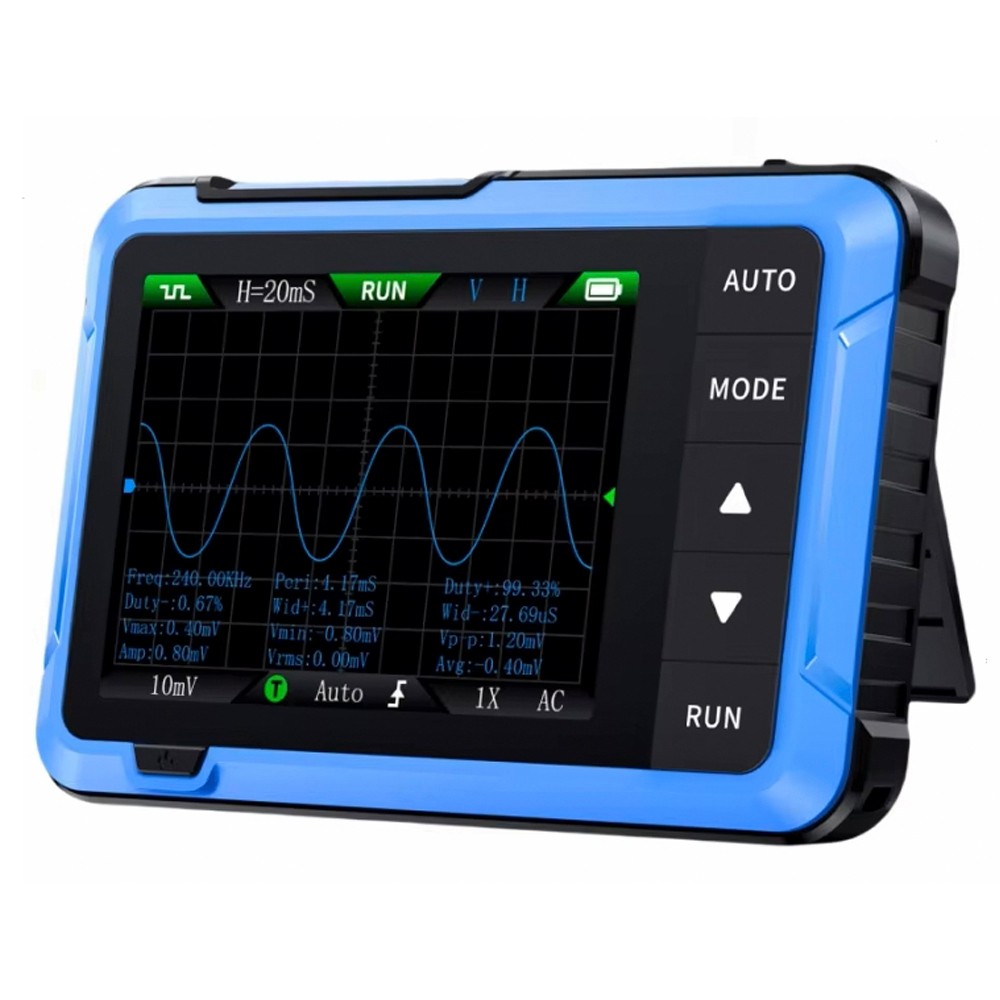

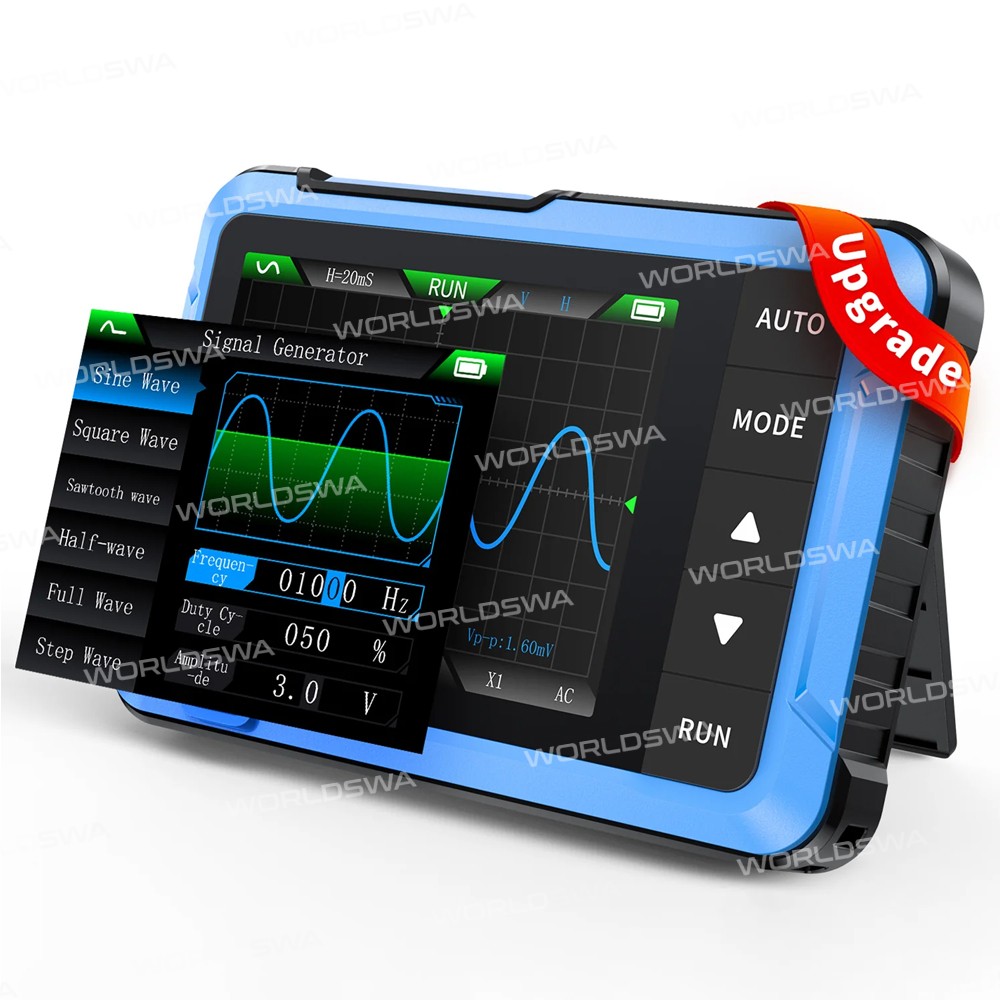

Fnirsi DSO-510 Handheld 2-in-1 10MHz Bandwidth Oscilloscope + Signal Generator

Fnirsi DSO-510 Handheld 2-in-1 10MHz Bandwidth Oscilloscope + Signal Generator

Features:

• Portable 2.8" TFT Handheld Oscilloscope for beginners, hobbyist

• DSO oscilloscope: 48MS/s, 10MHz bandwidth, ±400V voltage range

• Signal Generator: 50KHz

• High-definition 320*240 LCD, Type-C interface

• Finished assembly, lightweight, perfect for maintenance

• Versatile trigger functions: single, normal, automatic

• Signal Type Support: Periodic analog signals and non-periodic digital signals

• 8 different languages: Chinese, English, Russian, Japanese, Spanish, Portuguese, German, Korean

• One-Click AUTO Mode: Displays waveforms instantly without complex adjustments

• Battery Life: Built-in 1000mAh lithium battery with 4 hours of use per charge

• Recommended Use: Ideal for advanced repairs, development, and education projects

• DDS signal generator: It can output 13 kinds of waveforms, and the maximum waveform output frequency is up to 50 KHz, which can meet the needs of diversified signal simulation and improve the efficiency of testing and analysis

Specifications:

• Brand: FNIRSI

• Model: DSO-510

• Display: 2.8 Inches / PPI: 320*240

• USB Charging: 5V/1A

• Lithium Battery Capacity: 1000mAh

• Size: 99*68.3*19.5mm

• Weight: 104g

Oscilloscope:

• Channel: 1

• Sampling Rate: 48MS/s

• Bandwidth: 10MHz

• Vertical Sensitivity: 10mV/Div-20V/Div (Progress according to the 1-2-5 way)

• Time Base Range: 50ns/Div-20s/Div (Progress according to the 1-2-5 way)

• Voltage Range: X1: ±40V (Vpp: 80V); X10: ±400V (Vpp: 800V)

• Trigger Mode: Auto / Normal / Single

• Trigger Edge: Rising edge / Falling edge

• Coupling: AC/DC

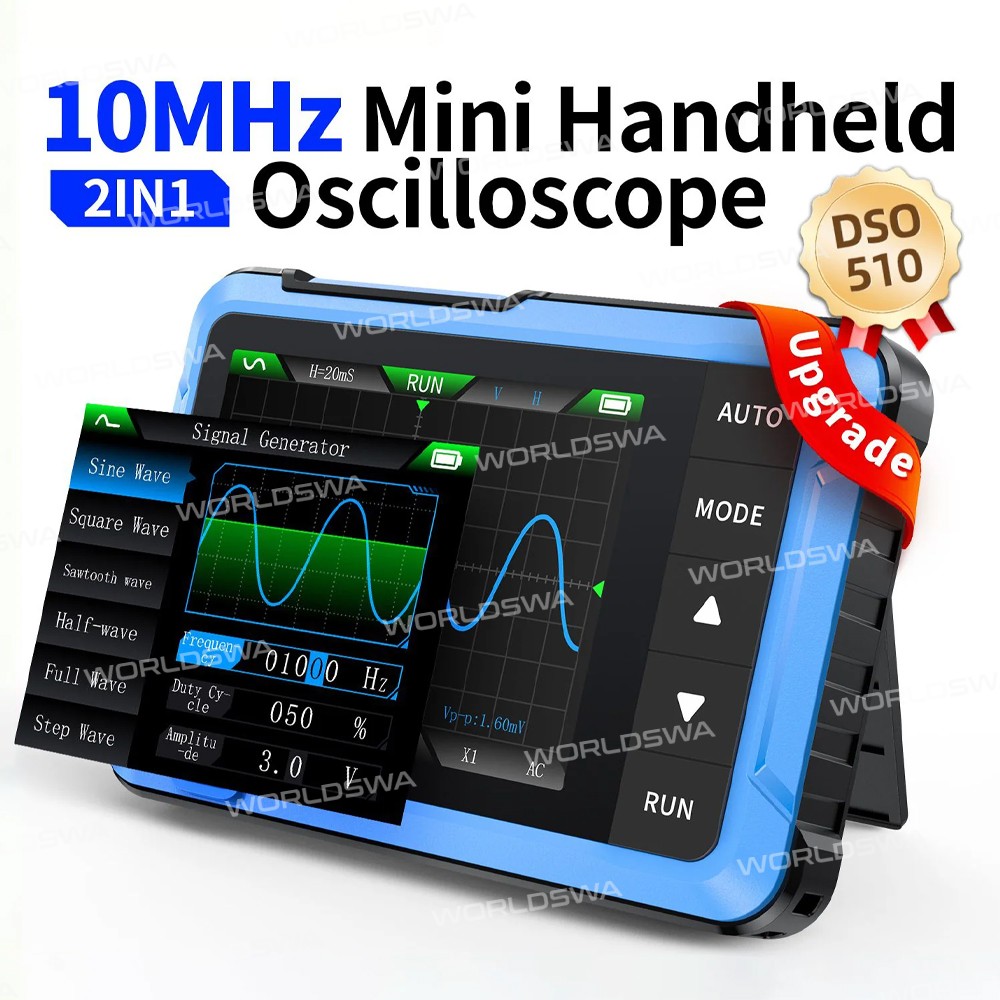

Signal Generator:

• Frequency: 0~50KHz

• Duty Cycle: 0~100% (Rectangular and sawtooth waves)

• Amplitude: 0.1~3.0V

• Waveforms: Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti-step wave, exponential rise, exponential drop, DC signal, multi-tone, Sink pulse, Lorentz wave

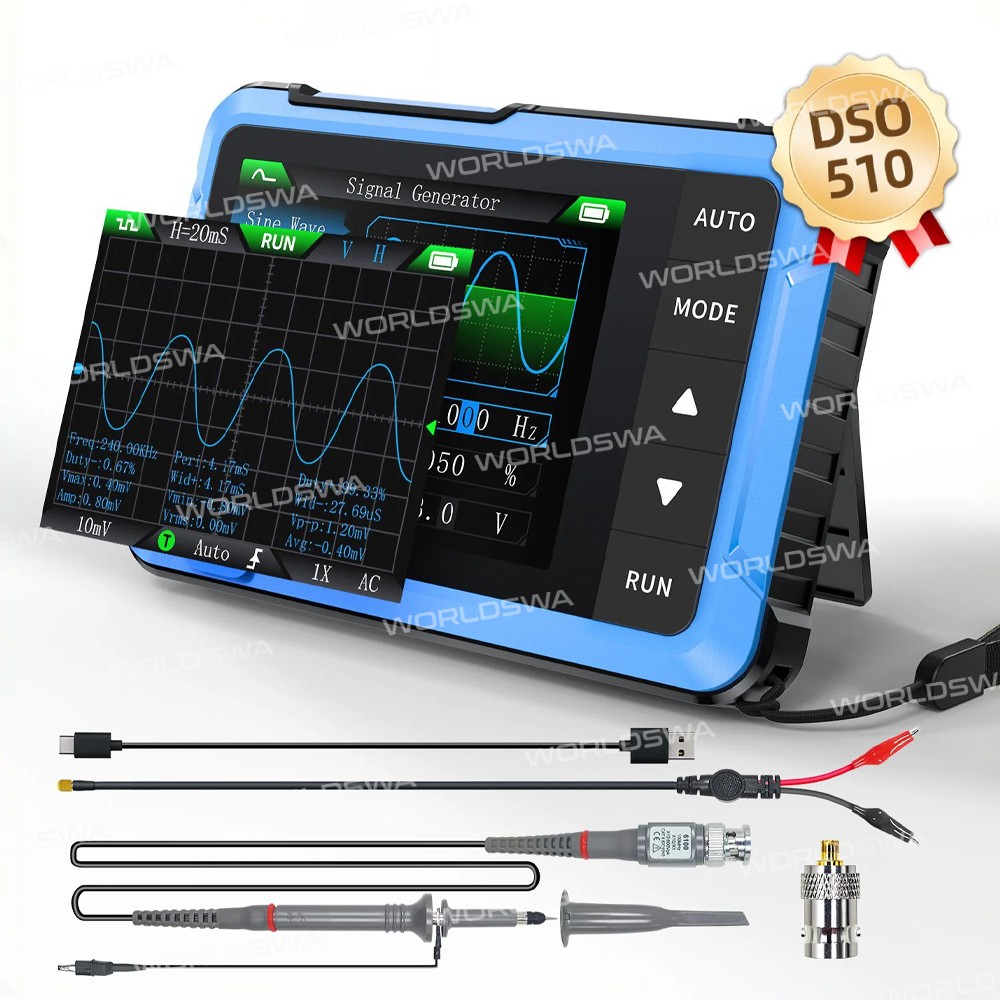

Package includes:

• 1 x Host

• 1 x Alligator Clip Probe

• 1 x Adapter

• 1 x High Voltage Probe

• 1 x Type-C Cable
