Fnirsi DSO-TC2 Portable 2-in-1 Digital Oscilloscope & Multimeter with Transistor Tester

Fnirsi DSO-TC2 Portable 2-in-1 Multi-function Digital Oscilloscope Transistor Tester Multimeter

Features:

• **All-in-One Device**: TC2 combines a digital oscilloscope, electronic component tester, PWM signal generator, and other functions into one.
• Equipped with a large-size color dot matrix TFT display for clear and detailed readings.
• Compact and portable design with a small size, making it easy to carry and use on-the-go.
• **Multi-Mode Functionality**: TC2 has various working modes, including oscilloscope and component tester, with easy mode selection.

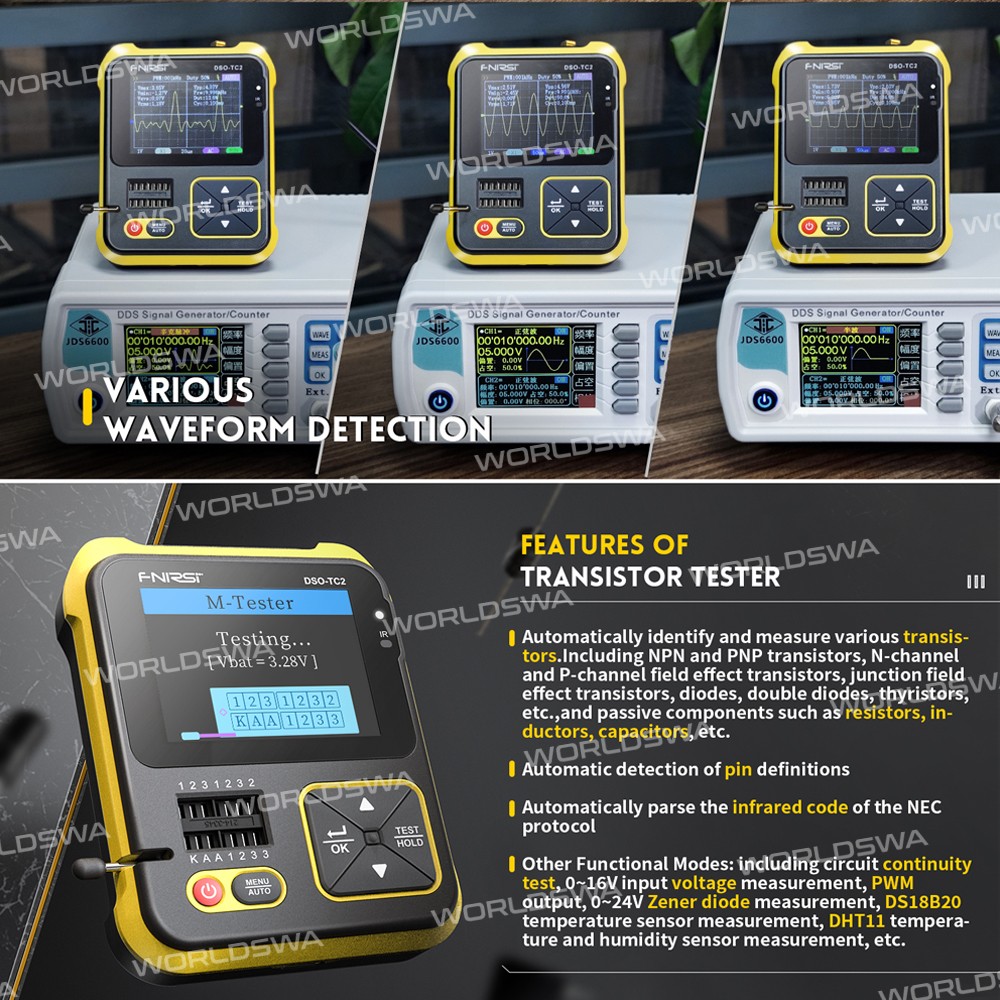

• **Comprehensive Component Testing**: "Mos Test" mode can test various types of transistors and identify device type, pin polarity, hFE, turn-on voltage, junction capacitance, capacitance, resistance, inductance components, etc.
• **Ideal for Fast Component Pairing**: Especially suitable for fast pairing of transistors, identification of mixed surface mount and wordless components, and preliminary screening of small-batch components.
• **Oscilloscope Mode**: Test the signal waveform of the circuit with a real-time sampling rate of 2.5MS/s and 200kHz bandwidth.
• **Online Operation and Firmware Upgrade**: Support online operation with a computer and refresh the official firmware by yourself for easy upgrades.
• **Full Trigger Function**: Single, normal, and automatic trigger modes available.
• **Measure Voltage Signals**: Up to ±400V voltage signals can be measured.
• **Efficient One-Button AUTO**: Measured waveform can be displayed with a simple adjustment.
• **PWM Wave Test Signal Source**: 80kHz/5.0VPWM wave test signal source with an adjustable duty cycle.
• **Automatic Component Identification**: Automatically identify and measure various transistors, including NPN and PNP transistors, N-channel and P-channel FETs, junction FETs, diodes, dual diodes, thyristors, etc., as well as passive components such as resistors, inductors, and capacitors.
• **Automatic Pin Definition Detection**: Automatic detection of pin definitions.
• **Infrared Code Parsing**: Automatically parse the infrared code of NEC protocol.
• **Other Functional Modes**: Include circuit continuity test, 0~16V input voltage measurement, PWM output, 0~24V Zener diode measurement, DS18B20 temperature sensor measurement, DHT11 temperature, and humidity sensor measurement, etc.

Specification:

• Real-Time Sampling Rate: 2.5MS/s
• Analog Band Width: 0~200kHz
• Input Resistance: 1MΩ
• Coupling Mode: AC/DC
• Test Voltage Range: 1:1 probe: 80Vpp(±40V); 10:1 probe: 800Vpp (400V)
• Vertical Sensitivity: 10mV/Div ~ 10V/Div (in 1-2-5 increments)
• Vertical Displacement: Adjustable, with an indication
• Horizontal Time Base Range: 10us/Div ~ 500s/Div (in 1-2-5 increments)
• Trigger Mode: Auto/Normal/Single
• Trigger Type: Rising edge, falling edge
• Trigger Level: Adjustable, with an indication
• Waveform Freeze: Yes (HOLD function)
• Automatic Measurement: Maximum, minimum, average, RMS, peak-to-peak, Measurement Frequency, period, duty cycle
• PWM Output: FRQ: 0~80KHz, Duty cycle: 0~100%, Amplitude: 5.0V

Package Includes:

• 1 x Host
• 1 x Type-C Cable
• 3 x Test hook
• 1 x Regular Probe
• 1 x Adapters (only High-end version)
• 1 x P6100 High Voltage Probe (only High-end version)
