Fnirsi SG-003A Signal Generator: 0-10V Adjustable Current & Voltage Simulator

Fnirsi SG-003A 0-10V Signal Generator Adjustable Current Voltage Simulator

Overview

The Fnirsi SG-003A is a versatile signal generator that can simulate various signal types, including current, voltage, and PWM signals. It's an ideal tool for engineers, technicians, and researchers who need to test and measure electronic circuits and devices.

Features

• Active Current Output
  • Range: 0~24mA
  • Resolution: 0.01mA
  • Maximum load: 750Ω
  • Precision: ±(0.1% + 0.005)
• Passive Current Output
  • Range: 0~24mA
  • Resolution: 0.01mA
  • External power supply: up to 30V
  • Precision: ±(0.1% + 0.005)
• Voltage Output
  • Range: 0~15V
  • Resolution: 0.01V
  • Precision: ±(0.1% + 0.005)
• 24V Voltage Output
  • Drive current: 0~24mAh
  • Resolution: 0.01mA
  • Precision: ±(0.1% + 0.005)

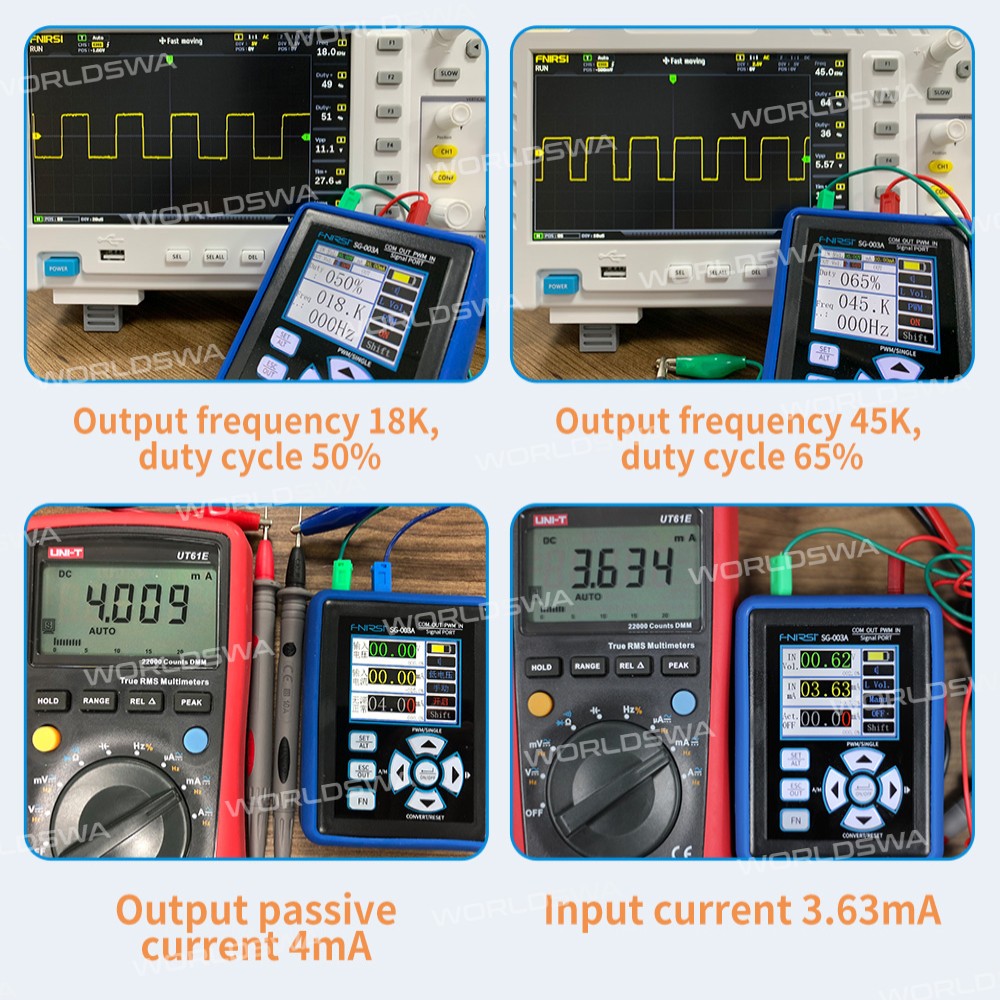

• PWM Output (Frequency)
  • Ranges: 0~20K, 45K, 90K, 180K
  • Resolution: 1Hz
  • Accuracy: ±2%
• PWM Output (Duty Ratio)
  • Ranges: 0~100
  • Resolution: 1%
  • Accuracy: ±2%
• Current Input
  • Ranges: 0~24mA
  • Resolution: 0.01mA
  • Accuracy: ±(0.1% + 0.005)
• Voltage Input
  • Ranges: 0~30V
  • Resolution: 0.01V
  • Accuracy: ±(0.1% + 0.005)

Technical Specifications

• Material: Plastics
• Battery: 1 x lithium battery, 3000mAh (included)
• Package size: 92 x 72 x 38mm / 3.6 x 2.8 x 1.5in
• Package weight: 370g / 13.1ounce

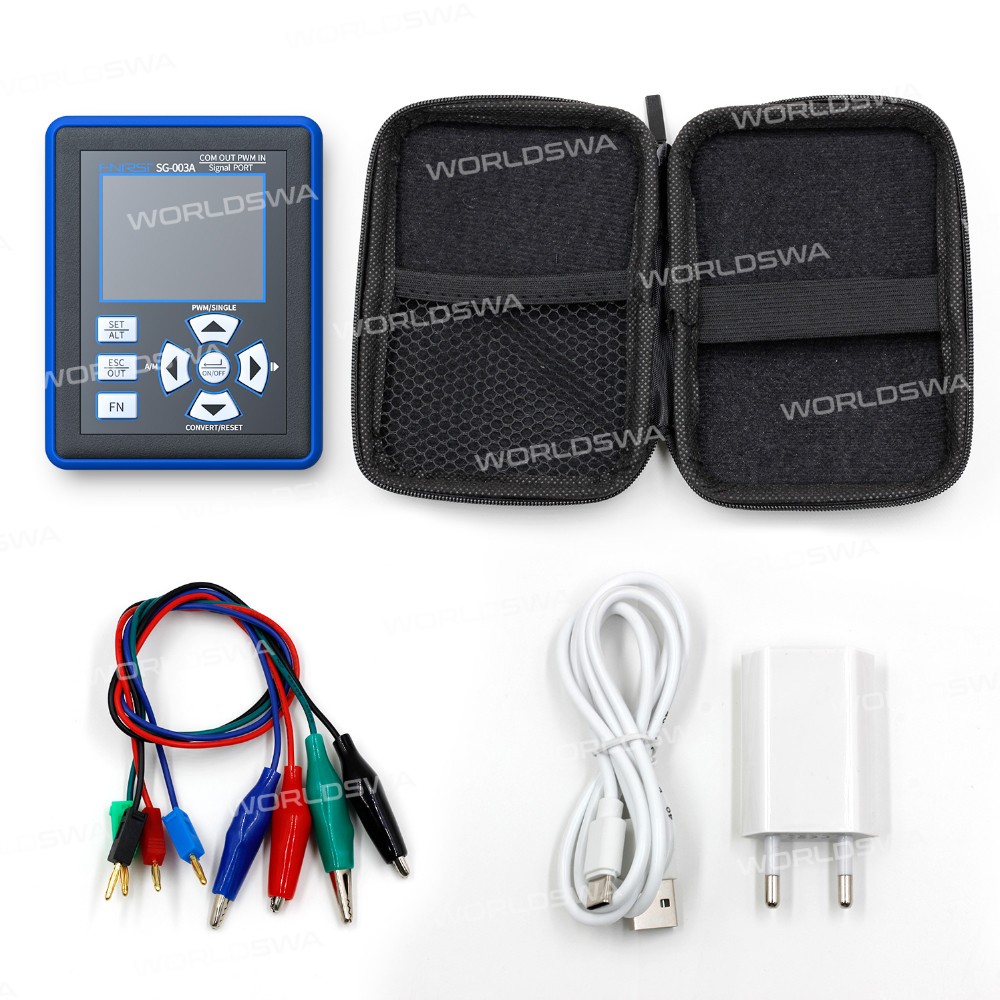

Package Includes

• 1 x Signal Generator
• 1 x Storage Bag
• 4 x Test Clip
• 1 x Silicone Protective Sleeve
• 1 x USB Cable
• 1 x User Manual

Summary

This signal generator offers a wide range of features and specifications, making it an ideal tool for various applications. With its high precision and accuracy, it's perfect for engineers, technicians, and researchers who need to test and measure electronic circuits and devices.
