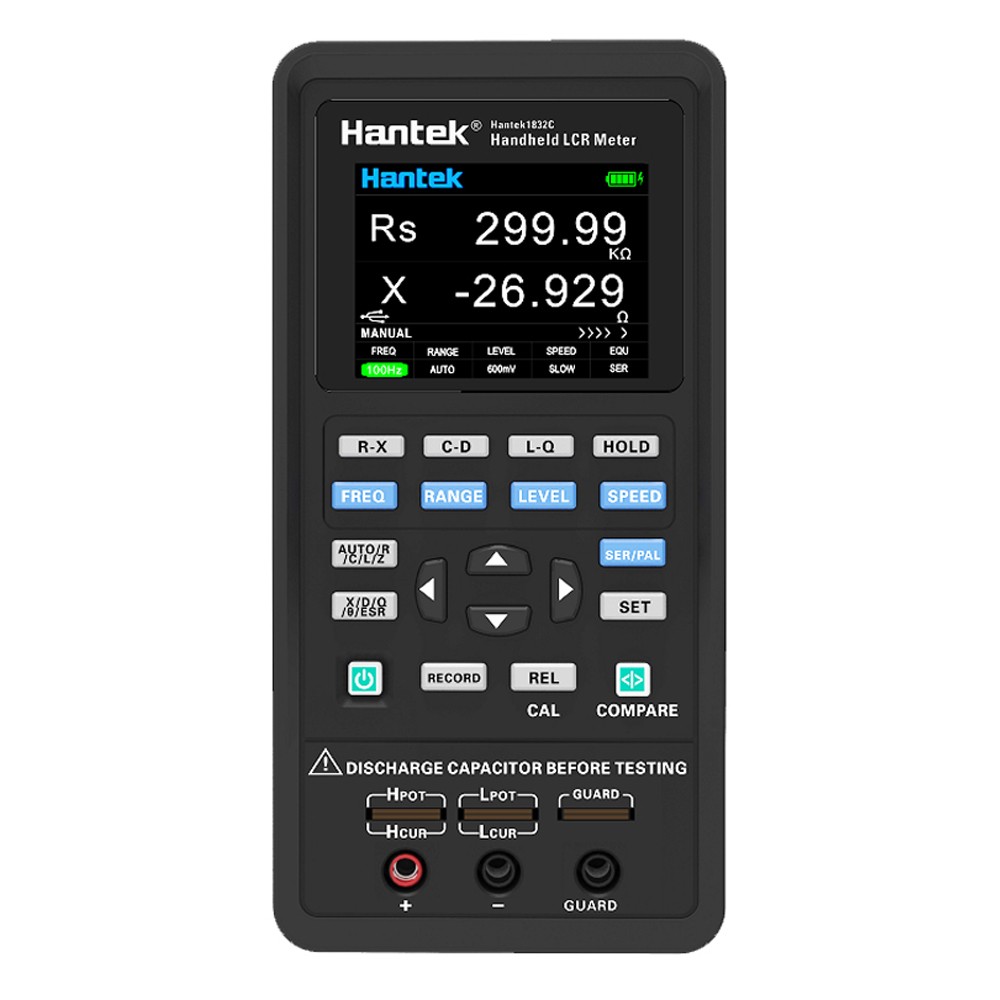

Hantek 1832C / 1833C Portable Handheld Digital Tester for Inductance, Capacitance, and Resistance

Hantek 1832C / 1833C Portable Handheld Digital Inductance Capacitance Resistance Tester

Features:

• 10 typical test frequencies for Hantek 1833C and 7 typical test frequencies for Hantek 1832C: 100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz, 50kHz, 75kHz, 100kHz
• 2.8 inch TFT LCD with **Bilingual Interface** (Chinese and English)
• HD display with **Dual Display Mode** for clear measurement data
• **Data Record Analysis** and **PC Upper Computer Control** for remote measurement
• 3 terminal/5 terminal switch for test lead and measuring speed switch (high/intermediate/low)
• **Range Switch** for manual/auto range selection
• Rechargeable design with large capacity lithium battery and **Super Standby** mode

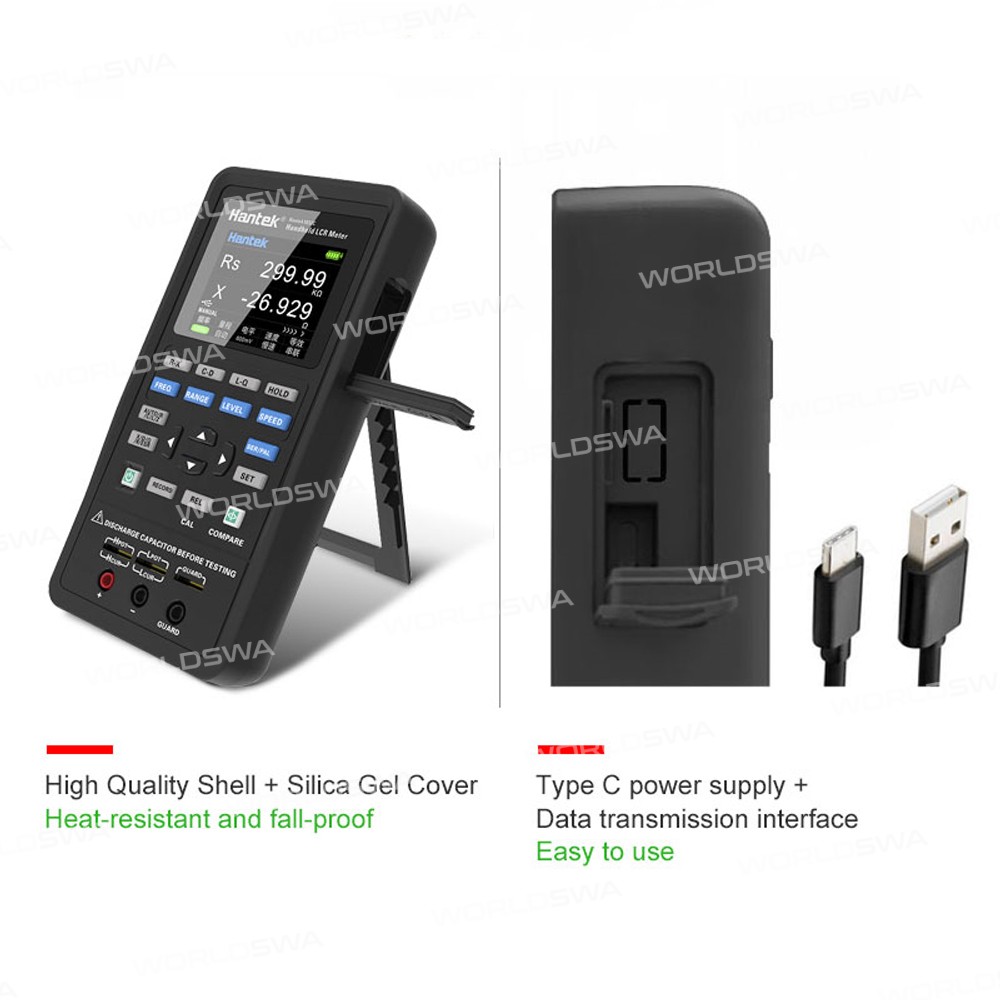

• **Double Shock Protection Sleeve** for all-round protection and longer use time

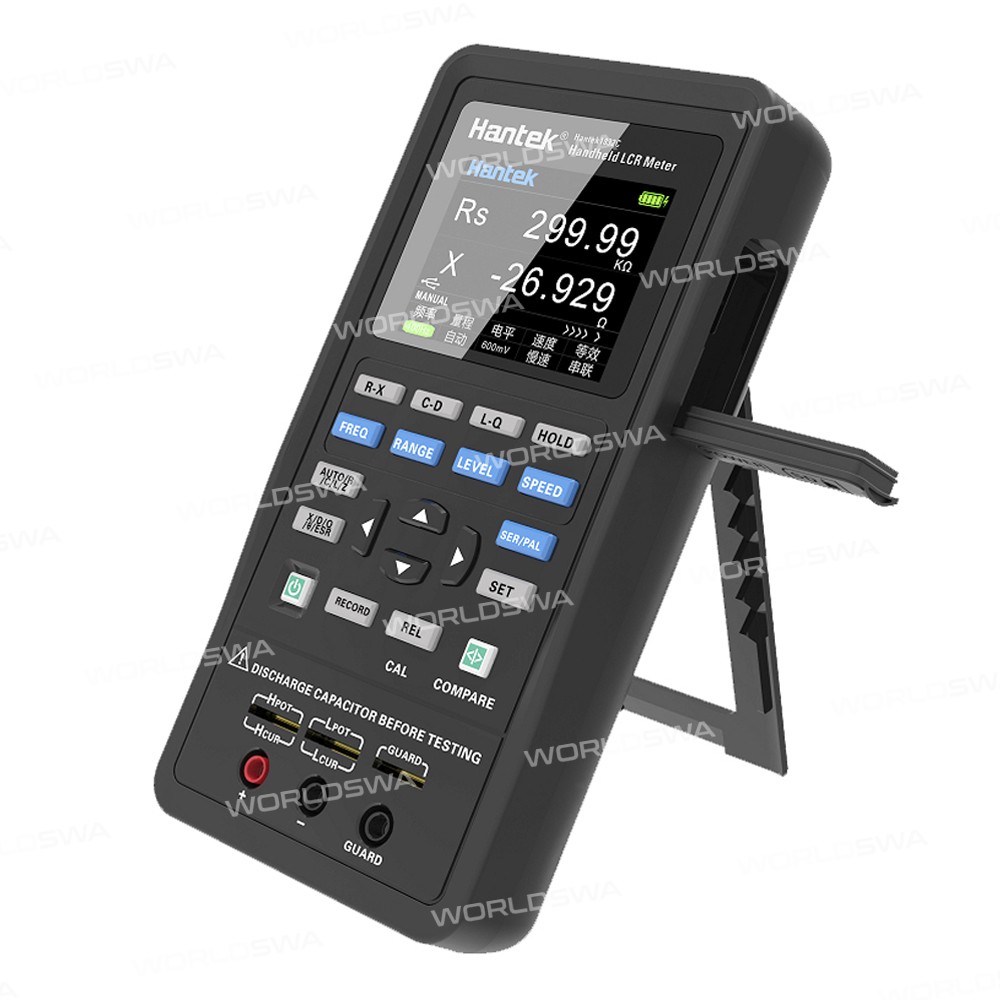

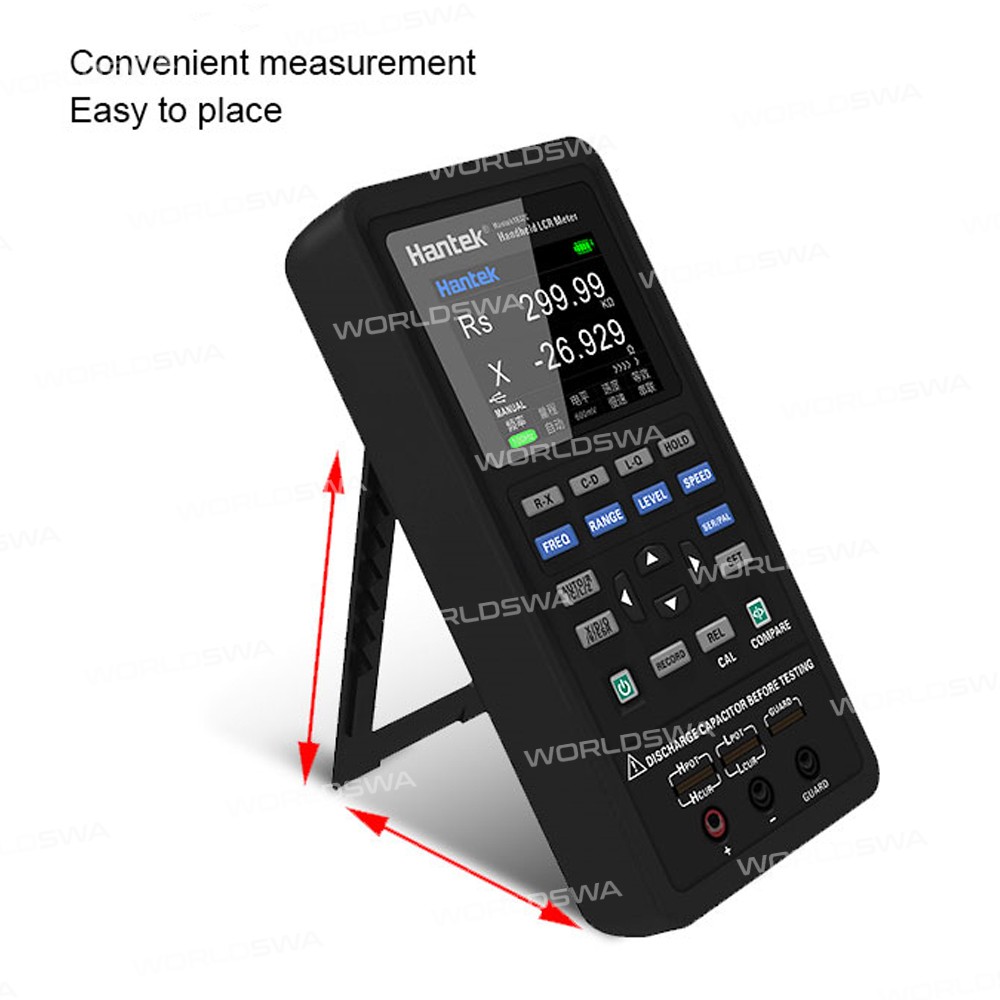

• Bracket design for easy measurement
• **Data Logging Function** for maximum, minimum, and average value calculation
• **Relative Mode** for reference value display
• **Reading Hold Mode** for freezing displayed data

Specification:

• Brand: Hantek
• Model: 1832C/1833C

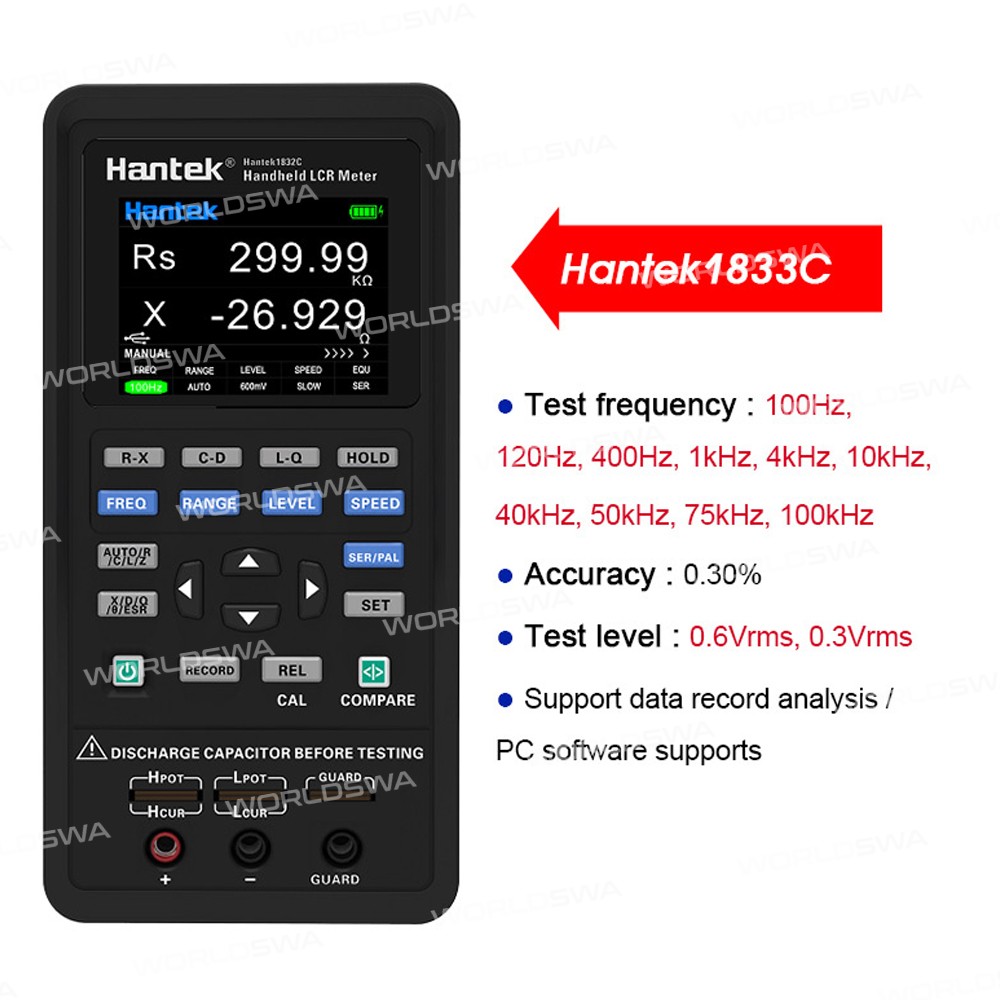

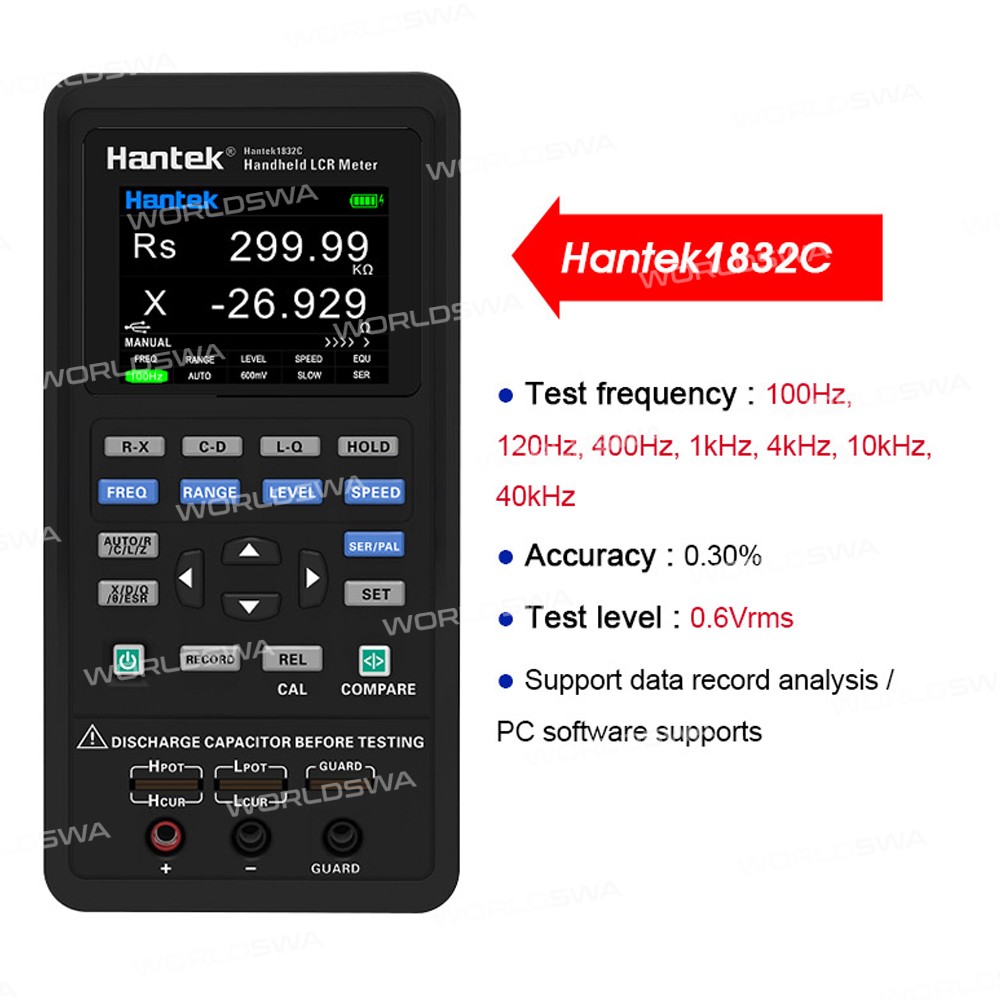

• Test frequency: 1832C: 100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz; 1833C: 100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz, 50kHz, 75kHz, 100kHz
• Accuracy: 0.30%
• Equivalent Circuit: Series, Parallel
• Test level: 1832C: 0.6Vrms; 1833C: 0.6Vrms, 0.3Vrms
• Measurement Way: Manual, Auto
• Display screen: 2.8-inch TFT LCD
• Measurement parameters: Principle parameter: L/C/R/Z; Deputy parameter: X/D/Q/0/ESR

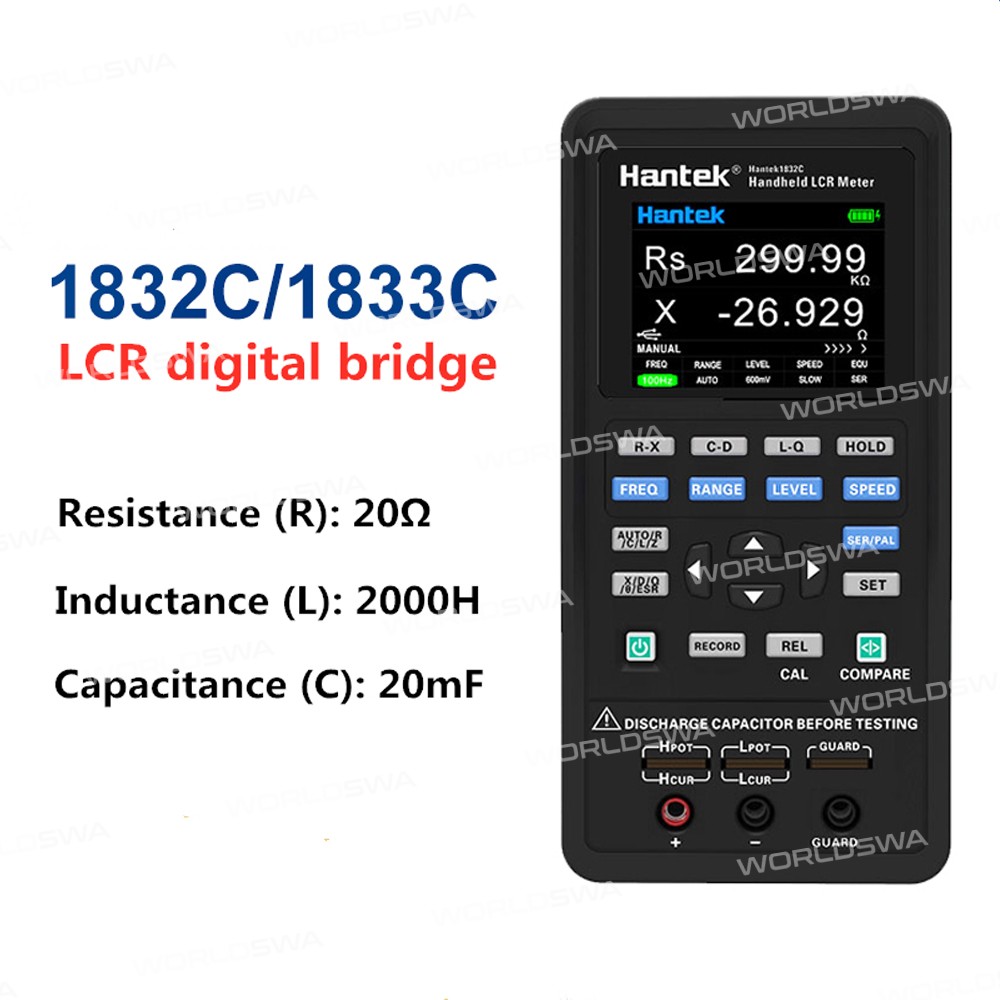

• Inductance Measurement range: (L)0~2000H
• Capacitance Measurement range: (C)0~20mF
• Resistance Measurement range: (R)0~20MΩ
• Measurement speed: High speed(4 times/s), Intermediate speed(twice/s), Low speed(once/s)
• Reset function: Open circuit calibration, Short-circuit calibration
• Test terminal configuration: 3 terminal, 5 terminal

Package includes:

• 1 x Host
• 1 x Type-C Cable
• 1 x Power Adapter
• 1 x Short Circuit Card
• 1 x Test Line
