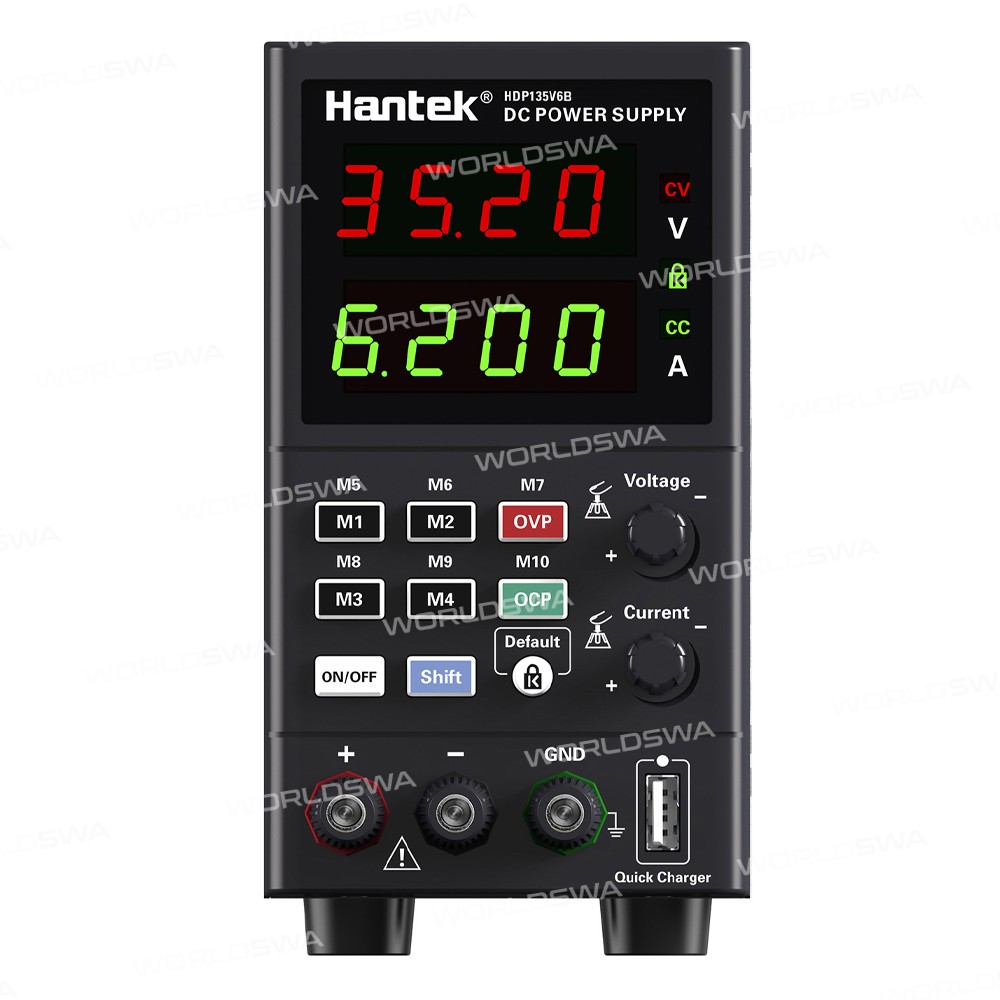

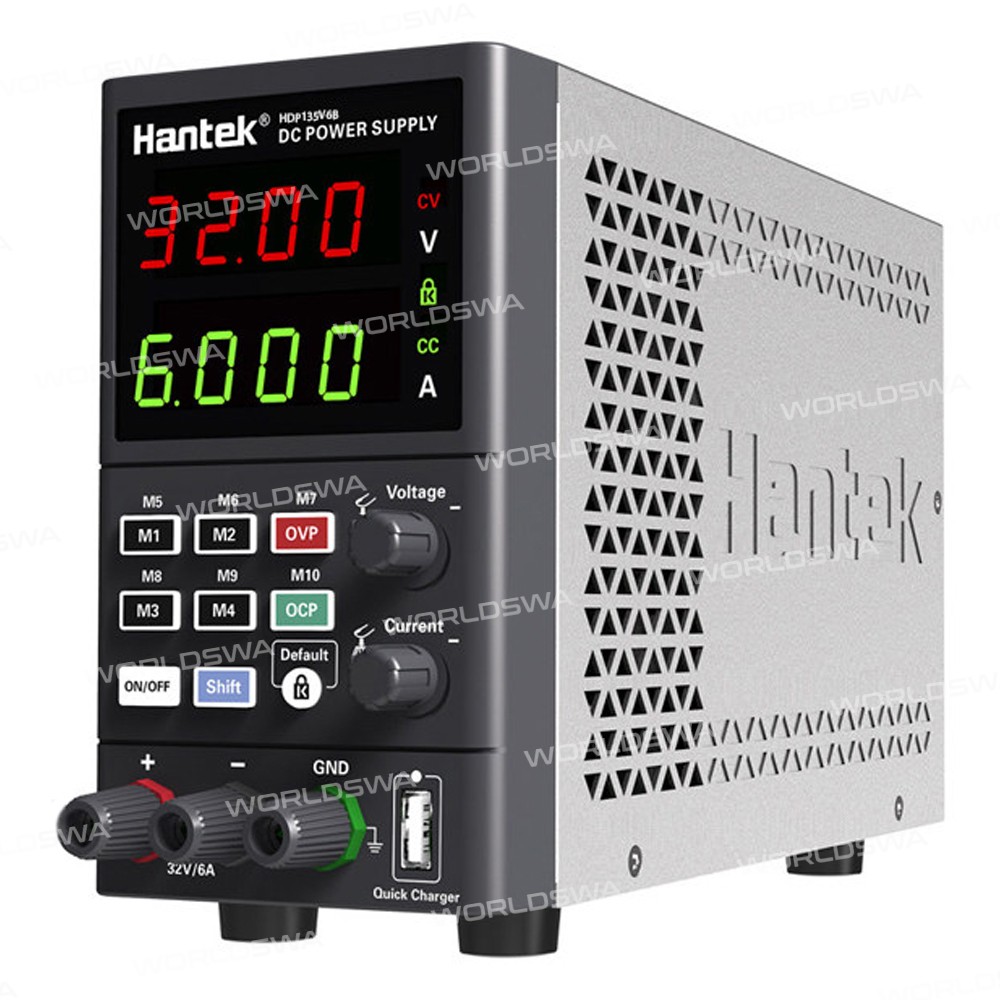

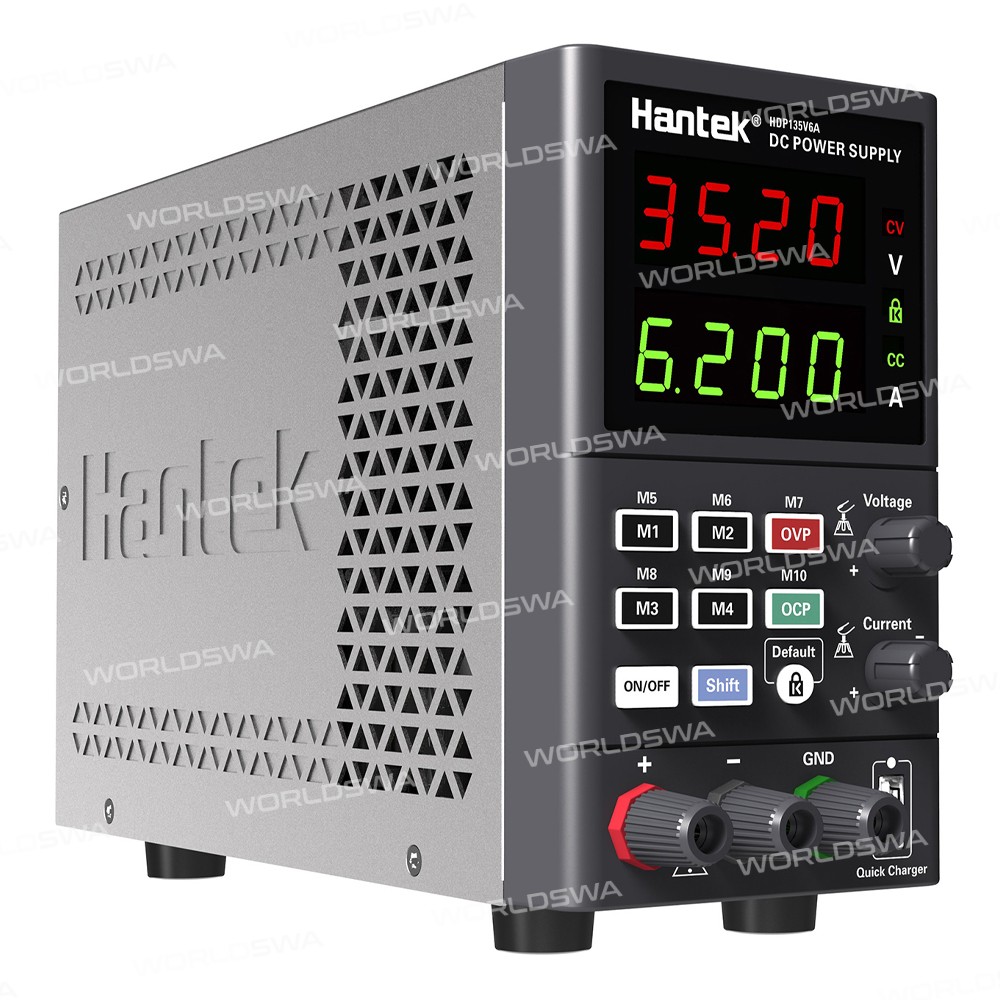

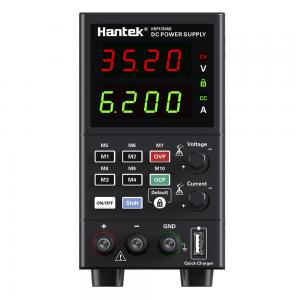

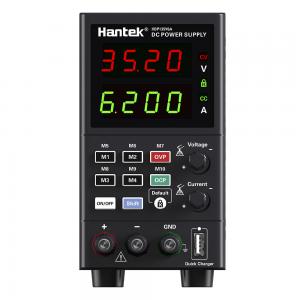

Hantek HDP135V6 Digital Storage Programmable A / B Switching DC Power Supply

Hantek HDP135V6 A/B Digital Storage Programmable Switching DC Power Supply

Features:

• High-Precision Display: Four-digit display of voltage and current, resolution up to 10mV/ 1mA
• Automatic Protection: Constant voltage and constant current switch automatically, and effectively protect the circuit
• Stable Output: 35V/ 6A output is stable and pure

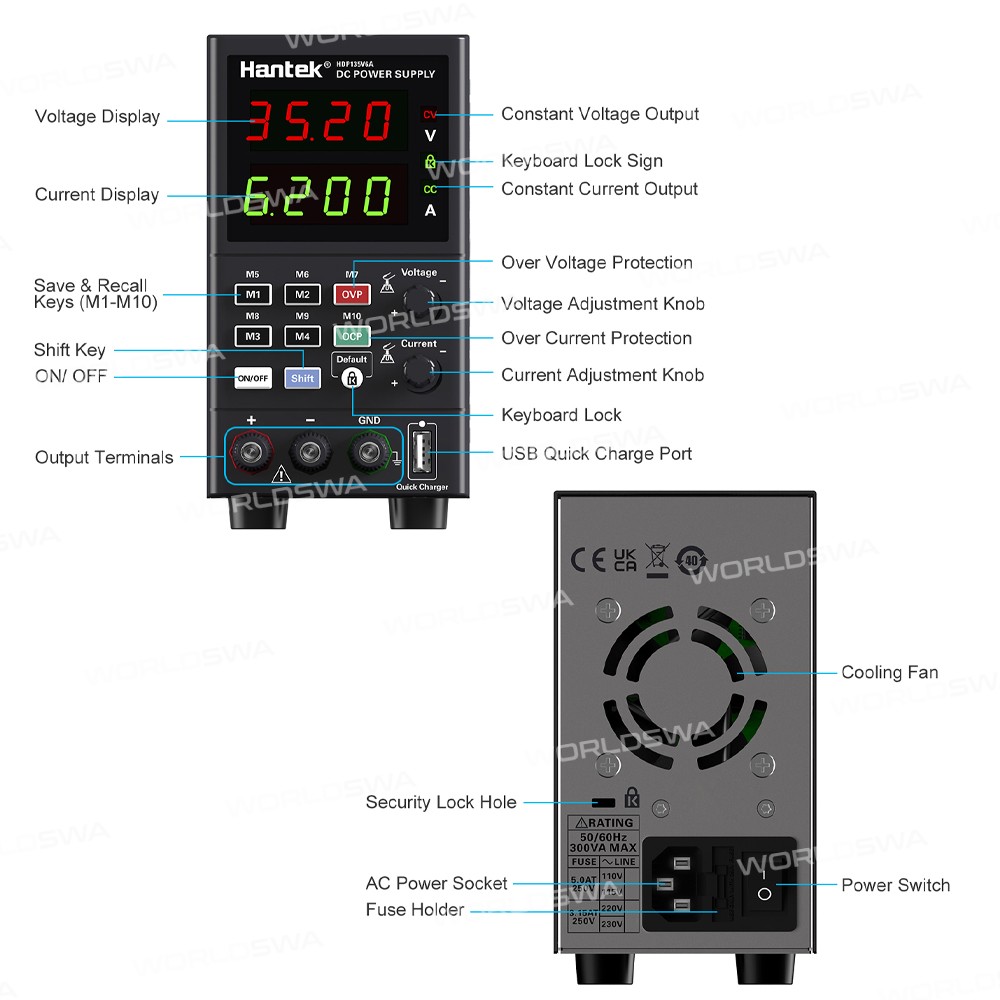

• Convenient Control: On/ Off output control, one-key panel lock function to prevent misoperation

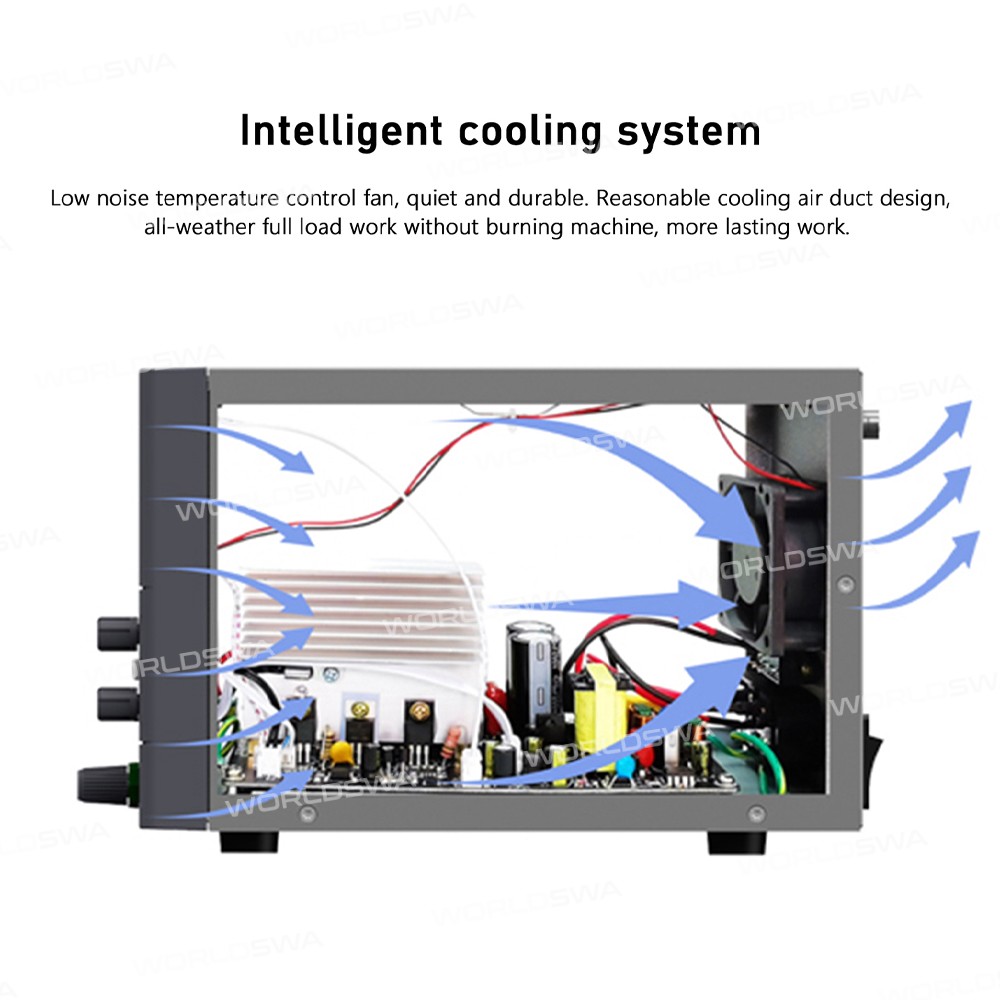

• Low Noise Cooling: Low noise temperature control fan, quiet and durable
• Multi-Protection: Over voltage, over current, overload, overheating, short circuit protection functions
• Advanced Topology: Two-stage adjustment topology, no impact on the load when the power is turned on

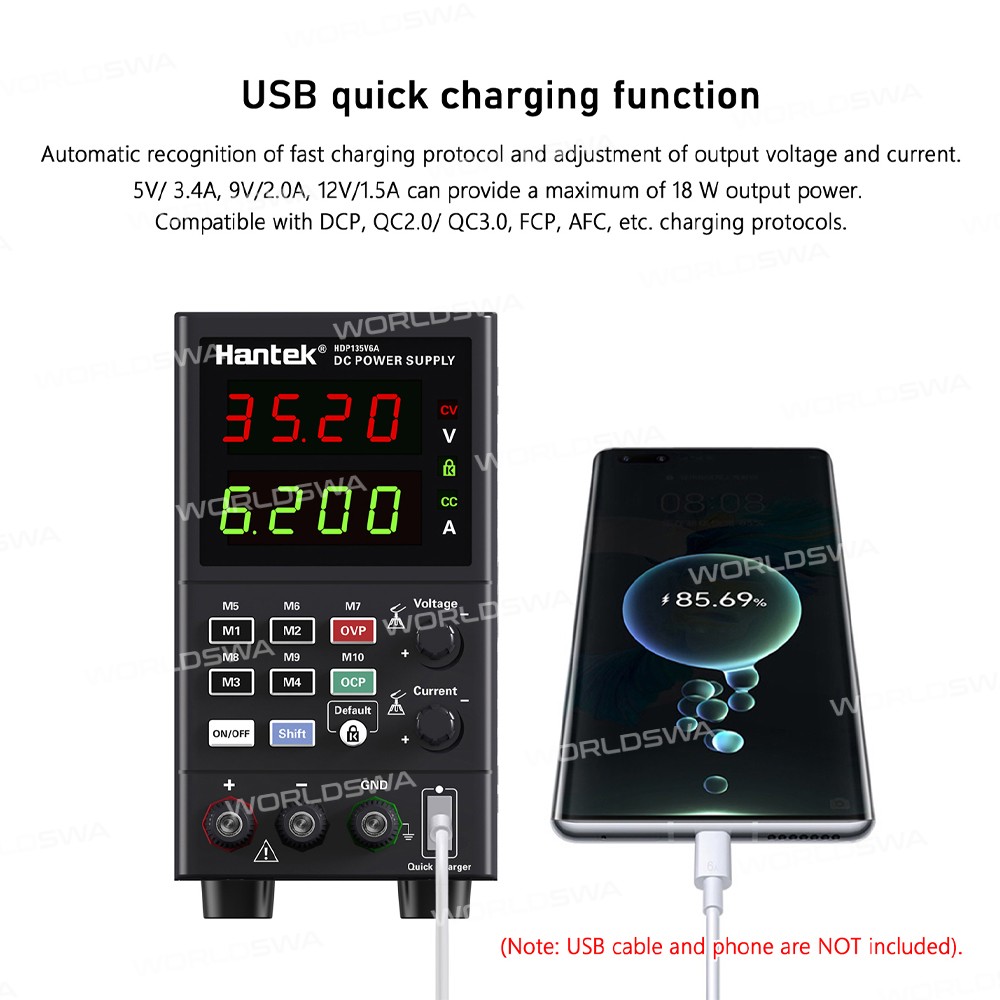

• Quick Charging: Standard USB quick charging function, 5-12V output, automatic recognition of a variety of fast charging protocols, and adjustment of output voltage and current.
• Serial Port Control: Fully isolated serial port, software support multiple power supply control, easy to set up measurement and control or aging system
• Data Storage: 10 groups of data storage/ retrieval functions
• Versatile Application: A portable bench DC power supply is suitable for production line testing, repair of mobile phones/ computers/ electrical appliances, product aging and electroplating, battery charging, laboratory, scientific research, teaching, etc

Summary of Key Features:

• High-precision display and control
• Multi-protection and automatic control
• Stable and pure output
• Quick charging and serial port control
• Versatile application

Specification:

• Load Regulation: ≤0.1%+5mV
• Line Regulation: ≤0.01%+5mV
• Set Resolution: 10mV
• Set Accuracy: ≤0.1%+1 digits
• Readback Resolution: 10mV
• Readback Accuracy: ≤0.1%+1 digits

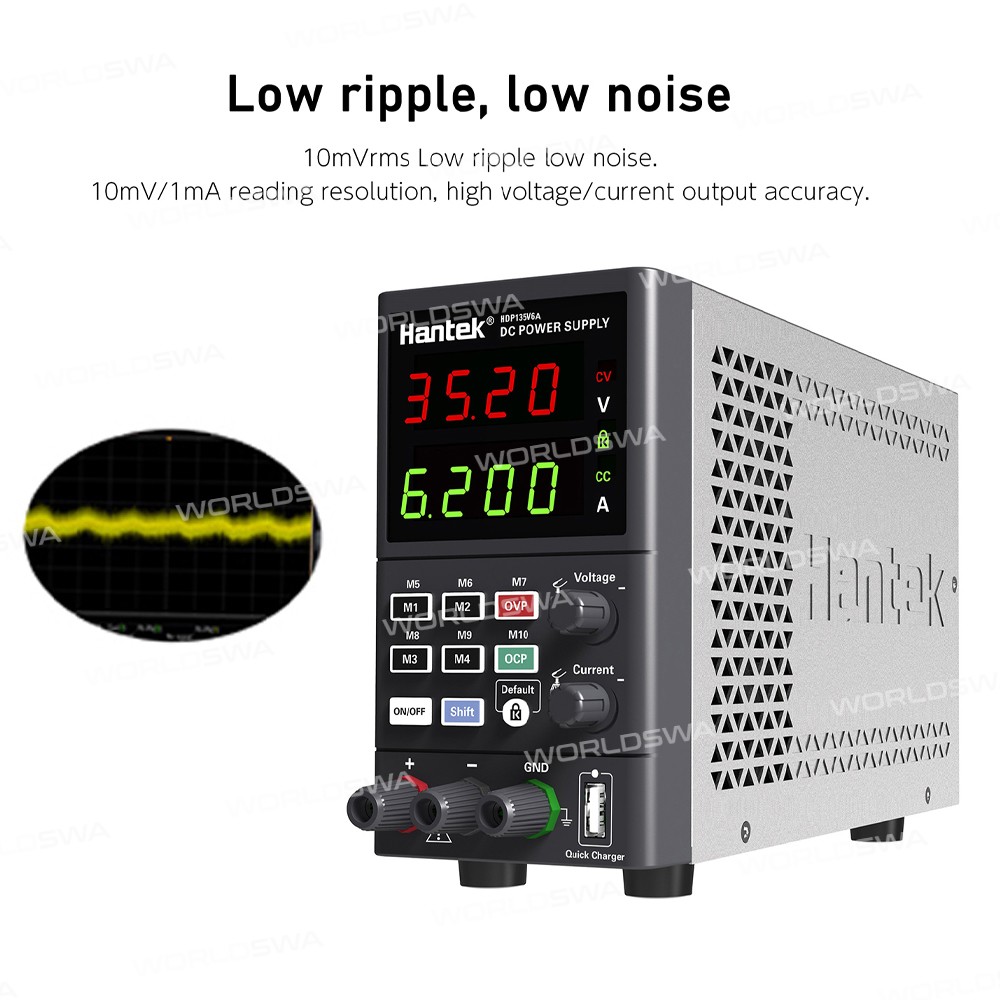

• Ripple: 10mVrms
• Load Regulation: ≤0.2%+3mA
• Line Regulation: ≤0.2%+3mA
• Set Resolution: 1mA
• Set Accuracy: ≤0.2%+3mA
• Readback: 1mA
• Resolution Readback Accuracy: ≤0.2%+3 digits
• Ripple: 5mArms
• OVP: 0~35.2V ±0.2%FS
• Maximum Voltage: 35.2V ±0.2%
• OCP: 0~6.2A ±0.2%FS
• Maximum Current: 6.2A ±0.2%
• Output Voltage Range: 5V~12V
• Output Power: Maximum:18W
• Supported Quick Charging Protocol: Compatible with DCP, QC2.0/QC3.0, FCP, AFC
• Cooling: Air cooling
• Working Temperature: -10~40℃; Humidity: ≤80% RH
• Storage Temperature: -20~60℃; Humidity: ≤80% RH

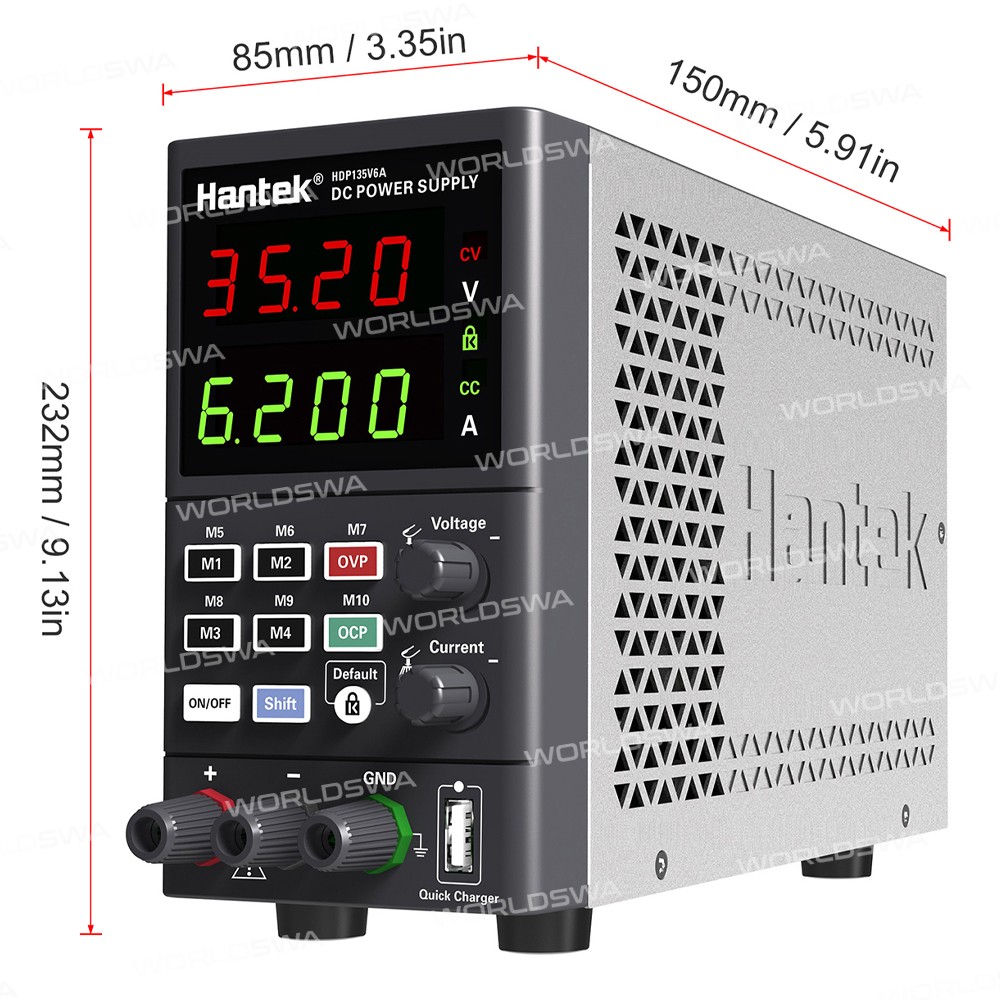

• Item Size: 85*150*232mm
• Item Weight: 1594g
• Package Size: 28.5*21.5*14cm
• Package Weight: 2050g

Package includes:

• 1 x Power Supply
• 2 x Test Lines with Alligator Clip
• 1 x Power Cord
