HPV-40 High Voltage Multimeter Probe, 40KV, 1000X Attenuation, Bandwidth

HPV-40 40KV 1000X Attenuation Bandwidth High Voltage Multimeter Probe

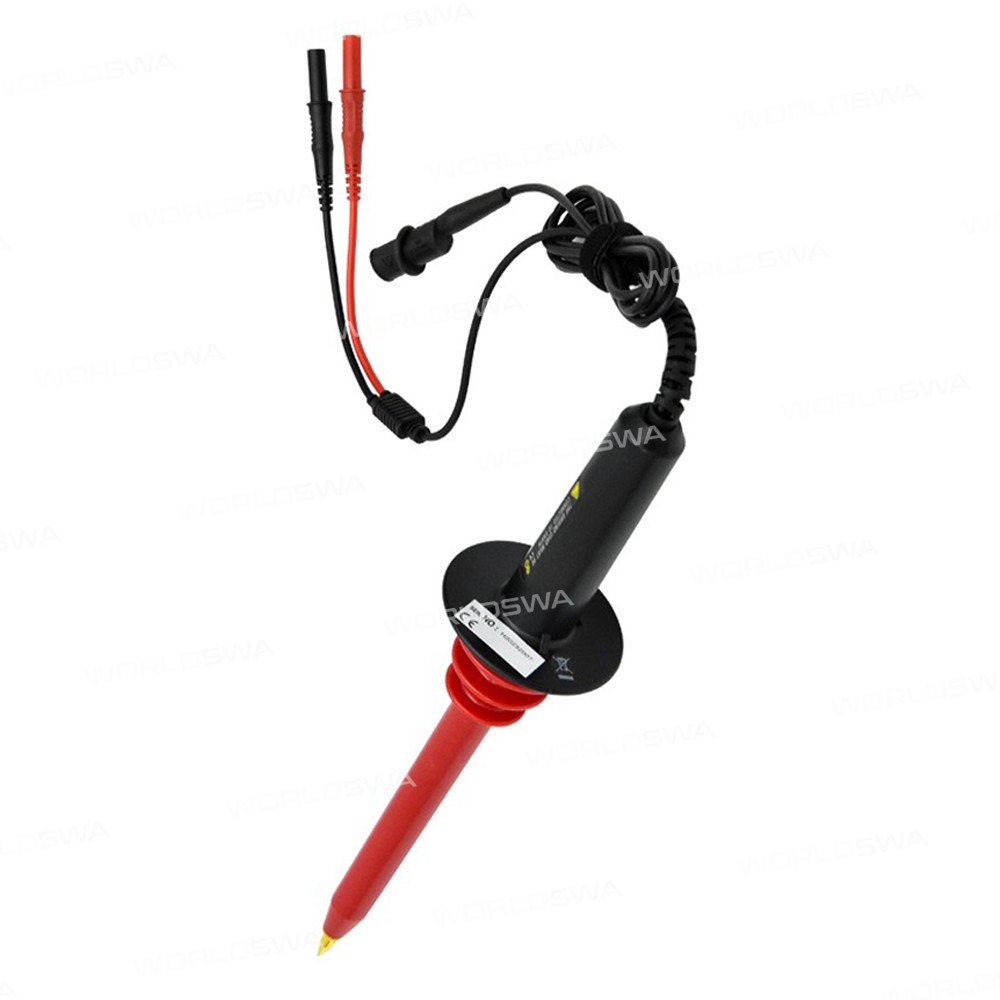

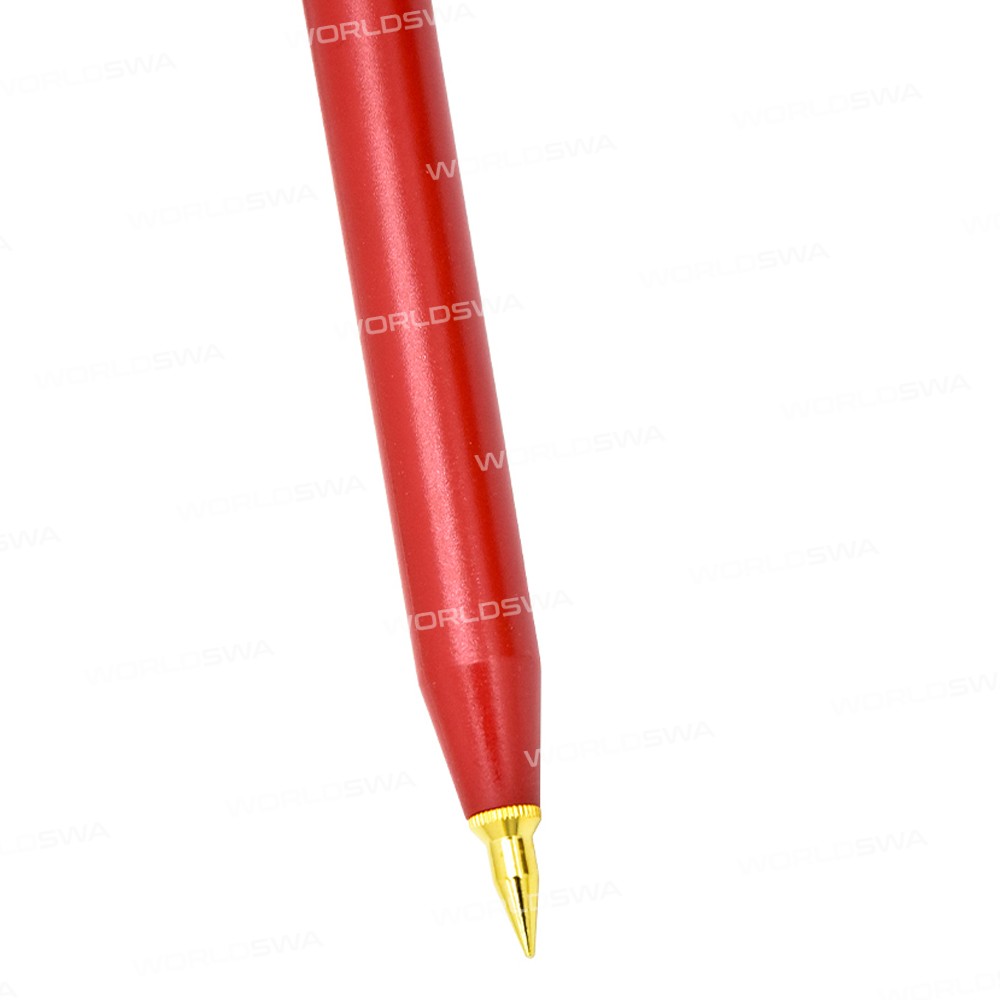

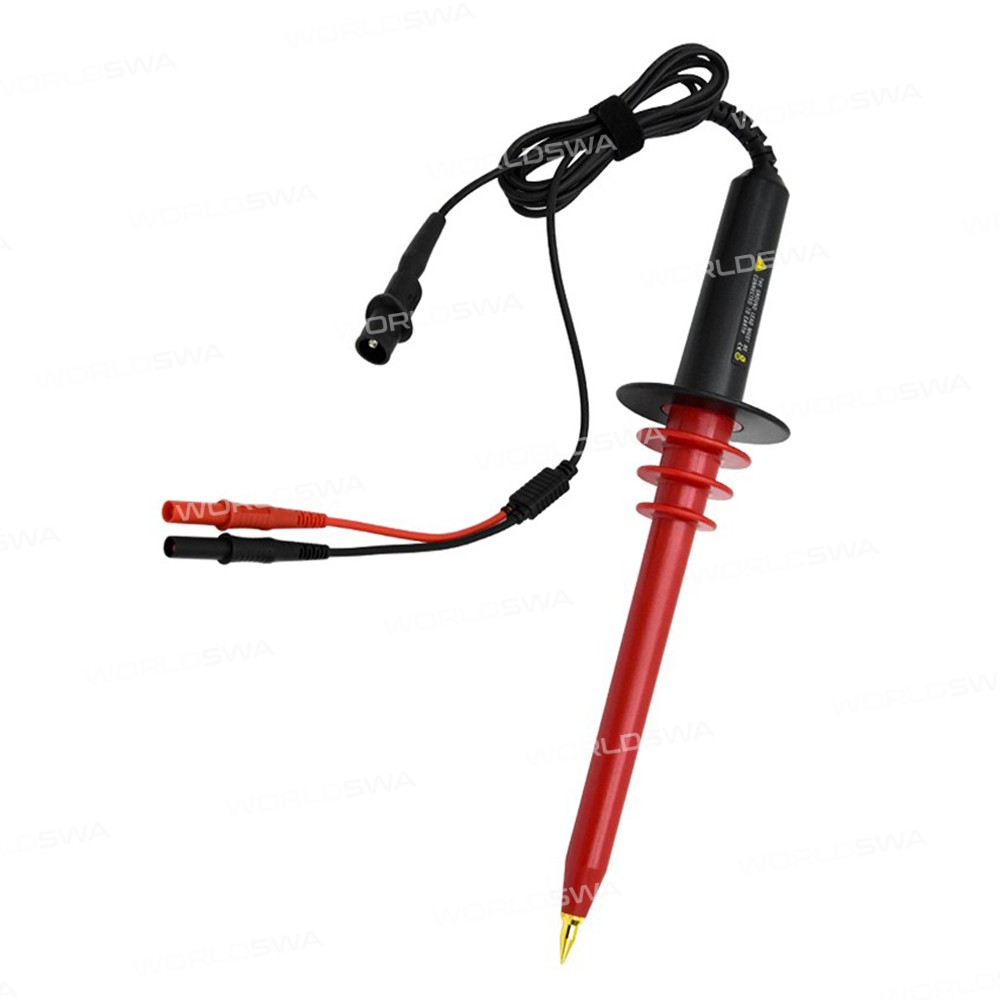

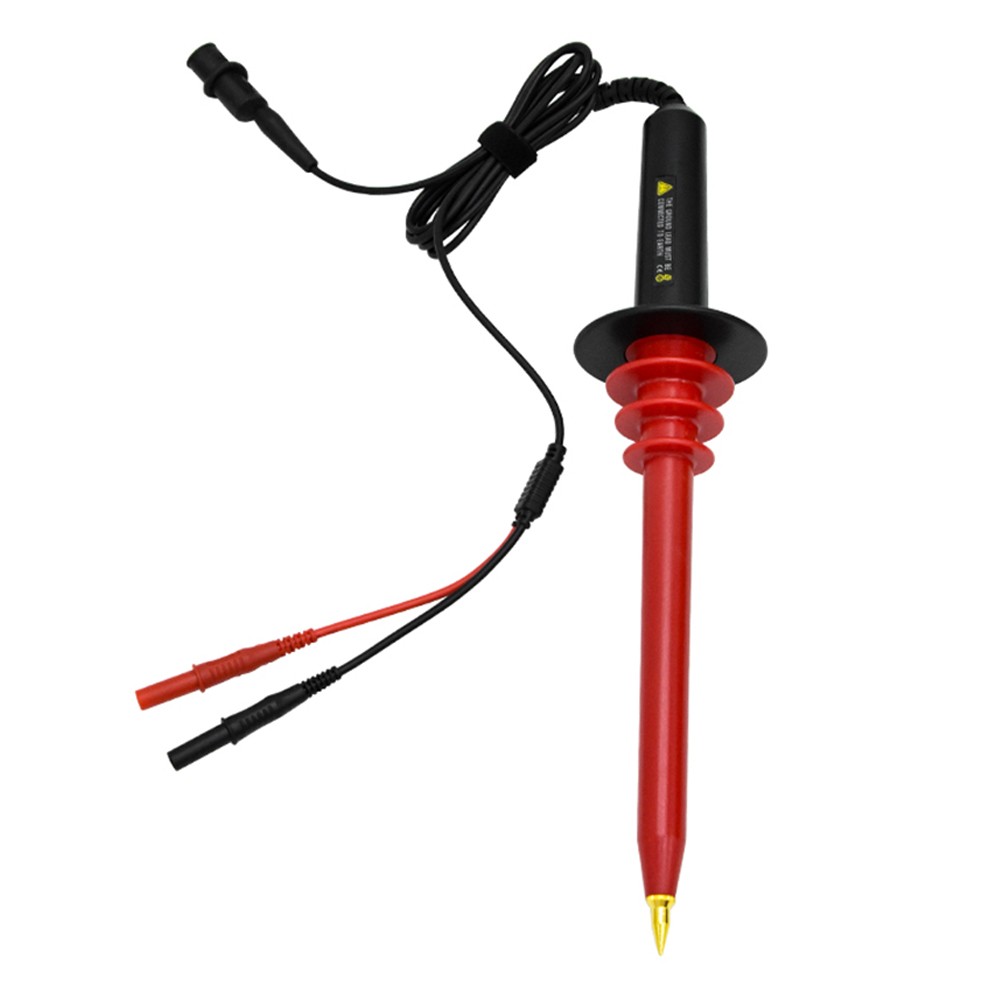

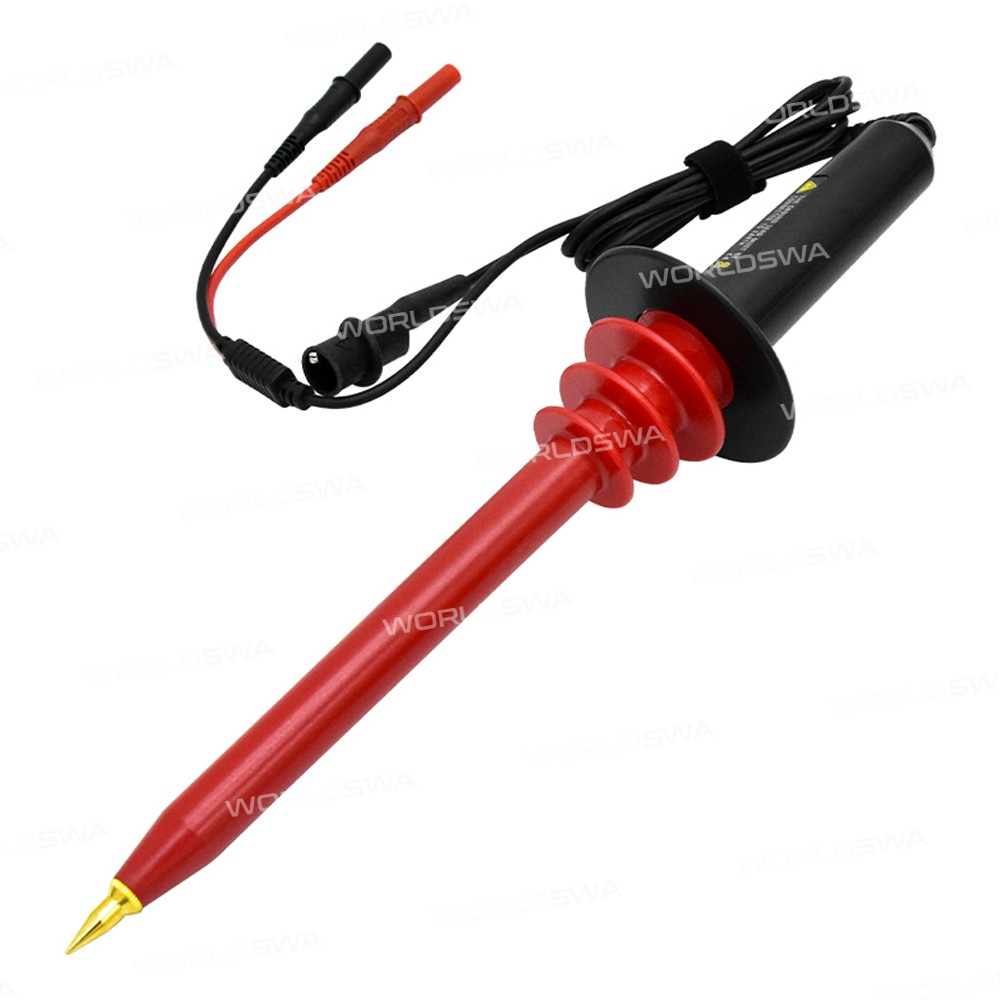

Product Overview

This High Voltage Probe is designed for accurate and safe measurement of high voltage sources up to 40KV. It features a 1000:1 attenuation ratio, 1000MΩ input impedance, and is compatible with digital multimeters with 10MQ input impedance.

Key Features:

• High Voltage Measurement: Up to 40KV DC and 28KV AC (50/60Hz)
• Accurate Readings: ±1% to 20KV, ±2% to 40KV (DC), -5% to -10% at 50-60Hz (AC)
• Safety Certified: EN61010, UL3111-1, TUV-GS IEC1010 CAT II Pollution 2
• Flexible Design: 1.4 meters long, with 90 cm ground wire and 100 cm cable connected to the meter
• Wide Operating Range: Working temperature: 0℃~+50℃, Storage temperature: -20 ℃~+70 ℃
• **Summary:** Accurate and safe high voltage measurement up to 40KV with 1000:1 attenuation ratio and 1000MΩ input impedance.

Technical Specifications:

• Name: High Voltage Probe
• Model: HVP40
• Input impedance: 1000MΩ
• Attenuation ratio: 1000:1
• Maximum test voltage: DC 0-40KV, AC 0-28KV (50/60Hz)
• Polarity: Both positive and negative can be measured
• Accuracy: DC: ±1% to 20KV, ±2% to 40KV/AC: -5% to -10% at 50-60Hz
• Coefficient: 10-5OPF variable
• Size: about 1.4 meters
• Temperature coefficient: ≤200PPM/℃
• Maximum load current: ≤40μA (at 40KV DC)
• Maximum power consumption (heating): ≤1.6 watt
• Working temperature: 0℃~+50℃
• Storage temperature: -20 ℃~+70 ℃
• Ground wire length: 90 cm (3ft)
• Cable length connected to the meter: 100cm (3.3ft)
• Designated connection: digital multimeter with 10MQ input impedance
• Meter output indication: 1000 digits ×, that is, 1V → 1000V / 10V → 10KV
• Size: 340mm(L), 80φ(mm)

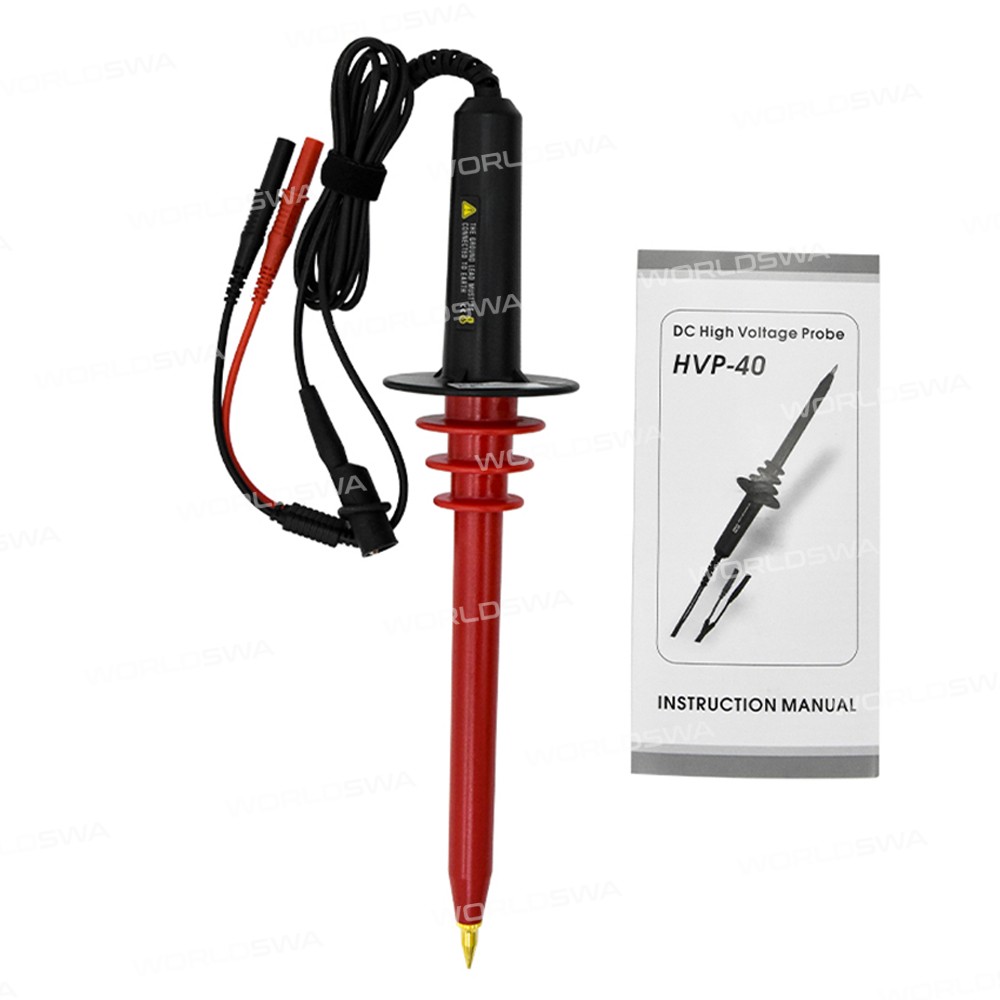

Package Includes:

• 1 x High Voltage Probe
