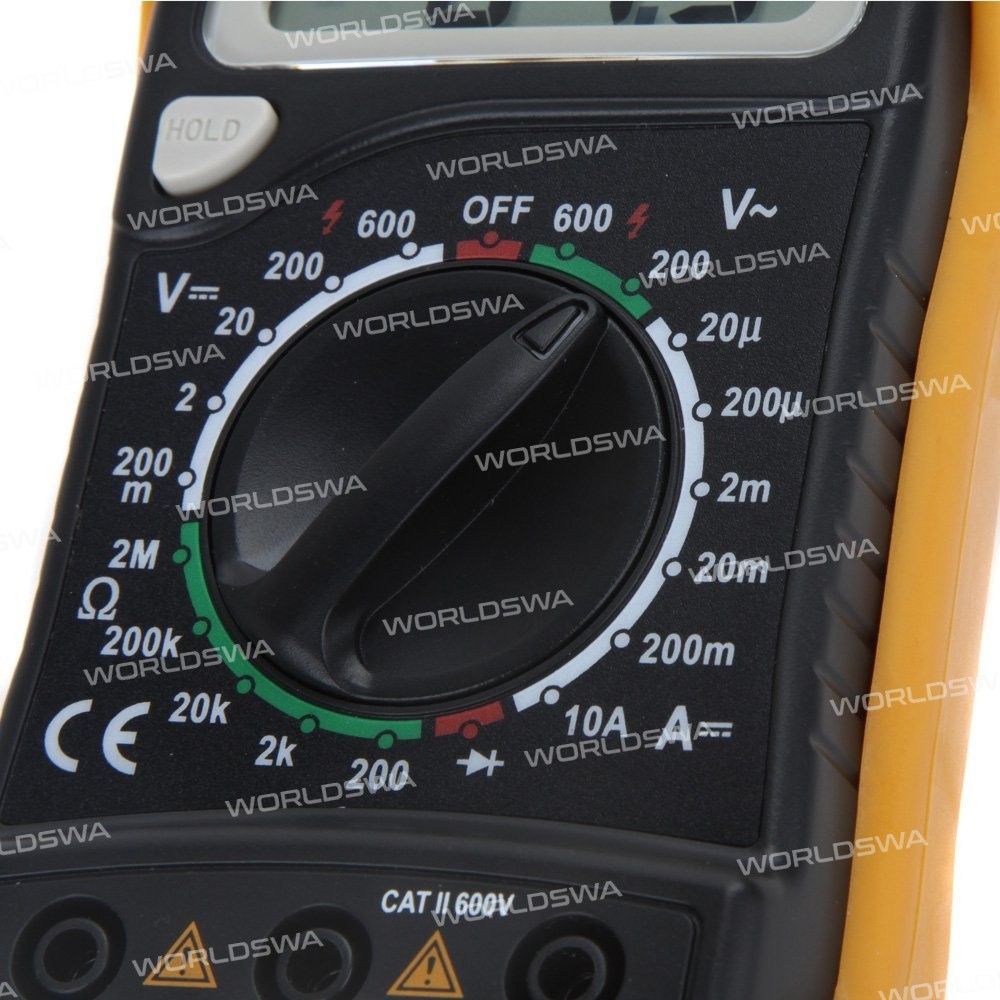

HYELEC MAS830B Digital Multimeter, Multifunction Mini

This handheld 3 1/2 digital multimeter is a compact and reliable instrument, featuring a stable and anti-drop design. It has a clear LCD display with a 15mm height for easy reading.

With its advanced circuit design, this multimeter uses an LSI double integral A/D converter as its core, along with an overload protection circuit. This makes it a superior and handy instrument for measuring various parameters.

Features:

**Measures DC and AC voltage, DC current, resistance, and diodes**

The multimeter has a range of features, including:

• DC Voltage: 200mV/2V/20V/200V ± (0.5%+2)/600V ± (0.8%+2)
• AC Voltage: 200V/600V ± (1.2%+10)
• DC Current: 20μA ± (1.0%+2)/200μA/2mA/20mA ± (1.0%+2)/200mA ± (1.5%+2)/10A ± (3.0%+2)
• Resistance: 200Ω/2kΩ/20kΩ/200kΩ ± (0.8%+2)/2MΩ ± (1.0%+2)
• Display: 2000 Counts
• Data hold: √
• Diode test: √

Technical Specifications:

Power Supply: 9V6F22 Battery
Safety Rating: CE CAT.II600V RoHS
Package Size: 16 * 11 * 5cm / 6.3 * 4.3 * 2.0in
Package Weight: 300g / 10.3 oz

What's in the Box:

Package List:
1 * HYELEC MAS830B Multifunction Mini Digital Multimeter
1 * Test Cable
1 * English Instructions
